Key Features:
World-Class Accuracy & Bandwidth: Delivers superior performance with high accuracy and bandwidth.
Easy-to-Use Touchscreen Operation: Full-color touchscreen for simple setup and configuration.
Affordable Precision: High performance at an affordable price point.
Precision Power Measurement:

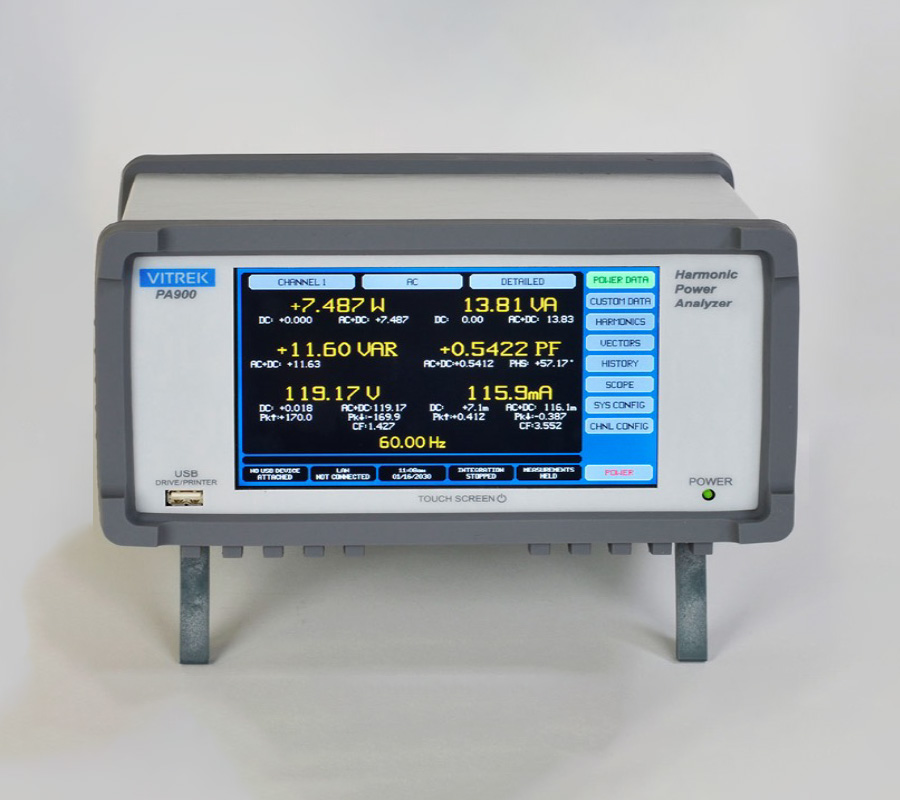

The Vitrek PA900 boasts an impressive array of precision power measurement capabilities, with an easy-to-use color touchscreen interface. It surpasses rival instruments costing triple the price with its world-class accuracy, speed, and bandwidth. The PA900 offers 100 full precision readings per second and measurement bandwidths sufficient to handle 5 MHz waveforms.
Applications:
The PA900 is ideal for a variety of demanding applications, including:
Electronics Manufacturing
Medical Device Testing
Automotive Industry
Aerospace and Defense
Industrial Applications
Design engineers can rely on the PA900 to increase efficiency and reduce product power consumption, making it perfect for applications like LED and HID lighting, solar panel energy output, efficiency testing on inverters, and PWM motor drive systems on electric vehicles.
Advanced Harmonics Measurement:
The PA900 meets advanced power harmonics requirements by displaying up to 500 harmonics even at aviation power frequencies. The user can choose from various display options, such as linear, relative linear, logarithmic, or relative logarithmic amplitudes. Users can also select 8 harmonics for numeric display of amplitude and phase.
Modular Design for Maximum Flexibility:
The PA900 uses a modular design approach to provide the performance you need at a price that meets your budget. A single PA900 chassis holds up to 4 Channels of power measurement in any combination of three different Channel types.
Channel Cards for PA900:
S Type Channel Card: Economical high performance with 0.1% accuracy and bandwidth up to 1.25 MHz.
A Type Ultra-Precision Channel Card: Offers 0.03% accuracy and bandwidth up to 1.25 MHz.
W Type Wideband Channel Card: Handles waveforms up to 5 MHz with precision.
Each of these Channel cards is available with different current input options to suit various measurement needs:
D Current Input Option: Dual Shunt system with 0.1 micro-amp resolution on the 1 amp range up to 20 amps rms.
H Current Input Option: High current measurements from 10 micro-amp resolution up to 30 amps rms.
X Current Input Option: Optimized for external shunts and current transducers.
Available Models:
PA901AD: Single High Accuracy AD Channel Card.
PA902AD: Two High Accuracy AD Channel Cards.
PA903AD: Three High Accuracy AD Channel Cards.
PA904AD: Four High Accuracy AD Channel Cards.
Options & Accessories:
ISO-CALN-C1: ISO 17025 accredited certificate of calibration per Channel Card.
LD Channel Card: Dual Current Shunt Input.
LH Channel Card: High Current Shunt Input.
LX Channel Card: External Current Transducer Input.
MT Channel Card: Motor Transducer.
GP-900: GPIB Interface.
USB-1: USB A to B Cable 6ft.
RM-7: Rack Mount Kit.
HC-7X: Hard Carrying Case.
LPA-1: Universal Line Power Adaptor.
WX Channel Card: External Current Transducer Input.
WH Channel Card: High Current Shunt Input.
WD Channel Card: Dual Current Shunt Input.
AX Channel Card: External Current Transducer Input.
AH Channel Card: High Current Shunt Input.
AD Channel Card: Dual Current Shunt Input.
SX Channel Card: External Current Transducer Input.
SH Channel Card: High Current Shunt Input.
SD Channel Card: Dual Current Shunt Input.
LX Channel Card: External Current Transducer Input.
LH Channel Card: High Current Shunt Input.
LD Channel Card: Dual Current Shunt Input.
