Key Features:
Direct Measurement Capability: Measures up to 10KV DC or RMS AC directly.
Extended Range with SmartProbes™: Extend measurement range up to 35KV, 70KV, 100KV, and 140KV with HV SmartProbes™.
DSP Technology: Ensures exceptional AC & DC voltage accuracy, stability, and resolution.
Portable and Rugged: Compact benchtop enclosure for easy transportation and durability.
Advanced Display and Analysis:

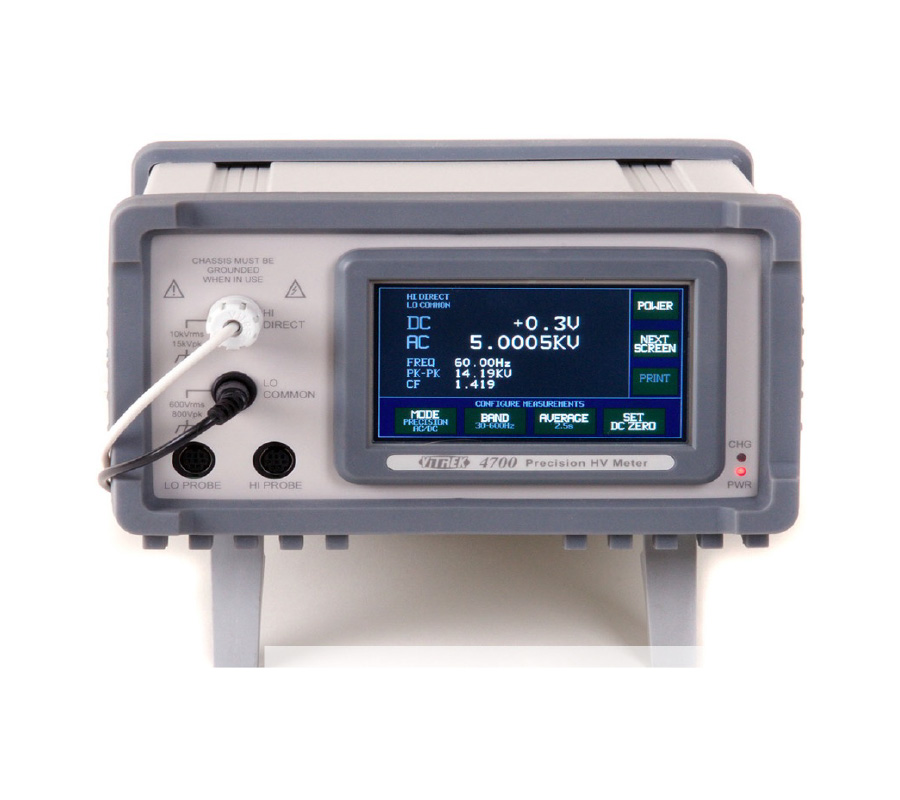

The 4700’s large, high-resolution color touchscreen simultaneously shows the AC and DC content of the voltage being measured and can plot readings from a few seconds to several days.
Direct Measurement or HV SmartProbe™:
Direct Measurement: Precisely measures voltages up to 10KV directly out of the box, without external probes.
HV SmartProbes™: Extend high voltage measurement range with 35KV, 70KV, 100KV, and 150KV SmartProbes™, each storing their own calibration data for high accuracy, calibrated readings. Compatible with any 4700 High Voltage Meter.
Superior Performance by Design:
High-Accuracy Readings: Over 40,000 readings per second, filtered, sub-sampled, scaled, and offset corrected with error-free methodology.
True RMS AC and DC Measurements: True RMS AC readings and fast, stable DC measurements.
VLF AC Readings: Down to 0.01 Hz, along with peak-to-peak, crest factor, and fundamental frequency measurement.
High Input Impedance Options: Available G series probes for electrostatic voltmeter applications.
High Voltage Test Automation:
Automation Feature: Built-in Ethernet port, high-speed serial communication port, and available GPIB for automated HV test requirements.
Fully Programmable: Select measurement mode and bandwidth, and take readings as often as desired.
USB Printer Port: Capture readings and get hardcopy printouts of HV plots.
Available ISO 17025 Accredited Calibration:
The 4700 and probes come with an ISO 17025 accredited calibration certificate with data at no charge. Vitrek is accredited to ISO 17025 by A2LA, ensuring high accuracy for annual calibrations.
Available Models and Accessories:
4700 Series High Voltage Meter
4700: Precision High Voltage Meter offering the highest level of measurement accuracy with a user-friendly color touch screen.
4700 Series High Voltage SmartProbes
HVL-35: Bench top high voltage probe extending measurement range up to 35KV.
HVL-35G: High impedance bench top probe for electrostatic voltmeter applications.
HVL-70: Bench top high voltage probe extending measurement range up to 70KV.
HVL-70G: High impedance bench top probe for electrostatic voltmeter applications.
HVL-100: Bench top high voltage probe extending measurement range up to 100KV.
HVL-100G: High impedance bench top probe for electrostatic voltmeter applications.
HVL-150: Bench top high voltage probe extending measurement range up to 140KV.
HVP-35: Handheld high voltage probe extending measurement range up to 35KV.
4700 Series High Voltage Meter Accessories
HC-100: Durable hard shipping/carrying case for 4700 and accessories.
HC-3570: Hard shipping/carrying case for 4700 and accessories.
PB-47: Replacement test lead kit.
RM-47D: Rack mount kit for 4700.
GP-1: Shielded GPIB cable.
RS-2: Null Modem RS232 cable.
USB-2: USB A to RS232 adapter cable.
USB-1: USB A to B cable.
GP-47: Adds GPIB interface to 4700.
BP-47: Internal lithium-ion battery pack.
RM-47: Rack mount kit for 4700.
HVP-35: Handheld high voltage probe.
TL-47: Replacement test lead kit.
HC-47: Hard shipping/carrying case for 4700 and accessories.
