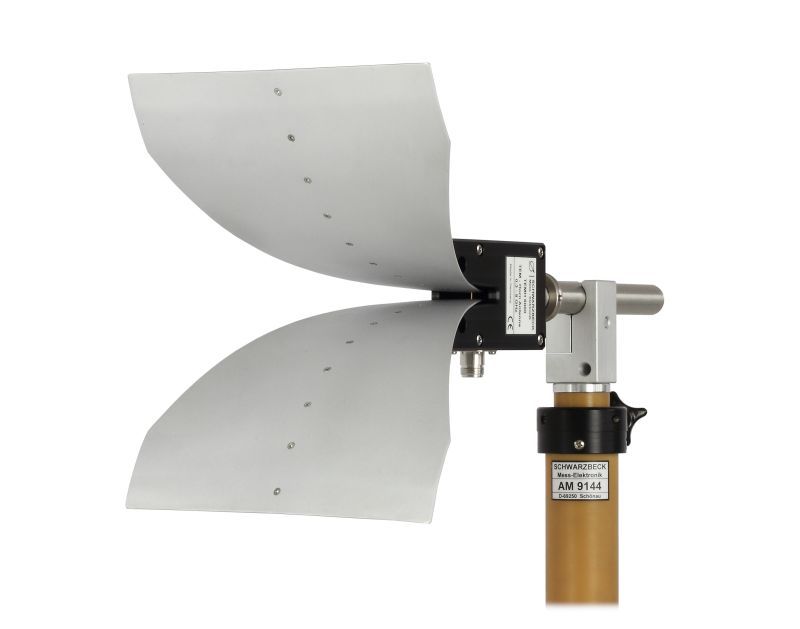

TEMH 6000 – Broadband TEM Horn Antenna
Linear polarized Broadband TEM Horn Antenna (Aluminium) for receive and transmit applications, especially for generating radiated fields in close proximity immunity tests and UWB (ultra wideband) measurements. A typical application is the IEC 61000-4-39 standard.
| Nominal Frequency Range: | 380 MHz – 6 GHz |
| Usable Frequency Range: | 300 MHz – 8 GHz |
| Polarisation: | linear |
| Pattern Type: | directional |
| Material: | Aluminium |
| Max Power: | 300 W |
| Connector: | N – female |
| Impedance: | 50 Ω nominal |
| Length: | 300 (500) mm |
| Width: | 260 mm |
| Height: | 210 mm |
| Weight: | 1.4 kg |
| Mounting: | 22 mm Tube |
| Optional Accessories: | Spacer 100 |
