DC-DC Converter

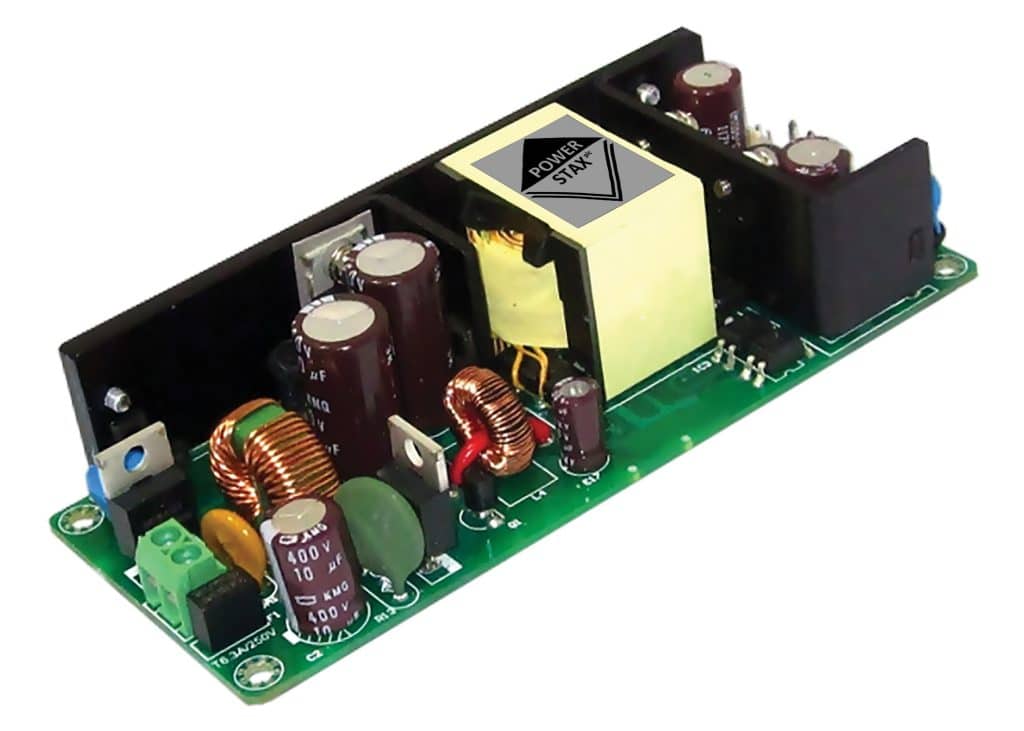

The new Powerstax ND0111 DC to DC converter is suited to a wide range of tasks and in particular for rolling stock, providing full isolation for primary as well as secondary from ground.
The Powerstax ND0111 provides 12 volt DC output for a range of input voltages from 30 to 120 volt DC, and with a very high efficiency of typically 90%.
Convection cooling applies for a 90 watt continuous rating and fan cooling for the 110 watt rating.
The Powerstax ND0111 DC to DC converters are characterised by a very compact footprint 2” x 5” (50.8 mm x 127 mm).
Reversed input protection and low inrush current provide a high degree of ruggedness.
The Powerstax ND0111 meets EN501555, EN60950-1, and EN55022, as well as safety standards UL/EN/IEC60601, and IEC60571.
Voltage isolation is up to 1500 volts rms on both input and output, and 500 volts DC to ground on both input and output.
Protection features include overload and short circuit (hiccup mode with auto recovery). For further information, please contact us on 1800WESTEK or click on the link below to lodge an enquiry.
