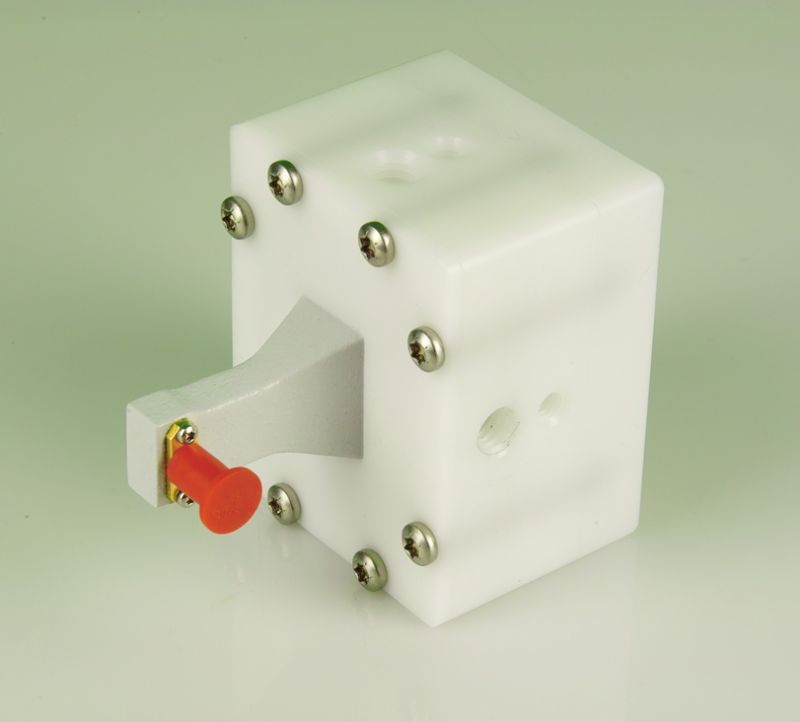

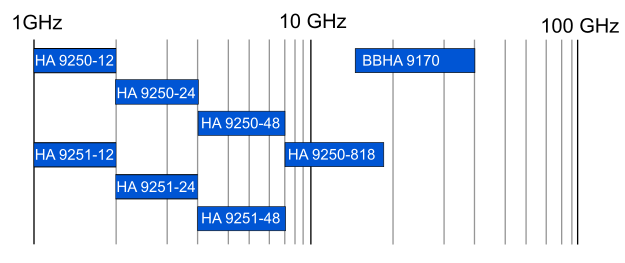

BBHA 9170 – Broadband Horn Antenna
Linear polarized Broadband Horn Antenna (Brass with Plastic mounting body) for Receive and Transmit Applications.
| Nominal Frequency Range: | 15 – 26.5 GHz |
| Usable Frequency Range: | 14 – 40 GHz |
| Gain: | 15-20 dBi |
| Antenna Factor: | 38-45 dB/m |
| Nominal Impedance: | 50 Ω |
| Max. Input Power: | 10 W (cont.) |
| 25 W (peak) | |
| VSWR: | typ. 2 |
| 3 dB Beamwidth E-plane: | 13°-21° |
| 3 dB Beamwidth H-plane: | 14°-23° |
| Material: | Aluminium |
| Dimensions: | 75 x 86 x 60 mm |
| Mounting Threads: | 3/8″, 1/4″ |
| Weight: | 0.3 kg |
| Connector: | SMA-compatible female |
HA 9250-12 – Standard Horn Antenna
Linear polarized standard gain horn antenna with coaxial 7/16 connector for highest power handling.
| Frequency Range: | 1 – 2 GHz |
| Gain: | ≈ 20 dBi |
| Antenna Factor: | 11…17 dB/m |
| Front to Back Ratio: | typ. > 27 dB |
| Max. Input Power: | 1.8 kW (1 GHz) |
| 1.2 kW (2 GHz) | |
| VSWR: | typ. < 1.5 |
| 3 dB Beamwidth E-plane: | 16 ° |
| 3 dB Beamwidth H-plane: | 15 ° |
| Housing Material: | Aluminium |
| Dimensions: | 1.3 x 0.98 x 1.9 m |
| Mounting Threads: | 3/8″, 5/8″ |
| Weight: | 27 kg |
| Connector: | 7/16 |

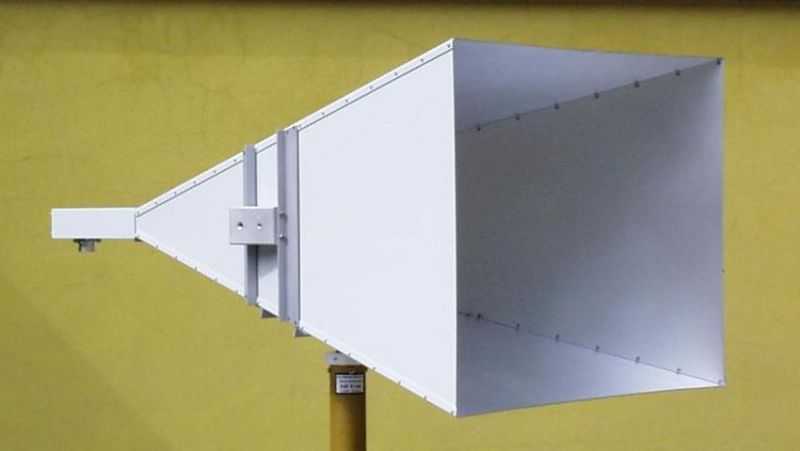

HA 9250-24 – Standard Horn Antenna
Linear polarized standard gain horn antenna with coaxial 7/16 connector for highest power handling.
| Frequency Range: | 2 – 4 GHz |
| Gain: | ≈ 20 dBi |
| Antenna Factor: | 17…21 dB/m |
| Front to Back Ratio: | typ. > 27 dB |
| Max. Input Power: | 2 kW (2 GHz) |
| 1 kW (4 GHz) | |
| VSWR: | typ. < 1.5 |
| 3 dB Beamwidth E-plane: | 16 ° |
| 3 dB Beamwidth H-plane: | 15 ° |
| Material: | Aluminium |
| Dimensions: | 600 x 446 x 952 mm |
| Mounting Threads: | 3/8″, M10 |
| Weight: | 5.8 kg |
| Connector: | 7/16 |

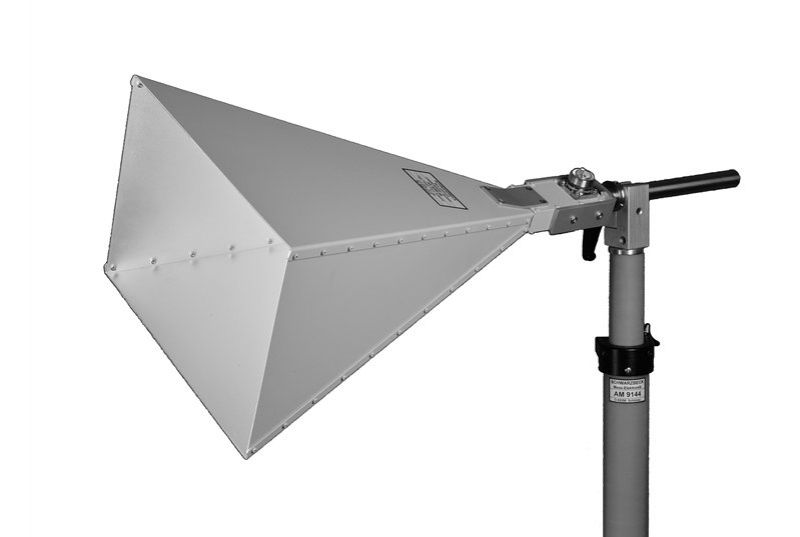

HA 9250-48 – Standard Horn Antenna
Linear polarized standard gain horn antenna with coaxial connector.
| Frequency Range: | 4 – 8 GHz |
| Gain: | ≈ 20 dBi |
| Antenna Factor: | 23…30 dB/m |
| Front to Back Ratio: | typ. > 27 dB |
| Max. Input Power: | see diagram |
| VSWR: | typ. < 2 |
| 3 dB Beamwidth E-plane: | 16 ° |
| 3 dB Beamwidth H-plane: | 15 ° |
| Material: | Aluminium |
| Dimensions: | 226 x 303 x 695 mm |
| Mount: | tube 22 x 200 mm |
| Weight: | 1.7 kg |
| Connector: | N, |
| opt. 7/16 (f<7.5 GHz) |

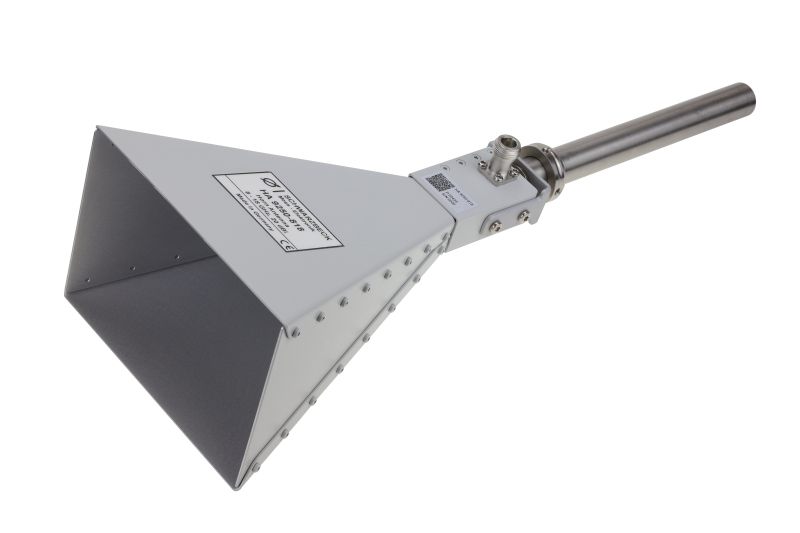

HA 9250-818 – Standard Gain Horn Antenna
The linear polarized standard gain antenna comes with a female N-connector for highest power handling. This antenna type is mainly characterized by nearly constant high gain, high directivity and octave bandwidth. Main applications are immunity tests with high fieldstrength requirements or receive applications with high sensitivity.
| Frequency Range: | 8 – 18 GHz |
| Gain: | typ. 20 dBi |
| Antenna Factor: | typ. 29 – 37 dB/m |
| Nominal Impedance: | 50 Ω |
| Continuous Power: | 300 W |
| VSWR: | typ. <2 |
| 3 dB Beamwidth E-plane: | typ. 15 ° |
| 3 dB Beamwidth H-plane: | typ. 16 ° |
| Housing Material: | Aluminium |
| Housing Dimensions: | 156 x 115 x 240 mm |
| Mounting: | D = 22 mm, L = 200 mm |
| Weight: | ca. 0.7 kg |
| Connector: | N |

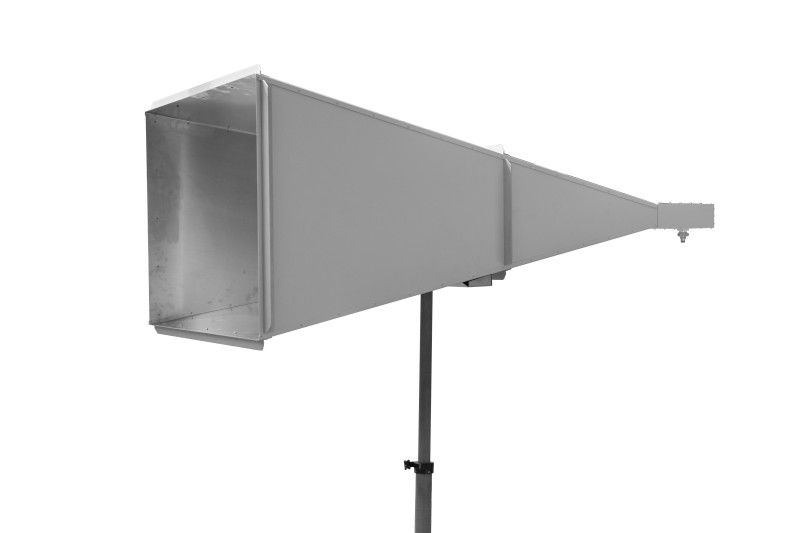

HA 9251-12 – Standard Horn Antenna
Linear polarized standard gain horn antenna with coaxial 7/16 connector for highest power handling.
The antenna was designed to generate highest fieldstrength at 1 m distance.
| Frequency Range: | 1 – 2 GHz |
| Gain: | ≈ 19 -22 dBi |
| Antenna Factor: | 12…15 dB/m |
| Front to Back Ratio: | typ. > 27 dB |
| Max. Input Power: | 10 kW |
| VSWR: | typ. < 1.5 |
| 3 dB Beamwidth E-plane: | 17 ° @ 1 GHz |
| 13 ° @ 1.5 GHz | |
| 11 ° @ 2 GHz | |
| 3 dB Beamwidth H-plane: | 19 ° @ 1 GHz |
| 14 ° @ 1.5 GHz | |
| 16 ° @ 2 GHz | |
| Housing Material: | Aluminium |
| Dimensions: | 0.72 x 0.96 x 1.84 m |
| Mounting Threads: | 3/8″, M12 |
| Weight: | 18 kg |
| Connector: | 7/16 |
HA 9251-24 – Standard Horn Antenna
Linear polarized standard gain horn antenna with coaxial 7/16 connector for highest power handling.
The antenna was designed to generate highest fieldstrength at 1 m distance.
| Frequency Range: | 2 – 4 GHz |
| Gain: | ≈ 17-20 dBi |
| Antenna Factor: | 19…23 dB/m |
| Front to Back Ratio: | typ. > 27 dB |
| Max. Input Power: | 2 kW (2 GHz) |
| 1 kW (4 GHz) | |
| VSWR: | typ. < 1.5 |
| 3 dB Beamwidth E-plane: | 17° @ 2 GHz |
| 13° @ 3 GHz | |
| 11° @ 4 GHz | |
| 3 dB Beamwidth H-plane: | 19° @ 2 GHz |
| 14° @ 3 GHz | |
| 16° @ 4 GHz | |
| Material: | Aluminium |
| Dimensions: | 325 x 445 x 965 mm |
| Mounting Threads: | 3/8″, M12 |
| Weight: | 5.6 kg |
| Connector: | 7/16 |

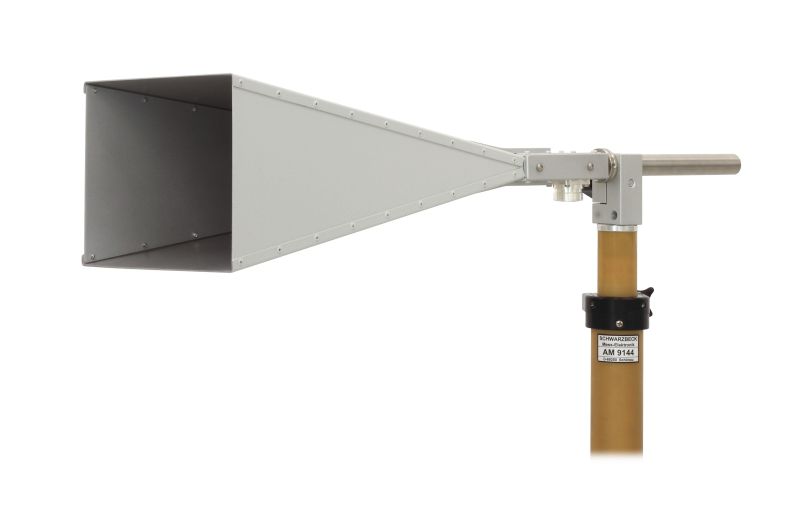

HA 9251-48 – Standard Horn Antenna
Linear polarized standard gain horn antenna with coaxial connector.
| Frequency Range: | 4 – 8 GHz |
| 7/16 Connector: 4 – 7.5 GHz | |
| Gain: | ≈ 17-21 dBi |
| Antenna Factor: | ≈ 25-28 dB/m |
| Front to Back Ratio: | typ. > 27 dB |
| Max. Input Power: | see diagram |
| VSWR: | typ. < 1.5 |
| 3 dB Beamwidth E-plane: | 21° @ 4 GHz |
| 14° @ 6 GHz | |
| 12° @ 8 GHz | |
| 3 dB Beamwidth H-plane: | 22° @ 4 GHz |
| 16° @ 6 GHz | |
| 13° @ 8 GHz | |
| Material: | Aluminium |
| Dimensions: | 492 x 164 x 224 mm |
| Mounting: | Tube 22 mm |
| Weight: | 1.6 kg |
| Connector: | N, 7/16 (f<7.5 GHz) |
