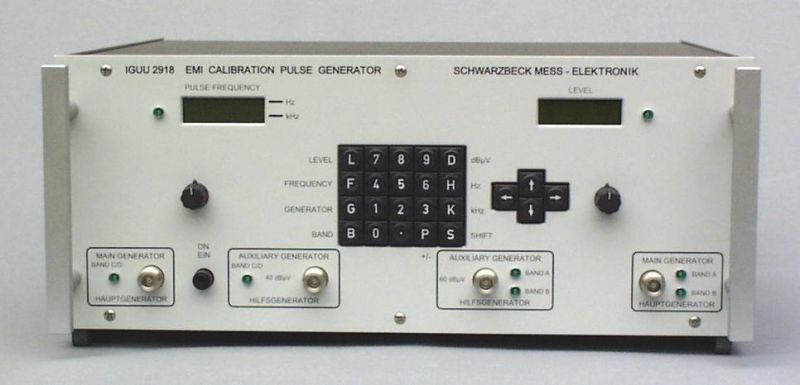

IGUU 2918
Calibration-Pulse Generator
acc. CISPR 16
for Band A, B, C, D
(9 kHz-1000 MHz)
To calibrate the pulse
response of EMI receivers.
Pulse repetition frequency main generator 0.1 – 200 Hz (aux. generator up to 1 MHz) with IEEE-488 Interface.
Difference between IGUU 2918 and IGUU 2916
Options:
Opt. RecTest Softw.
Receiver Test Software for IGUU 2916 or 2918 signal generator and EMI-receiver to perform an automatic calibration of an EMI receiver acc. to CISPR 16-1-1.
Datasheet IGUU 2918 Opt. RecTest Softw
Opt. KU 9618
Coaxial Switching Unit for automatic performance tests with IGUU 2918, N-Connectors female. Datasheet IGUU 2918 Opt. KU 9618
IGUF 2910
Battery driven High Power Pulse Generator
Pulse Repetition Frequency 300 Hz
weighted CISPR Level 80 dbµV
(Quasipeak, 120 kHz IF-BW)
Broad band signal source
up to 300 (1000) MHz
w. 0.5 ns Pulses of 300 V at 50 Ohm
LGA 9802
Automatic Charging Unit 230 V for IGUF 2910

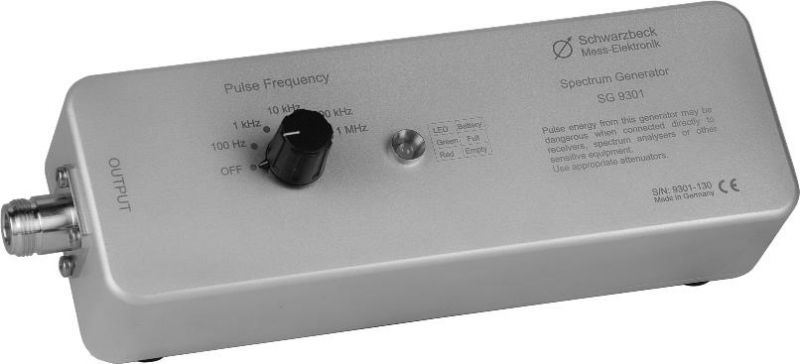

SG 9301
Spectrum Generator
30-1000 MHz
spectrum lines switchable 100 Hz – 1 MHz
N-female connector
charger ACS 110 required
main application:
reference radiator (antenna required e.g. UBAA 9114 with BBVU 9135)

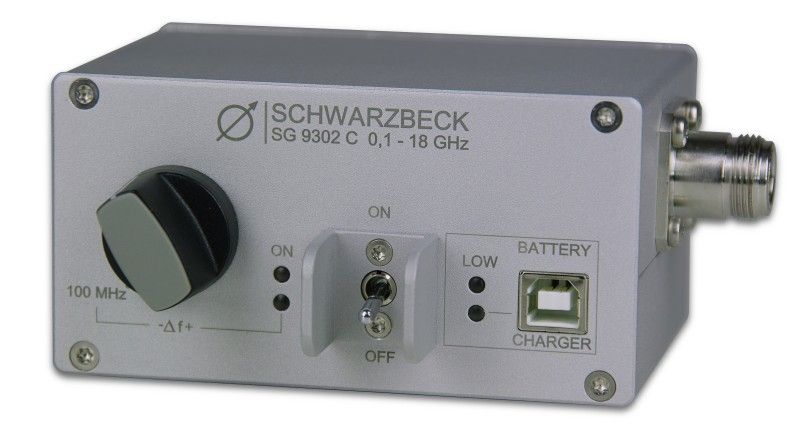

SG 9302 C
The comb-generator SG 9302 C produces a frequency spectrum consisting of lines with 100 MHz spacing up to 18 GHz. In combination with an antenna it can be used as an emission source for testing open area test sites, anechoic chambers or GTEM-cells. Single components like measuring receivers, spectrum analysers, cables and attenuators can be tested as well.
| Frequency range: | 0.1 – 18 GHz |
| Frequency error: | ±1.5×10-6 (-20°C – +70°C) |
| Connector: | N, 50 Ω |
| Dimension BxHxT: | 105 x 80 x 130 mm |
| Typ. operation time: | 8 h |
| Power supply: | 3.7 V, 2.6 Ah LiOn |
| Weight (incl. battery): | 430 g |

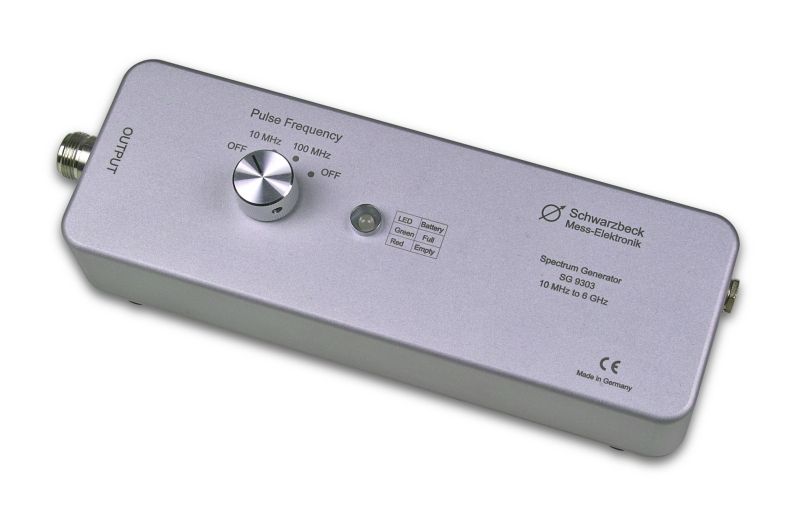

SG 9303 – Comb Generator, 6 GHz
The comb generator SG 9303 is battery powered. It provides a frequency comb up to more than 8 GHz. The spacing between the spectral lines can be switched between 10 MHz and 100 MHz. A quartz crystal provides accurate frequencies. Due to its handy size and little weight as well as the mains independent power supply the SG 9303 is a great reference radiation source. In conjunction with a transmit antenna the comb generator plays the role of an artificial reliable EuT, while the rest of the fieldstrength measurement setup, consisting of receive antenna, cable, preamplifier and receiver or spectrum analyzer can be verified.
The SG 9303 is also suitable to check the functionality of EMI test receiver or spectrum analyzers. Cables and attenuators can also be tested.
| Frequency range: | 1 GHz – 6 GHz |
| Usable Frequency range: | 10 MHz – 8 GHz |
| Puls duration at 10 MHz: | ca. 60 ns |
| Puls duration at 100 MHz: | ca. 7 ns |
| Puls frequencies: | 10 MHz, 100 MHz |
| Connector: | N female 50 Ω |
| Frequency error: | typ. 20 ppm |
| Operating time: | 8 h |
| Weight: | 690 g |
