Schloder Surge Generators

Schloder surge generators provide reliable and comprehensive testing solutions for high-energy interference pulses, ensuring compliance with global EMC standards and enhancing the durability and reliability of your electronic and electrical systems.
In operation, electronic and electrical devices, systems, and installations must not be impaired by surge voltages. Surge voltages, such as atmospheric discharges (lightning strikes), short circuits, or significant switching overvoltages (switching capacitor banks), involve currents in the kV / kA range and rise times in the microsecond range. These voltages can exhibit a broadband spectrum up to several MHz. During surge testing, these high-energy voltages are simulated by surge generators to test their impact on devices in accordance with IEC 61000-4-5.

Applications:

Atmospheric discharges (lightning strikes)
Short circuits
Switching overvoltages (e.g., switching capacitor banks)

Advantages of Using Schloder Surge Generators:

Comprehensive EMC Testing: Ensure devices meet IEC 61000-4-5 standards, protecting against high-energy surges.
User-Friendly Design: Intuitive interfaces and memory functions simplify testing procedures.
Durable and Reliable: High-quality components ensure long-lasting performance and reliability.
Versatile and Modular: The modular design of systems like the PSURGE 30.2 allows for a wide range of testing applications and easy customization.

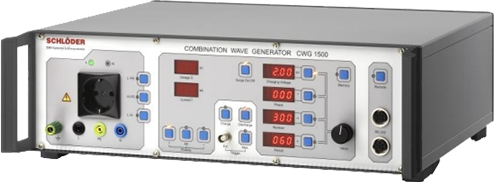

Surge / Hybrid Generator CWG 1500:

Description: The CWG 1500 test generator is a combined surge current and voltage generator that realistically simulates high-energy interference pulses. It enables EMC tests on systems and equipment per IEC / EN 61000-4-5.

Key Features:

Open circuit voltage: 0.2 – 4.4 kV
Short circuit current: 0.1 – 2.2 A
Standard impulse voltage waveform: 1.2 / 50 碌s
Standard impulse current waveform: 8 / 20 碌s
Charging time: < 10 sec
Memory function: Up to 32 memories
BNC outputs for current and voltage measurement
Single-phase integrated coupling network
Optional remote control via PC with EMC software
Weight: Approx. 18 kg

Benefits:

Durable high-quality components
User-friendly with preselectable parameters and easy memory access
Compliance with EMC standards ensuring device reliability

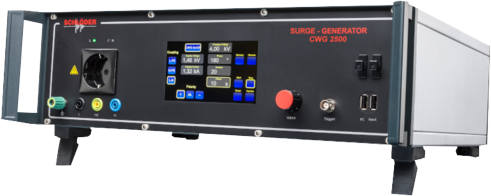

Surge / Hybrid Generator CWG 2500:

Description: The CWG 2500 test generator simulates high-energy interference pulses suitable for EMC tests on systems and installations as per IEC / EN 61000-4-5.

Key Features:

Open circuit voltage: 0.2 – 4.4 kV
Short circuit current: 0.1 – 2.2 A
Capacitive color touch display
Measurement “U” and “I” during pulse triggering
USB and optional optical interface
Memory function: Up to 32 memories
Single-phase integrated coupling network
Optional remote control via PC with EMC software
Weight: Approx. 18 kg

Benefits:

Easy and intuitive operation with a capacitive color touch display
Fast parameter changes using a digital rotary encoder
Durable with high-quality components ensuring long-term reliability

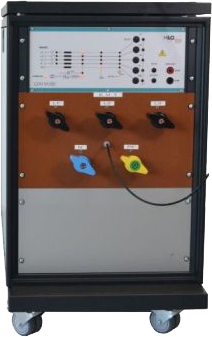

Modular Test System PSURGE 30.2:

Description: The PSURGE 30.2 system is designed to perform high-energy overvoltage tests suitable for various standards, including Combination Wave IEC / EN 61000-4-5 and safety tests like IEC 61010.

Key Features:

Supports up to four pulse shapes
Pulse voltage: Up to 30 kV
Pulse current: Up to 30 kA
Automatic polarity switching
Monitoring of peak voltage and peak current
Integrated large test cabin
Remote control option with WinPATS software

Benefits:

Quick exchange of pulse modules for different applications
Safe operation with locked test cabinets and clear warning lights
Efficient setup and operation with optional remote control

Schloder Surge Generators
