Key Features:
Harmonic Reduction: Effectively reduces harmonics on the mains side, improving power quality and system performance.
Commutation Notch Reduction: Minimizes commutation notches, ensuring smoother operation of electrical equipment.
Inrush Current Limitation: Limits inrush current, protecting your system from sudden surges and extending the life of electrical components.
Mains Disturbance Mitigation: Provides a reliable solution for mitigating mains disturbances, enhancing overall system reliability.
Economical Solution: Offers a cost-effective approach to improving power quality and protecting sensitive electronics.
Benefits:
Enhanced System Reliability: Ensures the reliability and performance of electrical consumers by reducing harmonics and mitigating disturbances.
Power Quality Compliance: Helps meet international power quality standards, ensuring compliance and optimal system operation.
Protection Against Transients: Shields motor drive electronics and DC link capacitors from mains transients, preventing damage and extending service life.
Inrush and Peak Current Reduction: Reduces inrush and peak currents, improving system stability and reducing the risk of equipment failure.
Improved Conducted LF Immunity: Enhances immunity to low-frequency conducted disturbances, preventing nuisance tripping and ensuring continuous operation.
True Power Factor Improvement: Improves true power factor, leading to more efficient energy use and reduced operational costs.
Specifications:
Rated Operating Voltage: 3x 340 to 530 VAC
Rated Currents: 1.76 to 1010 A @ 45C
Impedance: 4% @ 400 V, 50 Hz and rated RMS current
Enclosure: Available in IP00 configuration only
Typical Applications:
Motor Drives: Ideal for protecting and enhancing the performance of motor drives in various applications.
HVAC Systems: Ensures reliable operation and extended service life of HVAC equipment.
Robotics: Enhances the performance and reliability of robotic systems by mitigating harmonics and transients.
Machinery: Suitable for a wide range of machinery, providing protection against power quality issues.
Process Automation: Ensures smooth and reliable operation of process automation equipment.

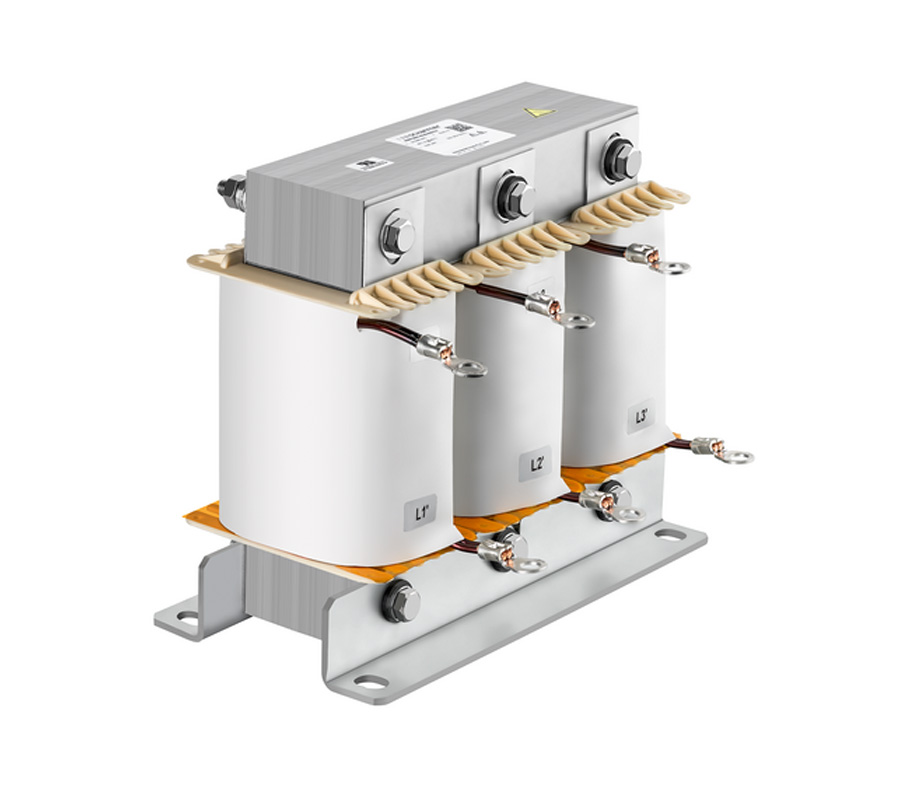

Why Choose Schaffner RWK3044 Series 3-Phase Line Reactors?
Reliability: Delivers reliable performance, protecting your equipment and ensuring continuous operation.
Cost-Effective: Provides an economical solution for power quality improvement and equipment protection.
Compliance: Helps you meet international power quality standards, ensuring compliance and optimal system performance.
Versatility: Suitable for a wide range of applications, from HVAC and robotics to machinery and process automation.
