Key Features:
Frequency Range: 10 Hz – 18 GHz (with extensions)
Compliance: CISPR 16-1-1 and MIL-STD-461
Measurement Speed: Significantly reduces test time from hours to seconds using FFT analysis.
Design: Compact, lightweight, and battery-operated for field tests.
User-Friendly: Easy firmware and software upgrades via the web, powerful PC software included.
Modular Expansion: Can be expanded on-field for radiated full compliance testing up to 18 GHz.
Advanced Design:

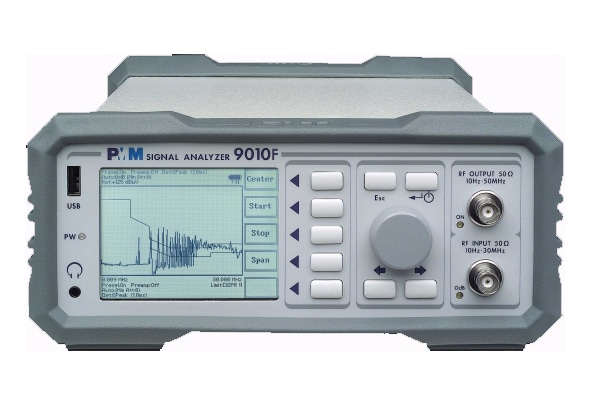

The 9010F combines state-of-the-art digital hardware with user-friendly operation, allowing for efficient focus on measurement results. Its revolutionary design offers:
Fast Fourier Transform (FFT) Analysis: Ensures rapid and accurate EMI measurements.
Digital Technology: Provides high reliability and reduced recalibration costs.
Built-in LISN: For accurate conducted emission measurements.
Applications:
Electric Tools and Appliances: Ideal for testing EUTs with short operation cycles.
EMC Laboratories: Increases productivity by cutting down test times.
On-Site Measurements: Suitable for overhead line measurements and radiocommunication interference assessments.
Frequency Extension Modules:
Enhance the 9010F’s capabilities with the following modules:
9030: 30 MHz – 3 GHz
9060: 30 MHz – 6 GHz
9180: 6 GHz – 18 GHz
These modules offer connect-and-go operation, internal preselectors, preamplifiers, and auto-attenuators for improved measurement accuracy and dynamic range.
