HFRA 1356
The HFRA 1356 is a passive loop antenna which is matched to a resonance frequency of 13.56 MHz with typ. 350 kHz bandwidth (-3dB)
The purpose of the antenna is to produce defined magnetic fields at 13.56 MHz efficiently, i.e. to test near field communication devices (NFC) or RFID equipment.
NFC issues are described in the standards ISO 18092, ECMA 340, ETSI TS 102 190.
diam. 250 mm
2 turns
BNC – connectors
16 W

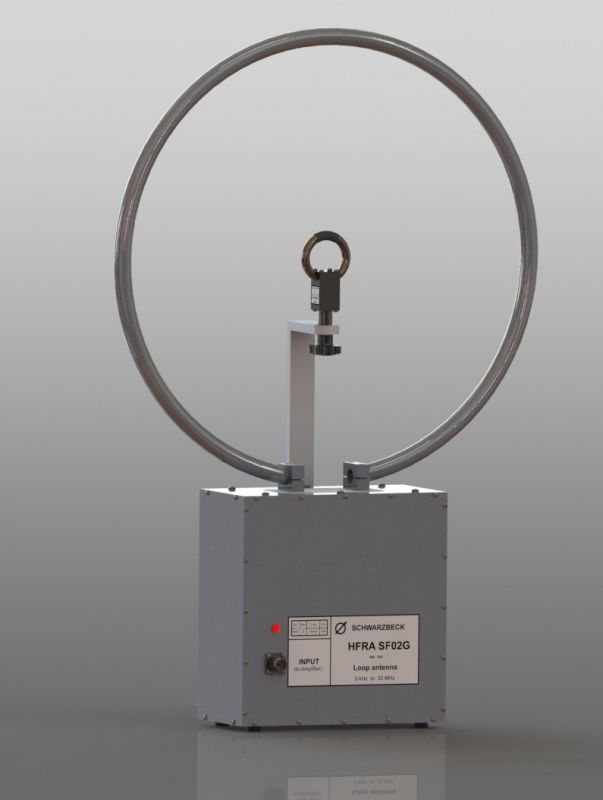

HFRA SF02G
Tuneable resonant magnetic loop antenna to generate extremely high magnetic fields in the range 10 kHz to 30 MHz acc. to VG95373-13:2008-11 and VG95373-23:2008-11. Including sensor loop HFRAE 5163 und control cable.

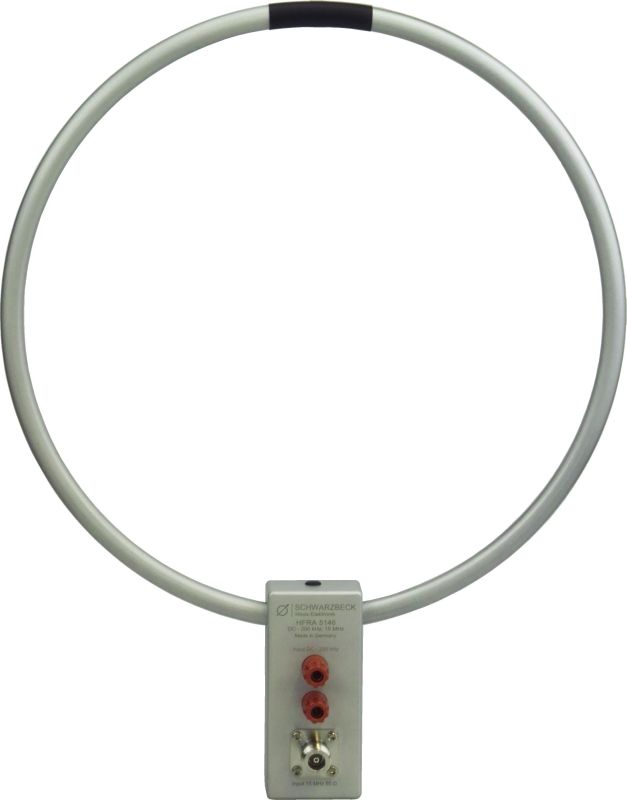

HFRA 5146
Circular transmitting loop antenna
DC – 200 kHz and 15 MHz
diam. 300 mm
N-Connector
HFRA 5148
Circular Transmitting Loop Antenna
diam. 180 mm
1 turn

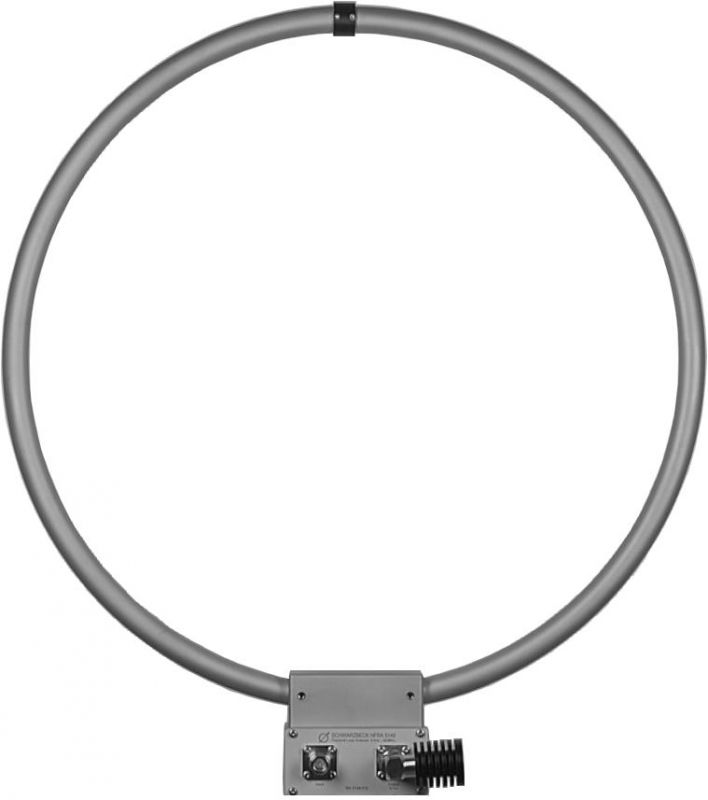

HFRA 5149
Circular transmitting loop antenna
9 kHz – 30 MHz
diam. 500 mm
including 50 Ohm 20 Watt termination
N-connectors
HFRA 5154
Circular Transmitting Loop Antenna
diam. 100 mm
0.1 – 30 MHz
Transformer 50 Ohm
0.5 W

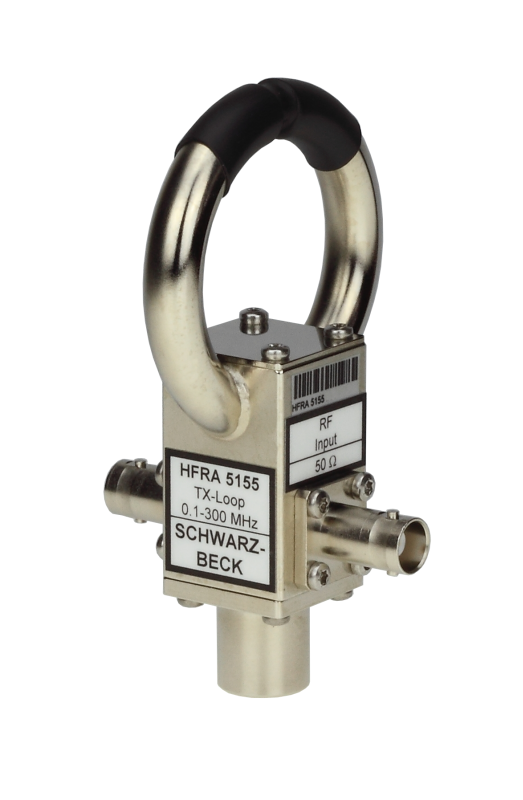

HFRA 5155 – Passive Magnetic TX Loop Antenna
The HFRA 5155 Loop Antenna for magnetic fields was designed to create small to medium magnetic fields in the frequency range from 100 kHz to 300 MHz. The HFRA 5155 consists of a shielded single turn loop of 50 mm diameter. The flat frequency response is achieved using a wideband transformer.
| Frequency Range: | 100 kHz … 100 (300) MHz |
| Loop Diameter: | 50 mm |
| Connector: | BNC |
| Max. Input Power: | 2 W |
| Impedance of Signal Generator or Power Amplifier: | 50 Ω |
| Impedance of Voltage Probes connected to 10 Ω Monitor Output: | > 10 kΩ |
| Maximum Loop Current: | 0.44 A |
| Maximum Monitor Voltage: | 4.4 V |
| Mount (Camera Thread): | 3/8″ |
| Material: | Brass, Nickel plated |
| Dimensions: | 105 x 60 x 62 mm |
| Weight: | 145 g |
HFRA 5158
Circular Transmitting Loop Antenna
diam. 180 mm
0-2 MHz
5 W
10 turns

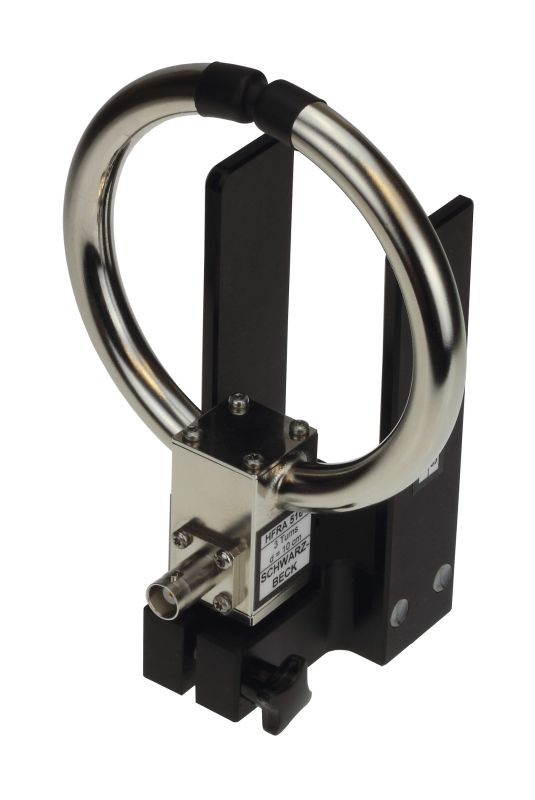

HFRA 5164
Passive magnetic loop antenna
diam. 100 mm
0.01 – 120 MHz
3 turn
Recommended accessories:
NFCN 1356 – Compensation network for the HFRA 5164 radiating loop
