Ophir Amplifier Systems

Systems are complete. They plug into an outlet and are ready to go. Our standard systems are 3U, which is 5.25″ and 5U, 8.75″. Systems are available with or without IEEE-488, RS-232 and Ethernet connectivity. Amplifiers Systems are available in both Broadband and Band-Specific frequencies. We are well-known in the industry for successfully adapting our amplifiers or custom designing new solutions to suit each unique project. Please refer to our Adapted & Custom Design Solutions link to begin formulating your performance objectives and other criteria.

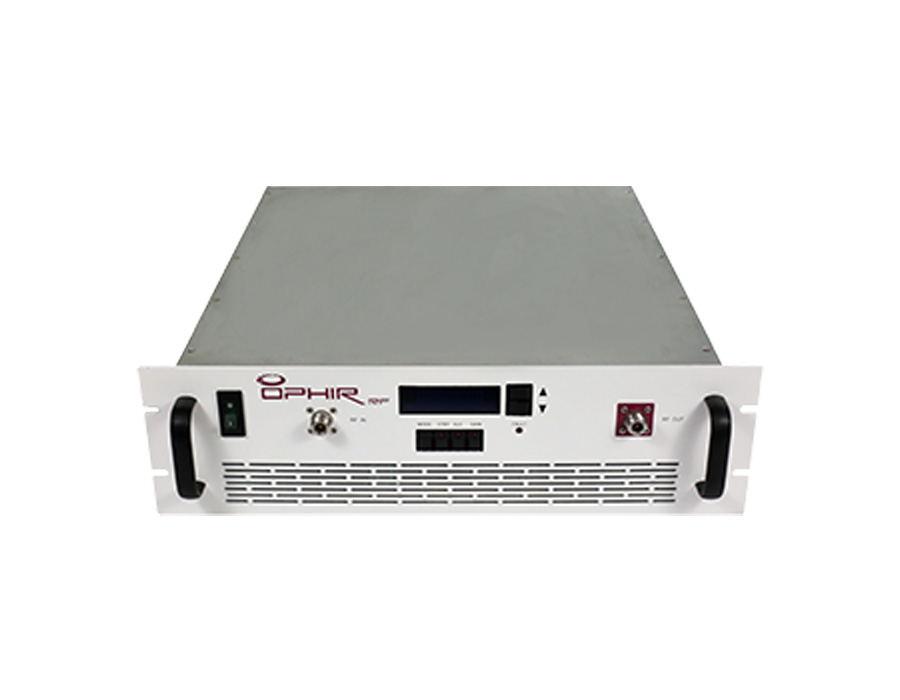

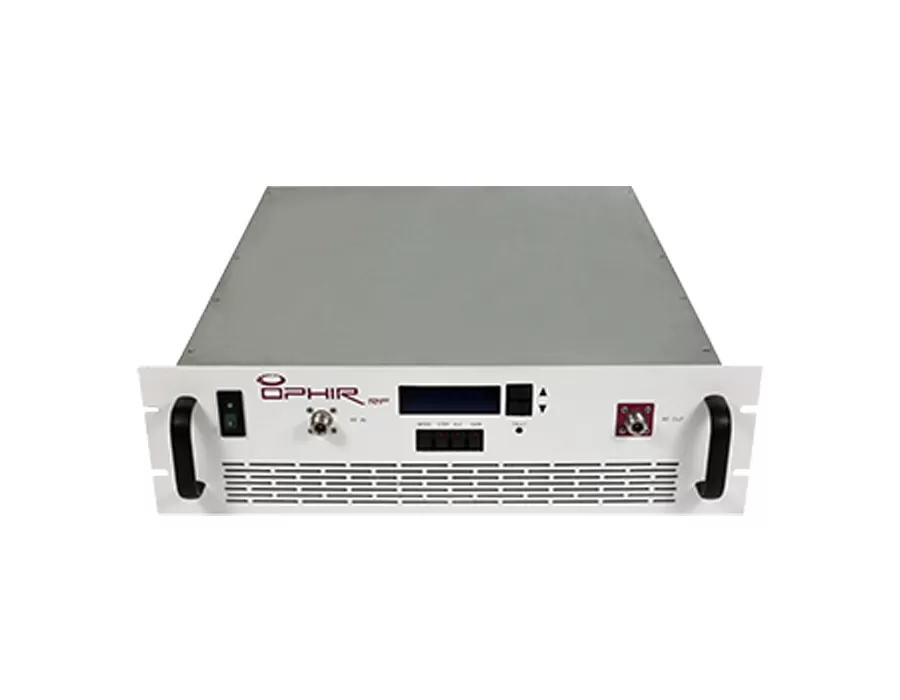

Amplifier System

Model Number	Frequency Start (MHz)	Frequency Stop (MHz)	Saturated Power (Watts)	Linear Power (Watts)	Gain (dB)	Flatness	Dimensions
4124	6000	12000	25		43	±4.0	19.00×5.25×20.00
4125	11000	12500	50		49	±2.5	19.00×5.25×21.00
4128	4000	8000	100	60	52	±4.0	19.00×8.75×26.00
4131	6000	12000	50	12	48	±5.0	19.00×5.25×21.00
4134	2	30	12000	10000	72	±3.0	19.00×60.00×36.00
4135	2	30	20000	12500	73	±7.5
4136	6000	18000	40		41	±5.0	19.00×5.25×21.00
4143	6000	18000	100	25	50	±4.0	19.00×8.75×26.00
4144	2	30	5000		68	±4.0	24.00×60.00×36.00
4146	500	2500	400	200	56	±3.5	19.00×14.00×26.00
4147	6000	18000	200	60	53	±5.0	19.00×8.75×26.00
4151	6000	18000	250	80	54	±5.0	19.00×8.75×26.00
4153	2500	7500	1000	600	61	±4.5	72.00×24.00×26.00
4154	2500	7500	500	250	58	±3.5	36.00×24.00×26.00
4155	2500	7500	250	120	55	±3.5	14.00×19.00×26.00
5001	1	1000	200	100	54	±2.5	19.00×8.75×26.00
5003	20	500	500	350	58	±3.0	19.00×8.75×20.00
5006	200	500	500	350	58	±2.0	19.00×5.25×26.00
5016	800	2000	25	15	44	±2.0	19.00×5.25×20.00
5019	500	1000	100	60	50	±1.5	19.00×5.25×20.00
5020	500	1000	250	120	54	±2.5	19.00×5.25×21.00
5022	800	2000	50	35	48	±1.5	19.00×5.25×20.00
5028	800	2000	12	10	41	±1.5	19.00×5.25×20.00
5029	500	1000	500	300	57	±2.0	19.00×5.25×26.00
5031	500	1000	1000	500	57	±4.0	31.00×24.00×26.00
5035	20	500	25	15	43	±1.5	19.00×5.25×20.00
5038	800	2000	120	80	52	±1.25	19.00×5.25×21.00
5042	0.1	400	120	100	51.5	±2.5	19.00×5.25×21.00
5046	0.15	200	20	12	44	±2.0	19.00×5.25×20.00
5048	0.15	230	75	45	50	±1.5	19.00×5.25×21.00
5051	100	500	500	300	57	±2.0	19.00×8.75×26.00
5059	20	500	50	30	47	±2.0	19.00×5.25×20.00
5062	1	1000	100	70	50	±2.5	19.00×8.75×20.00
5064	1	1000	50	30	48	±2.5	19.00×5.25×21.00
5067	20	1000	500	250	58	±2.0	31.00×24.00×26.00
5075	20	500	1000	600	61	±4.0	19.00×10.50×26.00
5076	20	500	500	350	58	±2.5	19.00×8.75×26.00
5079	20	500	250	150	54	±2.0	19.00×5.25×21.00
5083	200	500	200	125	54	±1.5	19.00×5.25×21.00
5084	0.01	230	25	15	43	±2.0	19.00×5.25×20.00
5085	0.01	250	100	60	50	±2.5	19.00×8.75×20.00
5087	0.01	200	250	175	55	±2.0	19.00×8.75×20.00
5088	0.01	220	600	400	58	±3.0	19.00×8.75×26.00
5089	0.01	200	1000	500	61	±4.0	31.00×24.00×31.00
5094	1	1000	4	2	36	±1.5	19.00×5.25×20.00
5112	200	500	300	180	54	±2.0	19.00×7.00×20.00
5115	0.01	225	2500	2000	64	±3.0	19.00×60.00×36.00
5116	0.01	225	5000	3400	67	±4.0	19.00×72.00×36.00
5120	20	500	100	60	51	±3.0	19.00×5.25×21.00
5124	20	1000	20	10	44	±1.5	19.00×5.25×20.00
5125	20	1000	70	40	49	±2.5	19.00×5.25×21.00
5126	20	1000	120	70	52	±2.0	19.00×5.25×26.00
5127	20	1000	200	120	54	±3.0	19.00×8.75×20.00
5135	800	2000	300	150	56	±2.5	19.00×5.25×24.00
5136	800	2000	500	300	58	±3.0	19.00×8.75×26.00
5138	1000	2000	2000	1500	64	±2.0	31.00×24.00×26.00
5140	700	3000	10	8	41	±2.0	19.00×5.25×20.00
5141	700	3000	15	12	43	±2.0	19.00×5.25×20.00
5150	800	2500	13	10	42	±2.0	19.00×5.25×20.00
5151	800	2500	25	20	45	±2.0	19.00×5.25×20.00
5152	800	2500	50	40	48	±2.0	19.00×5.25×20.00
5160	700	4200	7	5	39	±2.5	19.00×5.25×20.00
5161	800	4200	15	12	43	±2.0	19.00×5.25×20.00
5188	0.01	1000	25	12	44	±2.0	19.00×5.25×26.00
5204	2000	4000	600	250	57	±2.5	31.00×24.00×31.00
5217	700	2700	100	75	50	±2.0	19.00×5.25×28.00
5225	80	1000	200	120	54	±2.5	19.00×5.25×21.00
5226	80	1000	300	200	56	±2.0	19.00×5.25×26.00
5227	80	1000	750	500	59	±4.0	19.00×8.75×26.00
5228	80	1000	1000	800	63	±5.0	31.00×24.00×26.00
5229	80	1000	2000	1600	64	±3.5	65.00×24.00×32.00
5231	0.01	50	180	120	51	±1.5	19.00×5.25×20.00
5242	700	3000	30	24	46	±2.0	19.00×5.25×20.00
5243	700	3000	70	45	51	±3.0	19.00×5.25×20.00
5244	700	3000	120	80	53	±1.5	19.00×5.25×21.00
5245	700	3000	250	150	55	±1.5	19.00×5.25×21.00
5253	700	2500	80	60	50	±2.0	19.00×5.25×20.00
5254	700	2500	150	80	52	±3.0	19.00×5.25×26.00
5255	700	2500	250	150	56	±2.5	19.00×5.25×26.00
5256	800	2500	400		56	±3.0	19.00×8.75×26.00
5257	800	2500	500	250	57	±3.0	19.00×8.75×26.00
5258	1000	2500	1000	600	60	±2.0	19.00×14.00×24.00
5259	1000	2500	2000	1200	63	±2.5	31.00×24.00×26.00
5262	700	4200	28	22	46	±2.5	19.00×5.25×20.00
5263	700	4200	60	40	49	±3.0	19.00×5.25×20.00
5264	700	4200	100	60	51	±3.0	19.00×5.25×21.00
5265	700	4200	200	150	55	±2.0	19.00×5.25×26.00
5266	700	4200	500	300	58	±4.0	31.00×24.00×31.00
5267	700	4200	800	600	61	±4.0	19.00×26.25×26.00
5272	1000	3000	40	25	46	±2.5	19.00×5.25×20.00
5273	700	3000	70	45	49	±3.0	19.00×5.25×20.00
5274	700	3000	120	80	52	±3.0	19.00×5.25×26.00
5275	700	3000	250	150	54	±2.5	19.00×5.25×26.00
5276	700	3000	500	300	57	±5.0	31.00×24.00×26.00
5277	1000	3000	600	400	59	±3.5	48.00×24.00×26.00
5278	1000	3200	1000	700	61	±4.0	31.00×24.00×26.00
5283	2000	4000	60	40	49	±2.5	19.00×5.25×20.00
5284	2000	4000	100	60	51	±3.0	19.00×5.25×20.00
5285	2000	4000	200	120	54	±2.0	19.00×5.25×28.00
5289	2000	4000	2000	1000	63	±4.5	72.00×24.00×36.00
5290	700	6000	8	5	39	±5.0	19.00×5.25×21.00
5291	700	6000	15	10	42	±5.0	19.00×5.25×21.00
5292	700	6000	25	15	44	±3.0	19.00×5.25×21.00
5293	700	6000	50	30	48	±5.0	19.00×5.25×21.00
5294	700	6000	100	60	53	±4.0	19.00×5.25×21.00
5295	700	6000	200	120	50	±3.5	19.00×8.75×26.00
5296	1000	6000	300	200	57	±5.0	31.00×24.00×36.00
5312	0.15	200	25	15	44	±2.0	7.00×5.60×12.00
5387	0.01	400	10	4	41	±1.5	7.00×5.60×12.00
5389	2000	6000	50	30	48	±5.0	15.50×4.75×10.00
5390	20	1000	25	10	46	±1.5	7.00×5.60×12.00
5391	600	6000	10	6	42	±2.5	7.00×5.60×12.00
5392	6000	12000	25		43	±2.5	7.00×5.60×12.00
5394	2000	8000	5		37	±2.5	7.00×5.60×12.00
5395	6000	18000	12		43	±2.5	7.00×5.60×12.00
5398	2000	8000	20	3	36	±2.0	7.00×5.60×12.00
5402	500	1500	200	100	53	±3.5	19.00×8.75×26.00
5405	500	2000	200	120	54	±3.0	19.00×8.75×26.00
5406	500	2000	350	200	56	±4.0	19.00×14.00×26.00
5413	200	520	300	200	56	±2.5	19.00×5.25×21.00
5425	80	1000	250	150	55	±2.5	19.00×5.25×21.00
7034	0.01	400	400	250	56	±2.0	19.00×8.75×26.00
5232E	140	1000	5000		67	±5.0	31.00×24.00×31.00
