Modules are usually smaller and are usually part of systems. You supply your own DC voltage, make the connections and supply your own DC supply. Modules are available with or without heatsinks and fans. Amplifiers Modules are available in both Broadband and Band-Specific frequencies. Modular design concepts save time and money, and are lightweight, reliable, cost-effective solutions. We are well-known in the industry for successfully adapting our amplifiers or custom designing new solutions to suit each unique project. Please refer to our Adapted & Custom Design Solutions link to begin formulating your performance objectives and other criteria.
Request A Quote

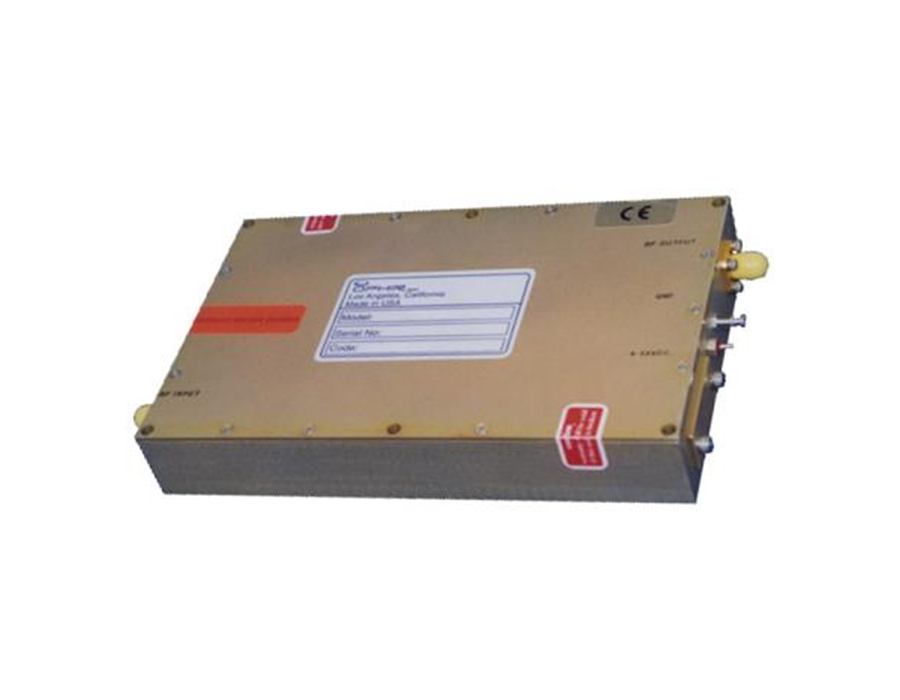

Amplifier Module
Model NumberFrequency Start (MHz)Frequency Stop (MHz)Saturated Power (Watts)Linear Power (Watts)Gain (dB)FlatnessDimensions
53030300.152308439±1.06.00×3.00×1.10
53030550.15230251543±1.56.00×3.00×1.10
53030560.15230754515±1.58.40×5.00×1.10
53020420.52302045±1.56.00×3.00×1.10
53030320.55008440±1.56.00×3.00×1.10
5303060110004236±1.56.00×3.00×1.10
5303065110002134±1.56.00×3.00×1.10
5302002230251544±1.06.00×3.00×1.10
53030592500201246±1.56.00×3.00×1.10
5303066250010840±1.56.00×3.00×1.10
530309123025012515±1.06.00×3.00×1.10
5300796205001006052±1.56.00×3.75×1.25
5300805205001006020±2.56.00×3.75×1.25
530300620500503048±1.56.00×3.00×1.10
530302720500201043±1.56.00×3.00×1.10
5303038201000251046±1.56.00×3.00×1.10
5303133201000100 50±2.56.70×4.10×1.10
5303148201000503048±2.06.00×3.00×1.10
530090080100020012014±2.510.00×4.00×1.15
530402480100016010051±4.04.00×11.00×1.50
530300810050020012010±1.510.30×5.70×1.40
530307220050020012012±1.57.20×4.10×1.10
53030072254501258011±1.56.90×3.50×1.10
5303135225450402546±0.55.00×3.75×1.00
5300709292320201244±1.06.00×3.00×1.10
530055740045030018020±0.57.20×4.10×1.00
530303150010001006010±1.56.70×4.10×1.10
5303033500100020012018±2.07.90×6.00×1.10
530305750010007538±1.56.00×3.00×1.10
53030585001000503048±1.56.00×3.00×1.10
530307580042001.51.241±2.03.00×2.20×0.60
530402380030001006051±2.53.40×6.90×1.50
53040258003000200 55±2.510.80×4.00×1.45
5303124960122030015056±1.517.00×6.50×2.00
530404325006000502550±3.07.00×5.00×1.10
530313660001800030 40±3.0
530405060001800010 41±4.06.00×3.00×1.10
530405660001200025 44±4.06.00×3.00×1.10
53031418000100005440±1.52.50×1.75×0.50
530500110002000301245±3.06.00×3.00×1.00
53050026002000301045±3.06.00×3.00×1.00
53050038002500301245±3.06.00×3.00×1.00
53050047004200251044±4.06.00×3.00×1.00
53050056003000251044±4.06.00×3.00×1.00
5304049600600010641±2.56.00×3.00×1.10
