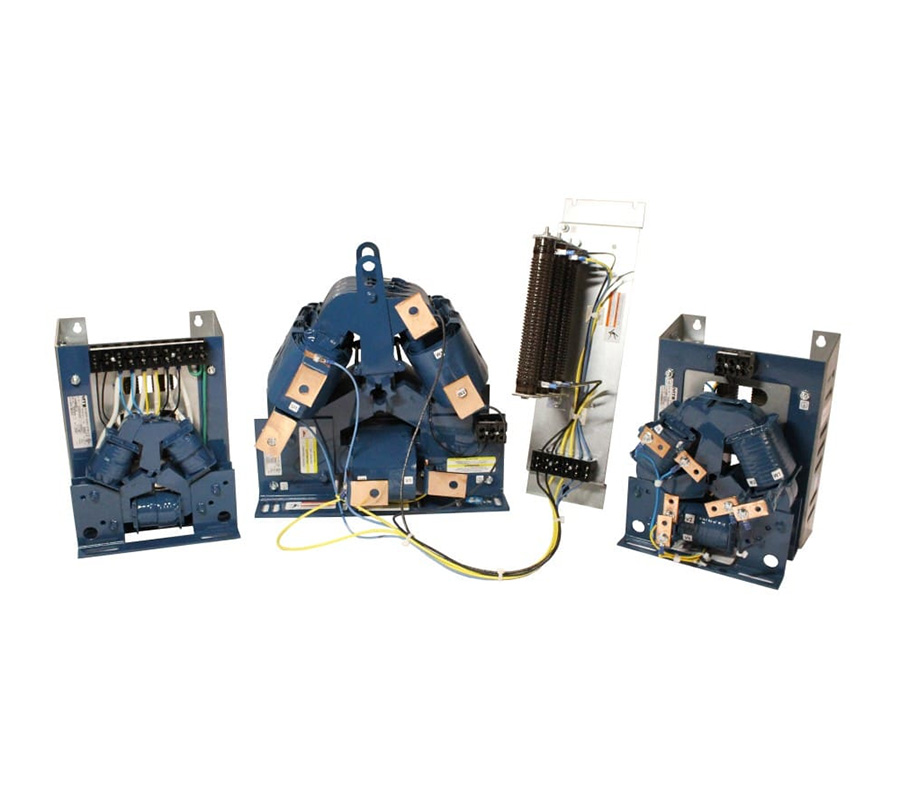

Key Features:
Superior Motor Protection: The dV Sentry filters provide comprehensive protection for motor windings, preventing premature motor insulation failure and ensuring continuous operation.
Compact Design: Small footprint and easy terminations simplify installation and handling.
Quiet Operation: Runs quietly and generates less heat, contributing to a more efficient and comfortable working environment.
Extended Cable Life: Improves cable longevity, reducing maintenance costs and enhancing system reliability.
Performance Guarantee: Backed by MTE’s industry-leading Performance Guarantee, providing assurance of quality and reliability.
Configurations:
Open Panel: Ideal for integration into custom enclosures or controlled environments, providing flexible installation options.
NEMA 1/2: Designed for indoor environments, ensuring reliable performance in standard industrial settings.
NEMA 3R: Suitable for outdoor applications, offering robust protection against environmental elements.
Applications:
Industrial Motors: Protects motor windings and extends motor life by preventing insulation failure and reducing wear and tear.
Variable Frequency Drives (VFDs): Enhances the performance and longevity of VFD systems by filtering harmful dV/dt spikes.
Critical Operations: Ensures smooth operation during critical times, reducing the risk of costly downtime and improving overall system reliability.
Commercial and Industrial Facilities: Provides reliable motor protection in a variety of commercial and industrial settings, supporting uninterrupted operation.
Why Choose Us?
Proven Efficiency: The dV Sentry filters are designed to be highly efficient, leading to lower operational costs and improved cooling.
Space-Saving Design: With a small footprint, the dV Sentry filters offer easy installation and handling.
Performance Guarantee: MTE stands behind the dV Sentry Series with an industry-leading Performance Guarantee, ensuring top-notch motor protection and reliability.
Comprehensive Protection: Extends motor and cable life, reduces maintenance needs, and ensures your operations run smoothly.
Amps Rating: 208V-600V, Open Panel
| 208V | 240V | 380V | 480V | 550-600V | Filter | Part | Weight | Filter Dimensions | Watts | Resistor Panel Dimensions | |||
| Motor | Motor | Motor | Motor | Motor | Amps | Number | (H x W x D) | Loss | (H x W x D) | ||||
| HP | HP | KW | HP | HP | Rating | Lbs | Kgs | Inches | Millimeters | Inches | Millimeters | ||
| 0.5 | 0.75 | 0.5-1.1 | 0.5-1.5 | 0.5-2 | 3 | DVSP0003E | 7 | 3 | 9.1 x 6.7 x 7.7 | 231 x 170 x 196 | 67 | – | – |
| 0.75 | 1 | 1.5 | 2 | 3 | 4 | DVSP0004E | 7 | 3 | 9.1 x 6.7 x 7.7 | 231 x 170 x 196 | 67 | – | – |
| 1.5 | 2 | 2.2-3 | 3 | 5 | 7 | DVSP0007E | 7 | 3 | 9.1 x 6.7 x 7.7 | 231 x 170 x 196 | 67 | – | – |
| 2 | 3 | 4 | 5 | 7.5 | 9 | DVSP0009E | 7 | 3 | 9.1 x 6.7 x 7.7 | 231 x 170 x 196 | 67 | – | – |
| 3 | 4 | 5.5 | 7.5 | 10 | 12 | DVSP0012E | 7 | 3 | 9.1 x 6.7 x 7.7 | 231 x 170 x 196 | 67 | – | – |
| 5 | 5.5 | 7.5 | 10 | 15 | 17 | DVSP0017E | 8 | 4 | 9.1 x 6.7 x 7.5 | 231 x 170 x 191 | 96 | – | – |
| 5.5 | 7.5 | 11 | 15 | 20 | 22 | DVSP0022E | 11 | 5 | 9.1 x 6.7 x 8.2 | 231 x 170 x 208 | 91 | – | – |
| 7.5 | 10 | – | 20 | 25 | 27 | DVSP0027E | 11 | 5 | 9.1 x 6.7 x 8.2 | 231 x 170 x 208 | 92 | – | – |
| 10 | 12.5 | 15 | 25 | 30 | 35 | DVSP0035E | 15 | 7 | 12.0 X 9.0 x 8.0 | 305 x 229 x 203 | 91 | – | – |
| 12.5 | 15 | 18.5-22 | 30 | 40 | 45 | DVSP0045E | 16 | 7 | 12.0 X 9.0 x 8.0 | 305 x 229 x 203 | 88 | – | – |
| 15 | 20 | – | 40 | 50 | 55 | DVSP0055E | 22 | 10 | 12.0 X 9.0 x 8.2 | 305 x 229 x 208 | 137 | – | – |
| 20 | 25 | 30 | 50 | 60 | 65 | DVSP0065E | 31 | 14 | 12.0 X 9.0 x 11.1 | 305 x 229 x 282 | 166 | – | – |
| 25 | 30 | 37 | 60 | 75 | 80 | DVSP0080E | 32 | 15 | 12.0 X 9.0 x 11.1 | 305 x 229 x 282 | 158 | – | – |
| 30 | 40 | 45-55 | 75 | 100 | 110 | DVSP0110E | 36 | 16 | 12.0 X 9.0 x 11.1 | 305 x 229 x 282 | 175 | – | – |
| 40 | 50 | – | 100 | 125 | 130 | DVSP0130E | 56 | 25 | 13.5 x 13.6 x 7.9 | 343 x 345 x 201 | 273 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 50 | 60 | 75-90 | 125 | 150 | 160 | DVSP0160E | 72 | 33 | 13.5 x 13.6 x 9.1 | 343 x 345 x 231 | 289 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 60 | 75 | 110 | 150 | 200 | 200 | DVSP0200E | 76 | 34 | 13.5 x 13.6 x 9.1 | 343 x 345 x 231 | 325 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 75 | 100 | 132 | 200 | 250 | 250 | DVSP0250E | 90 | 41 | 15.0 x 15.1 x 10.3 | 381 x 384 x 262 | 423 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 100 | 125 | 160 | 250 | 300 | 305 | DVSP0305E | 94 | 43 | 15.2 x 15.1 x 10.4 | 386 x 384 x 264 | 481 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 125 | 150 | 185-200 | 300 | 350 | 365 | DVSP0365E | 125 | 57 | 15.1 x 15.1 x 11.8 | 384 x 384 x 300 | 564 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 150 | 175 | – | 350 | 450 | 415 | DVSP0415E | 125 | 57 | 15.1 x 15.1 x 11.8 | 384 x 384 x 300 | 795 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 175 | 225 | 250 | 400-450 | 500-550 | 515 | DVSP0515E | 158 | 72 | 14.9 x 15.1 x 13.3 | 378 x 384 x 338 | 798 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
| 200 | 250 | 315 | 500 | 600 | 600 | DVSP0600E | 165 | 75 | 15.1 x 15.1 x 13.4 | 384 x 384 x 340 | 822 | 18.4 x 5.0 x 7.0 | 467 x 127 x 178 |
Amps Rating: 208V-600V, NEMA 1/2
| 208V | 240V | 380V | 480V | 550-600V | Filter | Part | Weight | Enclosure | Filter Dimensions | ||
| Motor | Motor | Motor | Motor | Motor | Amps | Number | (H x W x D) | ||||
| HP | HP | KW | HP | HP | Rating | Lbs | Kgs | Inches | Millimeters | ||
| 0.5 | 0.75 | 0.5-1.1 | 0.5-1.5 | 0.5-2 | 3 | DVSG0003E | 18 | 8 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 0.75 | 1 | 1.5 | 2 | 3 | 4 | DVSG0004E | 18 | 8 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 1.5 | 2 | 2.2-3 | 3 | 5 | 7 | DVSG0007E | 18 | 8 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 2 | 3 | 4 | 5 | 7.5 | 9 | DVSG0009E | 18 | 8 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 3 | 4 | 5.5 | 7.5 | 10 | 12 | DVSG0012E | 18 | 8 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 5 | 5.5 | 7.5 | 10 | 15 | 17 | DVSG0017E | 19 | 9 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 5.5 | 7.5 | 11 | 15 | 20 | 22 | DVSG0022E | 22 | 10 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 7.5 | 10 | – | 20 | 25 | 27 | DVSG0027E | 22 | 10 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 10 | 12.5 | 15 | 25 | 30 | 35 | DVSG0035E | 25 | 11 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 12.5 | 15 | 18.5-22 | 30 | 40 | 45 | DVSG0045E | 25 | 11 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 15 | 20 | – | 40 | 50 | 55 | DVSG0055E | 32 | 15 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 20 | 25 | 30 | 50 | 60 | 65 | DVSG0065E | 41 | 19 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 25 | 30 | 37 | 60 | 75 | 80 | DVSG0080E | 42 | 19 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 30 | 40 | 45-55 | 75 | 100 | 110 | DVSG0110E | 43 | 20 | CAB-13V | 13.2 X 13.0 X 13.1 | 335 x 330 x 333 |
| 40 | 50 | – | 100 | 125 | 130 | DVSG0130E | 97 | 44 | CAB-17V | 24.0 x 17.1 x 18.5 | 610 x 434 x 470 |
| 50 | 60 | 75-90 | 125 | 150 | 160 | DVSG0160E | 113 | 51 | CAB-17V | 24.0 x 17.1 x 18.5 | 610 x 434 x 470 |
| 60 | 75 | 110 | 150 | 200 | 200 | DVSG0200E | 116 | 53 | CAB-17V | 24.0 x 17.1 x 18.5 | 610 x 434 x 470 |
| 75 | 100 | 132 | 200 | 250 | 250 | DVSG0250E | 165 | 75 | CAB-17AP2 | 33.9 x 18.3 x 20.9 | 861 x 465 x 531 |
| 100 | 125 | 160 | 250 | 300 | 305 | DVSG0305E | 170 | 77 | CAB-17AP2 | 33.9 x 18.3 x 20.9 | 861 x 465 x 531 |
| 125 | 150 | 185-220 | 300 | 350 | 365 | DVSG0365E | 200 | 91 | CAB-17AP2 | 33.9 x 18.3 x 20.9 | 861 x 465 x 531 |
| 150 | 175 | – | 350 | 450 | 415 | DVSG0415E | 200 | 91 | CAB-17AP2 | 33.9 x 18.3 x 20.9 | 861 x 465 x 531 |
| 175 | 225 | 250 | 400-450 | 500-550 | 515 | DVSG0515E | 326 | 148 | CAB-26AP2 | 51.3 x 27.7 x 24.9 | 1303 x 704 x 632 |
| 200 | 250 | 315 | 500 | 600 | 600 | DVSG0600E | 332 | 151 | CAB-26AP2 | 51.3 x 27.7 x 24.9 | 1303 x 704 x 632 |
Amps Rating: 208V-600V, NEMA 3R
| 208V | 240V | 380V | 480V | 550-600V | Filter | Part | Weight | Enclosure | Filter Dimensions | ||
| Motor | Motor | Motor | Motor | Motor | Amps | Number | (H x W x D) | ||||
| HP | HP | KW | HP | HP | Rating | lbs | Kgs | Inches | Millimeters | ||
| 0.5 | 0.75 | 0.5-1.1 | 0.5-1.5 | 0.5-2 | 3 | DVSW0003E | 29 | 13 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 0.75 | 1 | 1.5 | 2 | 3 | 4 | DVSW0004E | 29 | 13 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 1.5 | 2 | 2.2-3 | 3 | 5 | 7 | DVSW0007E | 29 | 13 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 2 | 3 | 4 | 5 | 7.5 | 9 | DVSW0009E | 29 | 13 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 3 | 4 | 5.5 | 7.5 | 10 | 12 | DVSW0012E | 29 | 13 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 5 | 5.5 | 7.5 | 10 | 15 | 17 | DVSW0017E | 30 | 14 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 5.5 | 7.5 | 11 | 15 | 20 | 22 | DVSW0022E | 32 | 15 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 7.5 | 10 | – | 20 | 25 | 27 | DVSW0027E | 32 | 15 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 10 | 12.5 | 15 | 25 | 30 | 35 | DVSW0035E | 35 | 16 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 12.5 | 15 | 18.5-22 | 30 | 40 | 45 | DVSW0045E | 35 | 16 | CAB-10 | 15.5 x 10.9 x 12.0 | 394 x 279 x 305 |
| 15 | 20 | – | 40 | 50 | 55 | DVSW0055E | 75 | 34 | CAB-12AP3 | 24.0 x 12.5 x 23.0 | 610 x 318 x 584 |
| 20 | 25 | 30 | 50 | 60 | 65 | DVSW0065E | 84 | 38 | CAB-12AP3 | 24.0 x 12.5 x 23.0 | 610 x 318 x 584 |
| 25 | 30 | 37 | 60 | 75 | 80 | DVSW0080E | 85 | 39 | CAB-12AP3 | 24.0 x 12.5 x 23.0 | 610 x 318 x 584 |
| 30 | 40 | 45-55 | 75 | 100 | 110 | DVSW0110E | 89 | 40 | CAB-12AP3 | 24.0 x 12.5 x 23.0 | 610 x 318 x 584 |
| 40 | 50 | – | 100 | 125 | 130 | DVSW0130E | 139 | 63 | CAB-17AP3 | 33.9 x 18.3 x 26.0 | 861 x 465 x 660 |
| 50 | 60 | 75-90 | 125 | 150 | 160 | DVSW0160E | 155 | 70 | CAB-17AP3 | 33.9 x 18.3 x 26.0 | 861 x 465 x 660 |
| 60 | 75 | 110 | 150 | 200 | 200 | DVSW0200E | 157 | 71 | CAB-17AP3 | 33.9 x 18.3 x 26.0 | 861 x 465 x 660 |
| 75 | 100 | 132 | 200 | 250 | 250 | DVSW0250E | 173 | 78 | CAB-17AP3 | 33.9 x 18.3 x 26.0 | 861 x 465 x 660 |
| 100 | 125 | 160 | 250 | 300 | 305 | DVSW0305E | 177 | 80 | CAB-17AP3 | 33.9 x 18.3 x 26.0 | 861 x 465 x 660 |
| 125 | 150 | 185-200 | 300 | 350 | 365 | DVSW0365E | 208 | 94 | CAB-17AP3 | 33.9 x 18.3 x 26.0 | 861 x 465 x 660 |
| 150 | 175 | – | 350 | 450 | 415 | DVSW0415E | 208 | 94 | CAB-17AP3 | 33.9 x 18.3 x 26.0 | 861 x 465 x 660 |
| 175 | 225 | 250 | 400-450 | 500-550 | 515 | DVSW0515E | 339 | 154 | CAB-26AP3 | 51.3 x 27.7 x 30.0 | 1303 x 704 x 762 |
| 200 | 250 | 315 | 500 | 600 | 600 | DVSW0600E | 345 | 156 | CAB-26AP3 | 51.3 x 27.7 x 30.0 | 1303 x 704 x 762 |
