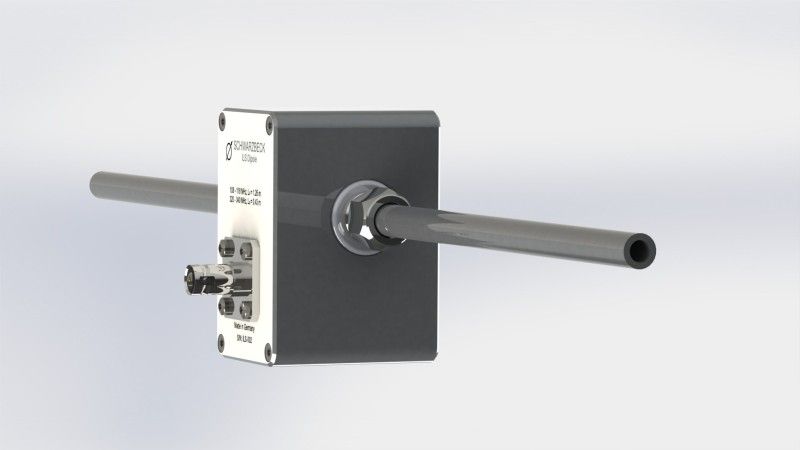

TETRA Dipole
Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at TETRA (terrestrical trunked radio) networks.
Frequency range: 340 – 480 MHz
Gain: typ. 1.5 dBi

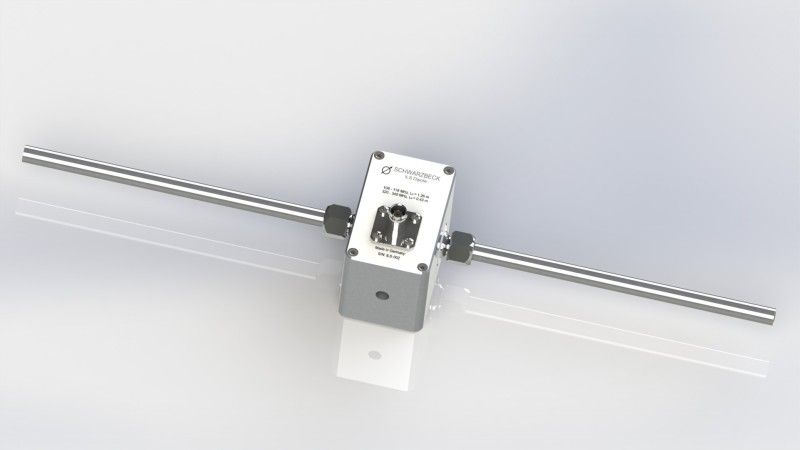

ILS Dipole
Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at instrument landing systems (ILS).
Frequency range:
Localizer: 108 – 118 MHz (LOC, LLC)
Glideslope: 320 – 340 MHz (G/S)
Gain: 1.5 dBi

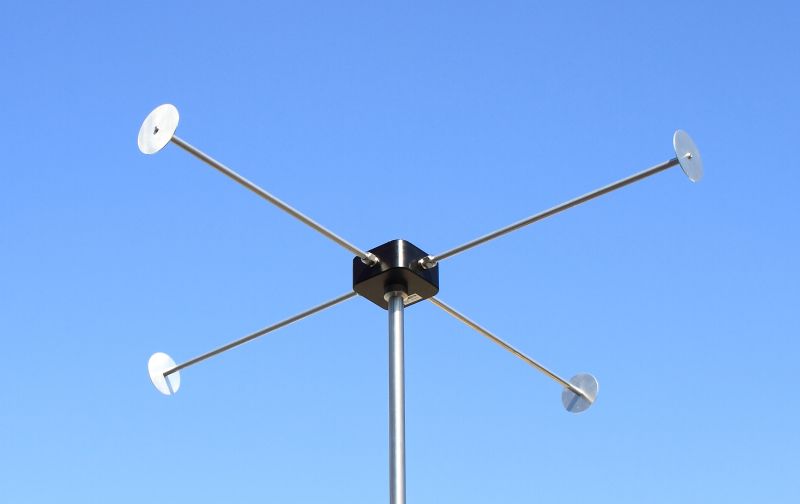

RSH 113
The RSH 113 is a crossed dipole antenna, consisting of two shortened half-wave-dipoles. The size reduction is achieved by the use of top loading discs. The design frequency range is from 108 to 118 MHz, typical applications are measurements at instrument landing systems (ILS-Localizer). The RSH 113 has a nearly omnidirectional pattern and comes with horizontal polarisation. The antenna can be used for both, Receive and Transmit Applications and comes with a nominal impedance of 50 Ω.

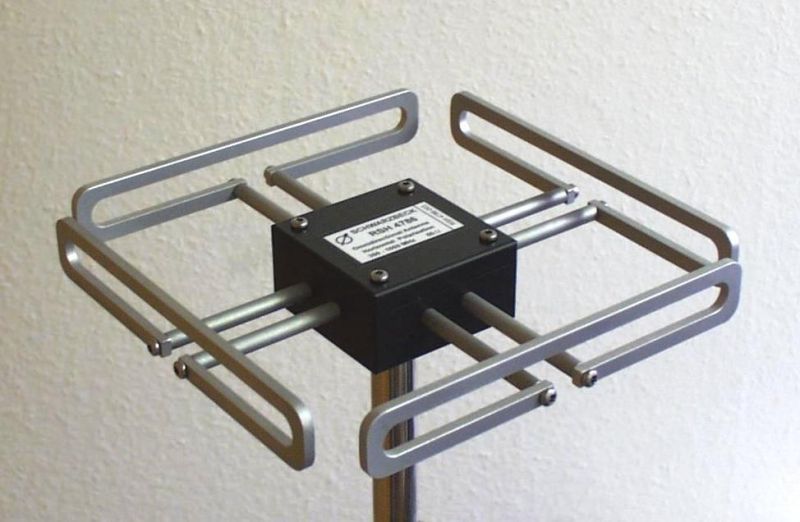

RSH 4786
Horizontal polarised omnidirectional Antenna for mobile and stationary receive and transmit applications.
A typical application is the DVB coverage measurement using measurement vehicles.
Frequency range: 350 – 1050 MHz

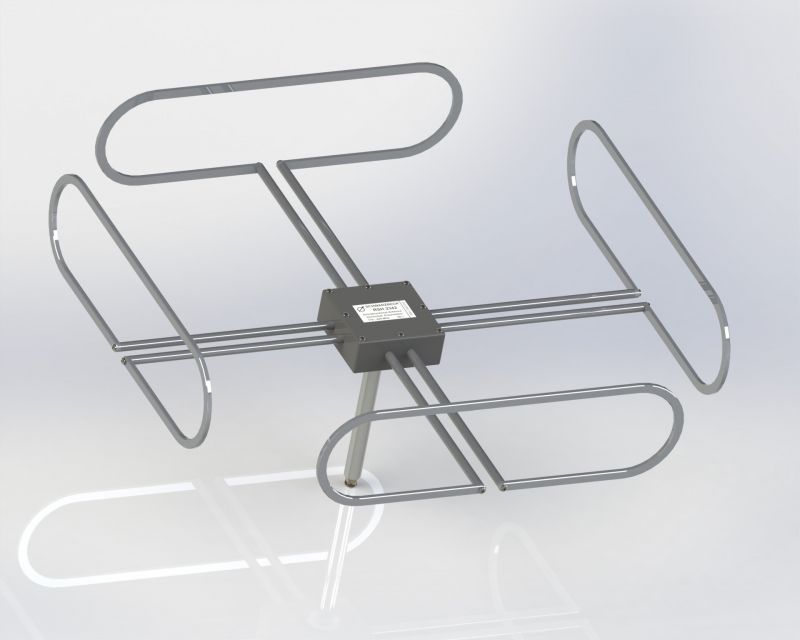

RSH 2342
Horizontal polarised omnidirectional Antenna for mobile and stationary receive and transmit applications.
A typical application is the DVB-T (DTMB,ATSC or ISDB-T) coverage measurement using measurement vehicles.
Frequency range: 170 – 350 MHz

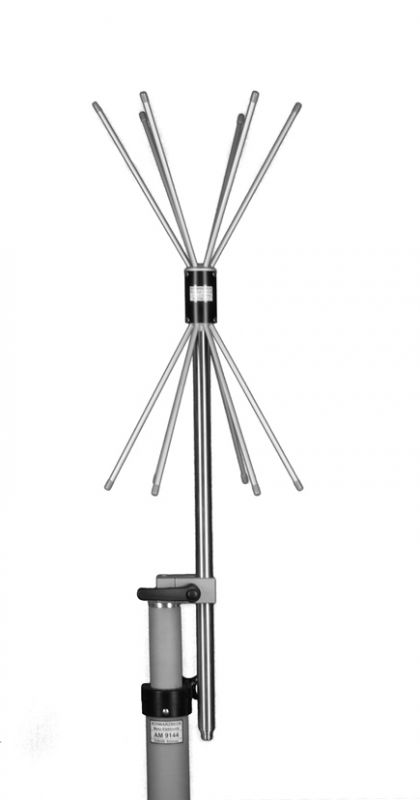

RE 1790
Vertical polarized VHF- UHF biconical antenna
(170) 230 – 1000 (1100) MHz
with omni directional H-plane pattern

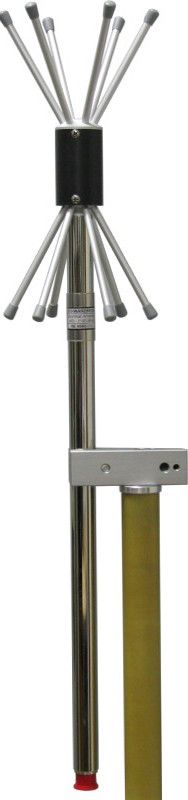

RE 4590
Vertical polarized VHF- UHF biconical antenna
(330) 450 – 1000 (1100) MHz
with omni directional H-plane pattern

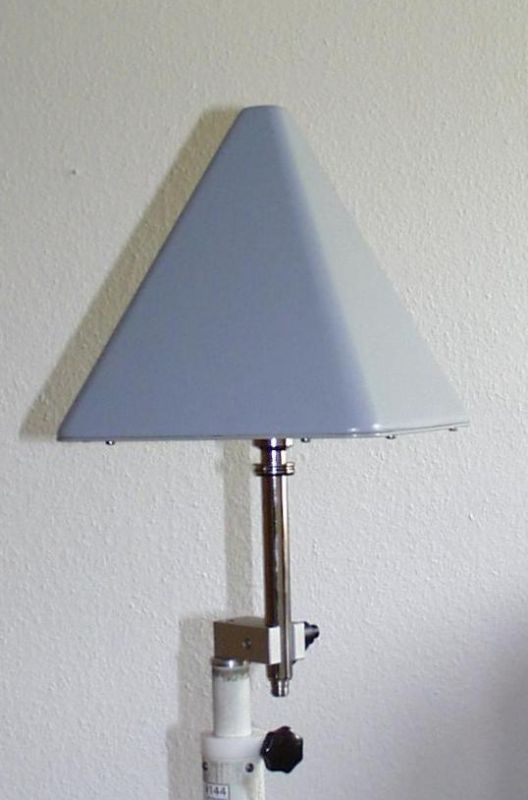

RS 16
Vertical polarized microwave biconical antenna
(0,5) 1 – 6 (8,5) GHz
with omni directional H-plane pattern

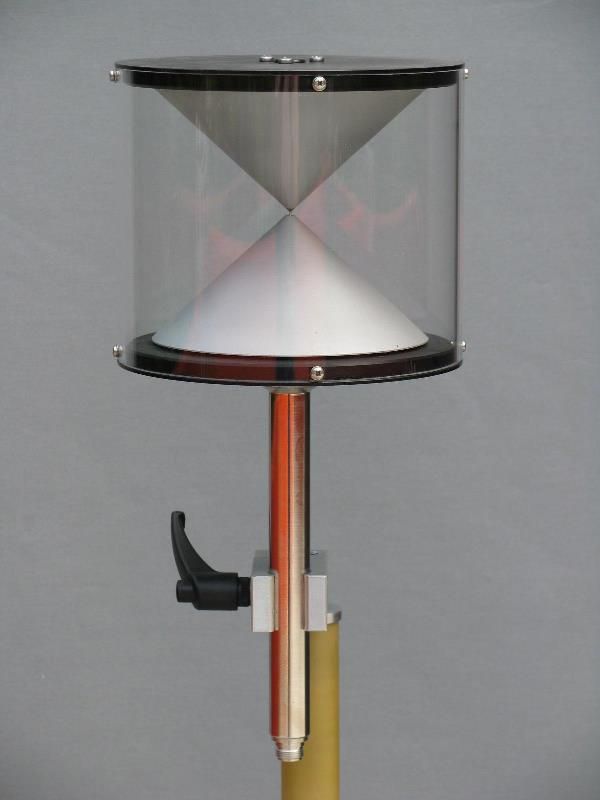

RS 0460
Vertically polarised symmetrical biconical antenna
0,4 – 6 GHz
omnidirectional in the H-plane
RRAH 9286
The RRAH 9286 is an antenna holder for antennas with 22 mm tube for vertical mounting on a car roof rack. The antenna holder is suitable for all standard roof rack carriers with a max. cross-tube dimension of 44×30 mm. The mounting distance is adjustable from 82-92 cm at 2.5 cm intervals (center- center).

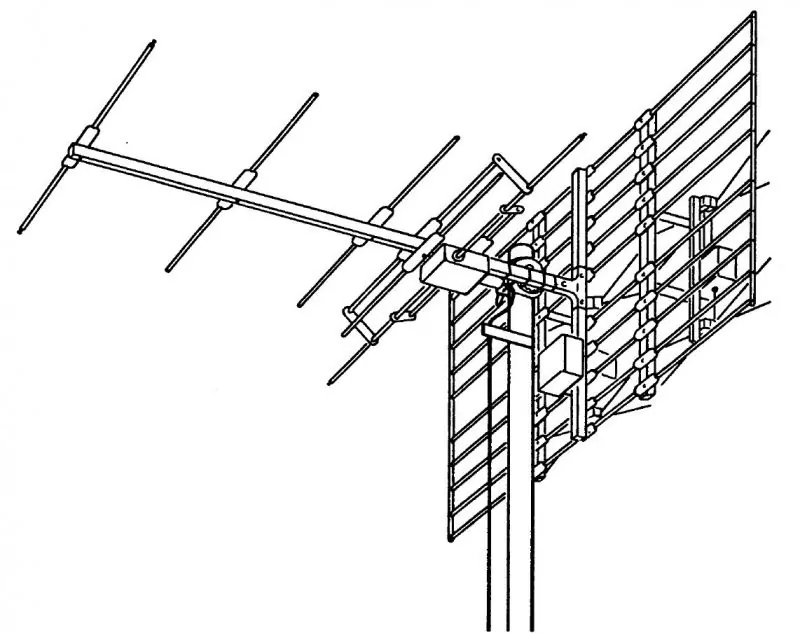

FT 01 UKW
FM broadcast and TV bands antenna
detachable
47 – 860 (1000) MHz
high directivity
