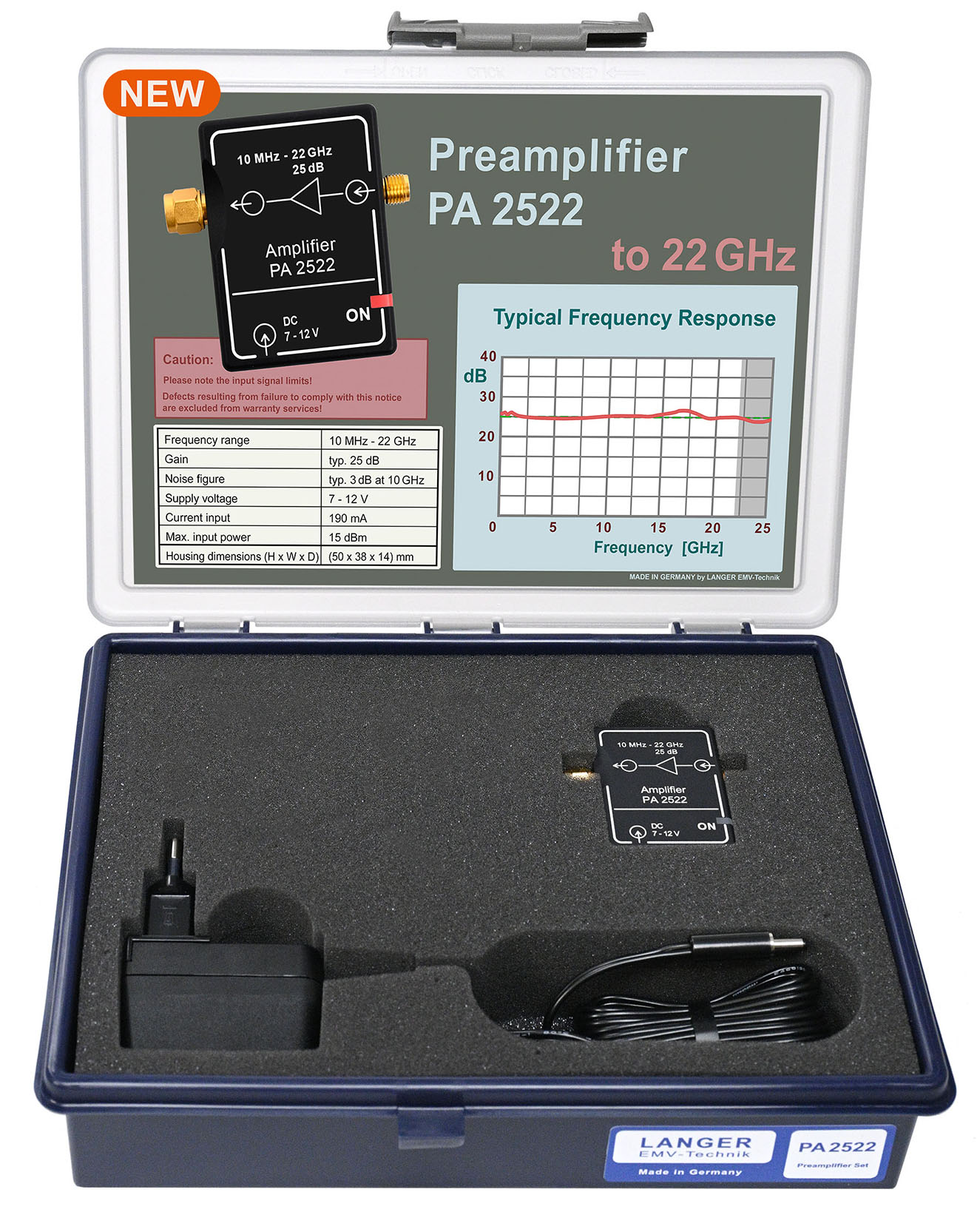

PA 2522 set
Preamplifier 10 MHz up to 22 GHz
The PA 2522 preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 2522 is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the plug-in power supply. With the correct cable a near-field probe can be connected to the input of the preamplifier. Input and output of the PA 2522 are SMA connectors.
Downloads

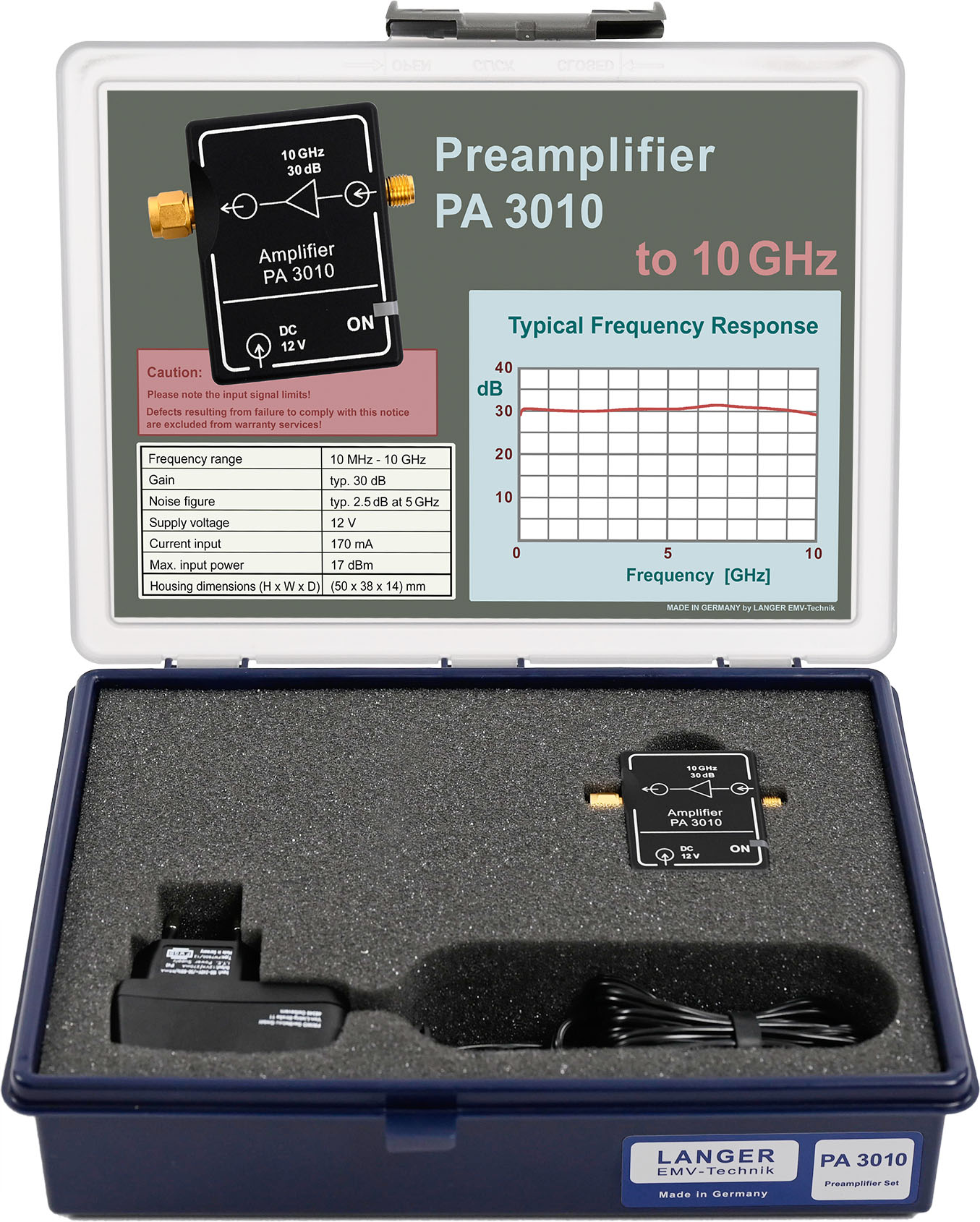

PA 3010 set
Preamplifier 10 MHz up to 10 GHz
The PA 3010 preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 3010 is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the plug-in power supply. With the correct cable a near-field probe can be connected to the input of the preamplifier. Input and output of the PA 3010 are SMA connectors.
Downloads

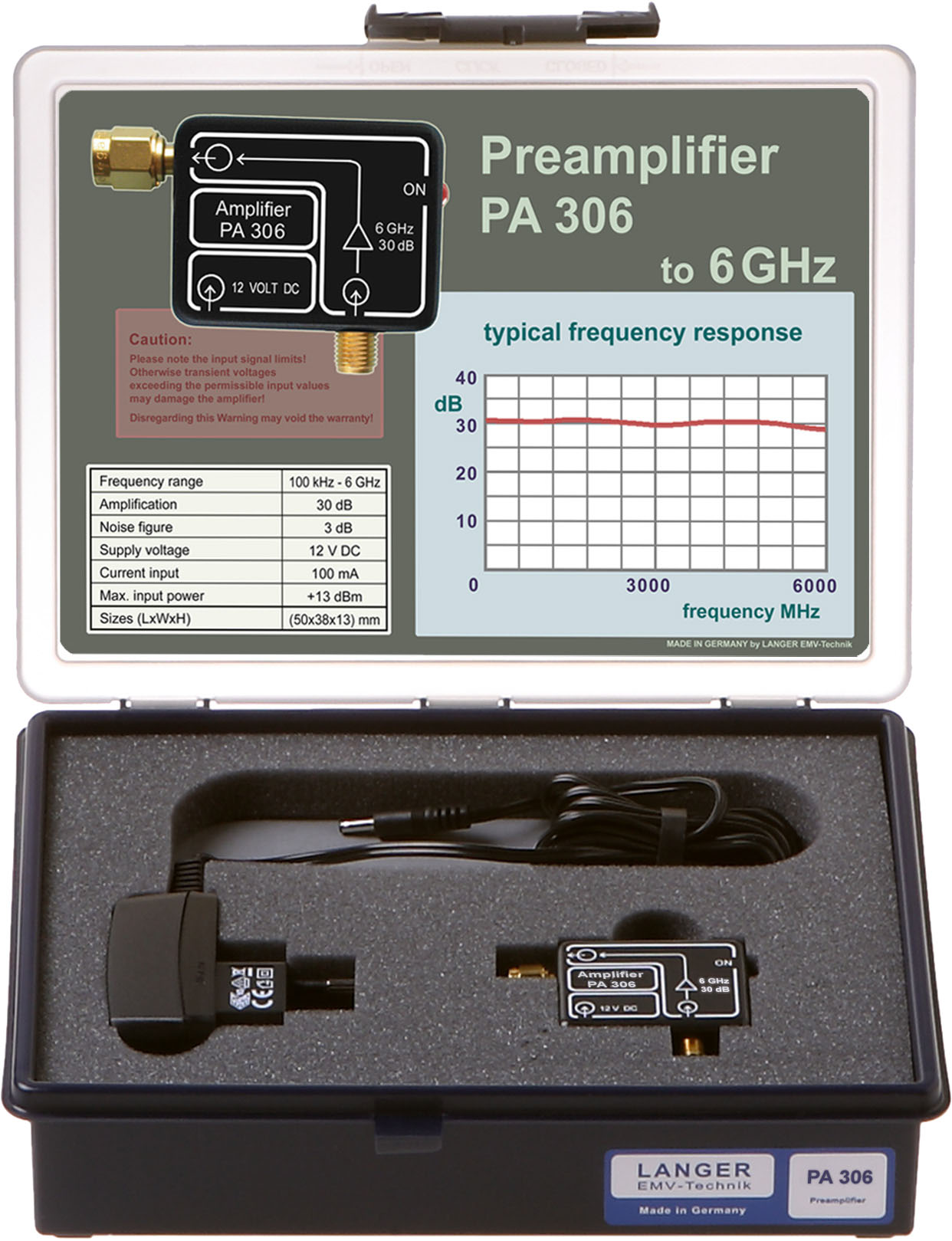

PA 306 SMA set
Preamplifier 100 kHz up to 6 GHz
The PA 306 SMA serves for amplifying measurement signals, for example weak signals from high-resolution near-field probes. The PA 306 is connected to the 50 Ω input of a spectrum analyzer or oscilloscope and supplied via the plug-in power supply unit included in delivery.

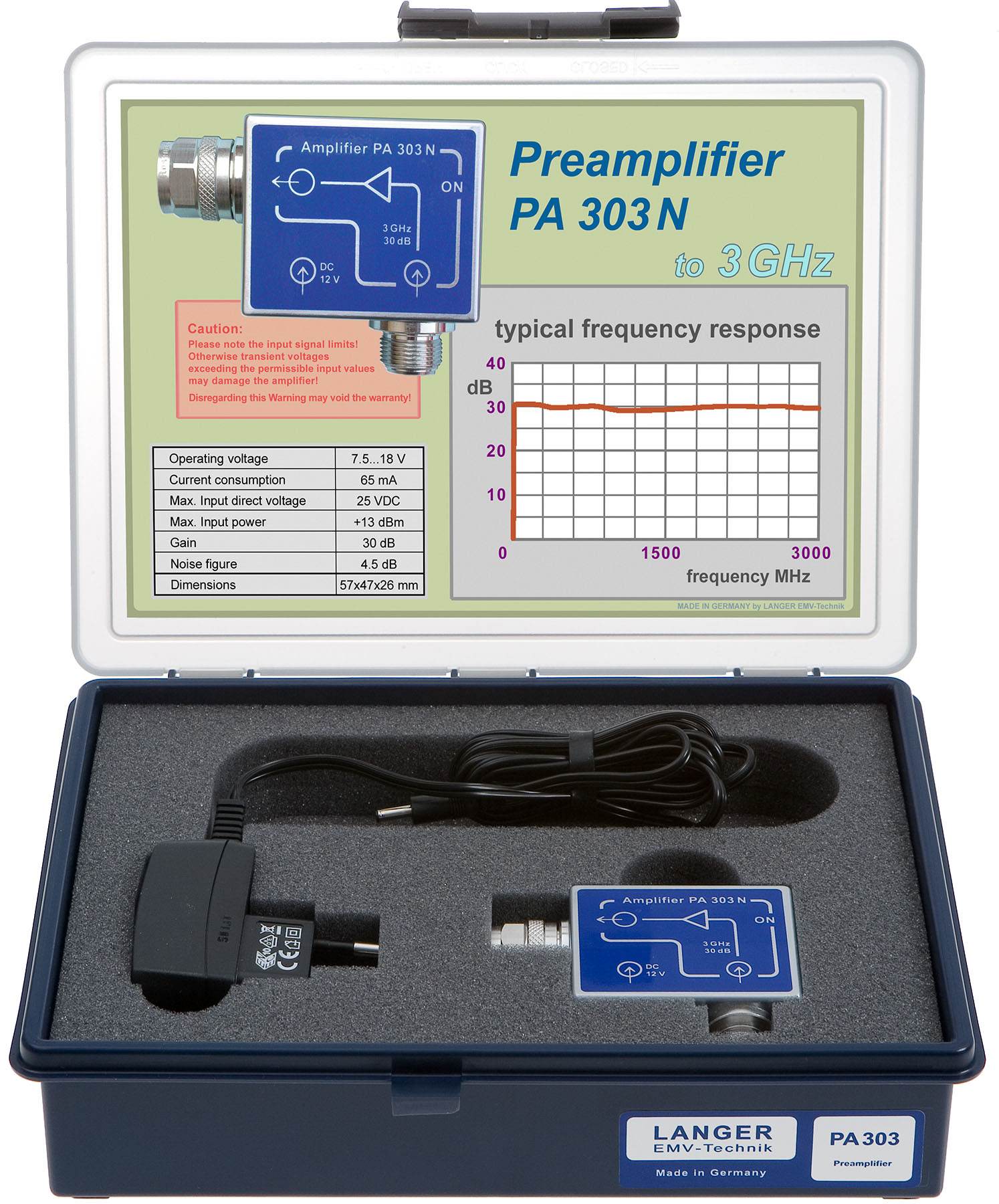

PA 303 N set
Preamplifier 100 kHz up to 3 GHz
The PA 303 N preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 303 N is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier. The input and the output of the PA 303 N use N connectors.

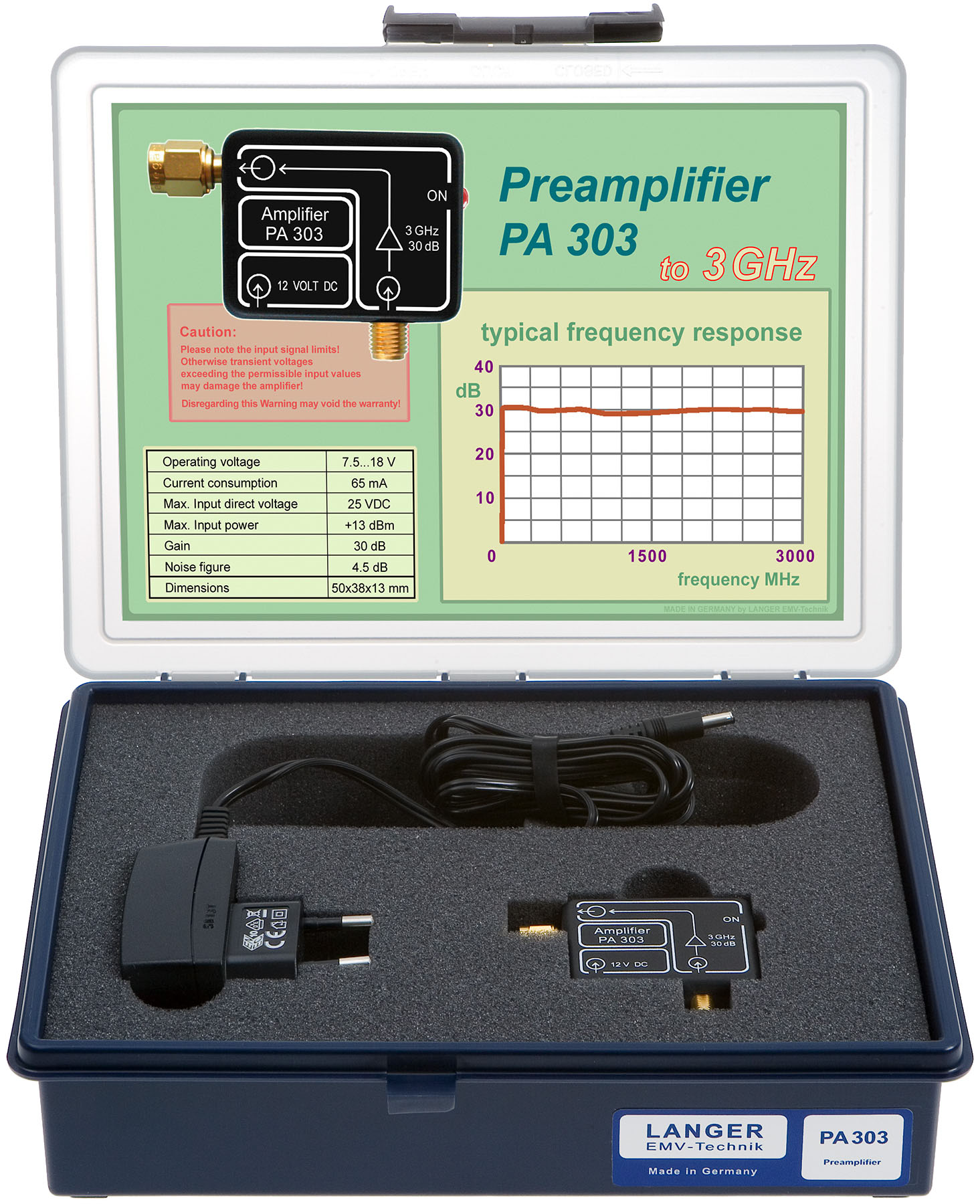

PA 303 SMA set
Preamplifier 100 kHz up to 3 GHz
The PA 303 SMA preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 303 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier. The input and the output of PA 303 SMA use SMA connectors.

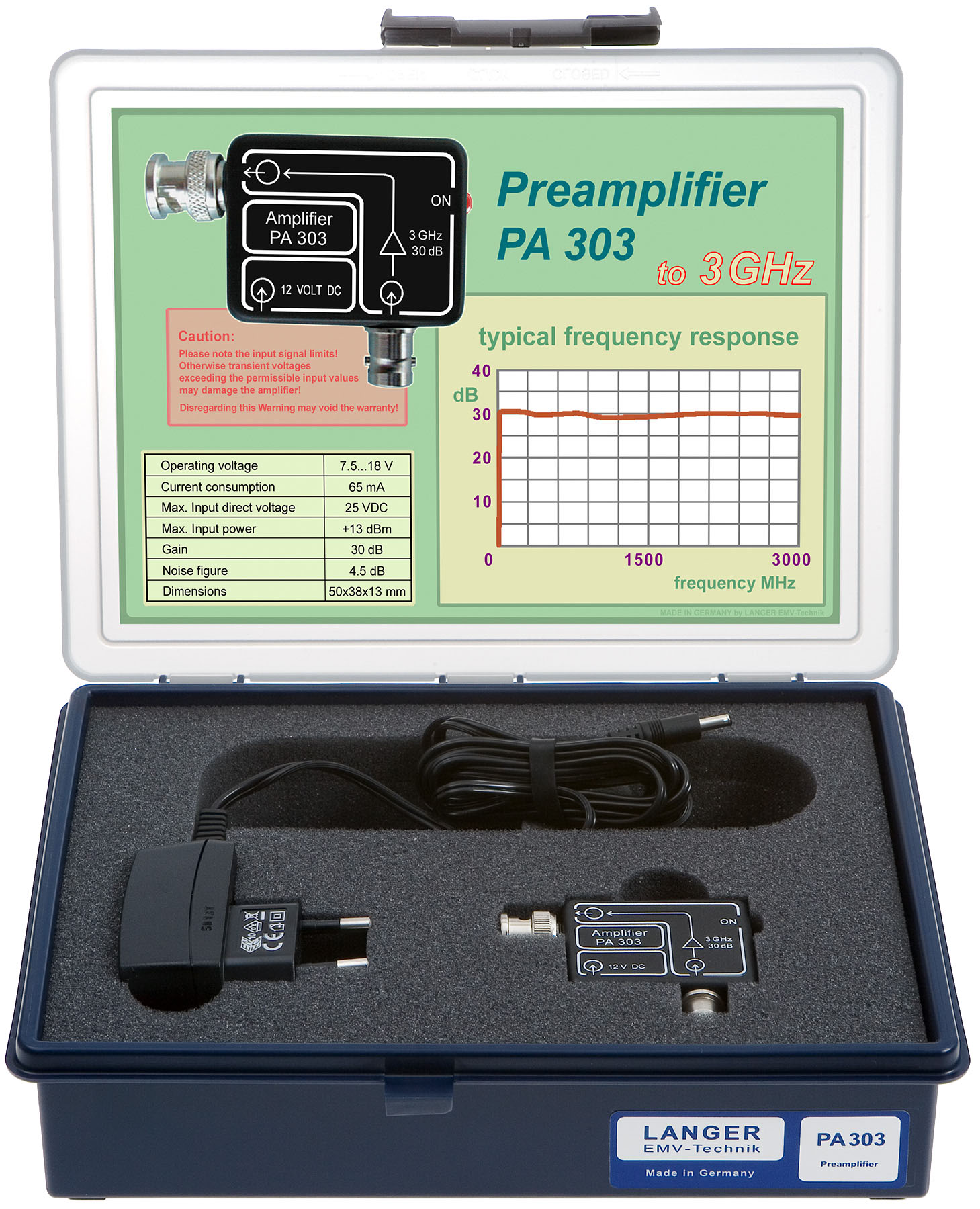

PA 303 BNC set
Preamplifier 100 kHz up to 3 GHz
The PA 303 BNC preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 303 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier.
The input and the output of PA 303 BNC use a 50 ohm BNC connector.

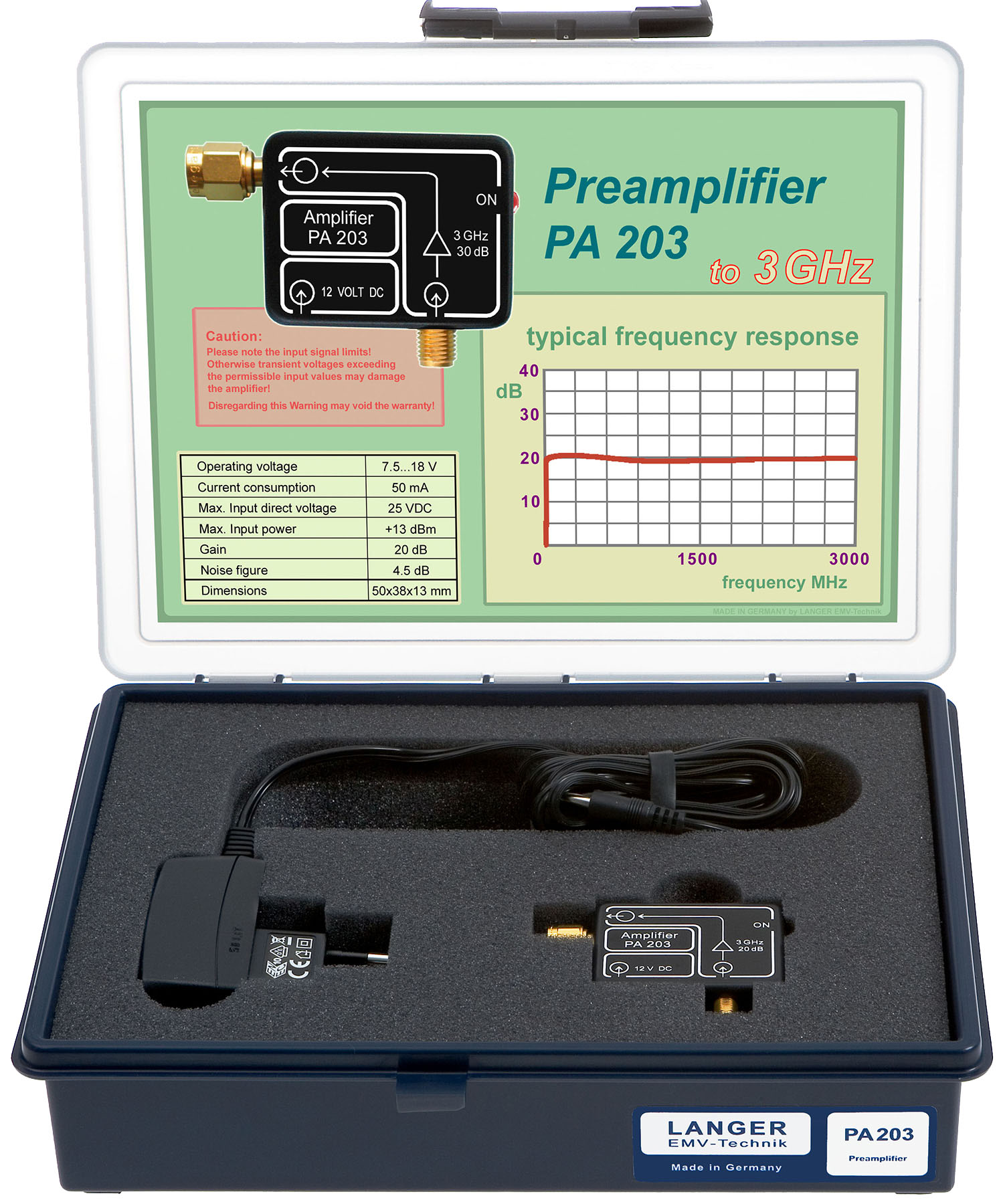

PA 203 SMA set
Preamplifier 100 kHz up to 3 GHzork
The PA 203 preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 203 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable, a near-field probe can be connected to the input of the preamplifier.
The input and the output of PA 203 SMA use a SMA connector.

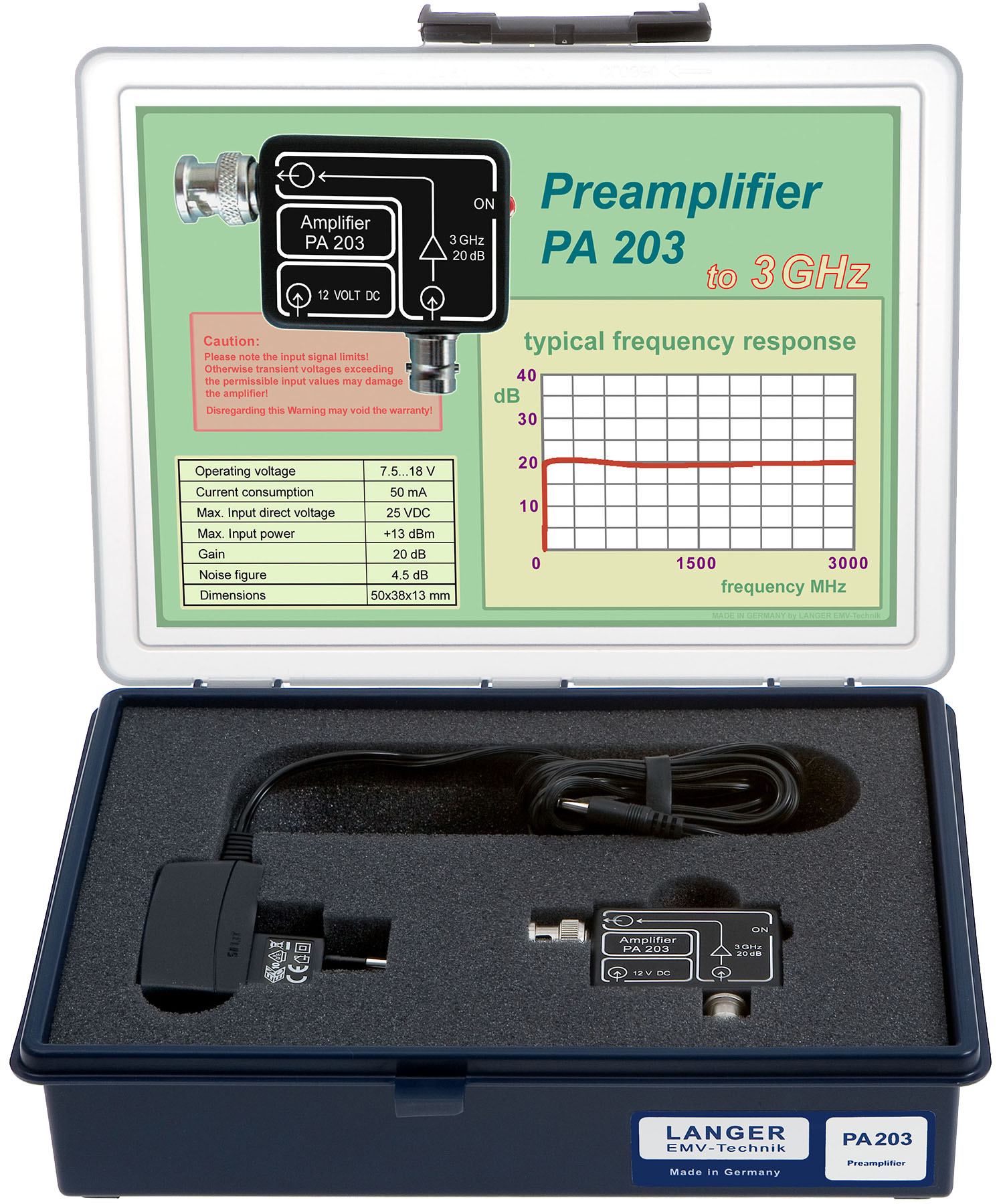

PA 203 BNC set
Preamplifier 100 kHz up to 3 GHz
The PA 203 BNC preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 203 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is supplied by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier.
A 50 ohm BNC is used for the input and the output of PA 203 BNC.
