Overview Description Dimensions of ICR probes (PDF, 1.11 MB)

The measuring electrode at the ICR RF probe head is horizontally aligned to the measurement surface.
A preamplifier is integrated into the probe housing and powered by the enclosed Bias-Tee.
The ICR near-field probes undergo a quality check before they are delivered. Different reference setup measurements are performed and resulting correction lines are generated. Two different correction lines are determined – a standardized correction line and an E-field correction line.

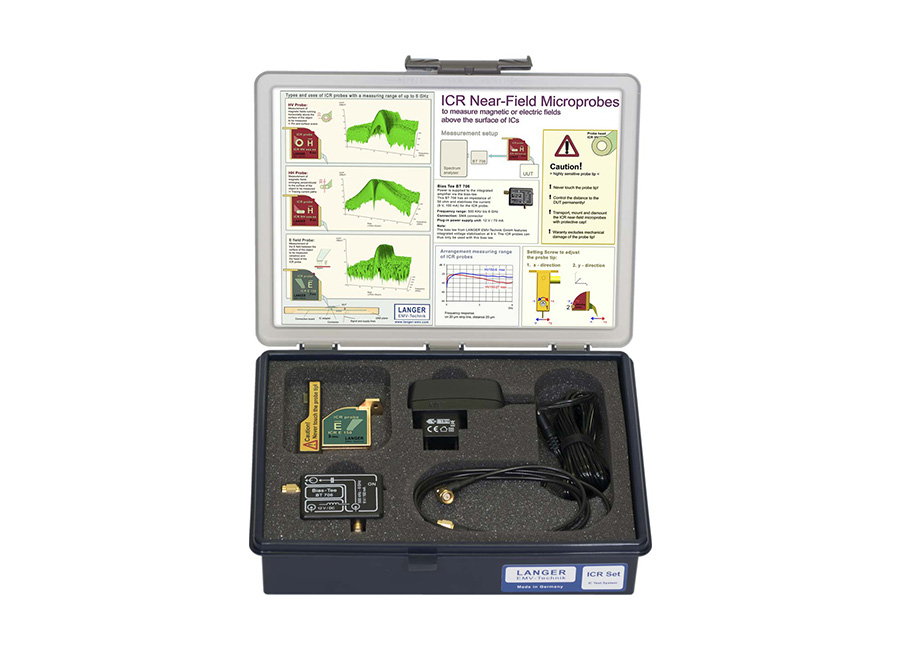

Attention: Due to its construction, the ICR probe is sensitive to shock and comes with a protective cap for transport and handling.
