Biconic Logarithmic Periodic Antennas (Hybrid)

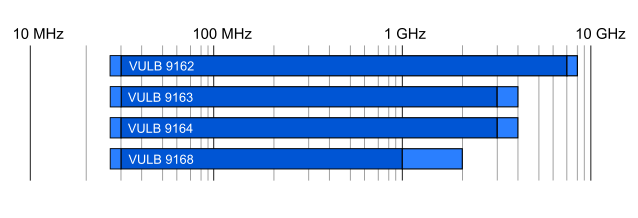

VULB 9162 – TRILOG Broadband Antenna
Linear polarized Logarithmic Periodic Broadband Antenna combined with a 4:1 Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
Datasheet
Radiation Pattern
Short Measuring Distance
Fieldstrength
| Frequency Range, nominal: | 30 MHz – 7 GHz |
| Usable Frequency Range: | 25 MHz – 8 GHz |
| Polarisation: | linear |
| Pattern Type: | directional |
| Material: | Aluminium |
| Max Power: | 200 W (intermitt.) |
| 100 W (cont.) | |
| Connector: | N |
| Impedance: | 50 Ω nominal |
| Length: | 1.29 m |
| Width: | 1.50 m |
| Height: | 0.62 m |
| Weight: | 3.1 kg |
| Mounting: | 22 mm diameter tube |
| Recommended Adapter: | AA 9202, AA 9203, RA 9215 |

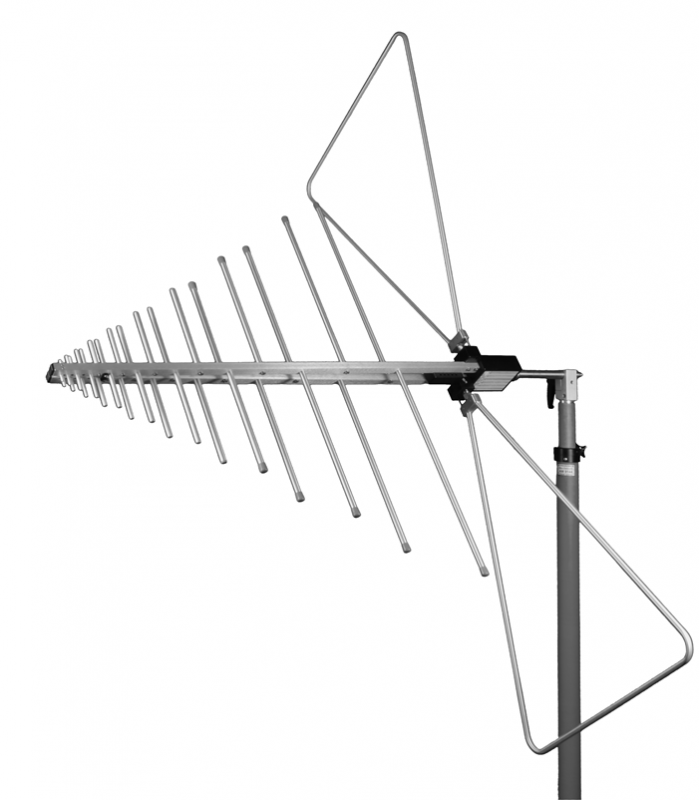

VULB 9163 – TRILOG Broadband Antenna
Linear polarized Logarithmic Periodic Broadband Antenna combined with a 4:1 Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
Datasheet
Radiation Pattern
Short Measuring Distance
Fieldstrength
| Frequency Range, nominal: | 30 MHz – 3 GHz |
| Usable Frequency Range: | 25 MHz – 4 GHz |
| Polarisation: | linear |
| Pattern Type: | directional |
| Material: | Aluminium |
| Max Power: | 200 W (intermitt.) |
| 100 W (cont.) | |
| Connector: | N |
| Impedance: | 50 Ω nominal |
| Length: | 1.24 m |
| Width: | 1.50 m |
| Height: | 0.62 m |
| Weight: | 3.1 kg |
| Mounting: | 22 mm diameter tube |
| Recommended Adapter: | AA 9202, AA 9203, RA 9215 |

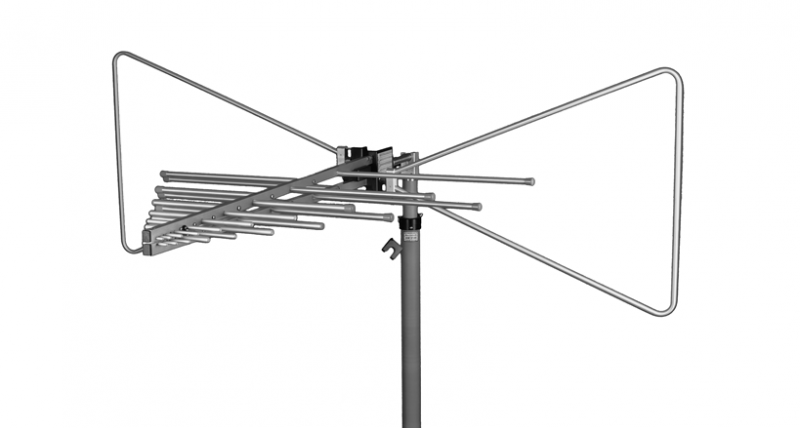

VULB 9164 – TRILOG Broadband Antenna
Linear polarized Logarithmic Periodic Broadband Antenna combined with a Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
| Frequency Range, nominal: | 30 MHz – 3 GHz |
| Usable Frequency Range: | 25 MHz – 4 GHz |
| Polarisation: | linear |
| Pattern Type: | directional |
| Material: | Aluminium |
| Max Power: | 1 kW (f<100 MHz) |
| Connector: | N |
| Impedance: | 50 Ω nominal |
| Length: | 1.24 m |
| Width: | 1.50 m |
| Height: | 0.62 m |
| Weight: | 2.9 kg |
| Mounting: | 22 mm diameter tube |
| Recommended Adapter: | AA 9202, AA 9203, RA 9215 |

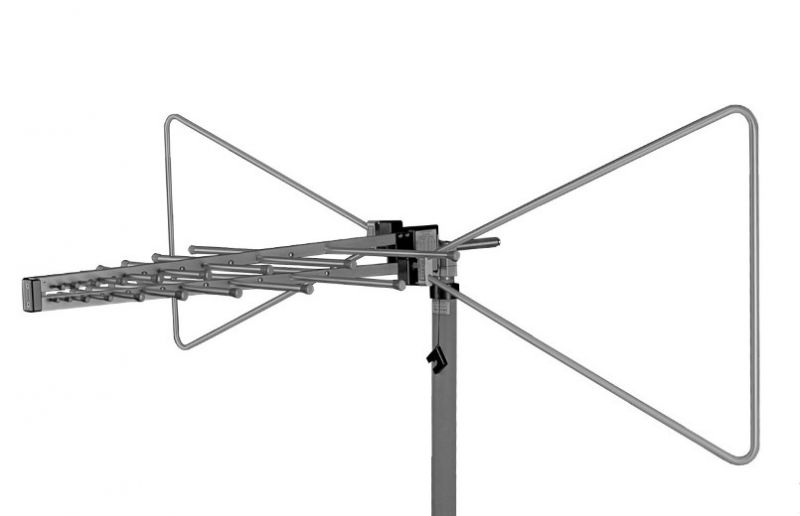

VULB 9168 – TRILOG Broadband Antenna
Linear polarized Logarithmic Periodic Broadband Antenna with Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
Datasheet
Dimensions
Radiation Pattern
Short Measuring Distance
VSWR
| Frequency Range: | 250 – 2400 MHz |
| Polarisation: | linear |
| Pattern Type: | directional |
| Material: | Aluminium |
| Max Power: | 1 kW |
| Connector: | Type N female |
| Impedance: | 50 Ω nominal |
| Length: | 0.69 m |
| Width: | 0.51 m |
| Weight: | 1.35 kg |
| Mounting: | 22 mm diameter tube |
