Assembly Types
Kilovolt High Current Rectifier Assemblies (KHP & RHP Series)
Designed for high current demands in kilovolt applications, these assemblies provide stable performance with recovery options for varied circuit requirements.
| Series | Current (A) | Peak Reverse Voltage (PRV) | Recovery (nS) | Surge (A) |
| KHP | 2.25–3.00 | 5,000 to 50,000 | Standard | 400 |
| RHP | 2.25–2.50 | 5,000 to 50,000 | 200 | 240 |
| Spec Sheet | ||||
Kilovolt Rectifier Assemblies (KVP & RVP Series)
For medium current applications, the KVP and RVP Series offer reliable kilovolt rectification with both standard and faster recovery speeds.
| Series | Current (A) | PRV (Volts) | Recovery (nS) | Surge (A) |
| KVP | 0.75–1 | 5,000 to 50,000 | Standard | 50 |
| RVP | 0.7–0.9 | 5,000 to 50,000 | 200 | 30 |
| Spec Sheet | ||||

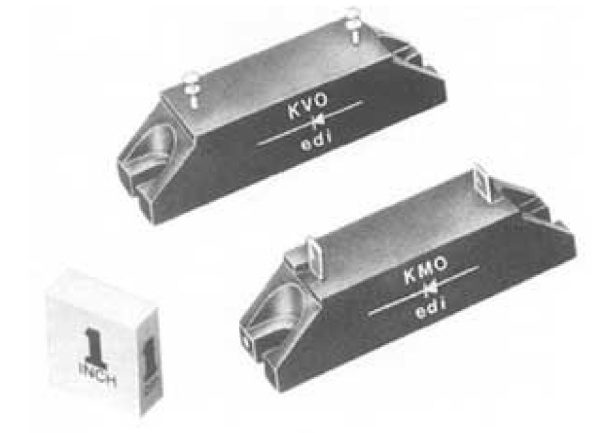

High Voltage Rectifier Assemblies with Quick Disconnect Tabs or Turret Type Terminals (KMO & KVO Series)
The KMO and KVO Series offer convenient connection options for high-voltage applications with quick disconnect tabs or turret terminals.
| Series | Current (A) | PRV (Volts) | Recovery (nS) | Surge (A) |
| KMO | 0.6–1 | 5,000 to 15,000 | Standard | 50 |
| KVO | 0.6–1 | 5,000 to 15,000 | Standard | 50 |
| Spec Sheet | ||||
High Voltage 500 mA Silicon Rectifiers (KVF Series)
Specialized for half-ampere requirements, the KVF Series is suitable for high-voltage circuits needing low recovery times.
| Series | Current (A) | PRV (Volts) | Recovery (nS) | Surge (A) |
| KVF | 0.5 | 5,000 to 30,000 | Standard | 50 |
| Spec Sheet | ||||
Fast Recovery, High Voltage, High Current Silicon Rectifiers (RVF Series)
With fast recovery for high-current needs, the RVF Series is ideal for high-voltage applications where rapid switching is essential.
| Series | Current (A) | PRV (Volts) | Recovery (nS) | Surge (A) |
| RVF | 0.4–0.5 | 5,000 to 40,000 | 150 | 50 |
| Spec Sheet | ||||
High Voltage, High Current Silicon Rectifiers (NTD Series)
These silicon rectifiers support higher voltage and current specifications, suitable for applications with substantial energy demands.
| Series | Current (A) | PRV (Volts) | Recovery (nS) | Surge (A) |
| NTD | 0.3 | 8,000 to 60,000 | Standard | 20 |
| Spec Sheet | ||||
High Voltage Cylinder Silicon Rectifiers (CYL Series)
The CYL Series offers extremely high PRV ratings and stable performance in high-voltage applications with cylindrical packaging for compact installation.
| Series | Current (mA) | PRV (Volts) | Recovery (nS) | Surge (A) |
| CYL | 100–200 | 150,000 to 200,000 | Standard | 20 |
| Spec Sheet | ||||
100 mA Silicon Cartridge Rectifiers (BCD & RTD Series)
Engineered for low current high-voltage applications, the BCD and RTD Series support high voltage ranges with fast recovery options.
| Series | Current (A) | PRV (Volts) | Recovery (nS) | Surge (A) |
| BCD | 0.1 | 8,000 to 60,000 | Standard | 10 |
| RTD | 0.1 | 8,000 to 60,000 | 200 | 10 |
| Spec Sheet | ||||
High Voltage Diffused Silicon Rectifiers (LHC & RHC Series)
Ideal for specialized applications requiring precise control and high-voltage rectification, these assemblies offer diffused silicon technology.
| Series | Current (mA) | PRV (Volts) | Recovery (nS) | Surge (A) |
| LHC25 | 25 | 8,000 to 40,000 | Standard | 3 |
| RHC25 | 25 | 8,000 to 40,000 | 100 | 3 |
| Spec Sheet | ||||
