Key Features & Benefits:
10-inch Touchscreen Display: The wide TFT color touchscreen allows for easy data visualization and navigation through menus.
10 Universal Analog Input Channels: Supports a wide range of input types, including voltage, temperature, current, resistance, and frequency.
Extended Battery Life: The DAS220-BAT model provides up to 15 hours of battery life, making it suitable for long-term field use.
Versatile Temperature Measurements: Supports thermocouples and Pt100/Pt1000 temperature sensors for comprehensive temperature logging.
Wide Voltage Range: Measures DC voltages from ±0.5 mV to ±100 V and resistances up to 10 kOhm.
16-bit Vertical Resolution: Provides high accuracy for all measurement types.
32 GB Internal Memory: Stores large amounts of data for long-term logging, and external USB storage is supported.
12 Logic Input/Output Channels: Allows for additional signal monitoring and control.
Pulse & Frequency Measurements: Offers 4 timing logic input channels for pulse count, frequency, and PWM measurements, which can be expressed in RPM (rotations per minute).
WiFi Monitoring & Control: Remotely monitor and control the data logger using WiFi with a standard USB WiFi dongle.
Applications:
Temperature Logging: Ideal for monitoring temperature using thermocouples and RTDs in process environments.
Voltage Measurements: Capable of measuring DC voltages from ±0.5 mV to ±100 V, providing flexibility for various applications.
Current Loop Monitoring: Supports 4-20 mA current loop measurements commonly used in industrial control and automation systems.
Frequency & Pulse Measurements: Performs frequency, pulse totalization, and pulse rotation measurements, ideal for tracking and monitoring mechanical processes like RPM.
Models:

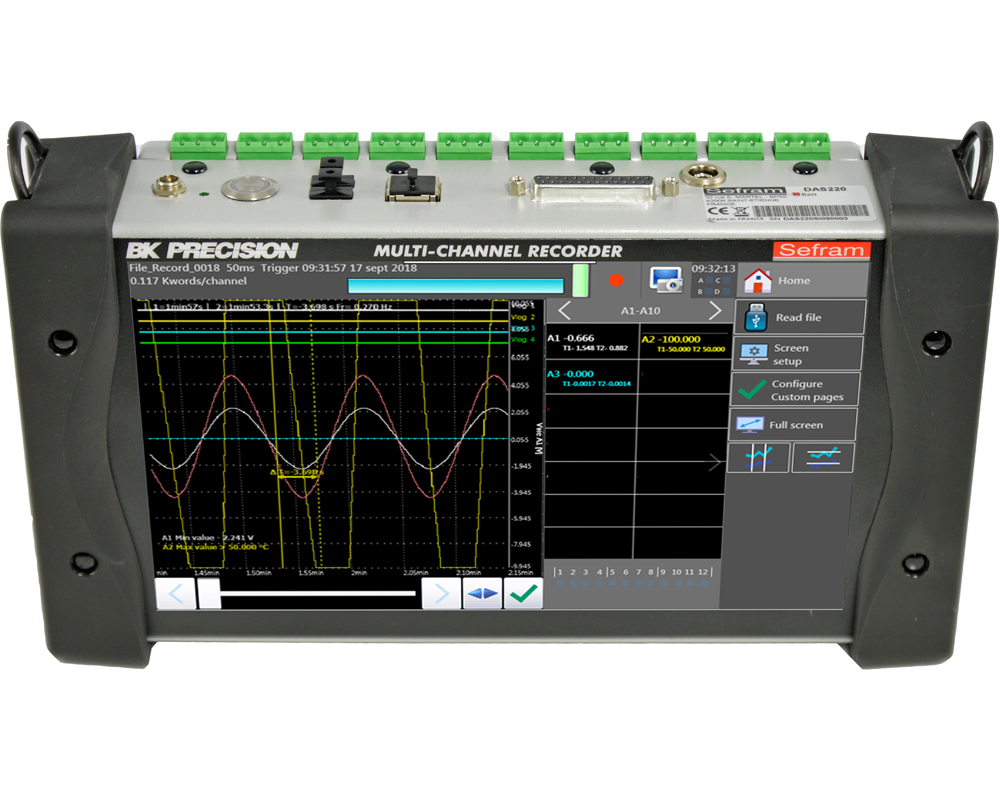

Model DAS220: Standard 10-channel data recorder for versatile process monitoring.
Model DAS220-BAT: Portable 10-channel data recorder with built-in battery for extended remote use, up to 15 hours.
The DAS220 series is a versatile, easy-to-use, and portable solution for data logging and process monitoring in various industrial, environmental, and scientific applications.
