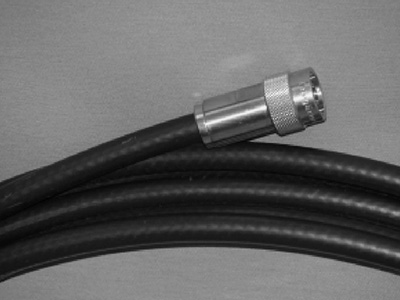

AK 9513
50 Ohm Coax. Cable with N plugs
Individual length
Usable up to 3 (5) GHz
Indiv. Cal. possible if cable longer than 3 m
Standard lengths: 3 m, 5 m, 10 m
AK 9515 E
50 Ohm Coaxial Cable with N plugs
Low loss
Good flexibility
Usable up to 10 GHz
10.8 mm diam.
Indiv. Cal. possible if cable longer than 1 m

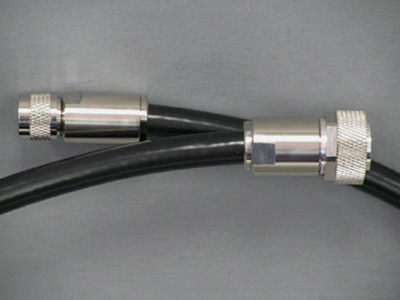

AK 9515 G
50 Ohm Coaxial Cable available with N- or 7/16 plugs
Very low loss
High power
Good flexibility
Usable up to 6 GHz
14.6 mm diam.
Indiv. Cal. possible if cable longer than 1 m

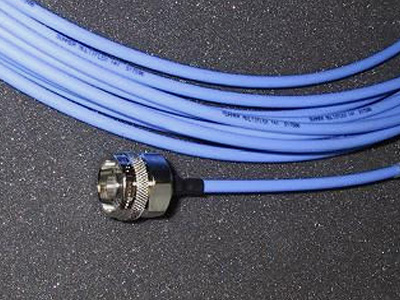

AK 9515 H
50 Ohm Microwave Coaxial Cable with N- or SMA connectors
Low loss
Flexible
Usable up to 18 GHz.
Indiv. Cal. possible if cable longer than 1 m

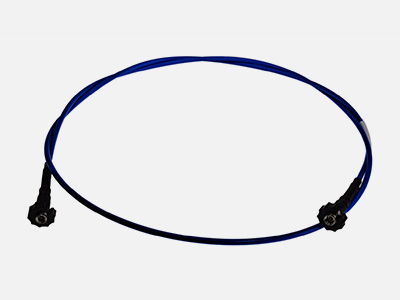

AK 9540 B
AK 9540 B has low losses in the frequency range up to 40 GHz. The flexibility is sufficient for applications with changing cable geometries and over 500 cycles of operation. The inner conductor consists of in total 19 silver-plated copper wires each wire with a diameter of 0.2 mm. The low-loss dielectric material is based on extruded LD(low density) – PTFE. The outer conductor consists of two layers: a silverplated copper-foil surrounded by a silverplated copper braid. The inner contact of the 2.92 mm plugs consists of gold-plated CuBe alloy, the outer plug contact of stainless steel.
MSS 9630
Sheath current blocking cable to avoid coupling
Effects caused by braid currents.
Standard configuration:
N-male, N-female, length ca. 0.3 m
