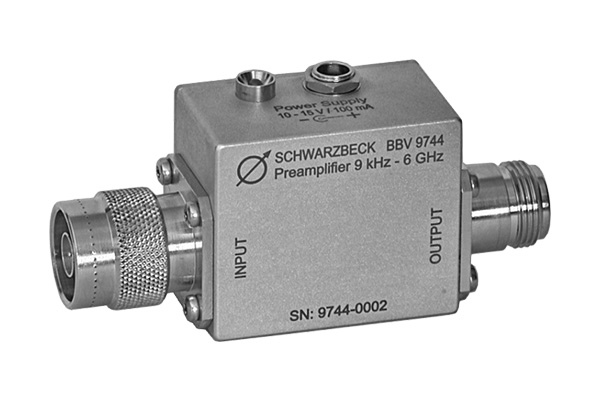

BBV 9744 – Broadband Preamplifier

Frequency range (nominel):	9 kHz – 6 GHz
Noise figure:	typ. 2.5 dB (1.0 GHz)
Gain:	typ. +28 dB
Amplitude flatness:	typ. < ± 3 dB
1 dB compression point at input:	> -20 dBm
	(87 dBµV)
Impedance:	50 Ω
VSWR input / output:	typ. < 2 : 1
Ambient temperature:	-10°C … +60°C
Power supply:	+ 10-15 V
	120 mA
Material of the housing:	Aluminium
Housing dimensions:	42 x 35 x 27 mm
Overall dimensions:	82 x 38 x 27 mm
Weight:	160 g

Datasheet

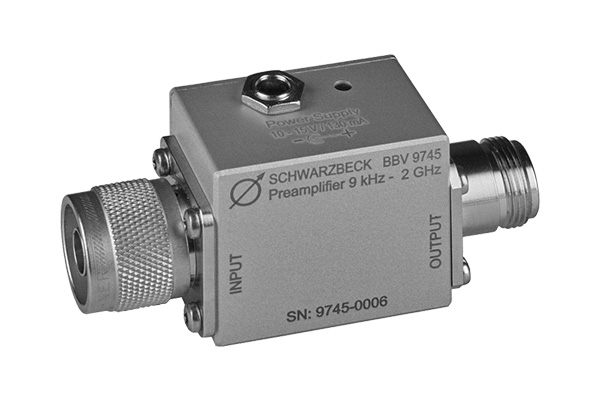

BBV 9745 – Broadband Preamplifier

Frequency range (nominel):	10 MHz – 6 GHz
Noise figure:	typ. <2.7 dB (1.0 GHz)
Gain:	typ. +28 dB
Amplitude flatness:	< ± 3 dB
1 dB compression point at input:	> -18 dBm
	(89 dBµV)
Impedance:	50 Ω
VSWR input / output:	< 2 : 1
Ambient temperature:	-10°C … +60°C
Power supply:	+ 10-15 V
	120 mA
Material of the housing:	Aluminium
Housing dimensions:	42 x 35 x 27 mm
Overall dimensions:	82 x 38 x 27 mm
Weight:	150 g

Datasheet

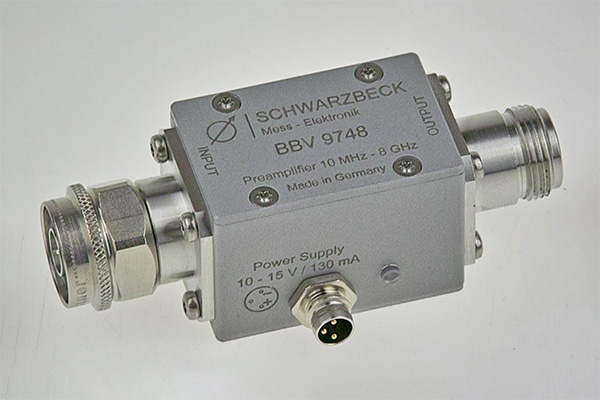

BBV 9748 – Broadband Preamplifier

Frequency range (nominel):	10 MHz – 8 GHz
Noise figure:	typ. 2.7 dB (1.0 GHz)
Gain:	typ. 29 dB
Amplitude flatness:	< ± 3 dB
1 dB compression point at input:	> -17 dBm
Impedance:	50 Ω
VSWR input / output:	< 2 : 1
Ambient temperature:	-10°C … +60°C
Power supply:	+10-15 V
	120 mA
Material of the housing:	Aluminium
Housing dimensions:	42 x 28 x 29 mm
Overall dimensions:	85 x 36 x 29 mm
Weight:	130 g

Datasheet

BBV 9718 D – Microwave Broadband Preamplifier

Low Noise Low Power Wideband Amplifier for increasing sensitivity at fieldstrengthmeasurements and for general attenuation measurements up to 18 GHz. Due to the built-in rechargeable battery, operation without power supply is possible for approx. 8h.

Nominal frequency range:	1 – 18 GHz
Useable frequency range:	0.5 – 20 GHz
Connectors:	50 Ω N/SMA
Mounting tube:	d=22 mm
Noise figure:	2 dB
Gain:	typ. 30 dB ± 5 dB
SWR typ.:	<2
Max. Input Power:	-10 dBm (97 dBµV)
Dimensions:	155 x 80 x 67 mm
Weight:	~1.0 kg

Datasheet

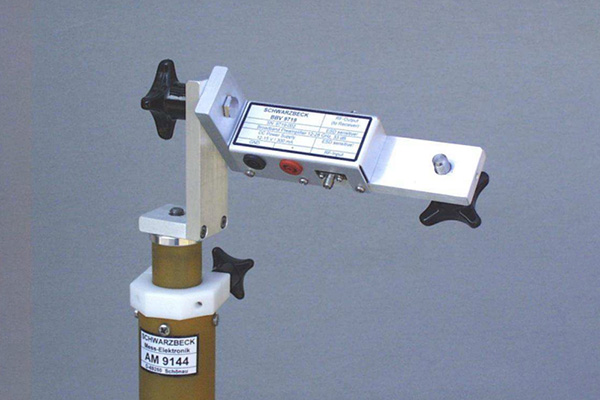

BBV 9719 – Microwave Broadband Preamplifier

Frequency range (nominel):	18 – 26.5 GHz
Useable frequency range:	12 – 28 GHz
Gain:	typ. 33 dB ±2 dB
Gain min.:	30 dB
SWR typ.:	<2
Max. input power:	-20 dBm (87 dBµV)
1 dB Compression:(at output)	>+17 dBm (124 dBµV)
Noise Figure:	3.5 dB
Connectors:	50 Ω SMA
Supply Voltage:	12 V – 15 V DC
Current Consumption:	250-300 mA
Power Supply via female Banana sockets:	4 mm
Dimensions:	210 x 100 x 60 mm
Weight:	150 g

Including short cable with SMA plugs to connect the BBV 9719 with the antenna (for example BBHA 9170)

Options:

Option Akku: Rechargeable battery pack for BBV 9718 or 9719.
Option ALCS 2-24A: Battery charger ALCS 2-24A for rechargeable battery pack.
Option PS: Power supply for BBV 9718 or 9719.

Datasheet

BBV 9721 – Microwave Broadband Preamplifier

The BBV 9721 is a low noise low power wideband preamplifier to increase sensitivity during field strength-measurements and for general attenuation measurements up to 40 GHz.

Frequency range (nominel):	18 – 40 GHz
Gain:	typ. 35 dB ±4 dB
Gain min.:	27 dB
SWR typ.:	<2.6
Max. input power:	-20 dBm (87 dBµV)
1 dB Compression:(at output)	>+15 dBm (122 dBµV)
Noise Figure:	5.5 dB
Connectors:	2.92 mm 50 Ω
Power Supply 1:	+ 8 V / 400 mA DC
Power Supply 2:	– 8 V / 50 mA DC
Power Supply via female Banana sockets:	4 mm
Dimensions:	370 x 95 x 65 mm
Weight:	860 g

Including short cable with 2.92 plugs to connect the BBV 9721 with the antenna (for example BBHA 9170)

Datasheet

Options:

Option PS 9721: Power supply unit for BBV 9721 including cables with secuity plugs can be used for 110 V and 230 V
Datenblatt PS 9721

Option PS 9721 Battery: Power supply unit with integrated accumulator battery for BBV 9721 including cables with secuity plugs can be used for 110 V and 230 V
Datenblatt PS 9721

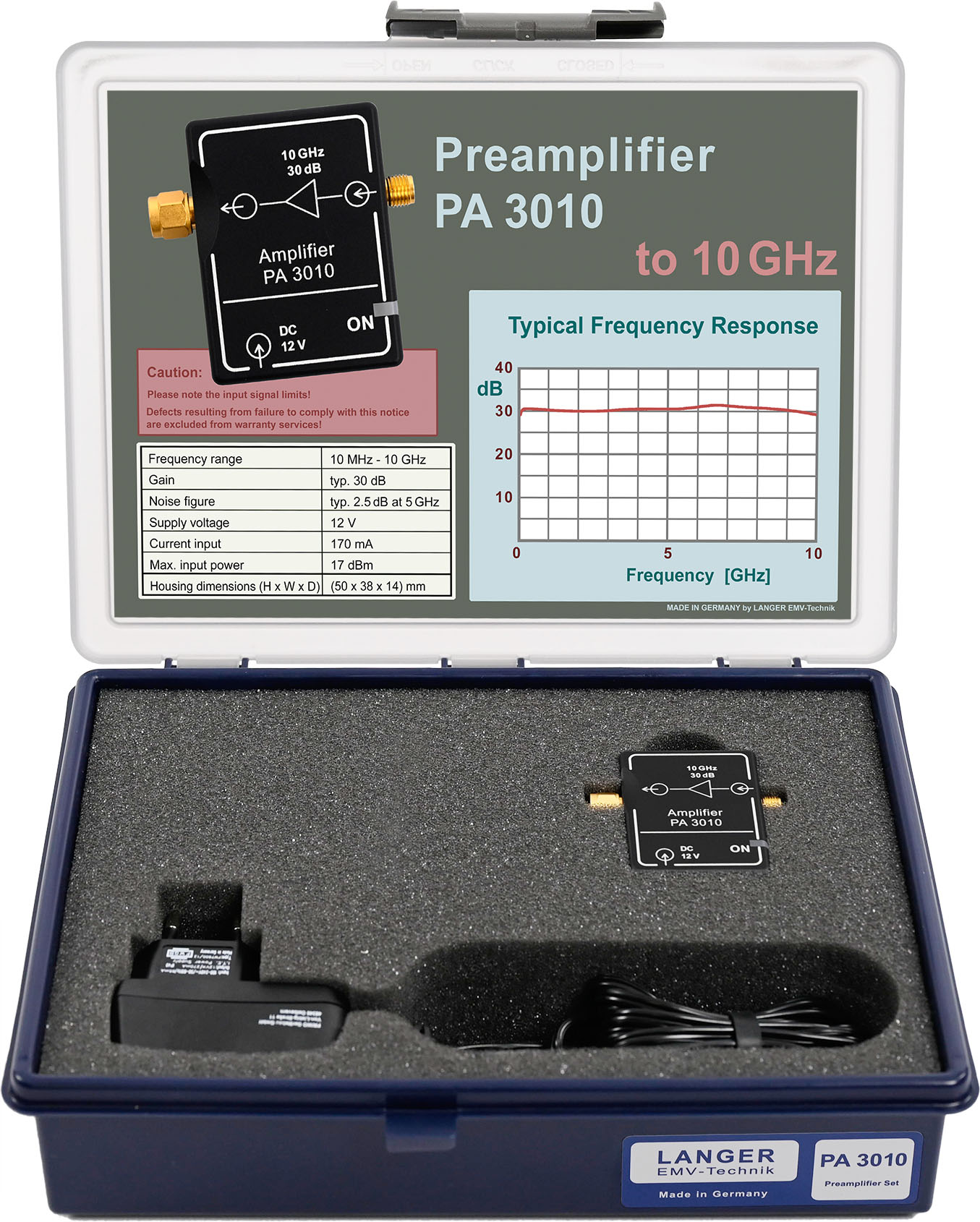

PA 3010 set

Preamplifier 10 MHz up to 10 GHz

The PA 3010 preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 3010 is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the plug-in power supply. With the correct cable a near-field probe can be connected to the input of the preamplifier. Input and output of the PA 3010 are SMA connectors.

Downloads

PA 3010 set user manual

Datasheet

Learn More

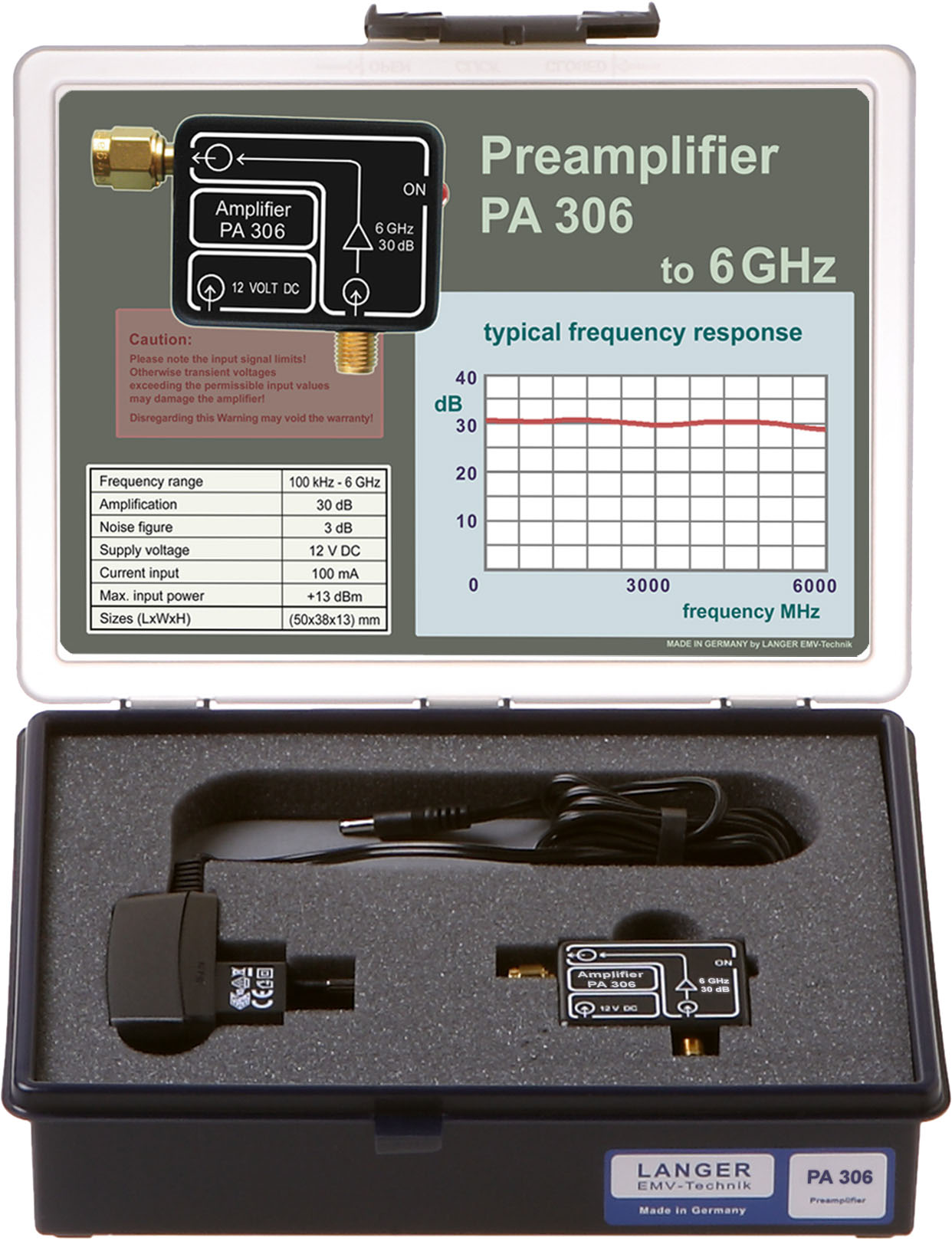

PA 306 SMA set

Preamplifier 100 kHz up to 6 GHz

The PA 306 SMA serves for amplifying measurement signals, for example weak signals from high-resolution near-field probes. The PA 306 is connected to the 50 Ω input of a spectrum analyzer or oscilloscope and supplied via the plug-in power supply unit included in delivery.

Datasheet

Learn More

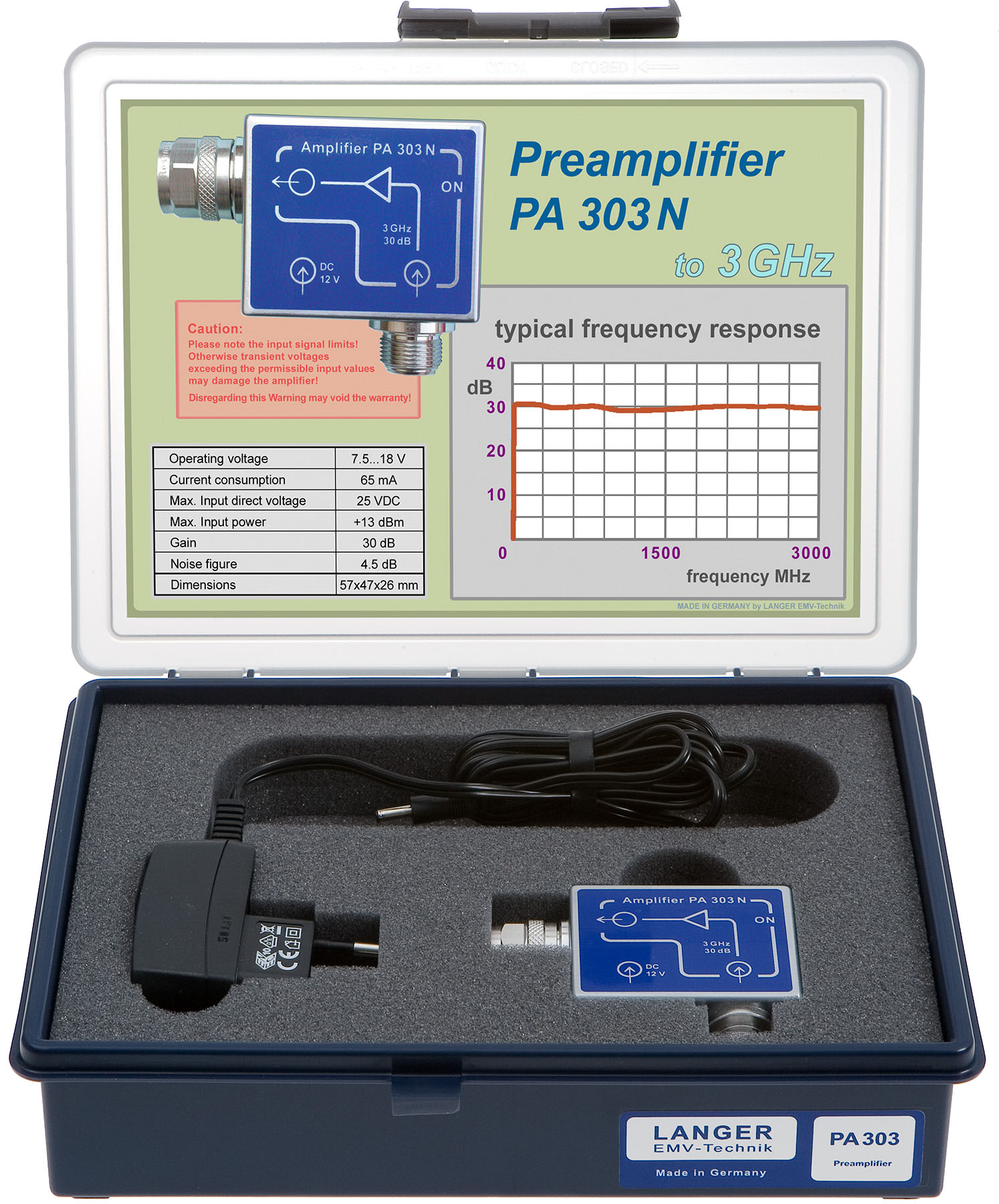

PA 303 N set

Preamplifier 100 kHz up to 3 GHz

The PA 303 N preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 303 N is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier. The input and the output of the PA 303 N use N connectors.

Datasheet

Learn More

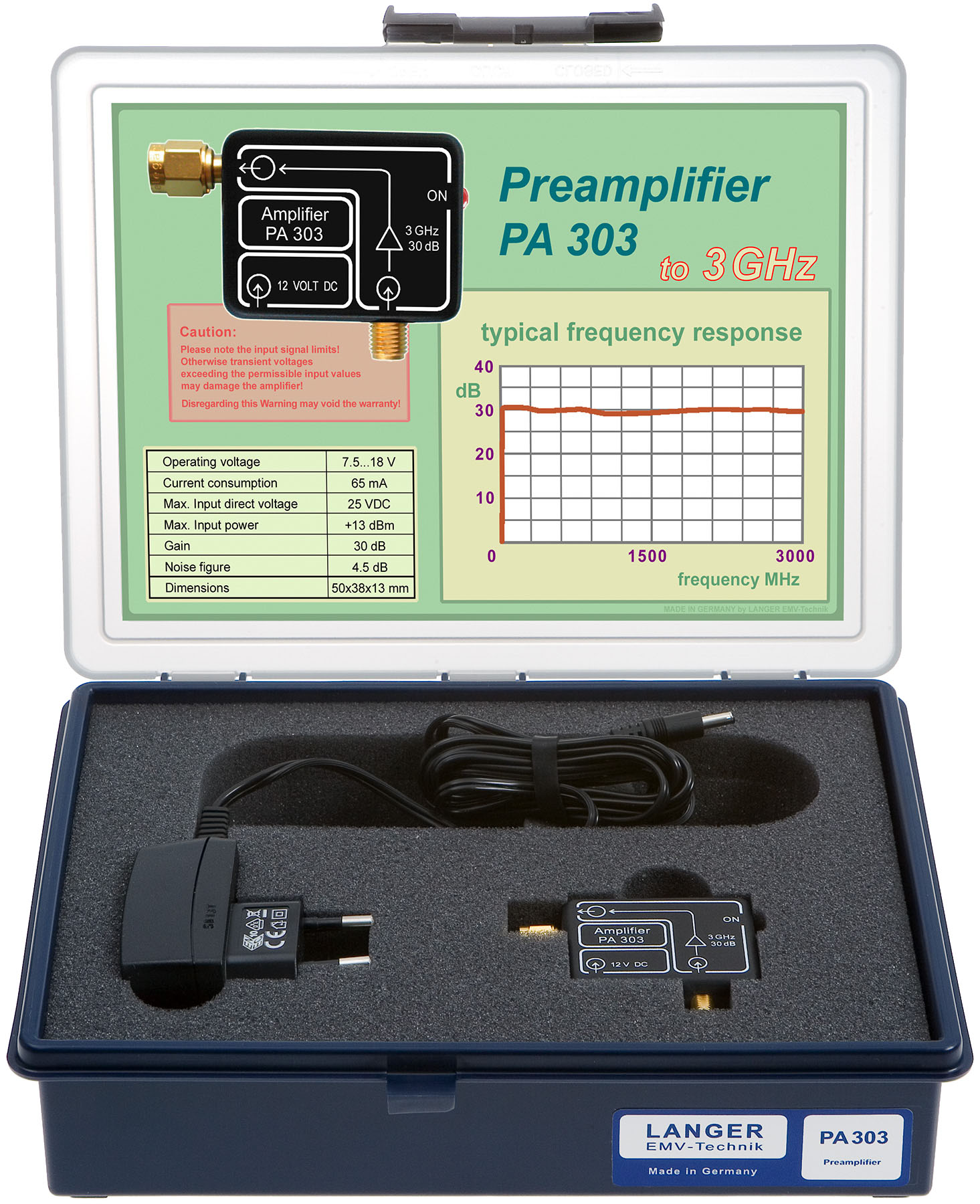

PA 303 SMA set

Preamplifier 100 kHz up to 3 GHz

The PA 303 SMA preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 303 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier. The input and the output of PA 303 SMA use SMA connectors.

Datasheet

Learn More

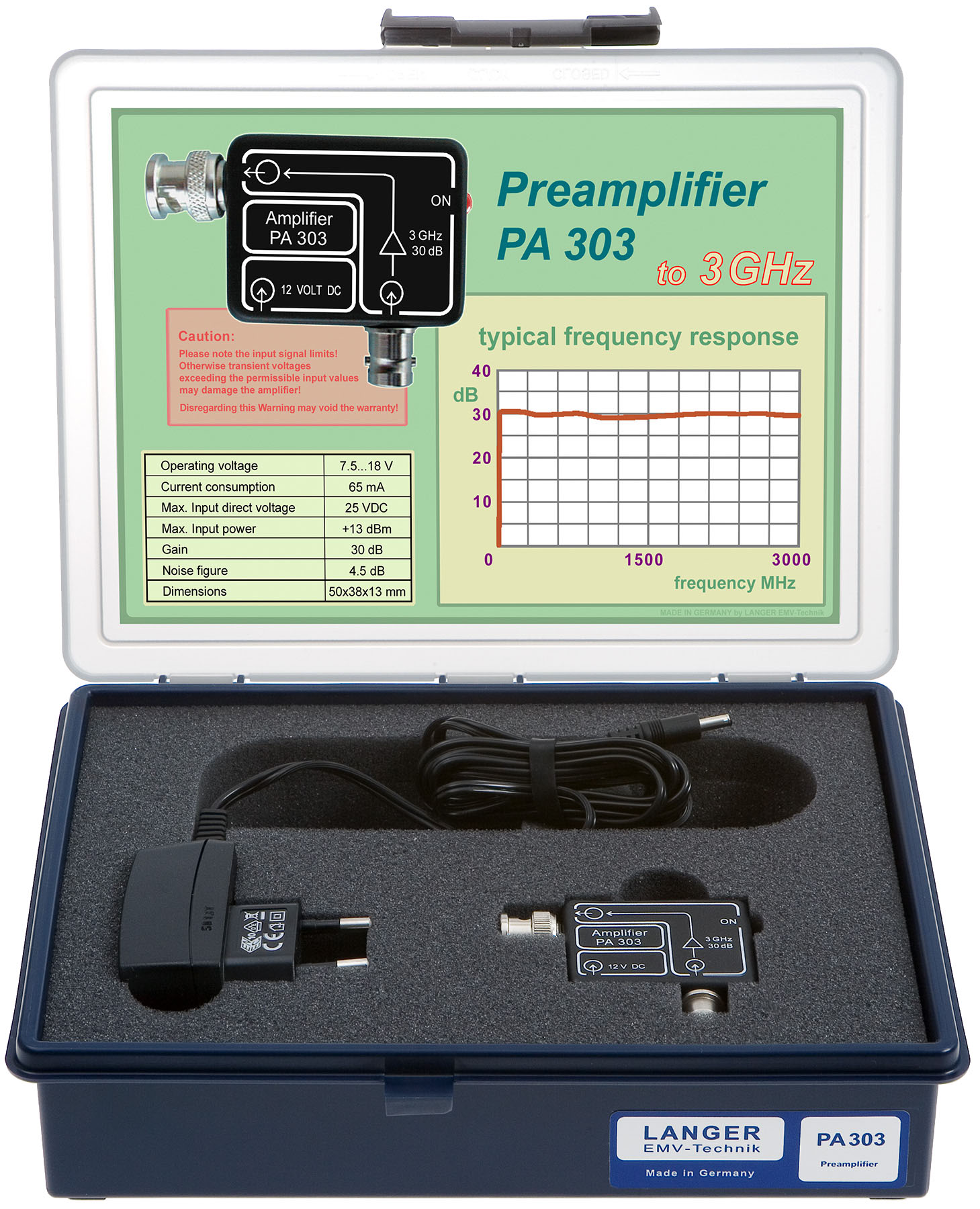

PA 303 BNC set

Preamplifier 100 kHz up to 3 GHz

The PA 303 BNC preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 303 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier.
The input and the output of PA 303 BNC use a 50 ohm BNC connector.

Datasheet

Learn More

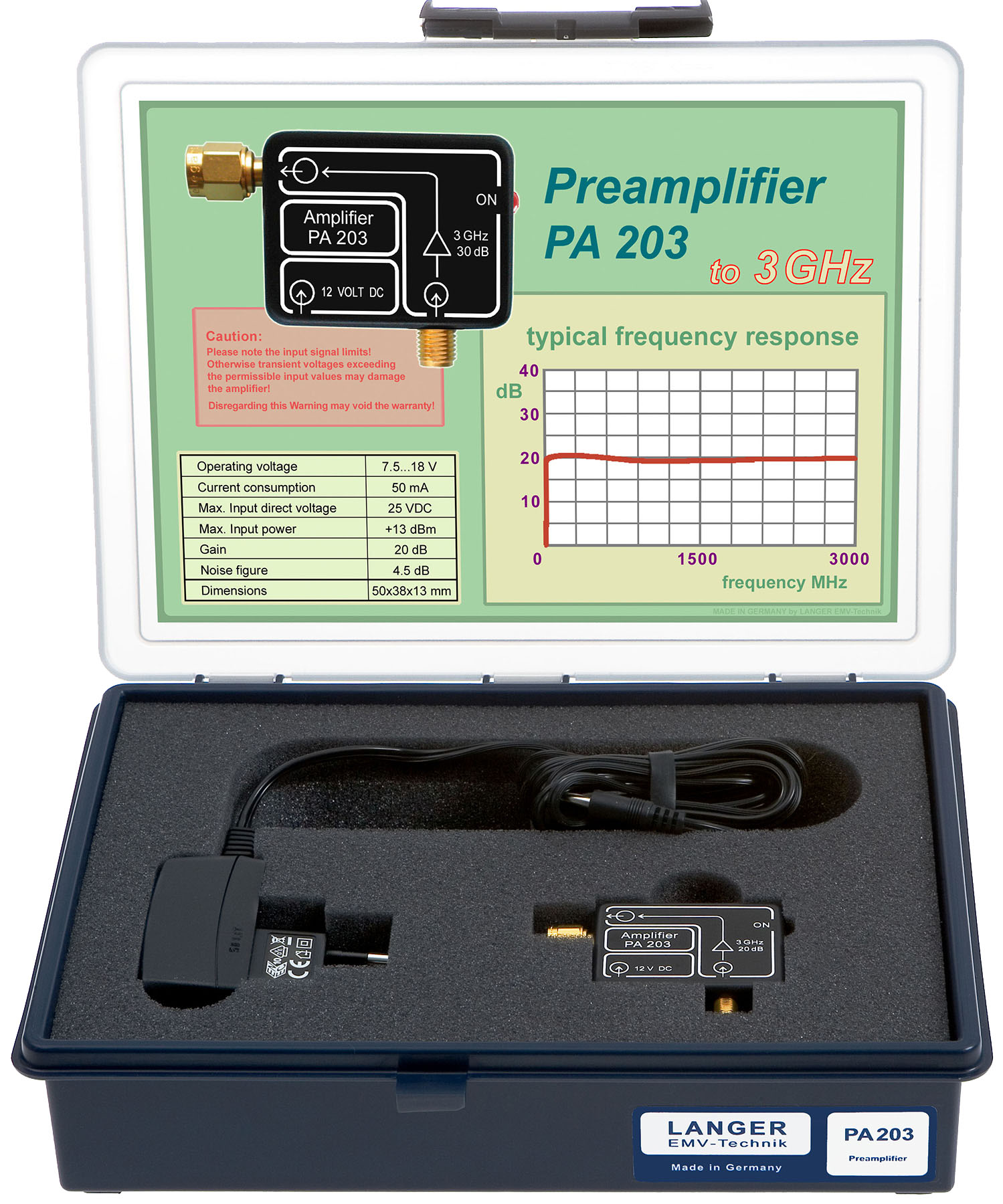

PA 203 SMA set

Preamplifier 100 kHz up to 3 GHzork

The PA 203 preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 203 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable, a near-field probe can be connected to the input of the preamplifier.
The input and the output of PA 203 SMA use a SMA connector.

Datasheet

Learn More

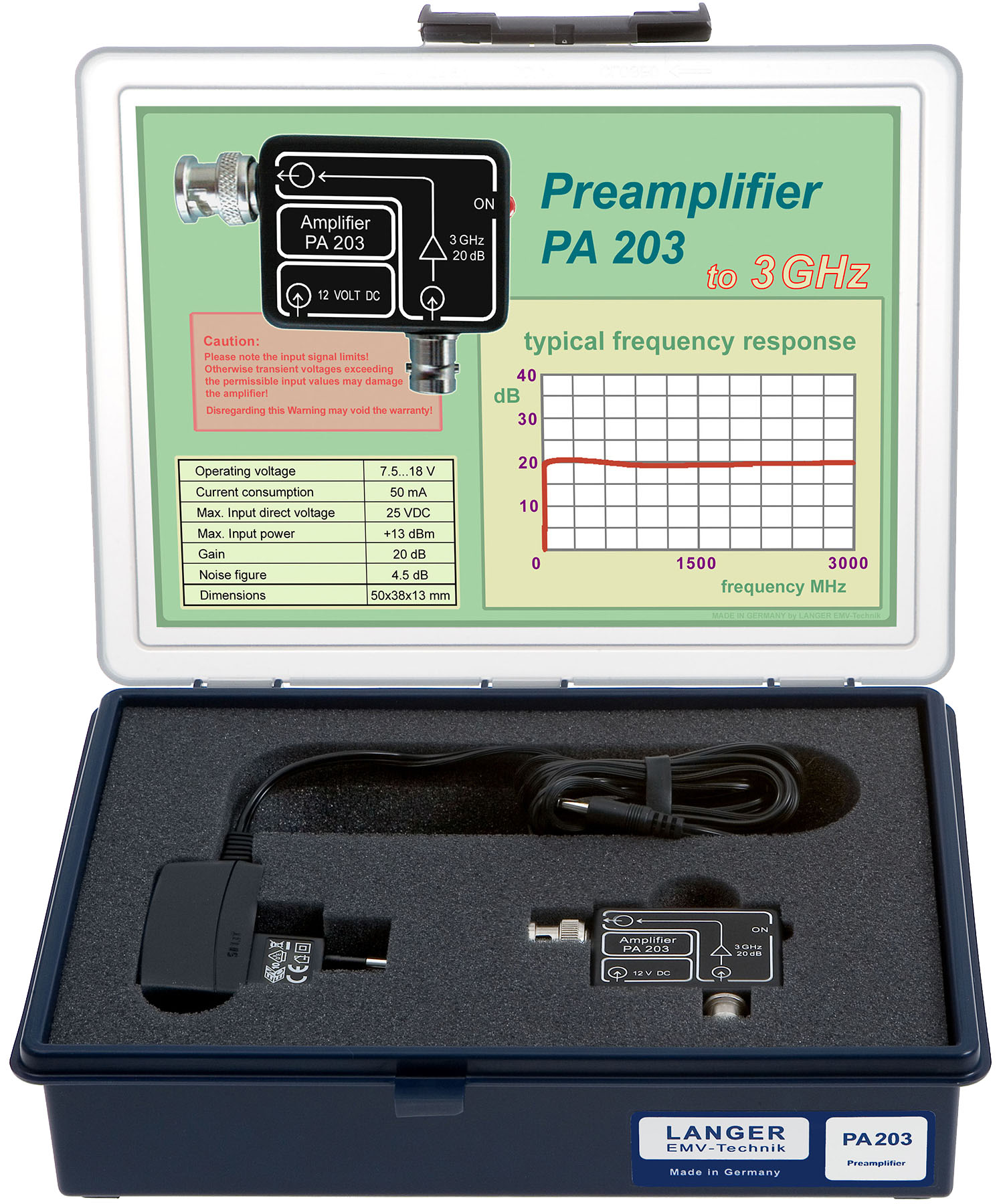

PA 203 BNC set

Preamplifier 100 kHz up to 3 GHz

The PA 203 BNC preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 203 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is supplied by the wall-plug transformer. With the correct cable a near-field probe can be connected to the input of the preamplifier.
A 50 ohm BNC is used for the input and the output of PA 203 BNC.

Datasheet

Learn More
