Schwarzbeck Preamplifiers

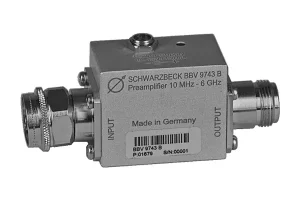

BBV 9743 B – Broadband Preamplifier Frequency range (nominel): 10 MHz – 6 GHz Noise figure: typ. <2.7 dB (1.0 GHz) Gain: typ. +28 dB Amplitude flatness: < ± 3 dB 1 dB compression point at input: > -18 dBm (89 dBµV) Impedance: 50 Ω VSWR input / output: < 2 : 1 Ambient temperature: […]
Langer EMV Technik Preamplifiers

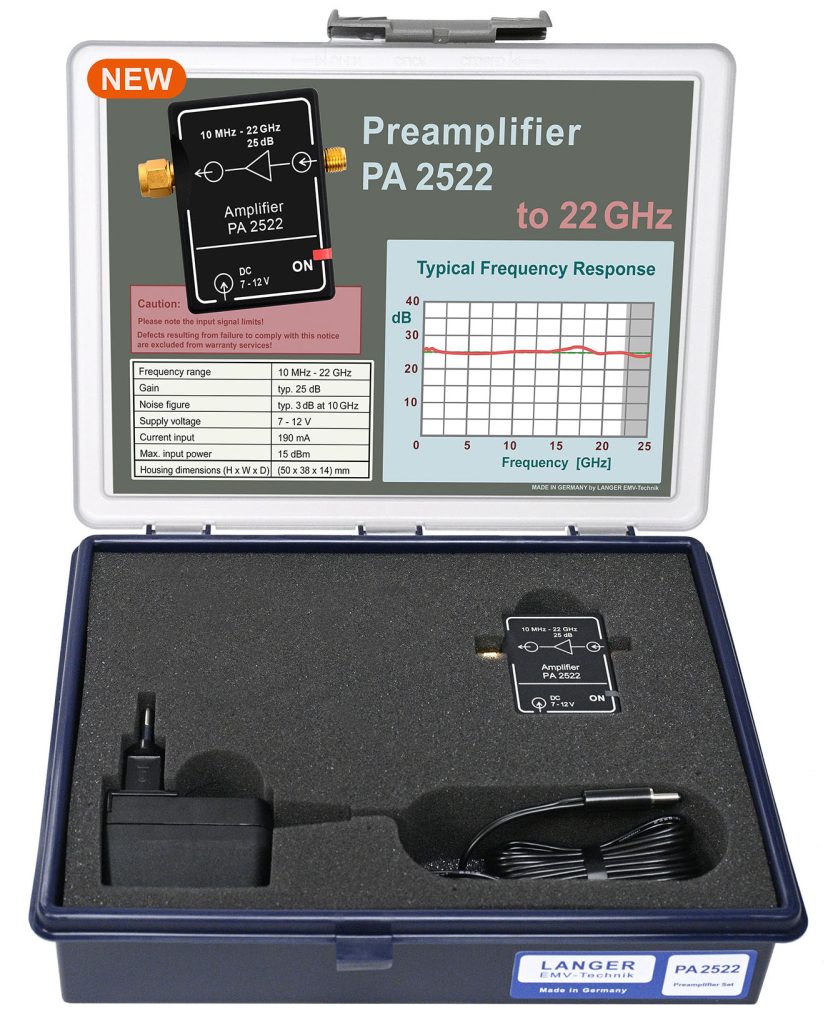

PA 2522 set Preamplifier 10 MHz up to 22 GHz The PA 2522 preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 2522 is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the plug-in power […]
