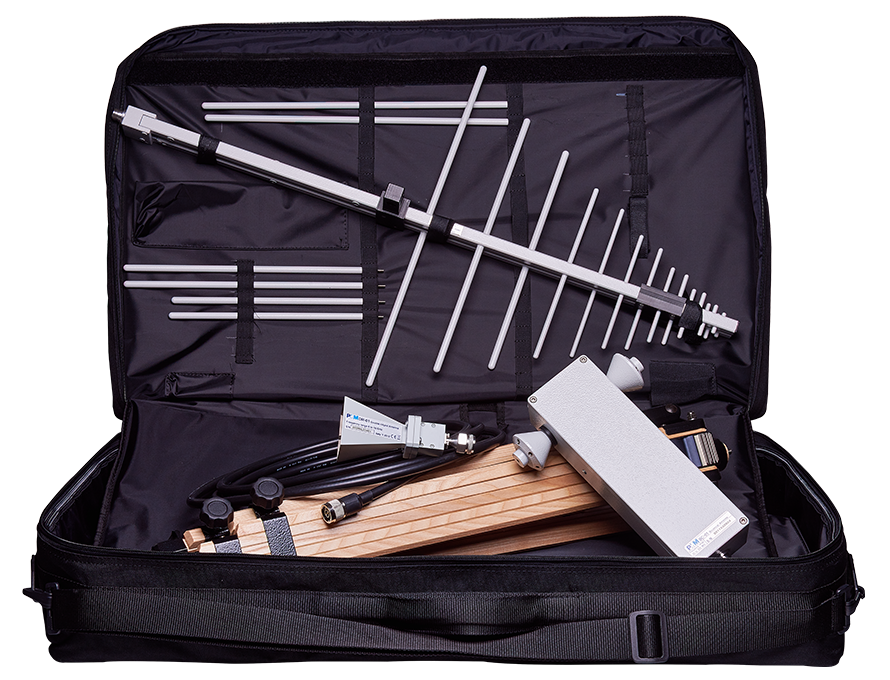

Available Antenna Systems:

AS-02: 30 MHz – 3 GHz (BC-01, LP-02)

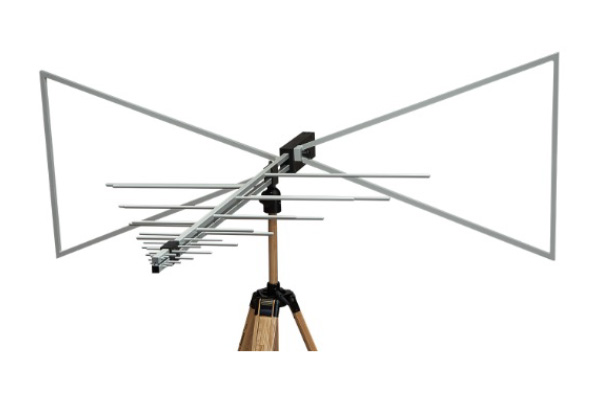

AS-03: 30 MHz – 6 GHz (BC-01, LP-02, LP-03)
AS-04: 30 MHz – 6 GHz (BC-01, LP-04)
AS-05: 30 MHz – 18 GHz (BC-01, LP-04, DR-01)
AS-06: 30 MHz – 18 GHz (BC-01, LP-02, LP-03, DR-01)
AS-07: 30 MHz – 6 GHz (BL-01)
AS-08: 30 MHz – 18 GHz (BL-01, DR-01)

Key Antenna Models:
Model Frequency Range Description
BC-01 30 – 200 MHz Biconical antenna for radiated EMC applications, available in AS-02 to AS-06
BL-01 30 MHz – 6 GHz Biconical Log-periodic antenna for emissions and immunity testing
DR-01 6 GHz – 18 GHz Double Ridged antenna for high-frequency EMC applications
LP-02 200 MHz – 3 GHz Log Periodic antenna for radiated EMC, available in AS-02, AS-03, AS-06
LP-03 800 MHz – 6 GHz Log Periodic antenna for high-frequency EMC, available in AS-03, AS-06
LP-04 200 MHz – 6 GHz Log Periodic antenna for wide-range EMC, available in AS-04, AS-05
RA-01 9 kHz – 30 MHz Rod Antenna for RF field measurements, available in RA-01 and RA-01-HV
RF-300 9 kHz – 30 MHz Large Loop Antenna System compliant with EN 55015
VDH-01 20 kHz – 10 MHz Van der Hoofden test-head for EMF assessment of lighting products
Antenna Descriptions:
BC-01 (30 – 200 MHz)

The BC-01 biconical antenna is optimized for radiated EMC applications, compatible with any receiver or spectrum analyzer. It minimizes uncertainties from coaxial cable attenuation and dispersion, ensuring accurate measurements.

BL-01 (30 MHz – 6 GHz)

The BL-01 Biconical Log-periodic antenna is ideal for radiated emissions and immunity testing. It pairs seamlessly with EMI Receiver Unit 9060 and can be mounted on its mast for convenience.

DR-01 (6 GHz – 18 GHz)

The DR-01 double-ridged horn antenna is designed for high-frequency EMC applications. It connects directly to the 18 GHz EMI receiver model 9180, increasing sensitivity and reducing uncertainty.

LP-02 (200 MHz – 3 GHz)

The LP-02 log-periodic antenna is suitable for radiated EMC applications and can be used with any receiver or spectrum analyzer. Its direct connection to the receiver ensures minimal uncertainty from coaxial cable attenuation.

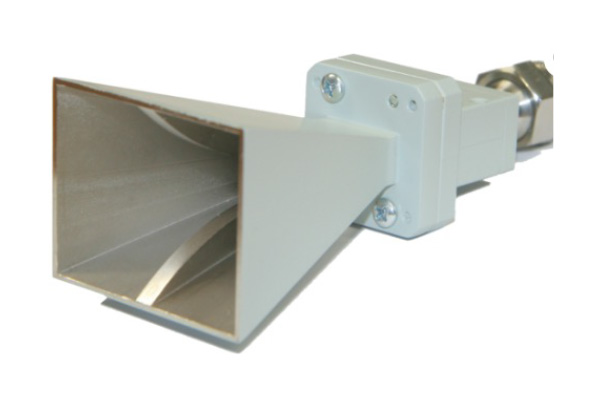

LP-03 (800 MHz – 6 GHz)

The LP-03 log-periodic antenna is designed for high-frequency EMC applications. It is compatible with EMI Receiver Units 9060 and 9010/60P, and can be easily mounted on an antenna mast.

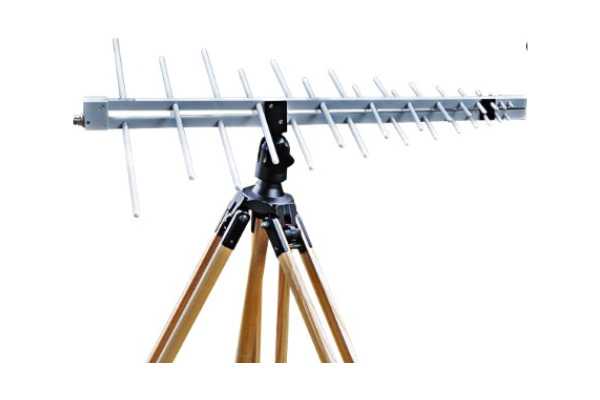

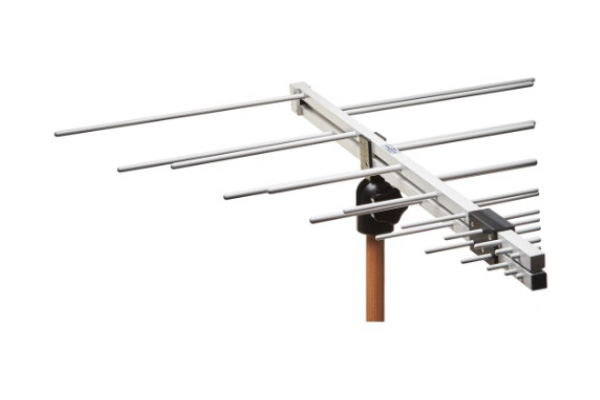

LP-04 (200 MHz – 6 GHz)

The LP-04 log-periodic antenna covers a wide frequency range and is suitable for various EMC applications. It ensures accurate measurements by eliminating additional uncertainties from coaxial cable attenuation.

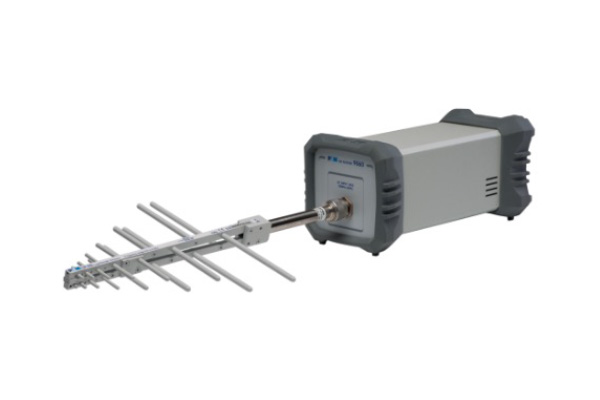

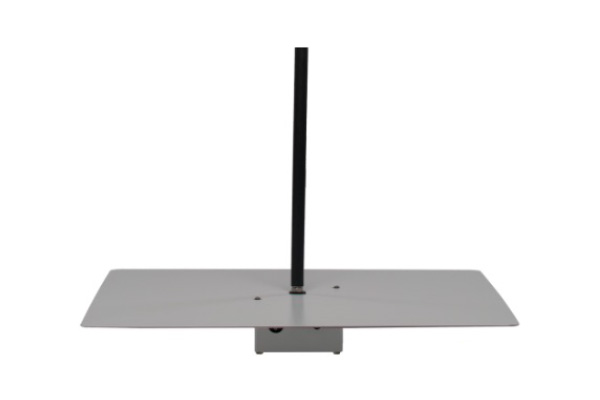

RA-01 (9 kHz – 30 MHz)

The RA-01 rod antenna is perfect for RF field measurements in EMC applications, including interference measurements from high-voltage power lines. It is ideal for the EMI Receiver 9010F, portable and compliant with CISPR 16-1-1.

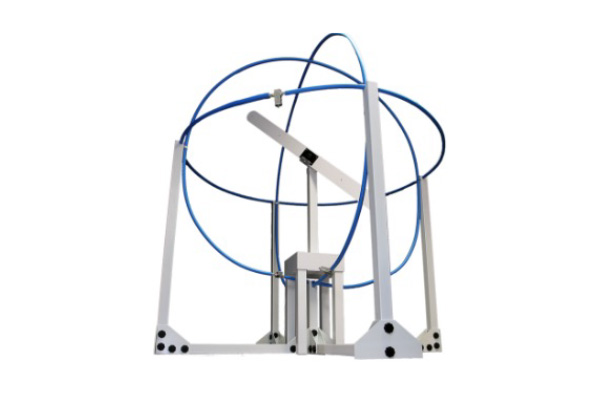

RF-300 (9 kHz – 30 MHz)

The RF-300 Large Loop Antenna System (LLAS) is compliant with EN 55015 (CISPR-15) for testing emissions of luminaires. It includes a complete 3-axis system with a switching unit and 2-meter diameter loops.

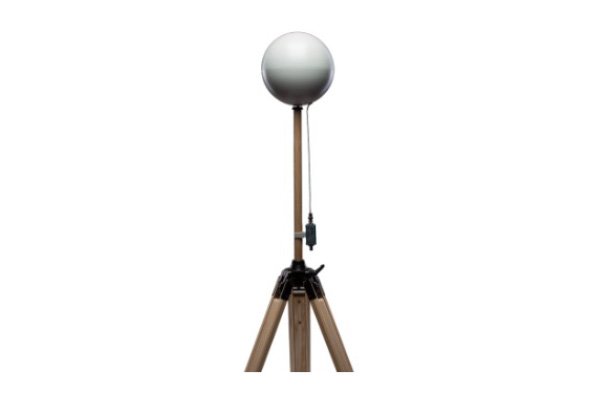

VDH-01 (20 kHz – 10 MHz)

The VDH-01 Van der Hoofden test-head meets the IEC 62493 standard for EMF assessment of lighting products. It measures induced currents in the frequency range of 20 kHz to 10 MHz, and is compatible with any CISPR-compliant EMI receiver.

For more information or to request a quote, contact us at info@westek.com.au.



The post PMM NARDA Antennas first appeared on Westek Electronics.

]]> Antenna Masts and Tripods https://westek.com.au/antenna-masts-and-tripods/ Mon, 23 Dec 2024 21:11:33 +0000 https://westek.com.au/?p=1878 Modular Antenna Mast – AM 9144 The double telescopic antenna mast / tripod is continuously height-adjustable. The mast rods are made of glass fibre to avoid unwanted reflexions. The modular design makes it possible to use different telescope parts and it can be mounted on a mast foot made of stainless steel or one made […]

The post Antenna Masts and Tripods first appeared on Westek Electronics.

]]>

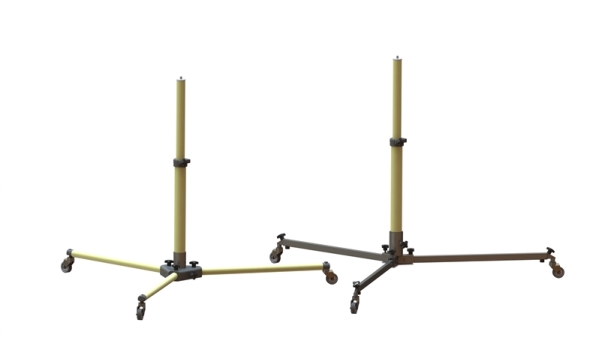

Modular Antenna Mast – AM 9144

The double telescopic antenna mast / tripod is continuously height-adjustable. The mast rods are made of glass fibre to avoid unwanted reflexions. The modular design makes it possible to use different telescope parts and it can be mounted on a mast foot made of stainless steel or one made out of low-reflective fiberglass. Both of them provide a secure stand and easy adjustment on uneven ground. Antennas or adapters can be mounted on the 3/8″ male thread.

Datasheet AM 9144

 Specifications:
 Overall height adjustmeint: 0.56 m – 3 m
 (depending on configuration)
 Antenna or adapter mount: 3/8″ (male)
 Material mast: GFK / fibre glass
 Diameter of circle around foot: aprrox. 1.5 m
 Weight: 5 ~ 7 kg
 (depending on configuration)

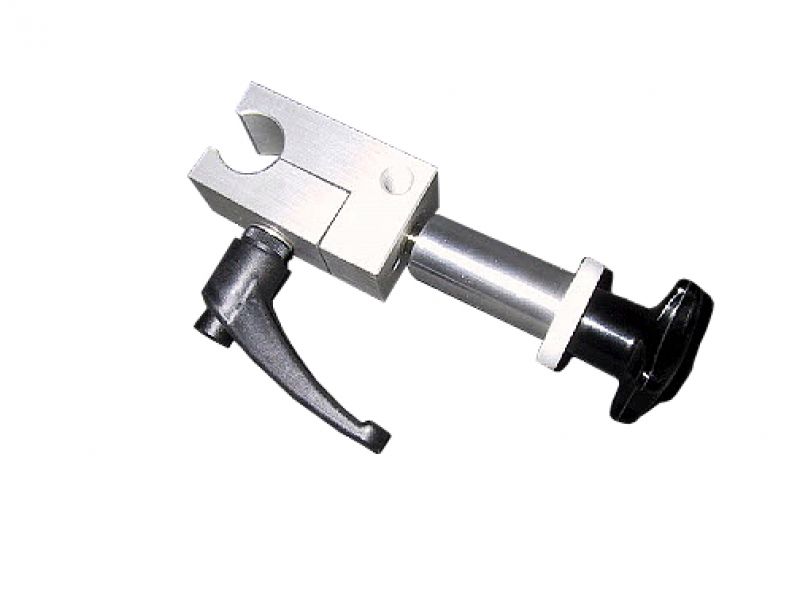

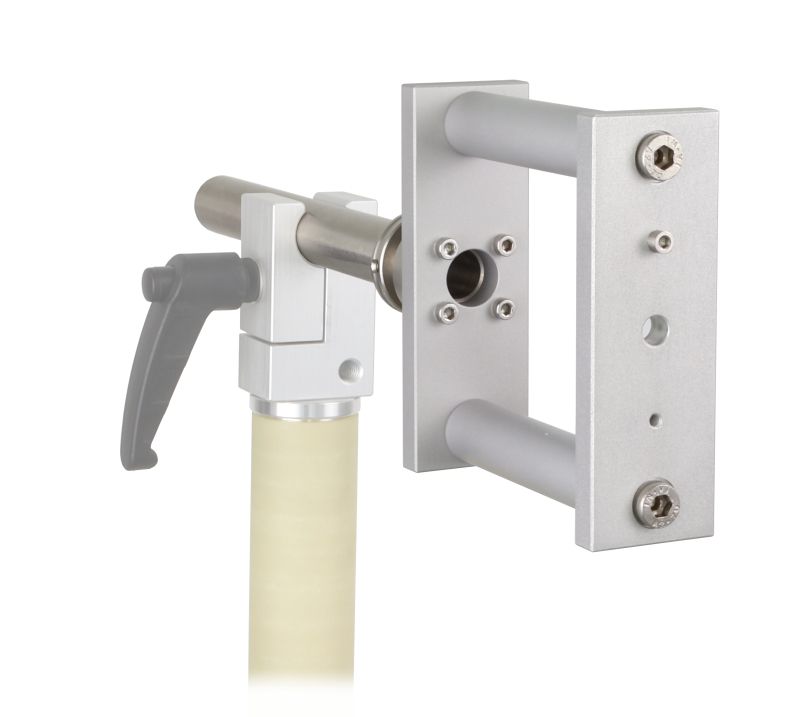

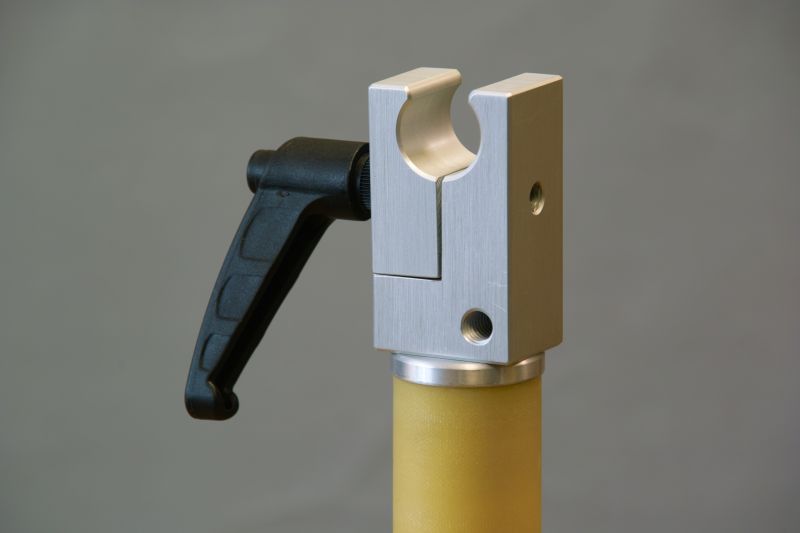

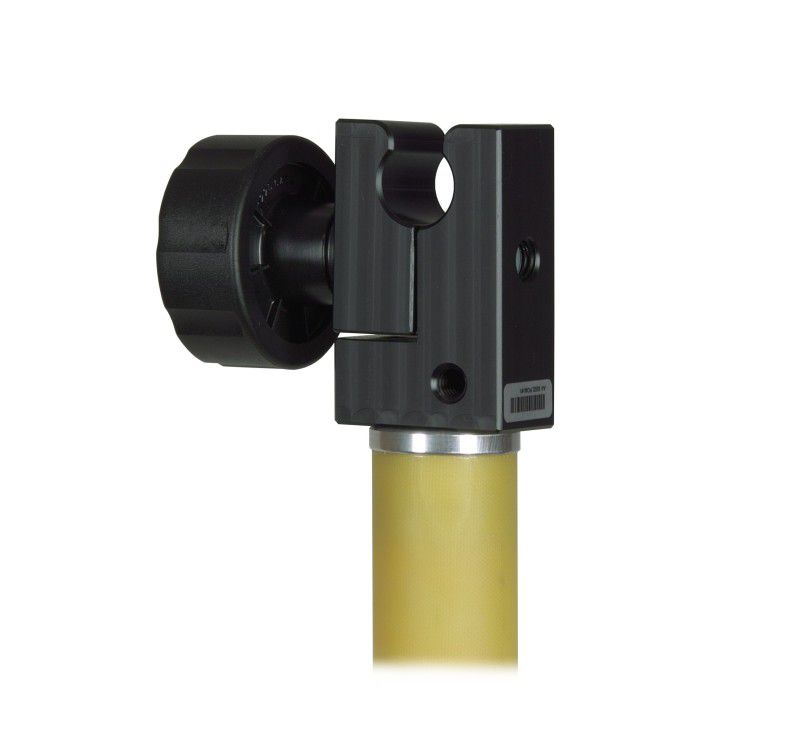

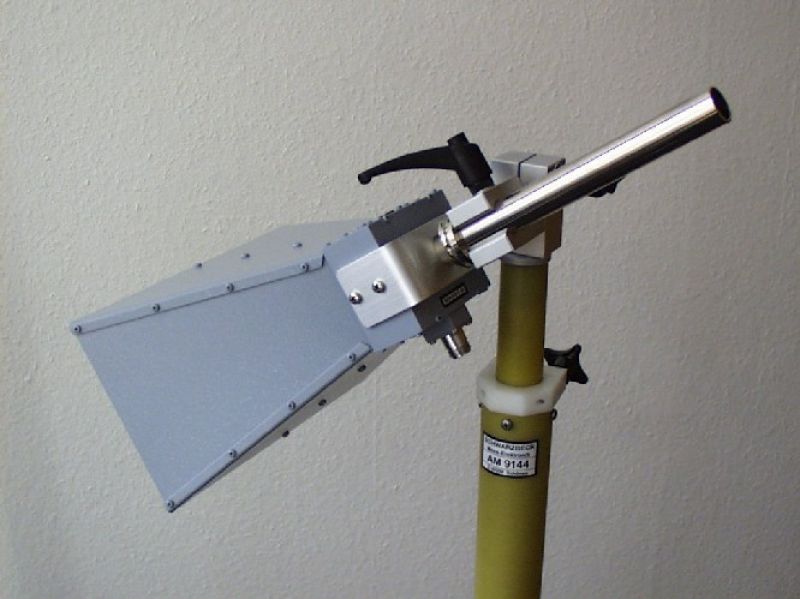

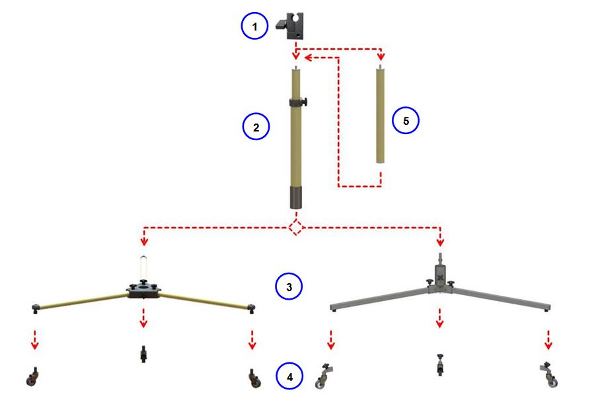

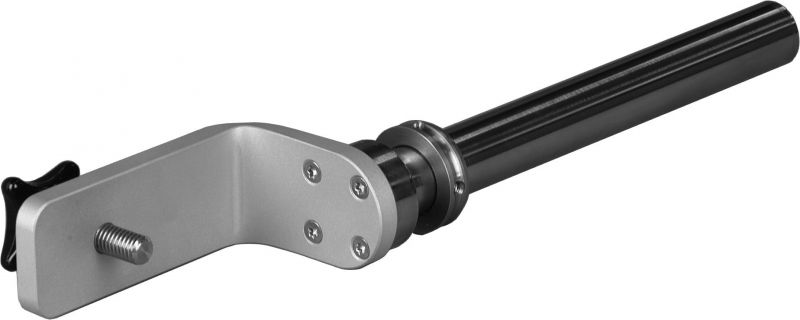

  1. Mast Adapter: Suitable for adapters with 3/8” female thread. AA 9202, AA9202 POM, AA 9203, PDG 9211, RA 9215, AA 9205, AA 9209, KG 9201
  2. Telescope: Interchangeable telescopic part in different sizes.
  3. Mast Foot: Available in 3 different versions: Stainless steel, GF or tiltable mast foot
  4. Wheels: These wheels are optionally available. Depending on the foot, they have a different mounting-system.
  5. Extender: To increasing the maximum height of the telescopic part.

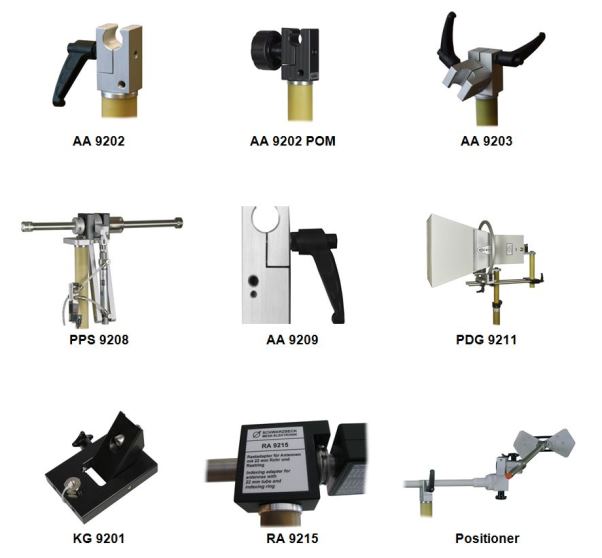

1. Mast Adapter

Antennas can be mounted directly to the 3/8″ thread of the telescopic part or can be using the adapters shown above.

For more information please refer to the respective data sheets of the adapters.

2. Telescope

The modular telescopic parts are interchangeable. So different height adjust-ments can be realized.

 When selecting the telescope, please make sure that an additional vertical offset may be caused by
the mast foot and the optional wheels.

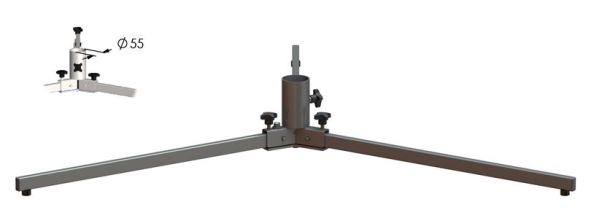

3. Mast Foot

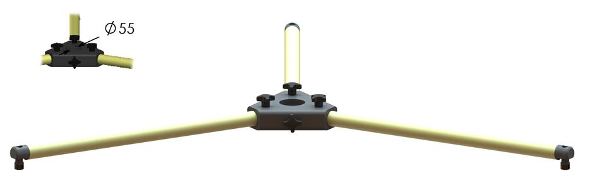

 AM 9144 M-VA
Height offset: +10 cm

The mast made of stainless steel fits for all AM 9144 T – models. With its adjustment screws strongly
 uneven ground can be compensated. A rotating star can lock the legs.

AM 9144 M-GFK
Height offset: +5 cm

The low-reflection mast foot made of fiberglass is suitable for all AM 9144 T models. With its adjustable
  rubber feet slightly uneven ground can be compensated. Due to the simple plug-in system the mast
  foot set up is quick and easy.

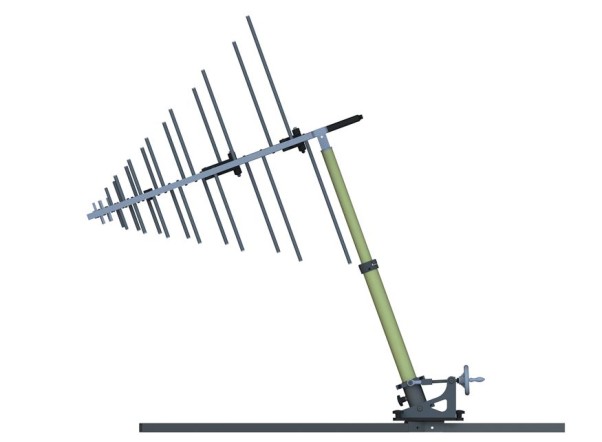

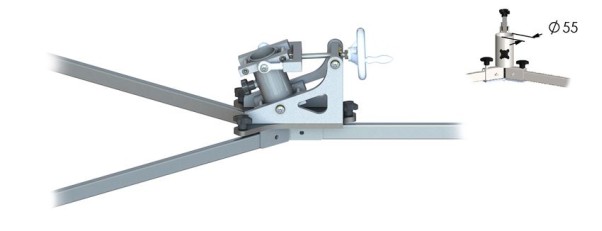

AM 9144 M-TILT
Height offset: +14 cm

The tiltable mast is suitable for all AM 9144 T – models. With the hand wheel, the entire mast ca be tilted.
 This is necessary as otherwise a polarization change of the antenna, due to the an-tenna elements, would not be possible.
  Tilt angle: > 20°
  With its adjustment screws strongly uneven ground can be compensated. A rotating star can lock the legs.

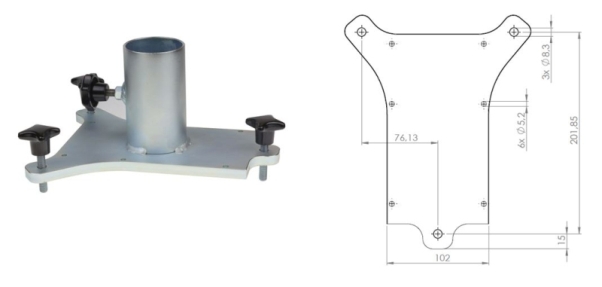

AM 9144 M-FIX
Height offset: +1 cm

The mast foot made of zinc-plated steel fits for all AM 9144 Telescope elements, e.g. AM 9144 T-12.
 Designed for rigid attachment to the floor by three M8 Cross-handle screws, the required threaded hole length is 30 mm.

4. Wheels

AM 9144 W-VA
Height offset: + 5 cm

The wheel are suitable for the stainless steel mast foot AM 9144 M-VA. They are simply attached instead of the end caps
into the legs and are locked with the star handle screw. With the parking brake the mast remains in position.

 AM 9144 W-GFK
Height offset: + 5 cm

These wheels are suitable for the GFK mast foot AM 9144 M-GFK. The wheels are simply assembled instead of the rubber feet.
With the parking brake the mast remains in position.

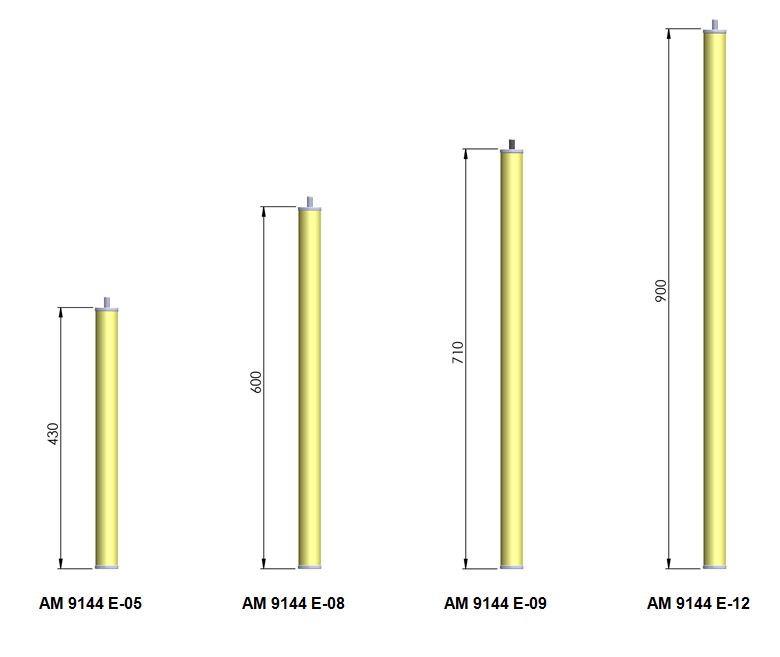

5. Extender

 The Extender is screwed by its 3/8 “female threads on top of the telescopic part and extends it.
The length of the extender is made in a way so that a stepless height adjustment remains possible.
The resulting height of a retracted telescope with extender corresponds to the height of a completely extended telescope.

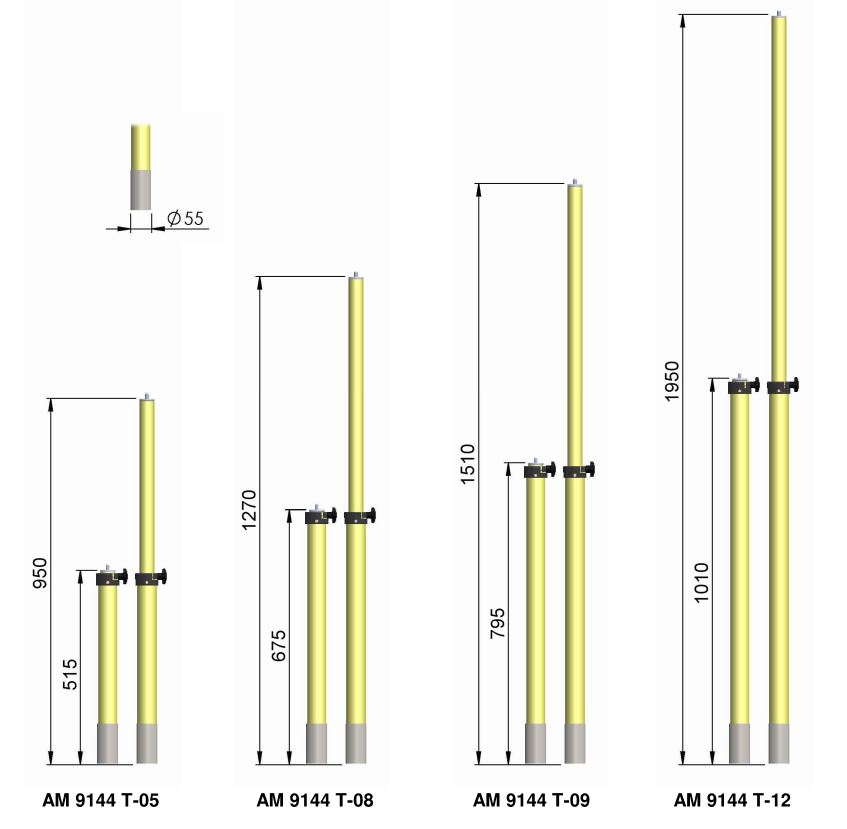

Overall height adjustment in different configurations
Mast Foot Wheels Telescope
AM 9144 T-05 AM 9144 T-08  AM 9144 T-09 AM 9144 T-12
min. max. min. max. min. max. min. max.
VA no wheels 61.5 105 77.5 137 89.5 161 111 205
wheels 66.5 110 82.5 142 94.5 166 116 210
GFK no wheels 56.5 100 72.5 132 84.5 156 106 200
wheels 61.5 105 77.5 137 89.5 161 111 205

 When using an extender, the height adjustment range is increased depending on the length.
This should be considered when calculating the total height adjustment range.

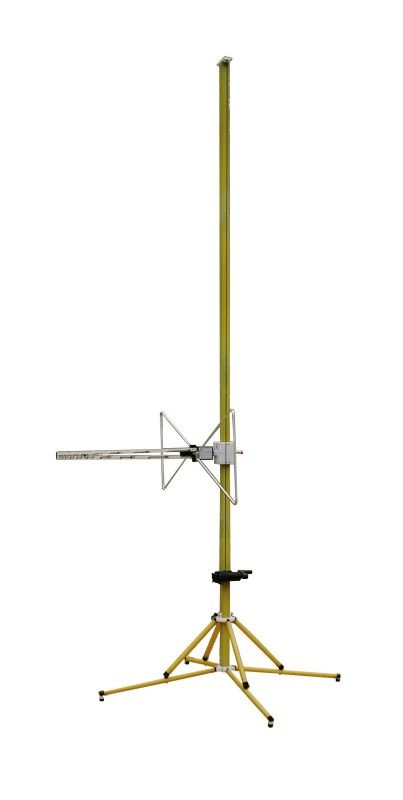

AM 9104 – Antenna Mast

Detachable Antenna Mast System (glass-fibre tubing) for VHF-UHF Antennas
manual height scanning 0.4 m to 4 m
insulated mast and antenna box with 0°/90° detents
zinc-plated / stainless steel 3-leg mast foot

Datasheet

Options:

AM 9104 Opt. Rollen:
Caster Wheels and Brakes for zinc-plated/ stainless steel 3-leg mast foot

AM 9104 Opt. GFK-Fuß:
Non metallic (glass-epoxy) mast foot for AM 9104

The post Antenna Masts and Tripods first appeared on Westek Electronics.

]]> Biconical Antennas https://westek.com.au/biconical-antennas/ Mon, 23 Dec 2024 19:35:14 +0000 https://westek.com.au/?p=1837 Biconical Antennas have dipole like characteristics (e.g. circular directional pattern in the H-plane,”8″-shaped in the E-plane, fixed phase center, comparable gain), with an enormous wide bandwidth achieved by the double cone elements. One of the earliest and worldwide most popular biconical antenna designs is the BBA 9106 with balun VHA 9103 B. During the last years a […]

The post Biconical Antennas first appeared on Westek Electronics.

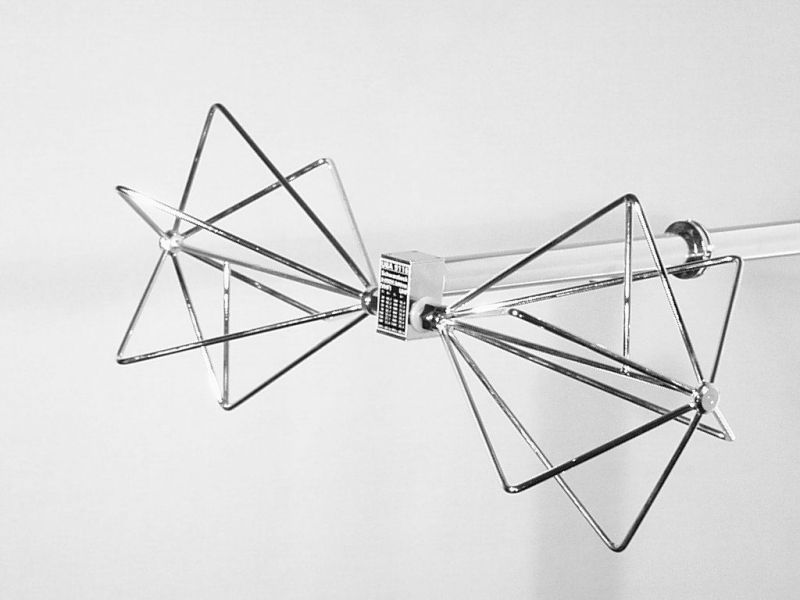

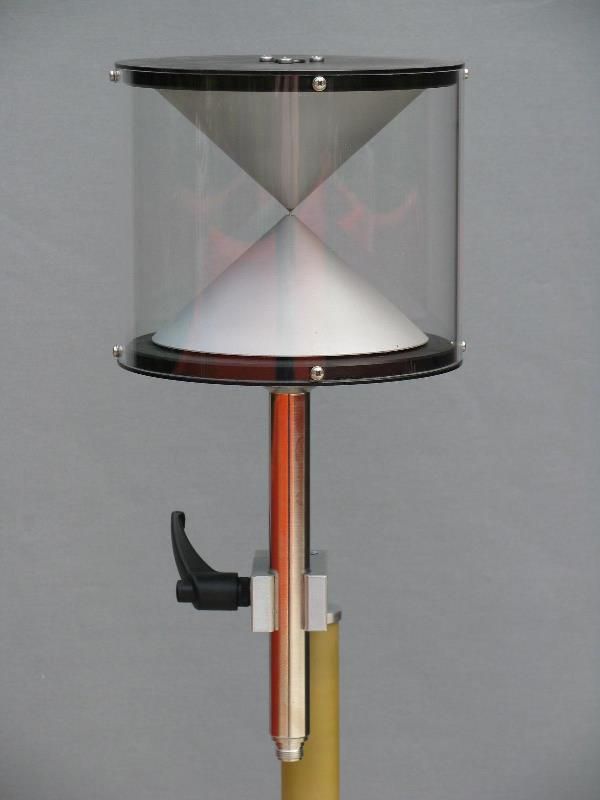

]]> Biconical Antennas have dipole like characteristics (e.g. circular directional pattern in the H-plane,”8″-shaped in the E-plane, fixed phase center, comparable gain), with an enormous wide bandwidth achieved by the double cone elements. One of the earliest and worldwide most popular biconical antenna designs is the BBA 9106 with balun VHA 9103 B. During the last years a growing need for expanded frequency ranges arised, which led to the design of biconical antennas reaching down to frequencies of 20 MHz and up to 18 GHz and above. A further increase of bandwidth was achieved with qualified 4:1 baluns, providing a typical gain increase of approx. 6 dB at the lower frequency range. The biconical elements can be mounted and dismounted within a few seconds providing perfect contact repeatability thanks to special clamping fixtures. A small wrench made of insulating material is supplied with the balun, it is tied to the balun head and thus always available whenever needed. Biconical antennas can be used for many applications, in which half-wave dipoles have been used traditionally. An enormous reduction of measurement time can be achieved, because the time consuming tuning of the antenna elements to the half wavelength is not needed, an important condition for sweeped broadband measurements. In typical dipole applications several discrete frequencies are measured, in contrast the biconical antenna allows continuous sweeps, where site anomalies are discovered much easier.

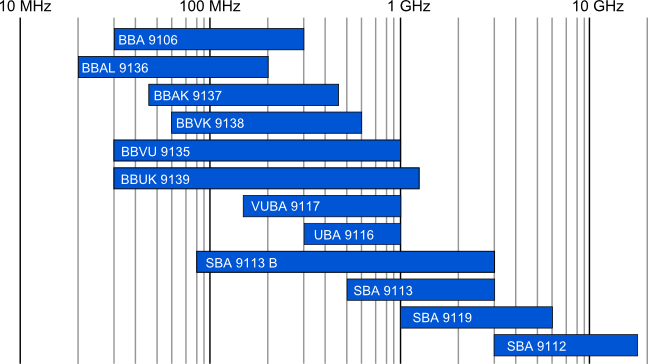

Overview Biconical Antennas
Collapsible or Open Conical Elements

Typical applications for biconical antennas are:
Broadband RX-antenna for emission testing (20-300 MHz)
TX-antenna for immunity testing, especially at low frequencies
Measurements of shielding effectiveness
Evaluation of test sites e.g. anechoic rooms (FAC) and open area test sites (OATS)
Passive field probe for immunity testing

A big variety of baluns and biconical elements allows to choose the optimum antenna for each specific application. The baluns marked with “RX” are especially designed for receiving applications (because of their superior symmetry), the baluns marked with “TX” are suitable for immunity testing with high power.

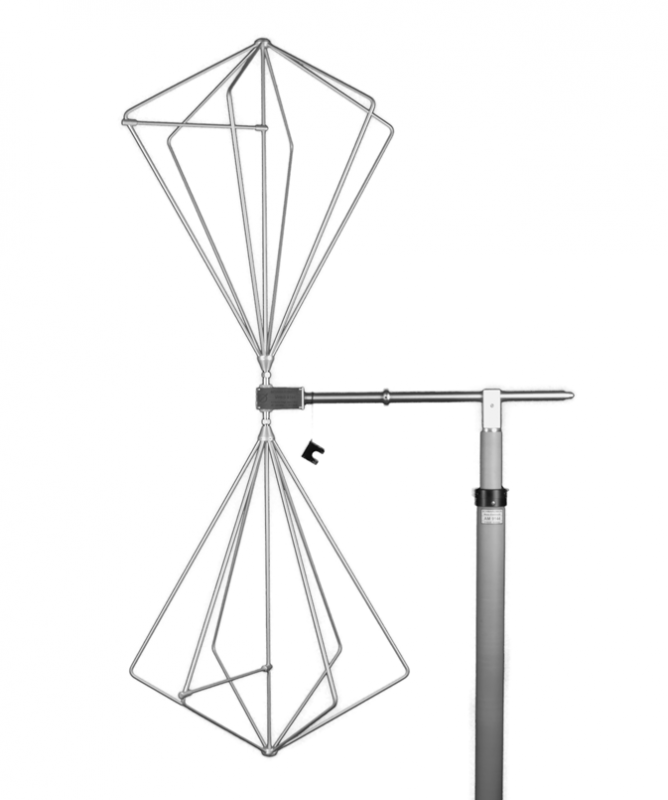

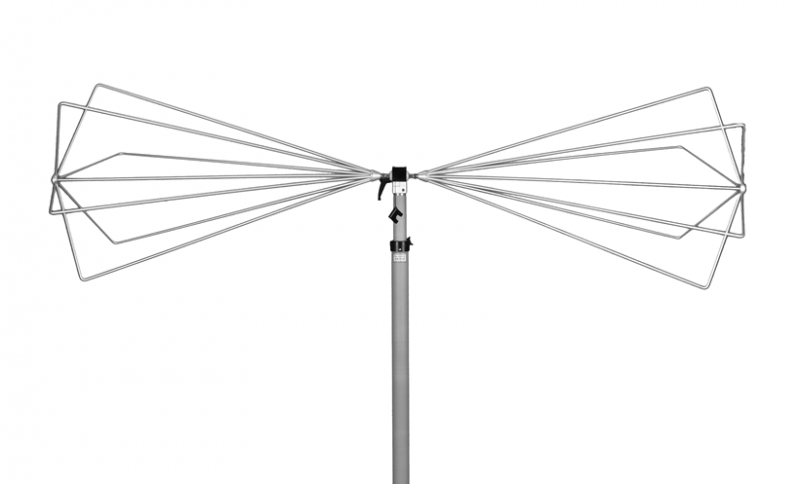

BBA 9106 biconical elements with different antenna holder/balun combinations


BBA 9106 + VHA 9103 B

BBA 9106 biconical elements in combination with the VHA 9103B antenna holder/balun.
30 – 300 MHz
10 W
RX

Datasheet
VSWR BBA9106 + VHA9103

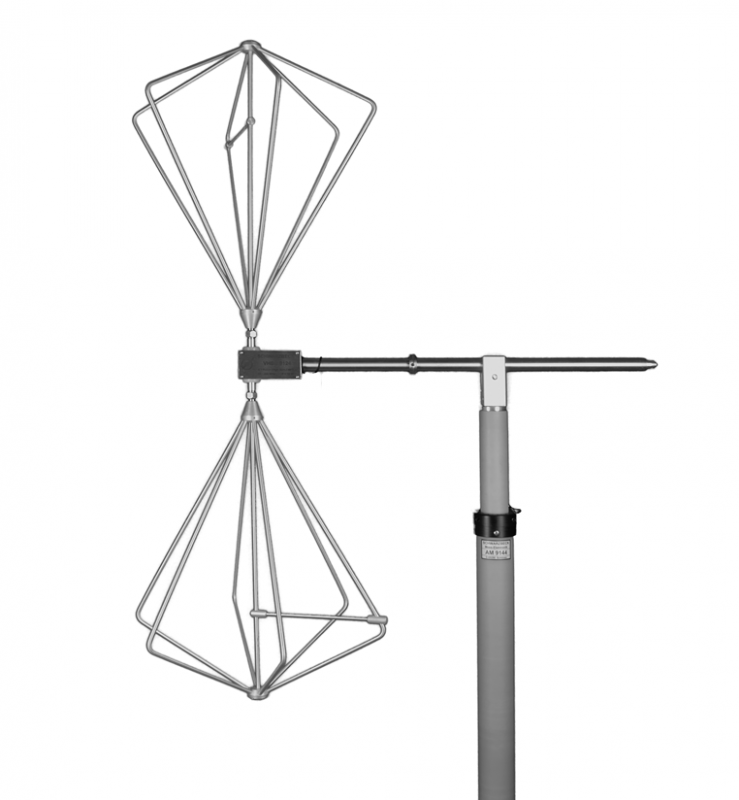

BBA 9106 + VHBB 9124

BBA 9106 biconical elements in combination with the VHBB 9124 antenna holder/balun.
30 – 300 MHz
10 W
RX

Datasheet


BBA 9106 + HFBA 9122

HFBA 9122 broadband balun/holder with BBA 9106 biconical elements especially to measure very high field strength.
(0.1) 0.15 – 300 (500) MHz

Datasheet


BBA 9106 + VHBA 9123

VHBA 9123 broadband balun/holder with BBA 9106 biconical elements.
30 – 300 MHz
TX
100 W

Datasheet


BBA 9106 + VHBC 9133

VHB 9133 broadband balun/holder with BBA 9106 biconical elements.
30 – 300 MHz
TX
1 KW

Datasheet


BBA 9106 + VHBD 9134

VHBD 9134 broadband balun/holder with BBA 9106 biconical elements.
30 – 200 MHz
TX
2.5 KW

Datasheet

BBAL 9136 biconical elements with different antenna holder/balun combinations


BBAL 9136 + VHA 9103 B

BBAL 9136 biconical elements in combination with the VHA 9103B antenna holder/balun.
20 – 200 MHz
10 W
RX

Datasheet
VSWR BBAL 9136 + VHA9103

BBAL 9136 + VHBB 9124

BBAL 9136 biconical elements in combination with the VHBB 9124 antenna holder/balun.
20 – 200 MHz
10 W
RX

Datasheet


BBAL 9136 + HFBA 9122

HFBA 9122 broadband balun/holder with BBAL 9136 biconical elements especially to measure very high field strength.
(0.1) 0.15 – 300 (500) MHz
10W

Datasheet


BBAL 9136 + VHBA 9123

VHBA 9123 broadband balun/holder with BBAL 9136 biconical elements.
20 – 200 MHz
TX
100 W

Datasheet


BBAL 9136 + VHBC 9133

VHB 9133 broadband balun/holder with BBAL 9136 biconical elements.
20 – 200 MHz
TX
1 KW

Datasheet


BBAL 9136 + VHBD 9134

VHBD 9134 broadband balun/holder with BBAL 9136 biconical elements.
20 – 200 MHz
TX
2.5 KW

Datasheet

new: Booster Coils The booster coils are used to generate highest field strengths in conjunction with a high power balun (e.g. VHBD 9134-4 or VHBD 9134) and radiating elements (e.g. BBAL 9136 or BBAE 9179) in the frequency range from 20 MHz to approx. 60 MHz.
Datasheet BCOI 9180

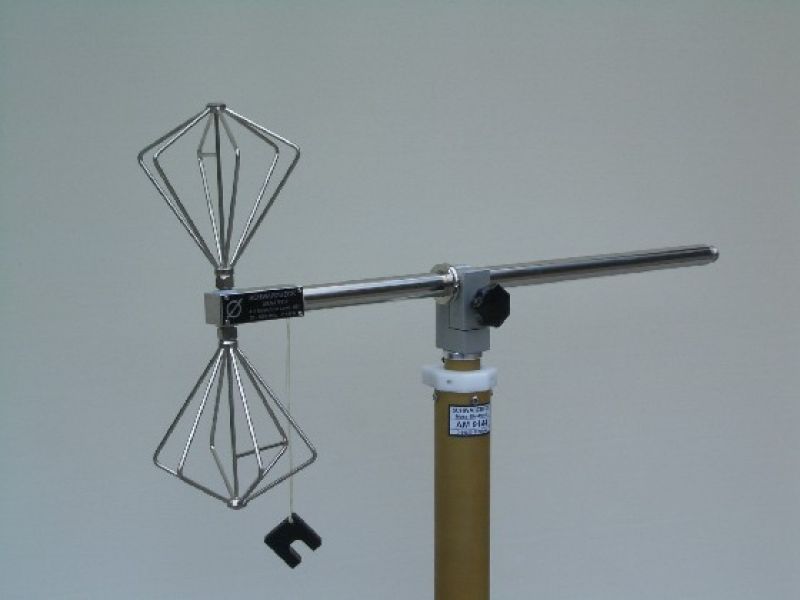

BBAK 9137 biconical elements with different antenna holder/balun combinations


BBAK 9137 + VHA 9103 B

BBAK 9137 biconical elements in combination with the VHA 9103B antenna holder/balun.
45 – 450 MHz
10 W
RX

Datasheet


BBAK 9137 + HFBA 9122

HFBA 9122 broadband balun/holder with BBAK 9137 biconical elements especially to measure very high field strength.
(0.1) 0.15 – 300 (500) MHz
10W

Datasheet

BBAK 9137 + VHBB 9124

BBAK 9137 biconical elements in combination with the VHBB 9124 antenna holder/balun.
45 – 450 MHz
10 W
RX

Datasheet

BBVK 9138 biconical elements with different antenna holder/balun combinations


BBVK 9138 + VHA 9103 B

BBVK 9138 biconical elements in combination with the VHA 9103B antenna holder/balun.
60 – 600 MHz
10 W
RX

Datasheet


BBVK 9138 + HFBA 9122

HFBA 9122 broadband balun/holder with BBVK 9137 biconical elements.
(0.1) 0.15 – 300 (500) MHz
10W

Datasheet

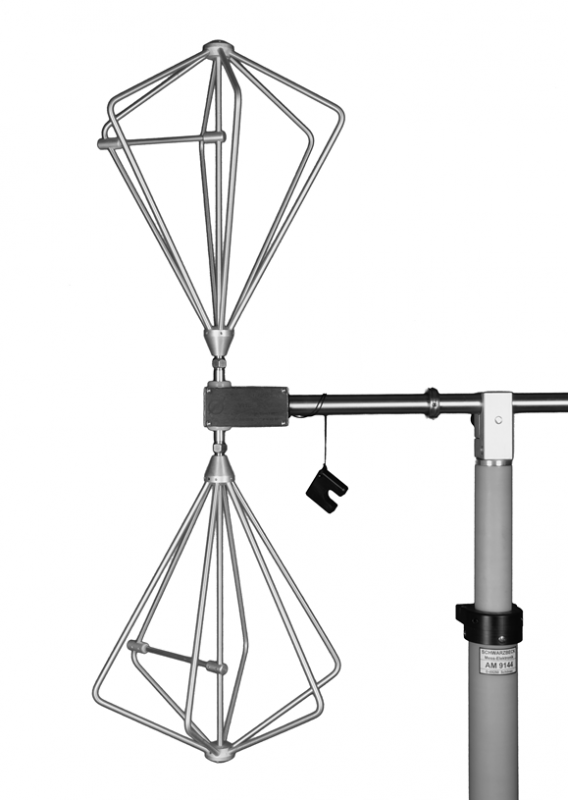

BBVK 9138 + VHBB 9124

BBVK 9138 biconical elements in combination with the VHBB 9124 antenna holder/balun.
60 – 600 MHz
10 W
RX

Datasheet

BBVU 9135 biconical elements with different antenna holder/balun combinations

BBVU 9135 + UBAA 9114

BBVU 9135 biconical elements in combination with the UBAA 9114 antenna holder/balun.
low-loss
30 – 1000 MHz
5 W
RX

Datasheet


BBVU 9135 + UBAA 9115

BBVU 9135 biconical elements in combination with the UBAA 9115 antenna holder/balun.
extremely high symmetry
30 – 1000 MHz
5 W
RX

Datasheet

BBUK 9139 biconical elements with different antenna holder/balun combinations


BBUK 9139 + UBAA 9114

BBUK 9139 biconical elements in combination with the UBAA 9114 antenna holder/balun.
low-loss
30 – 1200 MHz
5 W
RX

Datasheet BBUK 9139+UBAA9114
Radiation Pattern
Datasheet UBAA9114


BBUK 9139 + UBAA 9115

BBUK 9139 biconical elements in combination with the UBAA 9115 antenna holder/balun.
extremely high symmetry
30 – 1200 MHz
5 W
RX

Datasheet BBUK9139+UBAA 9115

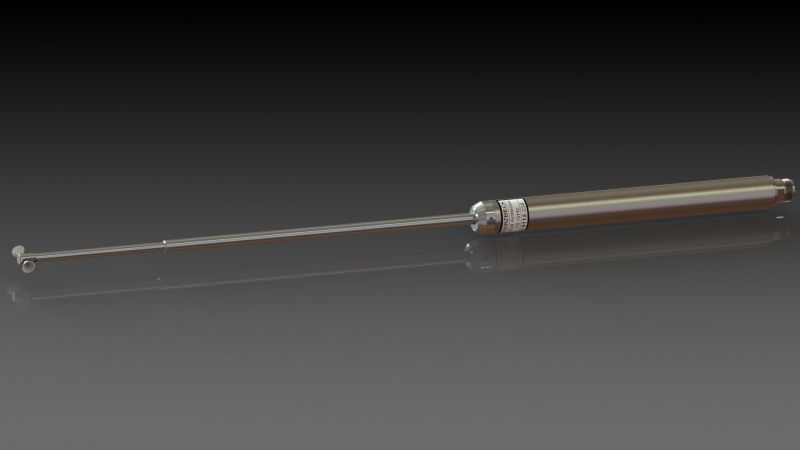

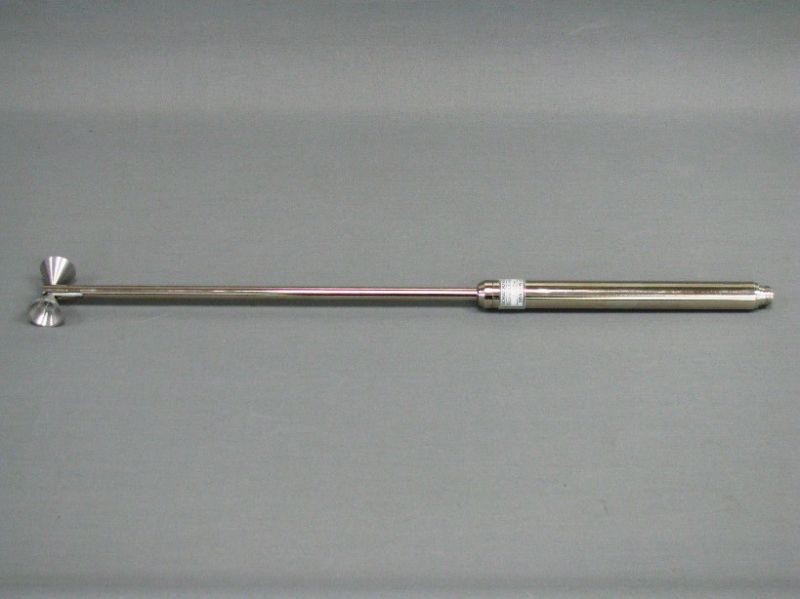

SBA 9113 B

small biconical antenna
80 MHz – 3 GHz
for harmonics measurements acc. to IEC61000-4-3

Datasheet SBA 9113 B
Fieldstrength

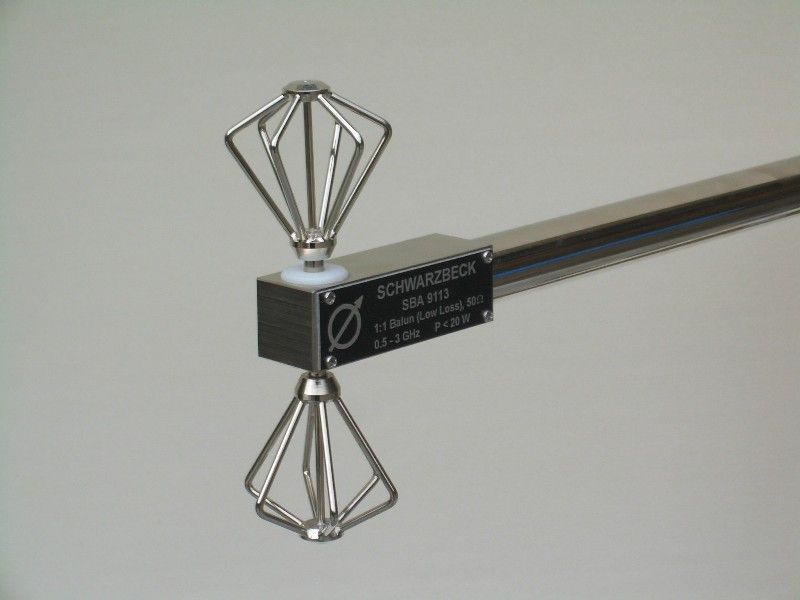

SBA 9113

small biconical microwave antenna
0.5 – 3 GHz
20 W
miniversion on request
CISPR16-1-4:2007-02 Ed. 2.0
Site validation above 1 GHz

Datasheet SBA 9113
Radiation Pattern
VSWR
Fieldstrength

420 NJ

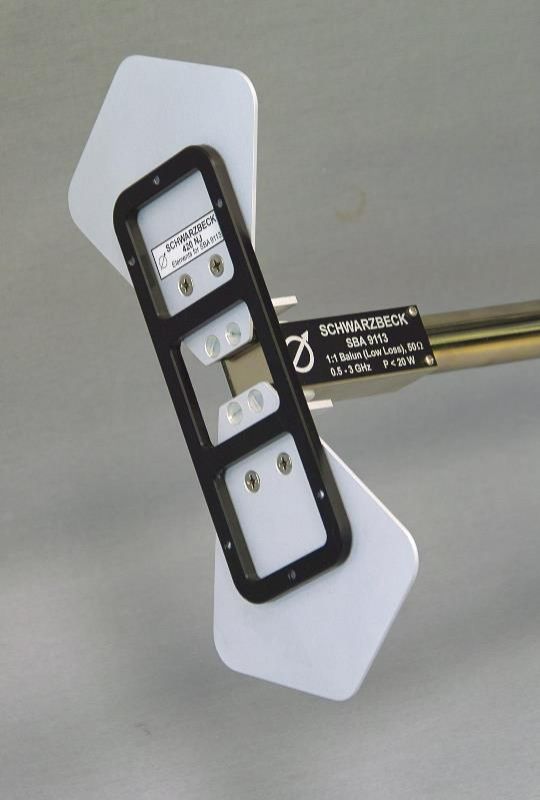

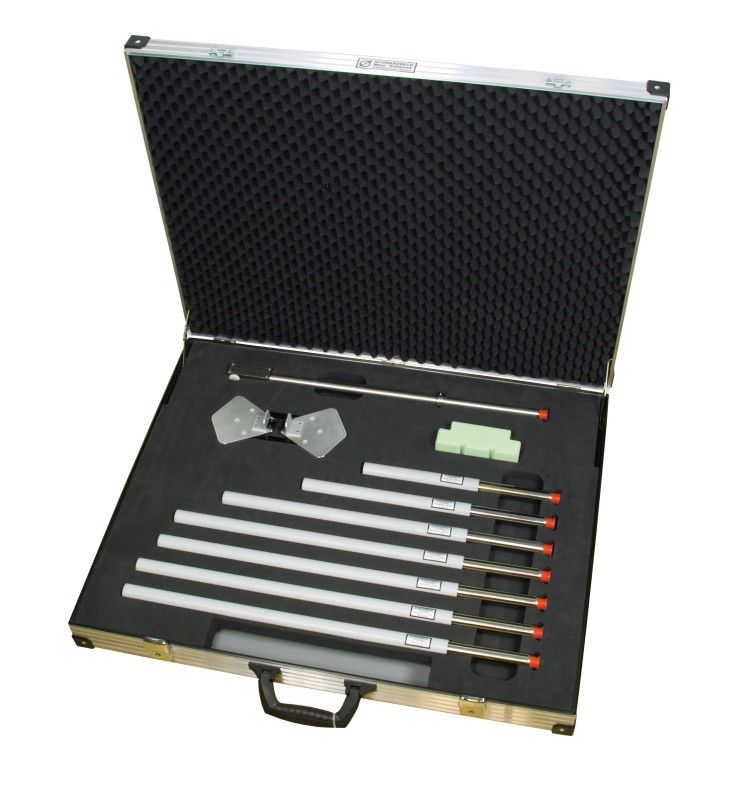

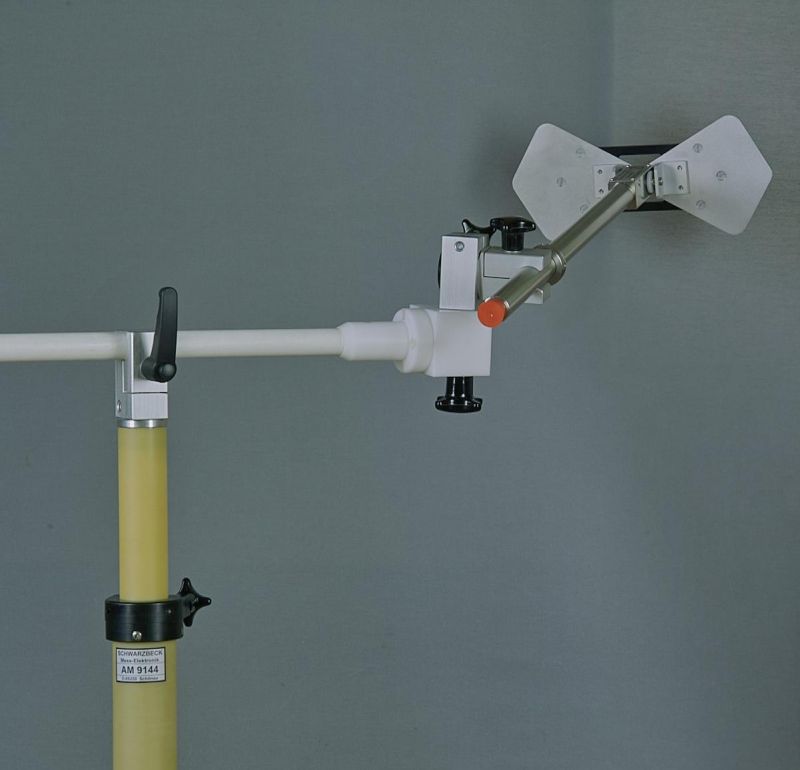

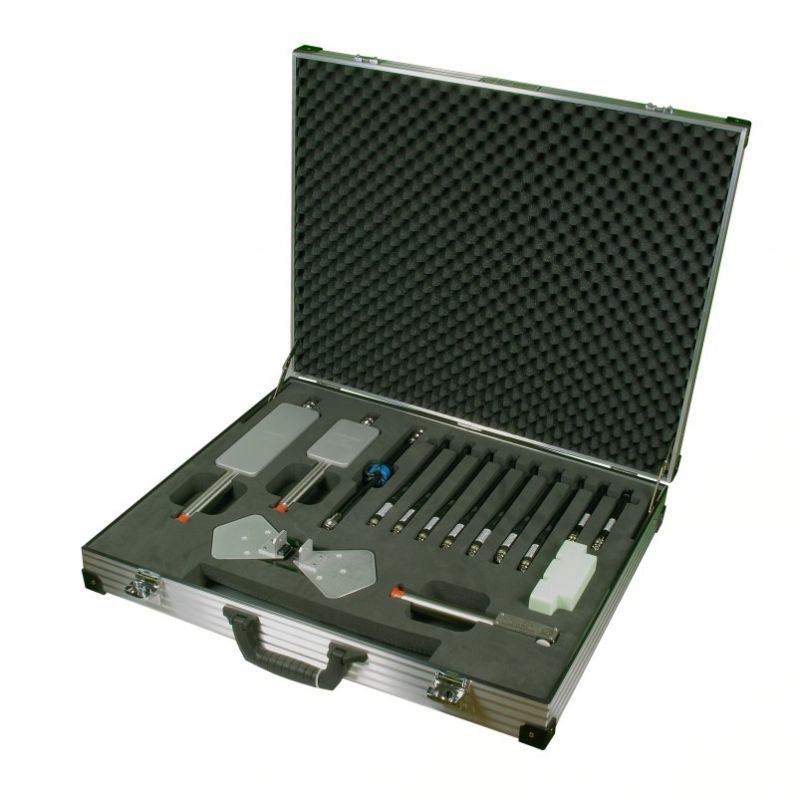

Elements for radiated immunity caused by hand portable transmitters
with SBA 9113 or SBA 9113 mini version for the Ford standard RI115 (Ford EMC CS 2009)

Option:
Opt: Spacer 50
Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.

Datasheet 420 NJ

SBA 9112

small biconical microwave antenna
(1) 3 – 18 GHz
10 W
including transport case
CISPR16-1-4:2007-02 Ed. 2.0
The SBA 9112 are compliant to CISPR 16-1-4 for site validation above 1 GHz.
Site validation above 1 GHz
(Site-VSWR)
mini version on request

Datasheet SBA 9112
E-plane pattern
H-plane pattern
VSWR
Fieldstrength

SBA 9119

small biconical microwave antenna
1 – 6 GHz
20 W
The SBA 9119 are compliant to CISPR 16-1-4 for site validation above 1 GHz.
Including transport case.

Datasheet SBA 9119
Radiation Pattern
Fieldstrength

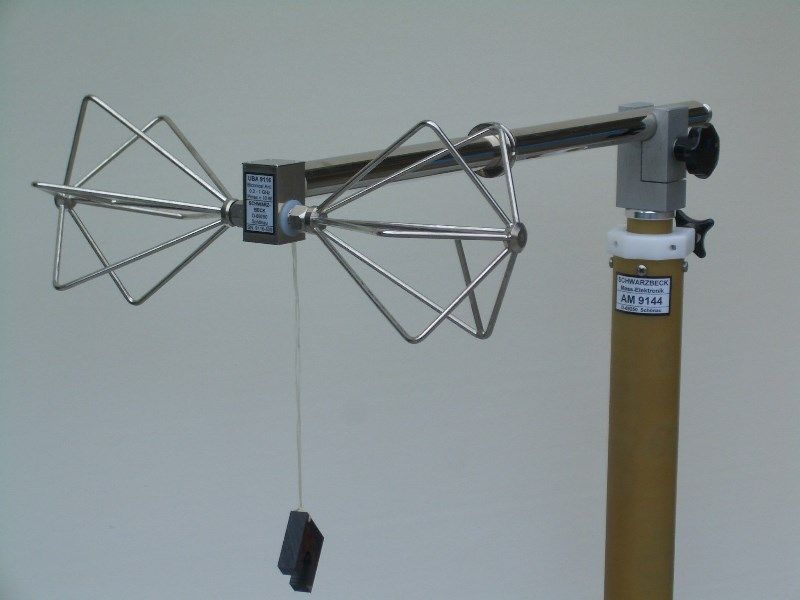

UBA 9116

Biconical UHF broadband antenna
(160) 300 -1000 (1100) MHz

Datasheet UBA 9116
VSWR
Radiation Pattern
[Picture with CCA]

VUBA 9117

Biconical VHF-UHF broadband antenna
(30) 150 -1000 MHz

Datasheet VUBA 9117
Radiation Pattern

RS 16

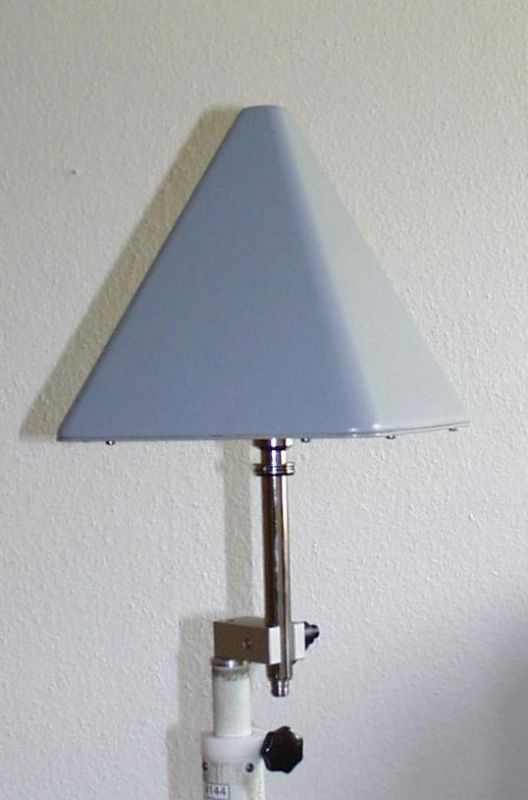

Vertical polarized microwave biconical antenna
(0,5) 1 – 6 (8,5) GHz
with omni directional H-plane pattern

Datasheet RS 16
Radiation Pattern

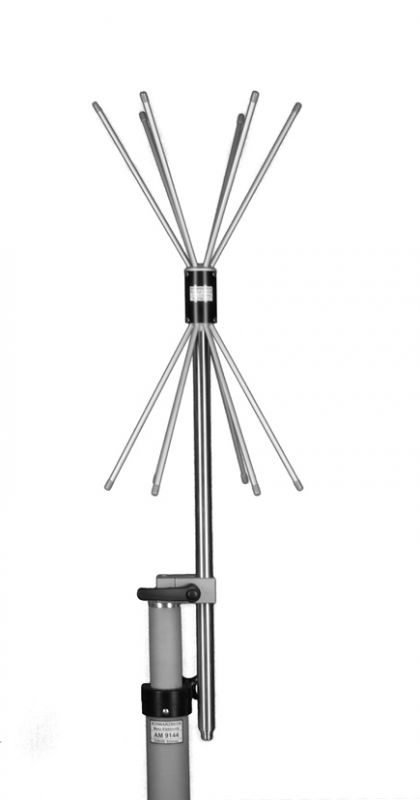

RE 1790

Vertical polarized VHF- UHF biconical antenna
(170) 230 – 1000 (1100) MHz
with omni directional H-plane pattern

Datasheet RE 1790
Radiation Pattern

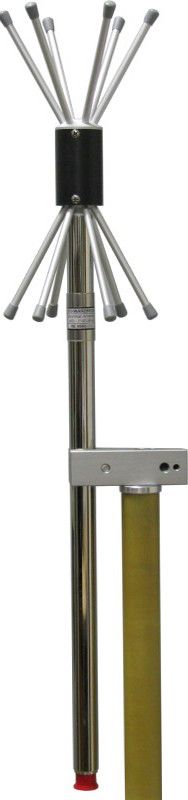

RE 4590

Vertical polarized VHF- UHF biconical antenna
(330) 450 – 1000 (1100) MHz
with omni directional H-plane pattern

Datasheet RE 4590

RS 0460

Vertically polarised symmetrical biconical antenna
0,4 – 6 GHz
omnidirectional in the H-plane.

Datasheet RS 0460



The post Biconical Antennas first appeared on Westek Electronics.

]]> Automotive Antennas https://westek.com.au/automotive-antennas/ Mon, 23 Dec 2024 18:17:14 +0000 https://westek.com.au/?p=1812   419 NJ Flat, broadband antenna elements with termination resistors and heatsinks for the NMHC 4MM Balun for efficient immunity testing at close distances in the frequency range below 220 MHz. Required Balun: NMHC 4MM Connector: N female Frequency Range: 20 MHz … 220 MHz Nominal Impedance: 50 Ω Continuous Power: 30 W Max. Power (short […]

The post Automotive Antennas first appeared on Westek Electronics.

]]>

419 NJ

Flat, broadband antenna elements with termination resistors and heatsinks for the NMHC 4MM Balun for efficient immunity testing at close distances in the frequency range below 220 MHz.

Required Balun: NMHC 4MM
Connector: N female
Frequency Range: 20 MHz … 220 MHz
Nominal Impedance: 50 Ω
Continuous Power: 30 W
Max. Power (short time, 5 min): 40 W
VSWR: typ. < 3 (f < 100 MHz)
Material: Aluminium
Weight: 250 g
Element length total: LE = 240 mm
Element width: D = 109 mm
Element fixture: M4
Accessories: Spacer 50 mm

Datasheet
Radiation Pattern

420 NJ

Elements for radiated immunity caused by hand portable transmitters
with SBA 9113 or SBA 9113 mini version for the Ford standard RI115 (Ford EMC CS 2009)

Required balun: SBA 9113 or SBA 9113 Mini Version
Connector: N
Frequency range: 370 MHz … 2.7 GHz
Nominal impedance: 50 Ω
Maxumum input power: 20 W
VSWR: < 6 (0.7 GHz < f < 1.8 GHz)
< 5 (1.8 GHz < f < 2.7 GHz)
Material: Aluminium
Element size: 240 x 109 x 2 mm
Weight: 135 g
recomended space: 5 – 50 mm
Option: Spacer 50 mm
  Other Spacer on request

Datasheet 420 NJ
Datasheet SBA 9113

Option:
Opt: Spacer 50
Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.

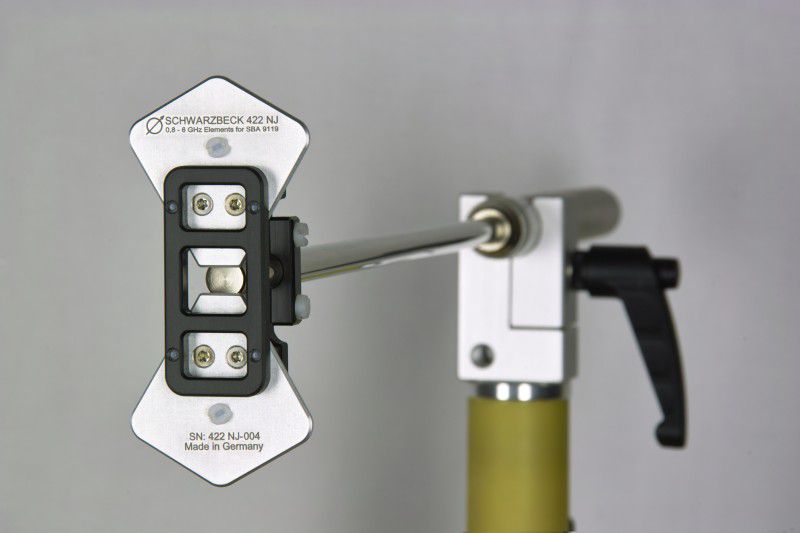

422 NJ

The combination of  the flat elements 422 NJ with SBA 9119-Balun provides remarkable fieldstrength levels with moderate transmit power. With approx. 10 Watt transmit power one can reach fieldstrength levels of 300 V/m at a distance of 30 mm.

Required Balun: SBA 9119
Connector: N
Frequency Range: 800 MHz … 6 GHz
Nominal Impedance: 50 Ω
Continuous Power: 20 W
VSWR: < 8 (0.9 GHz < f < 2.4 GHz)
< 4 (2.4 GHz < f < 6 GHz)
Material: Aluminium
Flat Element Dimensions: 108 x 49 x 2 mm
Weight: 50 g
Recommended Spacing: 30 mm
Recommended mesh width: 30 – 50 mm
Options: Spacer 30 mm

Datasheet 422 NJ
Field Uniformity 422 NJ
Datasheet SBA 9119
Assembly 422 NJ

TSA Antennas

Tuned sleeve antennas are tuned half wave dipoles, with their axis aligned as a straight extension of the coaxial feed cable.

The main applications of the TSA-antennas are immunity testing against handheld transmitters in the automotive industry within the VHF/UHF range according to ISO 11542-9 respectively manufacturer specific standards (e.g. Toyota TSC 7006G).

Frequency Range: 385 MHz … 2 GHz
Polarisation: linear
Pattern Type: omnidirektional
Permissible Power: 20 W
Connector: N
Impedance: 50 Ω nominal
Length: 365 – 640 mm
Diameter: 25 mm
Weight: 300 g – 500 g
Mounting: 22 mm diameter tube

Datasheet

NMHA 6M

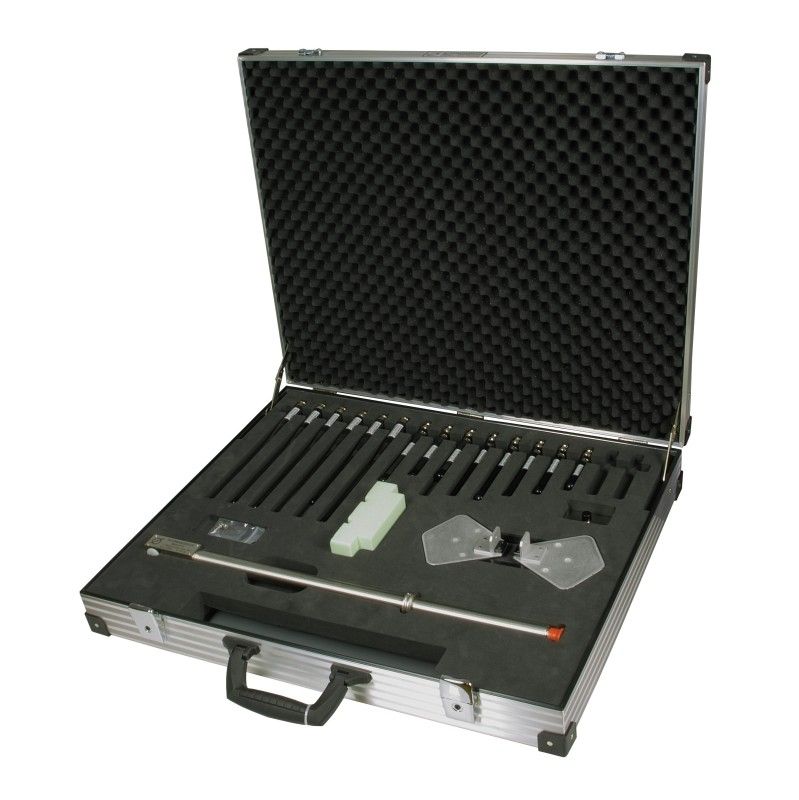

Nissan and Renault antenna set to test immunity against handy transmitters acc. to Nissan specification 28401NDS02 [6] and RENAULT 36-00-808/L (combined set) consisting of normal mode helical antennas, counterpoise, SBA 9113 with 420NJ elements and transport case (see extra list)

Datasheet

VW TL 82166 2009-05 7.3 Antenna Set

The antenna kit for testing immunity against hand-held radios acc. to Volkswagen standard TL 82166:2009-05
consists of the following parts:

For the frequency range 26-174 MHz matched normal mode helical antennas are used. For frequencies from 360 MHz and beyond the broadband SBA 9113 mini version with 420 NJ elements is used.

Datasheet

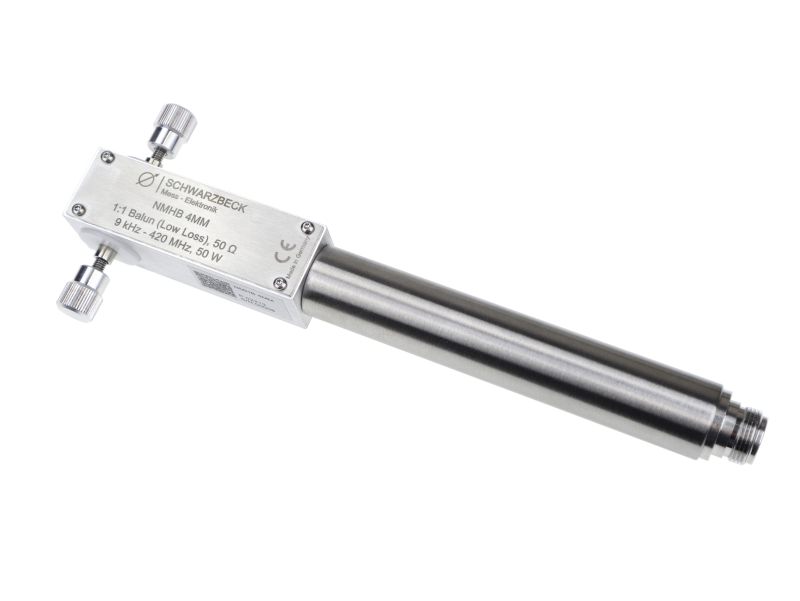

NMHB 4MM – 1:1 Balun

Low Loss Broadband Balun 1:1 with female N-Connector for receive and transmit applications in the VHF frequency range. The main application of the NMHB 4 MM is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 246 MHz with different folded dipole elements FDAI. The radiating elements can be exchanged without any tools by the means of knurled M4 screws.

Usable Frequency Range: 9 kHz – 420 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Connector: N-female
Symmetrical Terminals: M4
Mount: 22 mm Tube
Length: 212 mm
Width: 75 mm
Height: 28 mm
Weight: 270 g
Recommended Accessories: FDAI 146 (142-150 MHz)
FDAI 155 (151-161 MHz)
FDAI 165 (162-174 MHz)
FDAI 174 (172-180 MHz)
FDAI 222 (215-246 MHz)
FDAI Spacer 50
CCA FDAI

Datasheet
FDAI assambly instructions

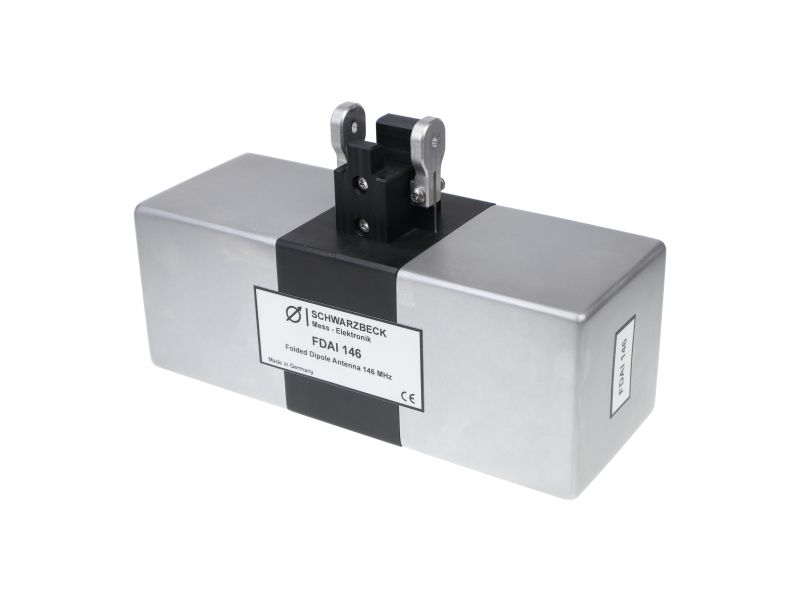

FDAI 146 – Folded Dipole Antenna 146 MHz

The FDAI 146 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 146 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 150 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Usable Frequency Range: 142 – 150 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories: NMHB 4MM
FDAI Spacer 50
CCA FDAI

Datasheet

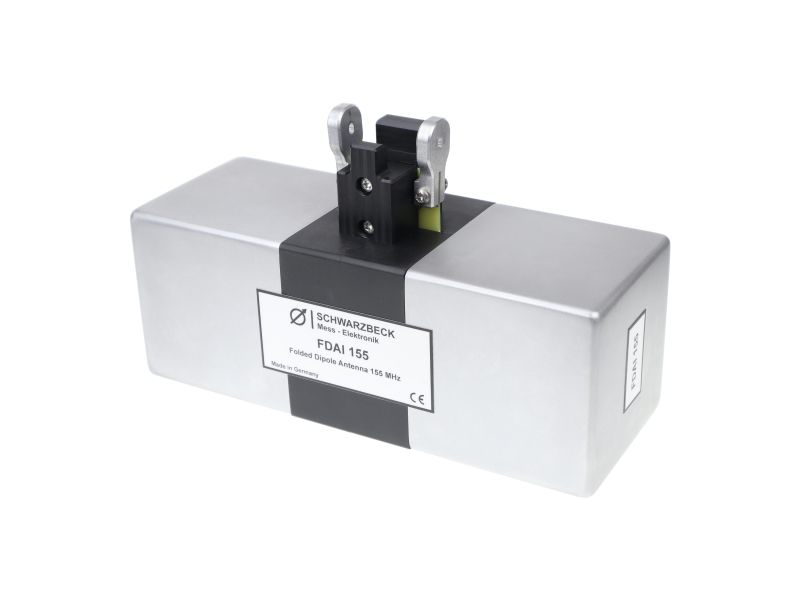

FDAI 155 – Folded Dipole Antenna 155 MHz

The FDAI 155 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 155 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 151 MHz and 160 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).z.

Usable Frequency Range: 151 – 160 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories: NMHB 4MM
FDAI Spacer 50
CCA FDAI

Datasheet

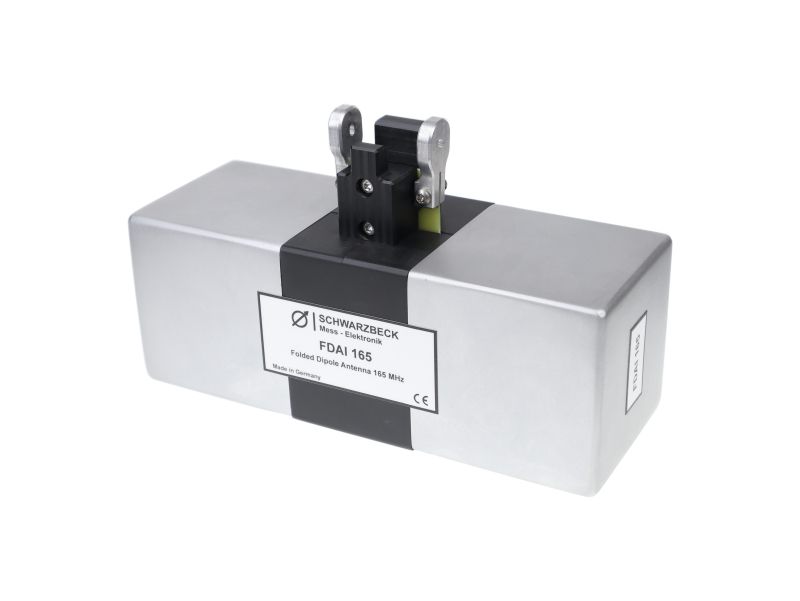

FDAI 165 – Folded Dipole Antenna 165 MHz

The FDAI 165 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 165 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 162 MHz and 174 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Usable Frequency Range: 162 – 174 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories: NMHB 4MM
FDAI Spacer 50
CCA FDAI

Datasheet

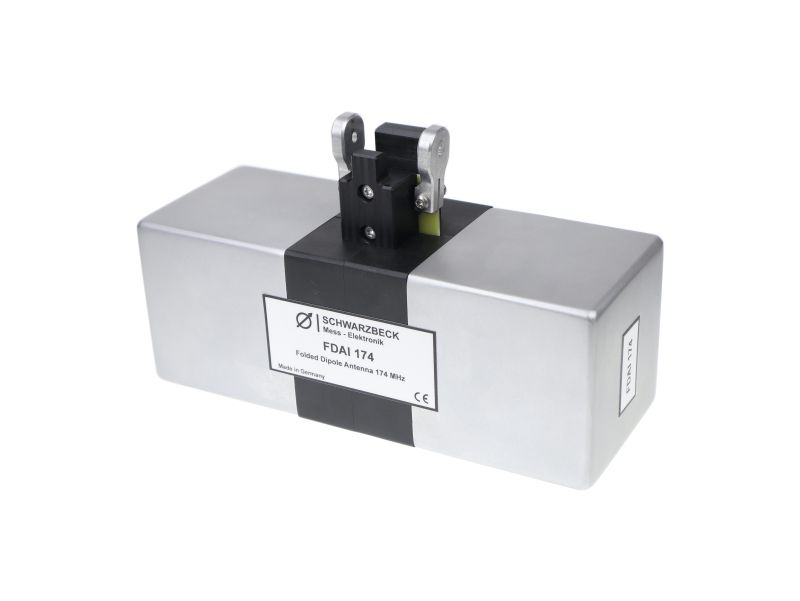

FDAI 174 – Folded Dipole Antenna 174 MHz

The FDAI 174 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 174 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 166 MHz and 180 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Usable Frequency Range: 166 – 180 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories: NMHB 4MM
FDAI Spacer 50
CCA FDAI

Datasheet

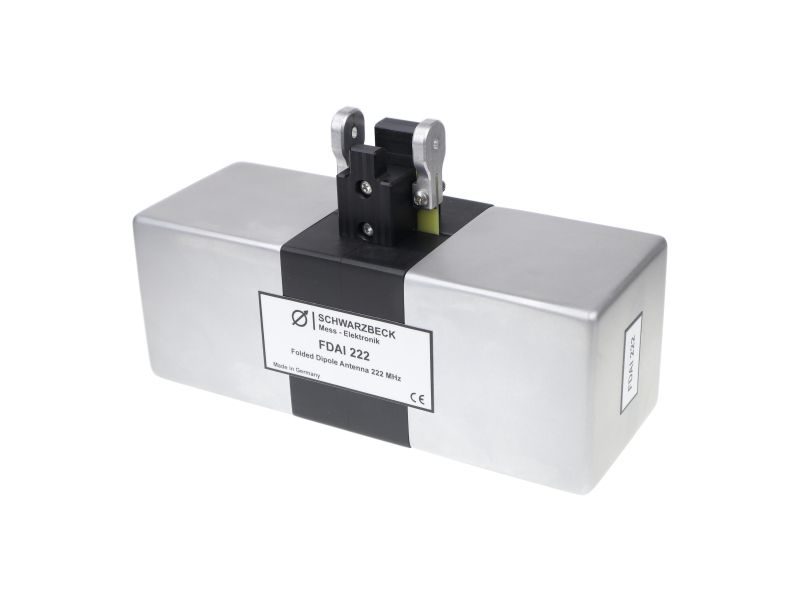

FDAI 222 – Folded Dipole Antenna 222 MHz

The FDAI 222 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 222 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 215 MHz and 246 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Usable Frequency Range: 215 – 246 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories: NMHB 4MM
FDAI Spacer 50
CCA FDAI

Datasheet

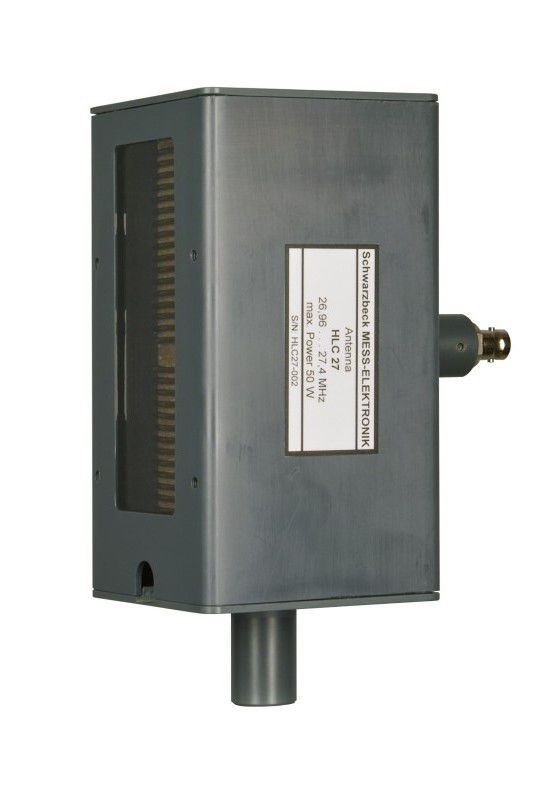

HLC 27

The HLC 27 is a compact dipole antenna for automotive immunity testing, embedded in a plastic housing.

Frequency Range: 26.96…27.4 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 585 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet

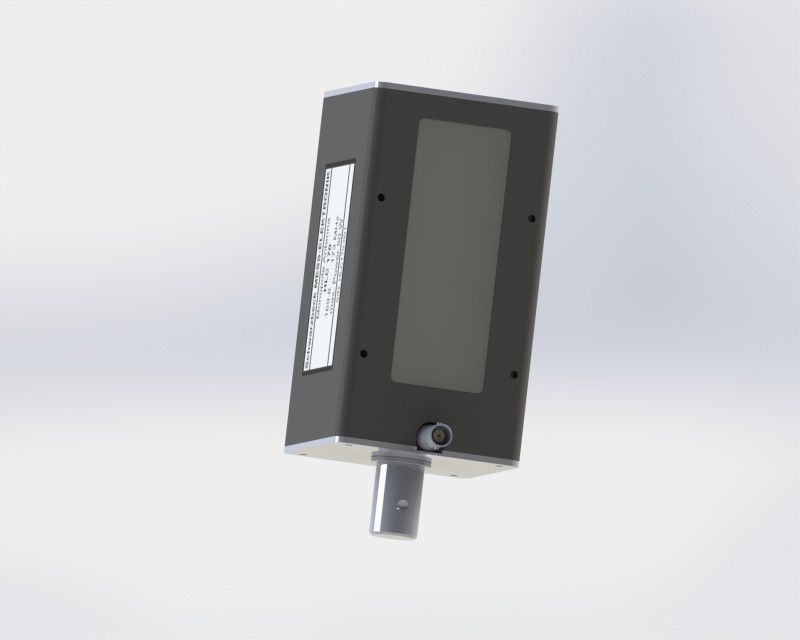

HLC 146

The antenna HLC 146 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.

Frequency Range: 144…148 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet

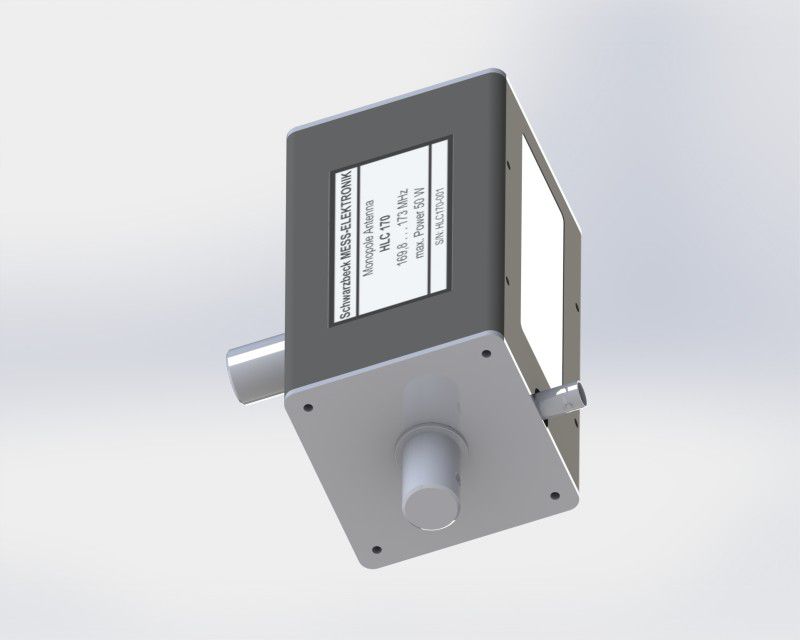

HLC 170

The antenna HLC 170 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d’Electronique et de Telecommunica- tions de Rennes. It was modified for ISO 11452-9.

Frequency Range: 169.8…173 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet

FAN 405

The antenna FAN 405 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.

Frequency Range: 380…430 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet

FAN 450

The antenna FAN 450 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.

Frequency Range: 430…470 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet

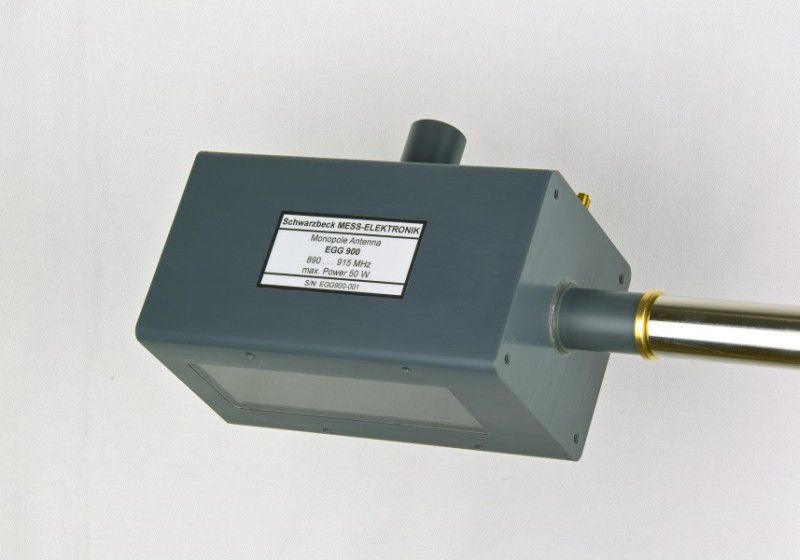

EGG 900

The antenna EGG 900 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.

Frequency Range: 890…915 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 150 mm
Weight: 300 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet

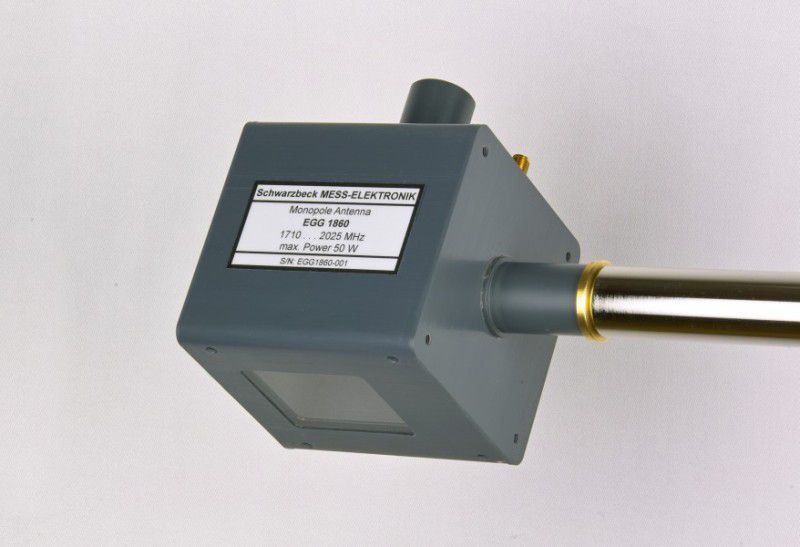

EGG 1860

The antenna EGG 1860 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.

Frequency Range: 1710…2025 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 85 mm
Weight: 300 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet

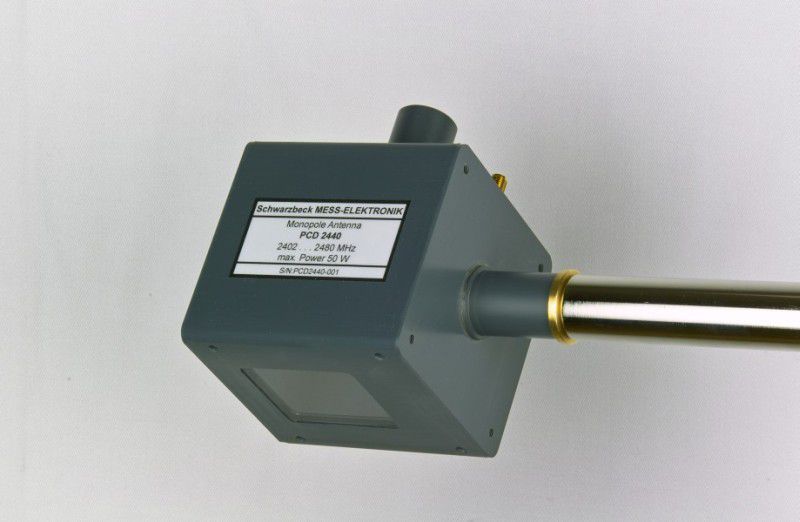

PCD 2440

The antenna PCD 2440 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level.

Frequency Range: 2402…2480 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 85 mm
Weight: 310 g
Mounting: 22 mm diameter tube, L = 30 mm
3/8″

Datasheet


WAND 0918

Wireless Immunity -Wand- Antenna acc. to Dell Specification -SYSTEM IMMUNITY TO WIRELESS GSM TEST REQUIREMENT.

Linear polarised handheld dipole with omnidirectional H-plane pattern for immunity tests agianst electromagnetic waves in the GSM frequency bands.

Frequency Range: 800 MHz – 2 GHz
Polarisation: linear
Pattern Type: omnidirectional
Max Power: 20 W
Connector: SMA
Impedance: 50 Ohm nominell
Length: 260 mm
Diameter: 20 mm
Weight: 145 g

Datasheet

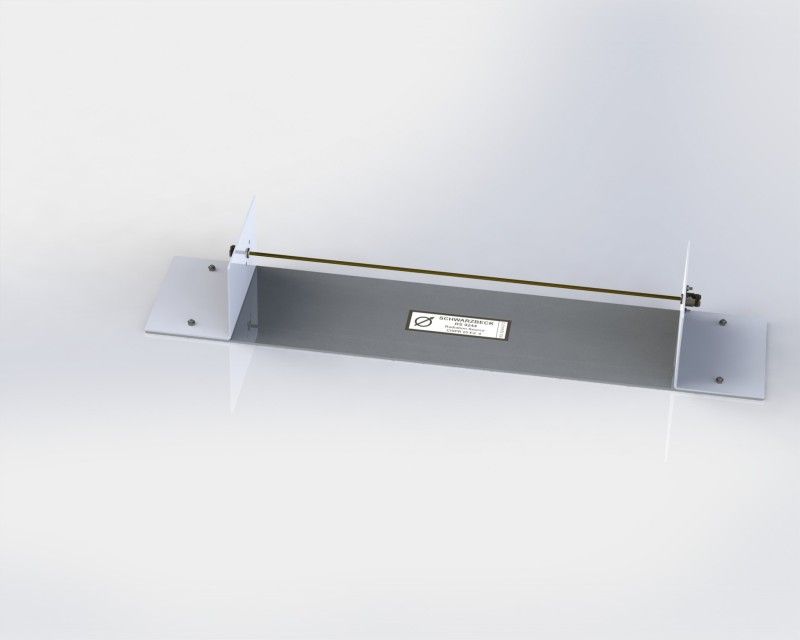

RS 9244

The radiation source RS 9244 complies to CISPR 25 Edition 4, which proposes the “Long Wire Antenna” and is used as reference source to evaluate the suitability of absorber lined shielded enclosures (ALSE) according to the ‘Long Wire Antenna method’.

Datasheet

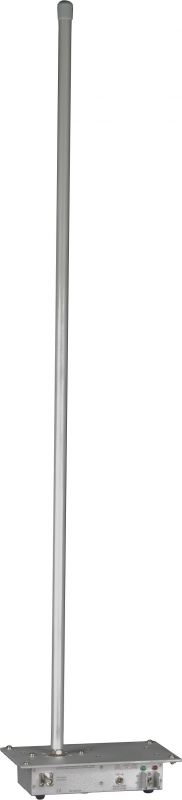

VAMP 9243

The VAMP 9243 is a vertikal active rod antenna with reduced noise floor.
With mounting nut for AM 9144 and rechargeable battery

Frequency Range: 9 kHz – 30 MHz
Polarisation: linear
Pattern Type: omnidirektional
Connector: BNC
Impedance: 50 Ohm nominell
Dimensions Amplifier:
Length: 180 mm
Width: 80 mm
Hight: 40 mm
Length Rod: 1 m
Weight: 900 g
Mounting: 1/4″, 3/8″

Datasheet

Option:
Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 m
Opt. ACS 410: Charger ACS 410
Opt. VT: 20 dB plug in divider to measure high field strength [Foto]
Opt. CA 9243: Calibration Adapter for VAMP9243 Opt. CA 9243
Opt. MIL461F bonding kit:
Bonding kit for VAMP 9243 acc. MIL-STD-461F consisting of a BNC cable double shielded ca. 70 cm, with braid current blocking ferrite in the center, elbow aluminium angle with BNC bulkhead adapter.
Opt. MIL 461F Bonding Kit

VPMP 9241

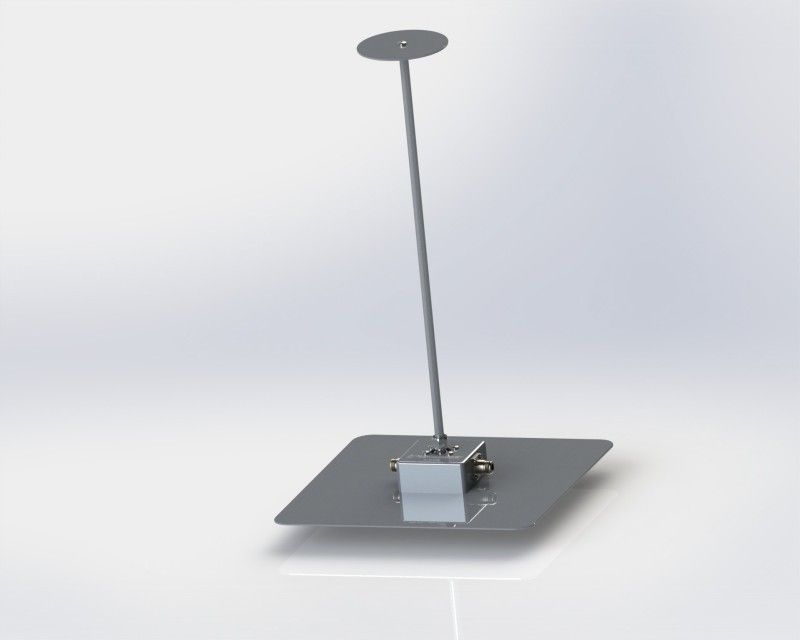

The vertical passive monopole consists of a flat alumium base plate and a milled aluminium housing, which has two N-connectors at the sides and an element clamping fixture on top. The element clamping fixture with a nominal diameter of 10 mm accepts the vertical rod of 0.5 m length, which is included in standard delivery. A typical application is the validation of ALSE (Absorber lined shielded enclosure) as proposed by CISPR 25 Ed. 4. An optional top loading disc (TLD 9241) is also available. Instead of the 0.5 m rod nearly all element types of the Schwarzbeck product range can be used, e.g. biconical elements BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, or collapsible elements FBAL 9177, FBAB 9178, or the telescopic elements of the VHA 9103.
Monopol acc. CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC)

Frequency Range: DC – 300 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 2 kW
Connector: 2 x N
Impedance: 50 Ohm nominell
Dimensions base plate: 300 x 300 mm
Housing dimensions: 80 x 80 x 35 mm
Length Rod: 0.5 m
Weight: 0.9 kg

Datasheet

Option:
Opt. TLD 9241: Top loading disc for VPMP 9241 diameter < 12 cm.


Beehive-Electronics 100 Series EMC Probes

The EMC probe 100 series consists of three loop probes for magnetic fields and one stub probe for electric field.
Loop probes: 100A, 100B and 100C
Stub probes: 100D

Datasheet



The post Automotive Antennas first appeared on Westek Electronics.

]]> Helical Antennas https://westek.com.au/helical-antennas/ Mon, 23 Dec 2024 17:18:46 +0000 https://westek.com.au/?p=1806 HLX 0810-LHCP Helical antenna750 – 1050 MHzleft hand circular polarisation (LHCP)gain: 11 dBic22 mm tubeN-jack DatasheetRadiation Pattern HLX 0810-RHCP Helical antenna750 – 1050 MHzright hand circular polarisation (RHCP)gain: 11 dBic22 mm tubeN-jack DatasheetRadiation Pattern CLSA 0110 – RHCP Conical Logarithmic Spiral AntennaThe CLSA 0110 offers circular polarisation over approx. one decade up to microwave frequencies.Frequency […]

The post Helical Antennas first appeared on Westek Electronics.

]]>

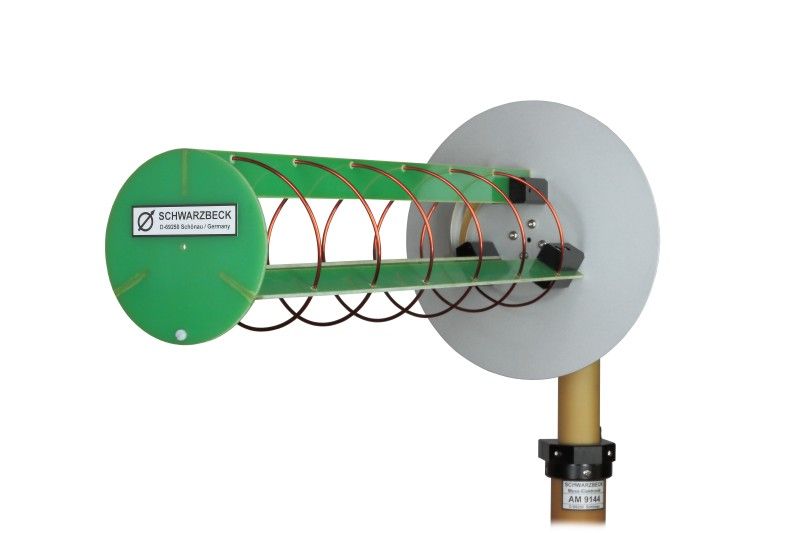

HLX 0810-LHCP

Helical antenna
750 – 1050 MHz
left hand circular polarisation (LHCP)
gain: 11 dBic
22 mm tube
N-jack

Datasheet
Radiation Pattern

HLX 0810-RHCP

Helical antenna
750 – 1050 MHz
right hand circular polarisation (RHCP)
gain: 11 dBic
22 mm tube
N-jack

Datasheet
Radiation Pattern

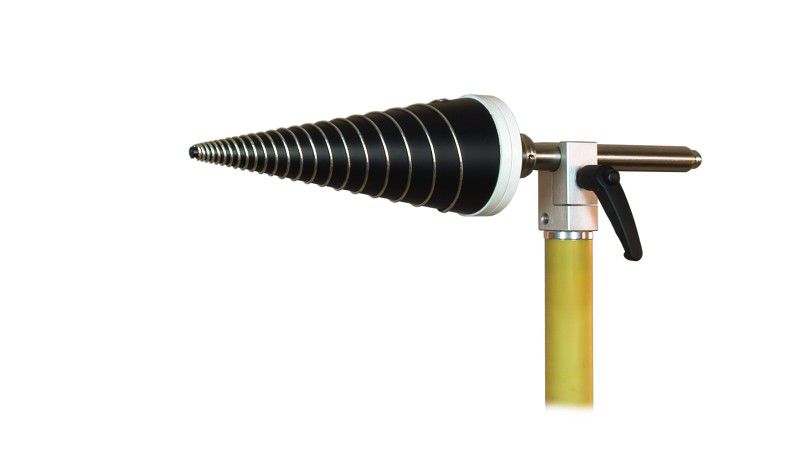

CLSA 0110 – RHCP

Conical Logarithmic Spiral Antenna
The CLSA 0110 offers circular polarisation over approx. one decade up to microwave frequencies.
Frequency Range: 1 – 10 GHz
Polarisation: RHCP (right hand circular polarisation)

Datasheet
Radiation Pattern

CLSA 0110 – LHCP

Conical Logarithmic Spiral Antenna
The CLSA 0110 offers circular polarisation over approx. one decade up to microwave frequencies.
Frequency Range: 1 – 10 GHz
Polarisation: LHCP (left hand circular polarisation)

Datasheet
Radiation Pattern



The post Helical Antennas first appeared on Westek Electronics.

]]> Antenna Impedance Converter https://westek.com.au/antenna-impedance-converter/ Mon, 23 Dec 2024 17:16:49 +0000 https://westek.com.au/?p=1801 VHIC 9260 Antenna Impedance converter acc. CISPR 25 9 kHz – 30 (120) MHz.Option ACS 110: Charger ACS 110 for    VHIC 9260 Datasheet CA 9260 The CA 9260 artificial antenna network (AAN) described in CISPR 25 Annex B, 150 kHz to 6.2 MHz, is used to measure the S21 of the Impedance converter VHIC 9260. […]

The post Antenna Impedance Converter first appeared on Westek Electronics.

]]>

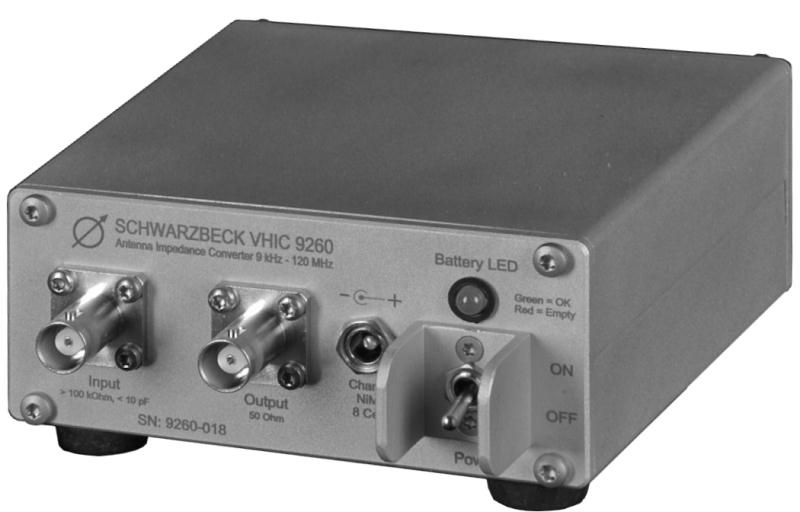

VHIC 9260

Antenna Impedance converter acc. CISPR 25 9 kHz – 30 (120) MHz.
Option ACS 110: Charger ACS 110 for    VHIC 9260

Datasheet

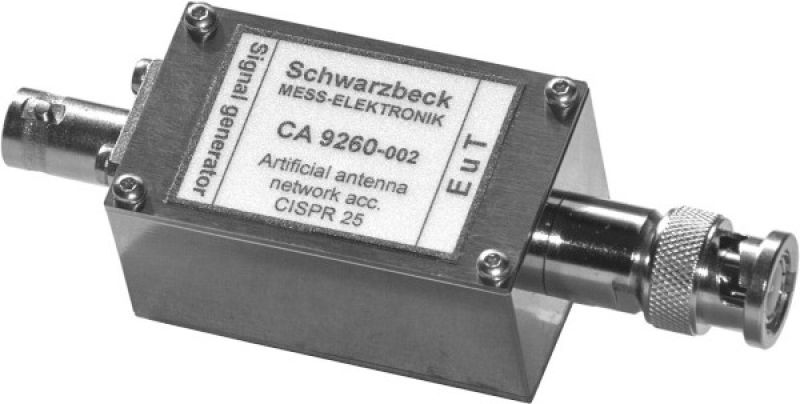

CA 9260

The CA 9260 artificial antenna network (AAN) described in CISPR 25 Annex B, 150 kHz to 6.2 MHz, is used to measure the S21 of the Impedance converter VHIC 9260.

Datasheet



The post Antenna Impedance Converter first appeared on Westek Electronics.

]]> Mast Adapters https://westek.com.au/mast-adapters/ Mon, 23 Dec 2024 17:07:46 +0000 https://westek.com.au/?p=1783 AA 9202 Mast Adapter for Antenna Mast System AM 9144 with22 mm hole for most Antenna models.3/8″ and 1/4″ camera threadspolarisation continuously adjustable Datasheet PDG 9211 – Polarisation swivel fixture The polarisation swivel fixture PDG 9211 allows to change the polarisation of larger horn antennas by a single person easily. With the four locking points […]

The post Mast Adapters first appeared on Westek Electronics.

]]>
AA 9202

Mast Adapter for Antenna Mast System AM 9144 with
22 mm hole for most Antenna models.
3/8″ and 1/4″ camera threads
polarisation continuously adjustable

Datasheet

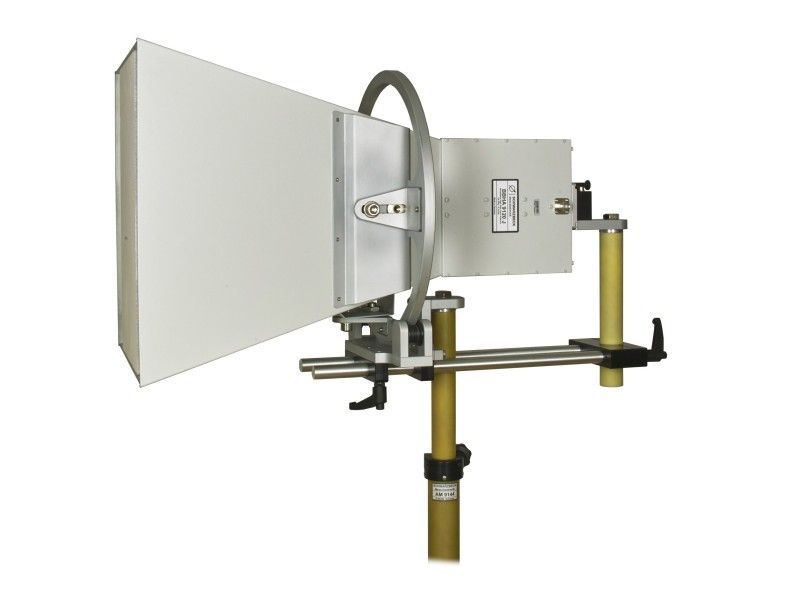

PDG 9211 – Polarisation swivel fixture

The polarisation swivel fixture PDG 9211 allows to change the polarisation of larger horn antennas by a single person easily. With the four locking points the antenna can snap in increments of 90° angles to horizontal or vertical polarisation.
The antenna is supported near its center of gravity. The polarisation swivel fixture can be mounted on the AM 9144 tripod at its vertical 3/8″ camera thread.
Optionally there is a pneumatic polarisation shifter for remote operation available.

Datasheet

AA 9202 POM

Non metallic mast adapter for most light weight Antenna models with 22 mm tube
minimizes reflections
3/8″ camera thread
polarisation continuously adjustable

Datasheet

AA 9203

Mast Adapter for AM 9144 with 22 mm hole for most Antenna models 3/8″ and 1/4″ camera threads polarisation and elevation continuously adjustable

Datasheet

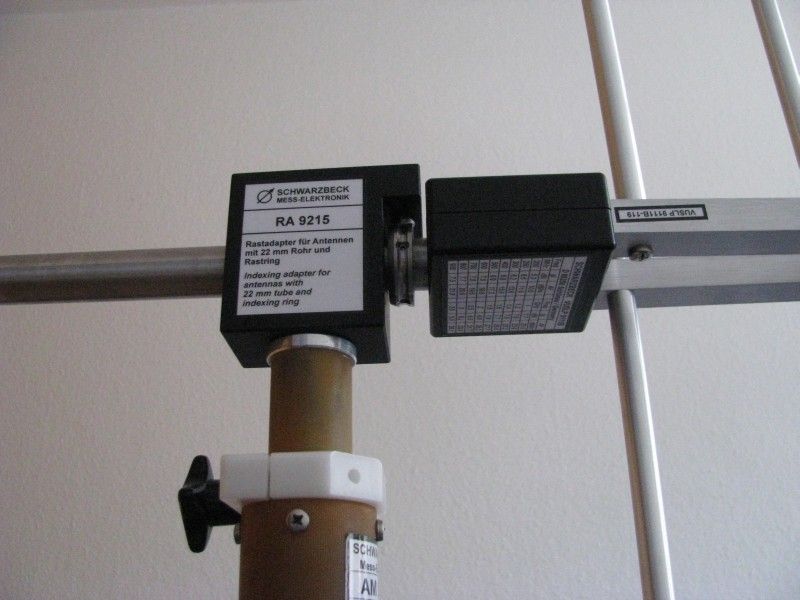

RA 9215

Indexing adapter RA 9215 for fast and precise polarisation change (90° steps)
Mast Adapter for Antennas with 22 mm tube and indexing ring.
3/8″ and 1/4″ camera threads

Datasheet

AA 9205

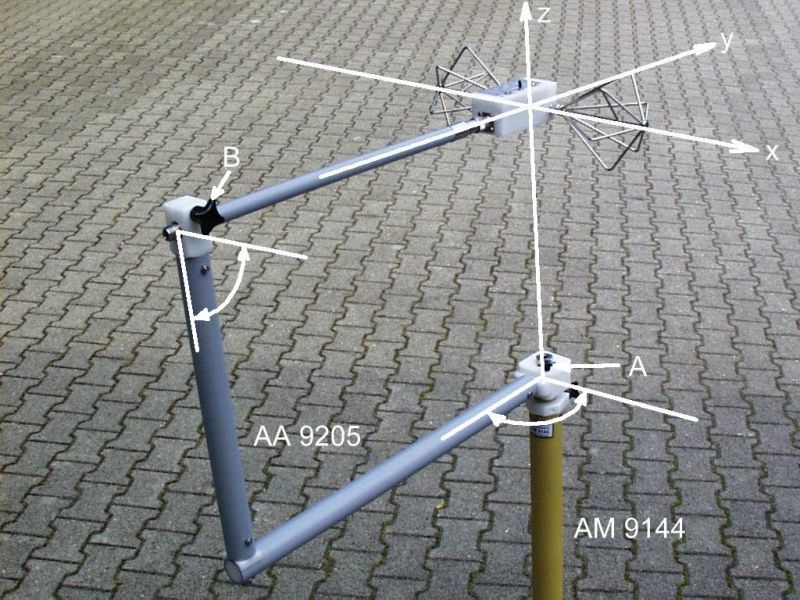

Orthogonal Swivel Adapter for positioning in 3 perpendicular directions

Application: determination of the magnitude of the fieldstrength

Datasheet

AA 9209

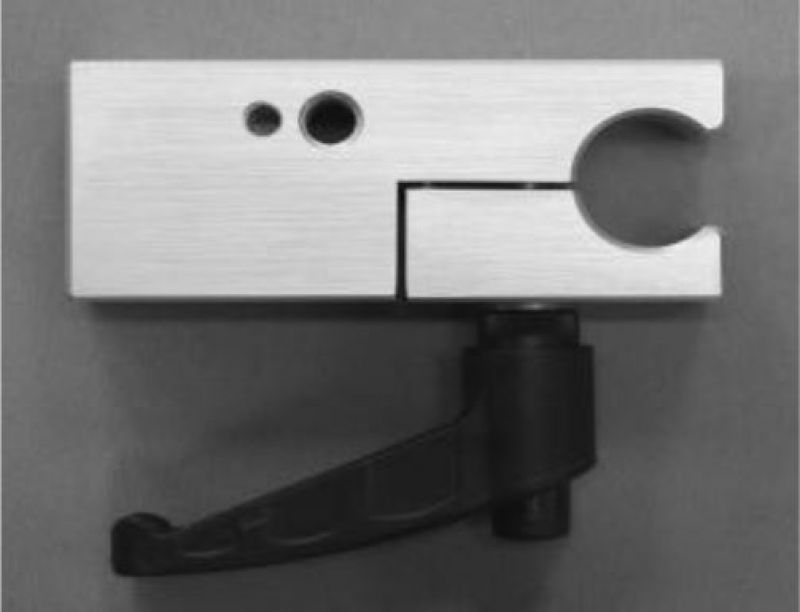

Antenna adapter to fix STLP 9128 E
STLP 9128 E special, STLP 9128 D, STLP 9128 D special on AM 9144.
Alllows antenna rotation without height adjustment.
Antenna can be fixed in the center of gravity without any collision
Adapterswith the AM 9144 during polarisation change.

Datasheet

AA 9213

Adapter to convert a 3/8″ female thread to 22 mm tube
e.g. to fix BBHA 9170 on AM 9104.

Datasheet

POSITIONER

Positioner for light weight antennas like SBA 9113 with 420 NJ.
The positioner consists of: 1 piece of glass fiber tube 22 mm thick,
1000 mm long, an adapter AA 9203 is mounted to the tube.
The other end of the tube carries a 3/8 inch male camera thread.

Datasheet

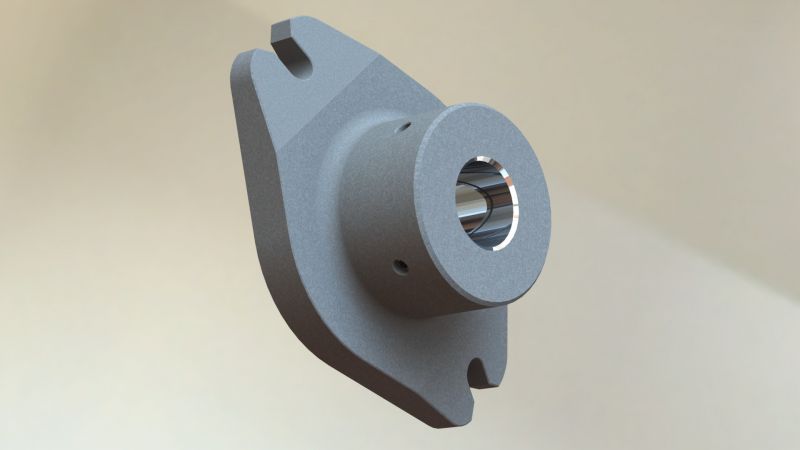

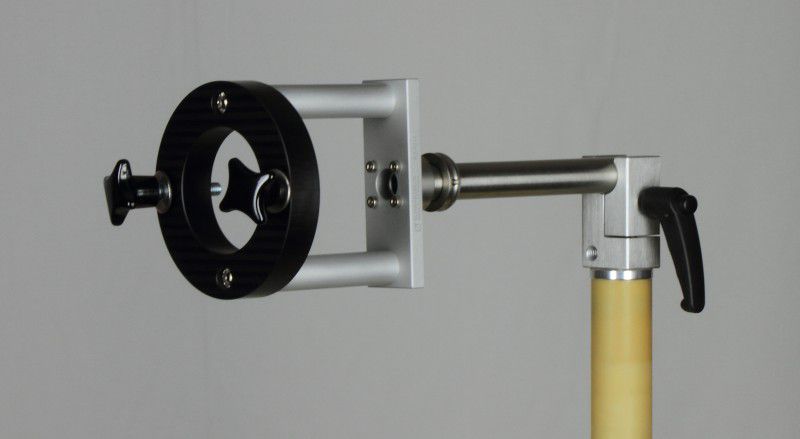

R&S Flange

R&S Flange for Schwarzbeck antenna with 22 mm tube.

RS 9214

Adapter to convert the R&S Aluminium Flange into 22 mm tube with indexing ring.

Datasheet

ETSA 9227

Adapter for light horn antennas of various manufacturers with 50 mm bolt circle to 22 mm tube with indexing ring.
Suitable for: ETS 3115, EMCO 3115, A-INFO LB-10180, R&S HF906, R&S HF907 …

Datasheet

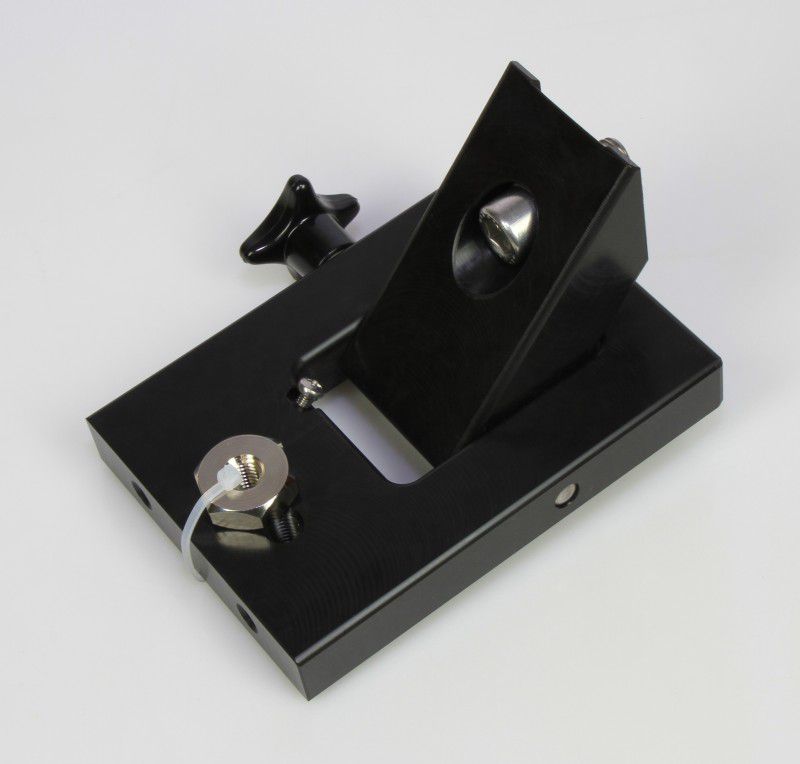

KG 9201

Mast Adapter (swivel, 90° vertical/horizontal polarisation for AM 9144)
for VULP 9118 D,E,F,G and VUSLP 9111 E only

Datasheet

PPS 9208

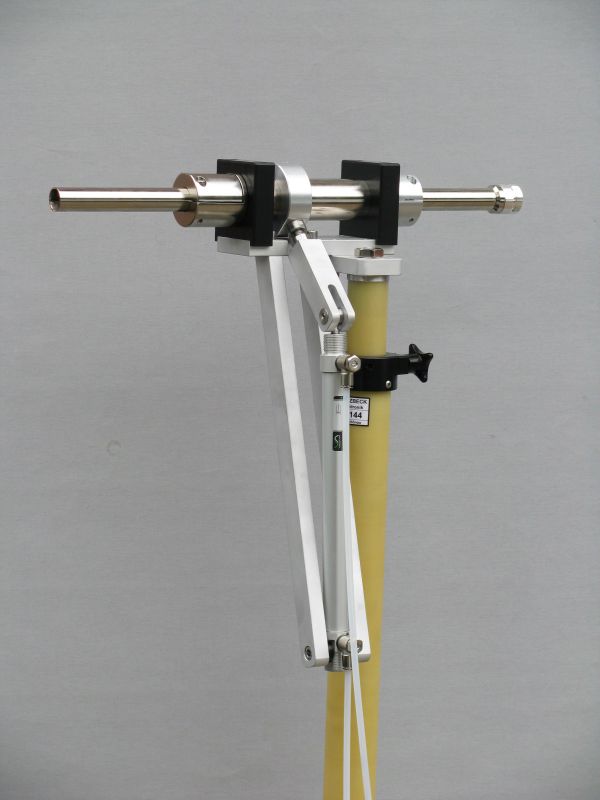

Pneumatic polarisation shifter with 2-way pneumatic cylinder
for all Schwarzbeck antennas with 22 mm tube on AM 9144.
Compressed air required.

Datasheet


SWHA 9204

Swivel handle for light antennas

Datasheet

EA 9207

Adapter for Schwarzbeck antennas with 22 mm tube on EMCO mast.

Datasheet


TA 9204

Thread Adapter with 3/8″ female and 1/4″ male threads.
Mainly for American antenna brands.

Datasheet


TA 9205

TA 9205 Thread Adapter with 1/4″ female and 3/8″ male threads.
(For camera tripods, not for AM 9144)

Datasheet


TA 9206

Thread Adapter with 3/8″ female and 5/8″ male threads. (Geodesy)

Datasheet



The post Mast Adapters first appeared on Westek Electronics.

]]> Dipoles https://westek.com.au/dipoles/ Mon, 23 Dec 2024 14:19:35 +0000 https://westek.com.au/?p=1767 Tuned half-wave dipoles have been among the most important antennas from the beginning of rf-technique. The characteristics of half-wave dipoles have been calculable very early using the Maxwell and Hertz equations. Therefore the half wave dipole became a reference antenna. The ideal (lossless) half-wave dipole has an isotropic gain of 2.15 dBi and an impedance […]

The post Dipoles first appeared on Westek Electronics.

]]>

Tuned half-wave dipoles have been among the most important antennas from the beginning of rf-technique. The characteristics of half-wave dipoles have been calculable very early using the Maxwell and Hertz equations. Therefore the half wave dipole became a reference antenna. The ideal (lossless) half-wave dipole has an isotropic gain of 2.15 dBi and an impedance of 73 Ohm. The directional pattern is circular in the H-plane, “8-shaped” in the E-plane with the maxima perpendicular on the dipole axis.
The half-power beamwidth (-3 dB) is approx. 78°. The impedance of real dipoles is depending on the thickness/length ratio of its elements, typical values are 60-70 Ohm.
Dipoles for industrial applications are available in the frequency range from 30 MHz to up to approx. 4 GHz. The dipole elements are length variable (telescopic) or with fixed length, the latter especially above 1 GHz. The most important applications are test site evaluations (NSA, normalized site attenuation) and the determination of ERP (Effective Radiated Power) respectively EIRP (Effective Isotropic Radiated Power).

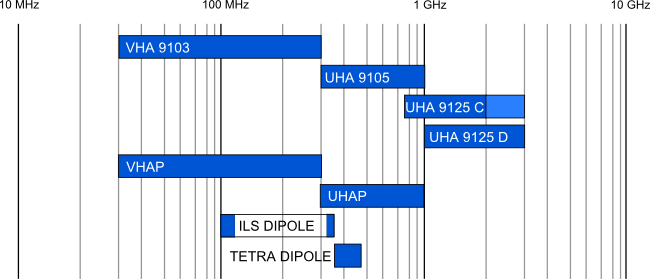

Overview Dipole Antennas


VHA 9103

VHF Half-Wave Dipole with 2 sets of telescopic elements
30-300 MHz

Datasheet

UHA 9105

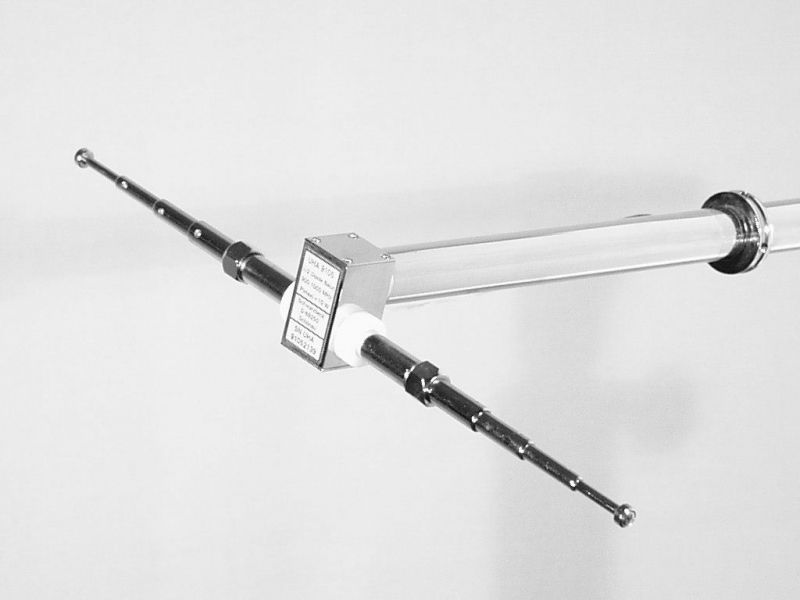

Tuneable UHF – Half – Wave Dipole
300 – 1000 MHz
w. telescopic elements

Datasheet
Radiation Pattern

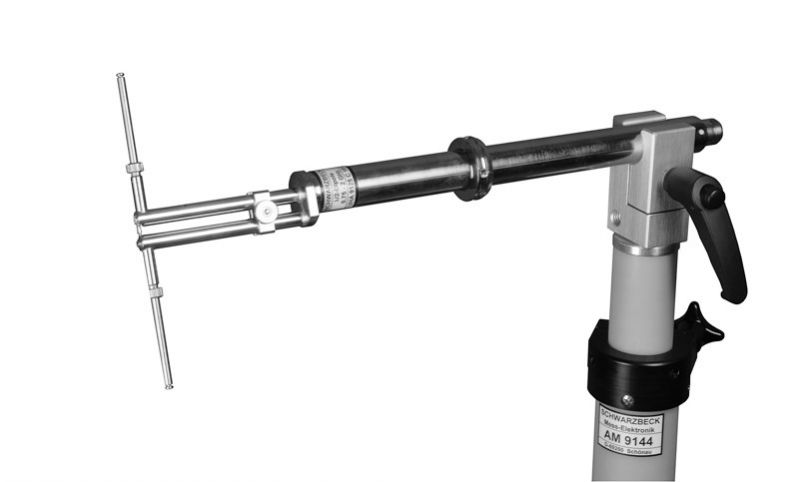

UHA 9125 C

Tuneable UHF – Half -Wave Dipole
with EMI -Balun
0.75 – 2 GHz with 4 sets of elements
LE = 180, 140, 100, 80 mm

Datasheet
Radiation Pattern
VSWR

UHA 9125 D

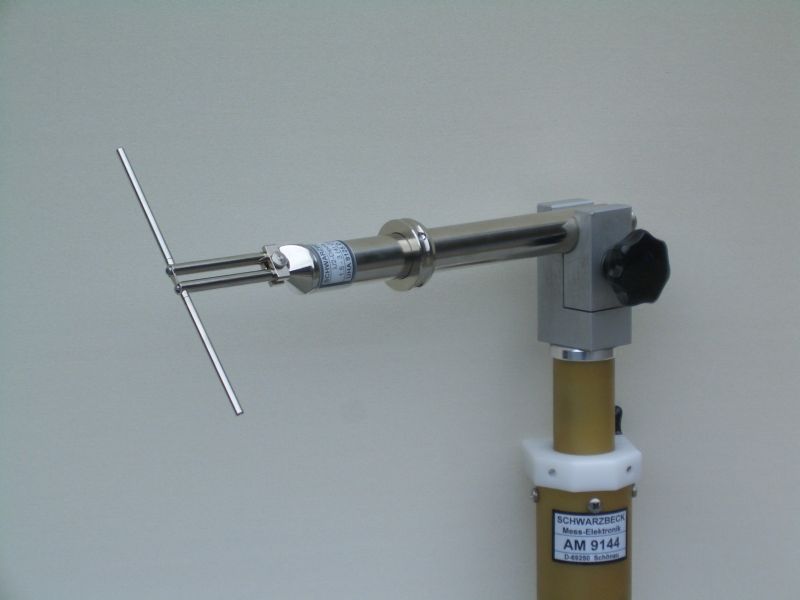

Tuneable UHF – Half – Wave Dipole
with EMI – Balun
1.0 – 3 (4) GHz with 6 sets of elements
LE = 140, 114, 90, 72, 60, 48 mm

Datasheet
VSWR

VHAP

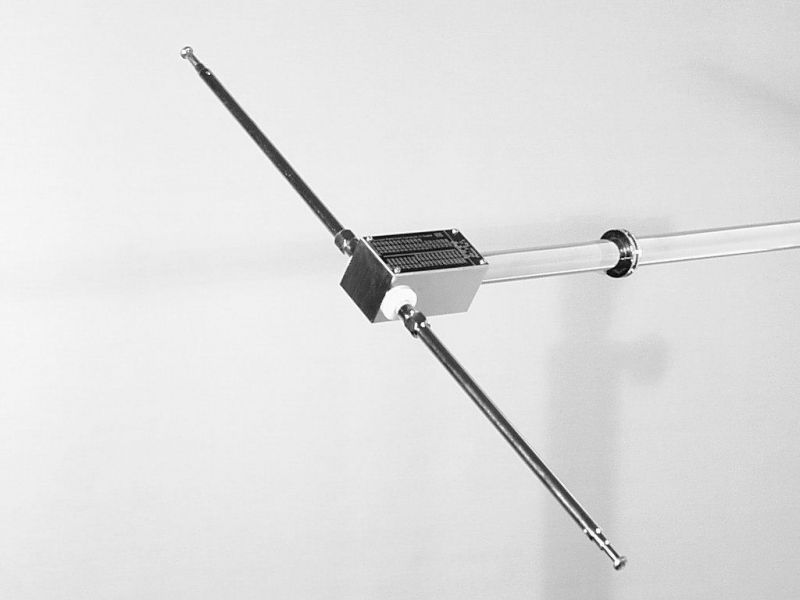

VHF Precision Dipole 30-300 MHz
2 sets of telescopic elements
(mostly required in pairs) CISPR 16-1-5

Datasheet
Manual


VHAPA

Calibration adaptor for VHAP Precision Dipoles

Datasheet


CCA

Carrying and storing case
for 2 x VHAP or 2 x UHAP
cases for other antennas also available.

Datasheet

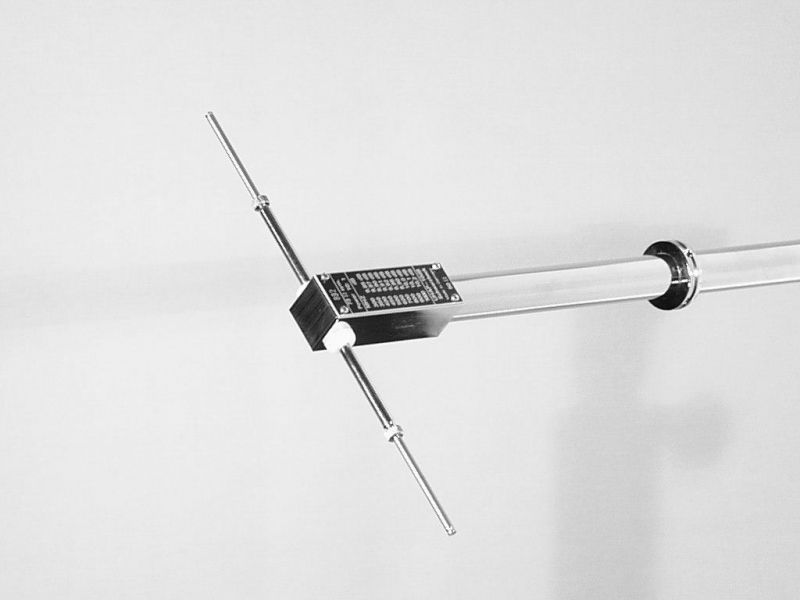

UHAP

UHF Precision Dipole
300-1000 MHz
(VHAP & UHAP mostly required in pairs)
CISPR 16-1-5

Datasheet
Manual


UHAPA

Calibration adaptor for UHAP Precision Dipoles

Datasheet

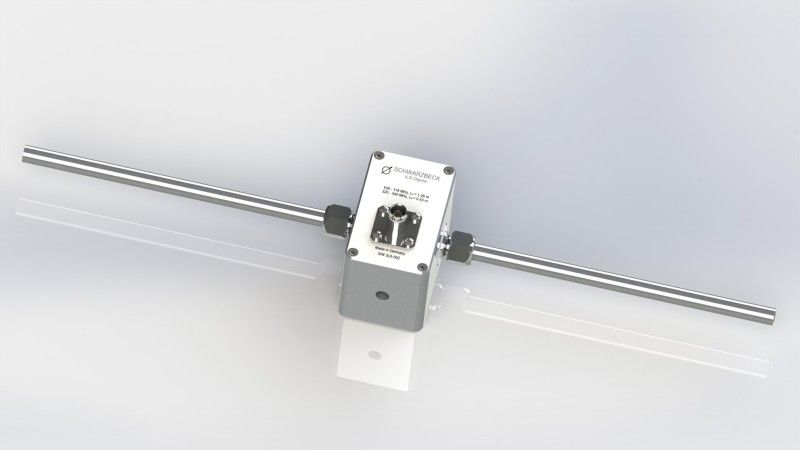

 ILS Dipole

Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at instrument landing systems (ILS).

Frequency range:
localizer: 108 – 118 MHz (LOC, LLC)
glideslope: 320 – 340 MHz (G/S)
Gain: 1.5 dBi

Datasheet
Radiation Pattern

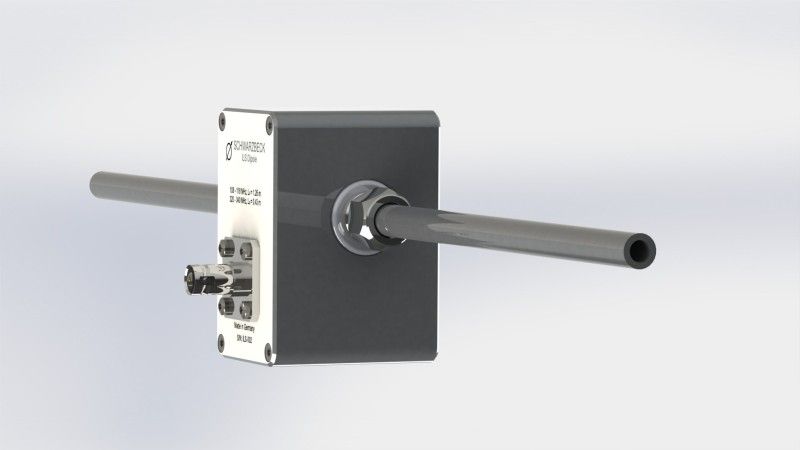

TETRA DIPOLE

Linear polarized half-wave dipole with 1:1 balun and fixed element length for  measurements at TETRA (terrestrical trunked radio) networks.


Frequency range: 340 – 480 MHz
Gain: typ. 1.5 dBi

Datasheet



The post Dipoles first appeared on Westek Electronics.

]]> Rod Antennas https://westek.com.au/rod-antennas/ Mon, 23 Dec 2024 14:09:06 +0000 https://westek.com.au/?p=1761 VAMP 9243 Vertikal active rod antenna9 kHz – 30 MHzBNCreduced noise floorwith mounting nut for AM 9144 and rechargeable battery Datasheet Option:Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 mOpt. ACS 410: Charger ACS 410Opt. VT: 20 dB plug in divider to measure high field strength [Foto]Opt. CA 9243: Calibration Adapter for VAMP9243 Opt. CA 9243Opt. MIL461F […]

The post Rod Antennas first appeared on Westek Electronics.

]]>
VAMP 9243

Vertikal active rod antenna
9 kHz – 30 MHz
BNC
reduced noise floor
with mounting nut for AM 9144 and rechargeable battery

Datasheet

Option:
Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 m
Opt. ACS 410: Charger ACS 410
Opt. VT: 20 dB plug in divider to measure high field strength [Foto]
Opt. CA 9243: Calibration Adapter for VAMP9243 Opt. CA 9243
Opt. MIL461F bonding kit:
Bonding kit for VAMP 9243 acc. MIL-STD-461F consisting of a BNC cable double shielded ca. 70 cm, with braid current blocking ferrite in the center, elbow aluminium angle with BNC bulkhead adapter.
Opt. MIL 461F Bonding Kit


VPMP 9242

Vertical passive rod antenna
10 – 40 MHz
possible rods: FBAB 9177, FBAL 9178, BBA 9106, BBAL 9136
(rod must be ordered extra)

Datasheet

Option:
Opt. GP: Aluminium groundplane 0.6 x 0.6 m

VPMP 9241

Monopole acc. to CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC)
passive
2 N-connectors
element fixture for rod
rod
aluminum housing and groundplane

Datasheet

Option:
Opt. TLD 9241: Top loading disc for VPMP 9241 diameter < 12 cm.



The post Rod Antennas first appeared on Westek Electronics.

]]> Monitoring & Drive Test Antennas https://westek.com.au/monitoring-drive-test-antennas/ Mon, 23 Dec 2024 13:19:23 +0000 https://westek.com.au/?p=1742 TETRA Dipole Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at TETRA (terrestrical trunked radio) networks. Frequency range: 340 – 480 MHzGain: typ. 1.5 dBi Datasheet ILS Dipole Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at instrument landing systems (ILS).  Frequency range:Localizer: […]

The post Monitoring & Drive Test Antennas first appeared on Westek Electronics.

]]>
TETRA Dipole

Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at TETRA (terrestrical trunked radio) networks.

Frequency range: 340 – 480 MHz
Gain: typ. 1.5 dBi

Datasheet

ILS Dipole

Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at instrument landing systems (ILS).

Frequency range:
Localizer: 108 – 118 MHz (LOC, LLC)
Glideslope: 320 – 340 MHz (G/S)
Gain: 1.5 dBi

Datasheet

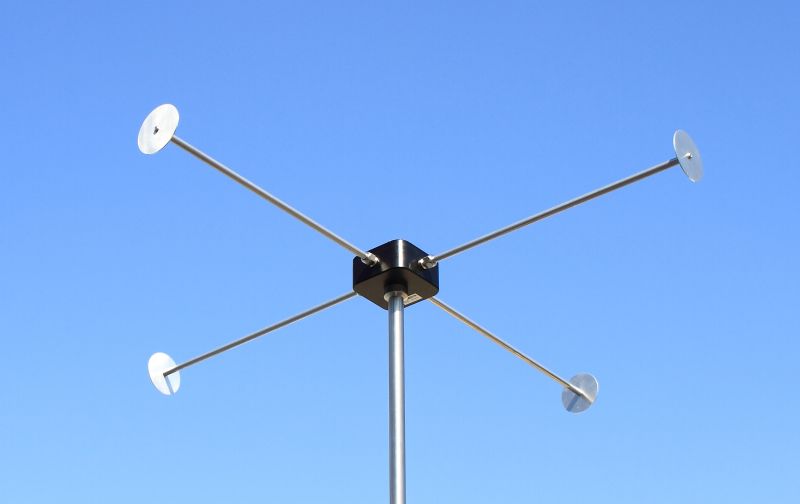

RSH 113

The RSH 113 is a crossed dipole antenna, consisting of two shortened half-wave-dipoles. The size reduction is achieved by the use of top loading discs. The design frequency range is from 108 to 118 MHz, typical applications are measurements at instrument landing systems (ILS-Localizer). The RSH 113 has a nearly omnidirectional pattern and comes with horizontal polarisation. The antenna can be used for both, Receive and Transmit Applications and comes with a nominal impedance of 50 Ω.

Datasheet

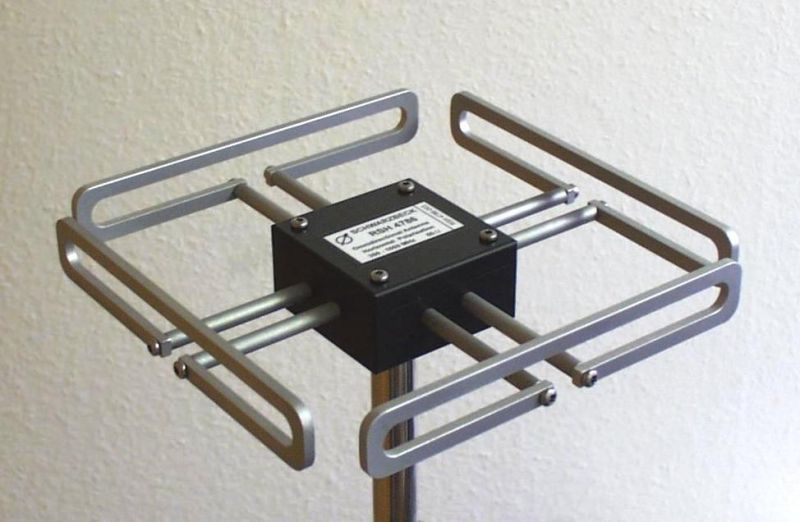

RSH 4786

Horizontal polarised omnidirectional Antenna for mobile and stationary receive and transmit applications.
A typical application is the DVB coverage measurement using measurement vehicles.

Frequency range: 350 – 1050 MHz

Datasheet
Radiation Pattern

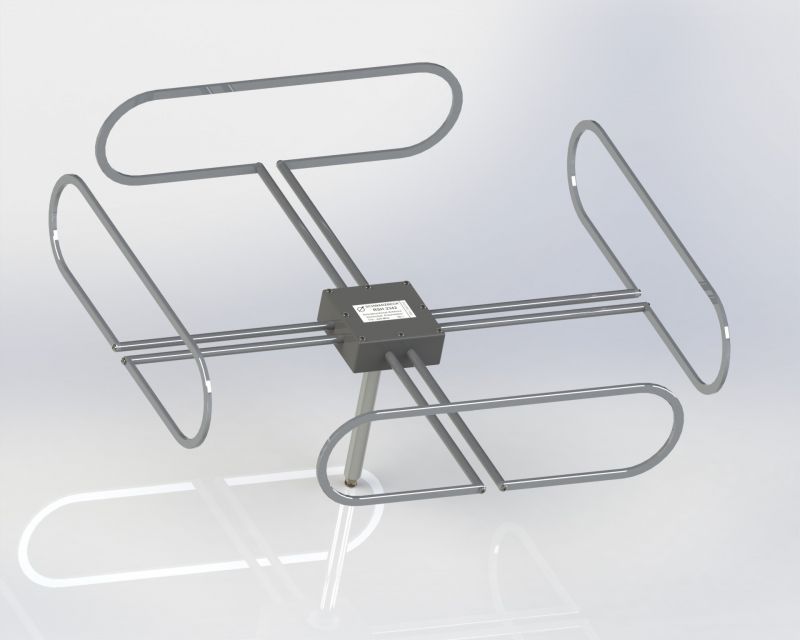

RSH 2342

Horizontal polarised omnidirectional Antenna for mobile and stationary receive and transmit applications.
A typical application is the DVB-T (DTMB,ATSC or ISDB-T) coverage measurement using measurement vehicles.

Frequency range: 170 – 350 MHz

Datasheet
Radiation Pattern

RE 1790

Vertical polarized VHF- UHF biconical antenna
(170) 230 – 1000 (1100) MHz
with omni directional H-plane pattern

Datasheet
Radiation Pattern

RE 4590

Vertical polarized VHF- UHF biconical antenna
(330) 450 – 1000 (1100) MHz
with omni directional H-plane pattern

Datasheet

RS 16

Vertical polarized microwave biconical antenna
(0,5) 1 – 6 (8,5) GHz
with omni directional H-plane pattern

Datasheet
Radiation Pattern

RS 0460

Vertically polarised symmetrical biconical antenna
0,4 – 6 GHz
omnidirectional in the H-plane

Datasheet

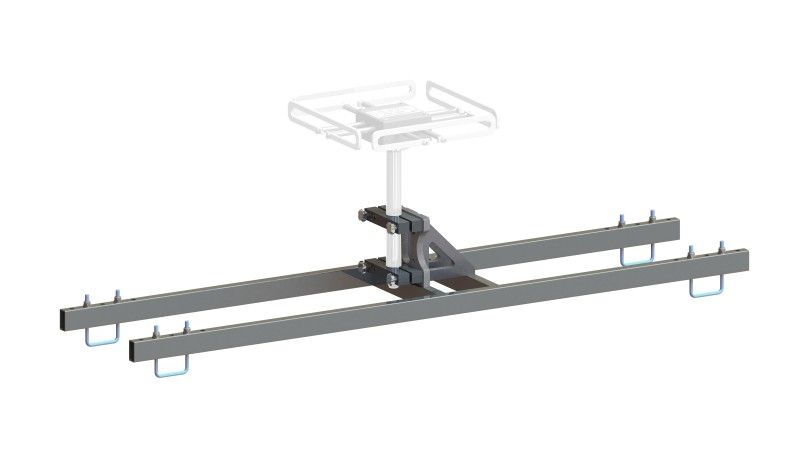

RRAH 9286

The RRAH 9286 is an antenna holder for antennas with 22 mm tube for vertical mounting on a car roof rack. The antenna holder is suitable for all standard roof rack carriers with a max. cross-tube dimension of 44×30 mm. The mounting distance is adjustable from 82-92 cm at 2.5 cm intervals (center- center).

Datasheet

FT 01 S

Additional elements for enhanced FM broadcast directivity [Data1], [Data2]

Datasheet

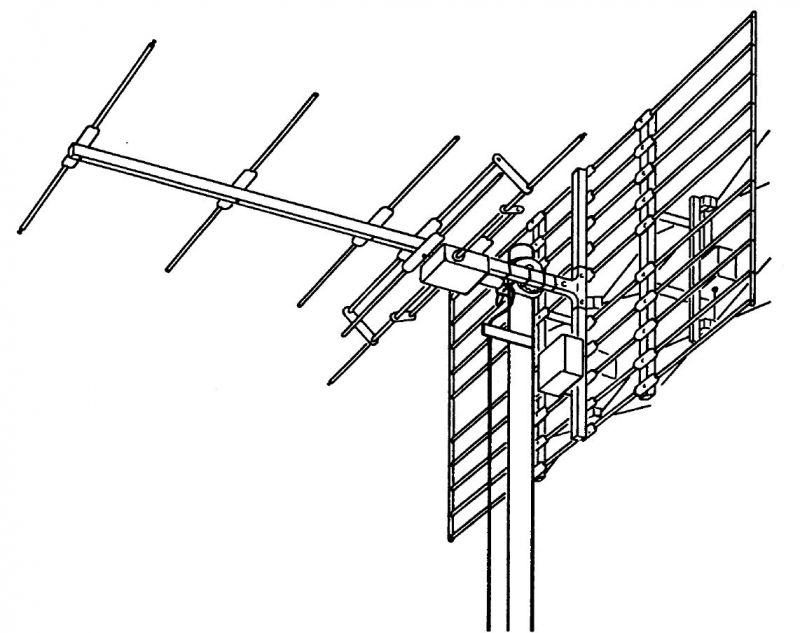

FT 01 UKW

FM broadcast and TV bands antenna
detachable
47 – 860 (1000) MHz
high directivity



The post Monitoring & Drive Test Antennas first appeared on Westek Electronics.

]]>
