419 NJ
Flat, broadband antenna elements with termination resistors and heatsinks for the NMHC 4MM Balun for efficient immunity testing at close distances in the frequency range below 220 MHz.
| Required Balun: | NMHC 4MM |
| Connector: | N female |
| Frequency Range: | 20 MHz … 220 MHz |
| Nominal Impedance: | 50 Ω |
| Continuous Power: | 30 W |
| Max. Power (short time, 5 min): | 40 W |
| VSWR: | typ. < 3 (f < 100 MHz) |
| Material: | Aluminium |
| Weight: | 250 g |
| Element length total: | LE = 240 mm |
| Element width: | D = 109 mm |
| Element fixture: | M4 |
| Accessories: | Spacer 50 mm |

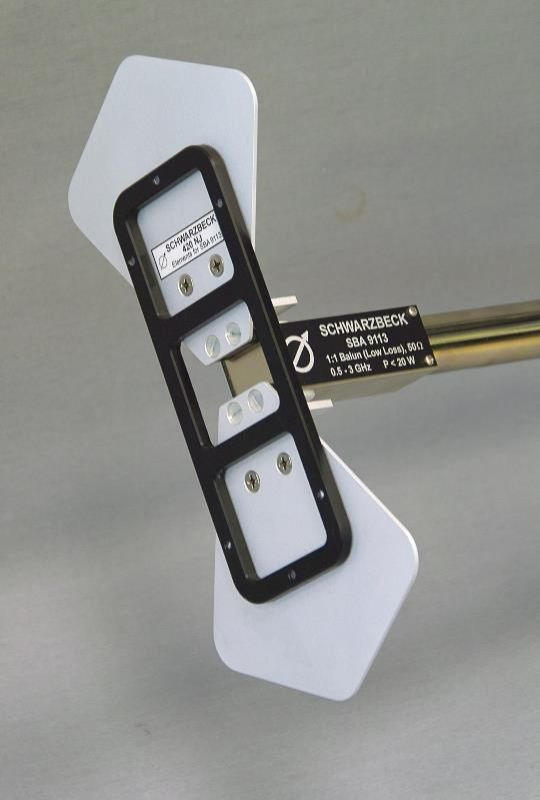

420 NJ
Elements for radiated immunity caused by hand portable transmitters
with SBA 9113 or SBA 9113 mini version for the Ford standard RI115 (Ford EMC CS 2009)
| Required balun: | SBA 9113 or SBA 9113 Mini Version |
| Connector: | N |
| Frequency range: | 370 MHz … 2.7 GHz |
| Nominal impedance: | 50 Ω |
| Maxumum input power: | 20 W |
| VSWR: | < 6 (0.7 GHz < f < 1.8 GHz) |
| < 5 (1.8 GHz < f < 2.7 GHz) | |
| Material: | Aluminium |
| Element size: | 240 x 109 x 2 mm |
| Weight: | 135 g |
| recomended space: | 5 – 50 mm |
| Option: | Spacer 50 mm |
| Other Spacer on request |
Datasheet 420 NJ
Datasheet SBA 9113
Option:
Opt: Spacer 50
Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.

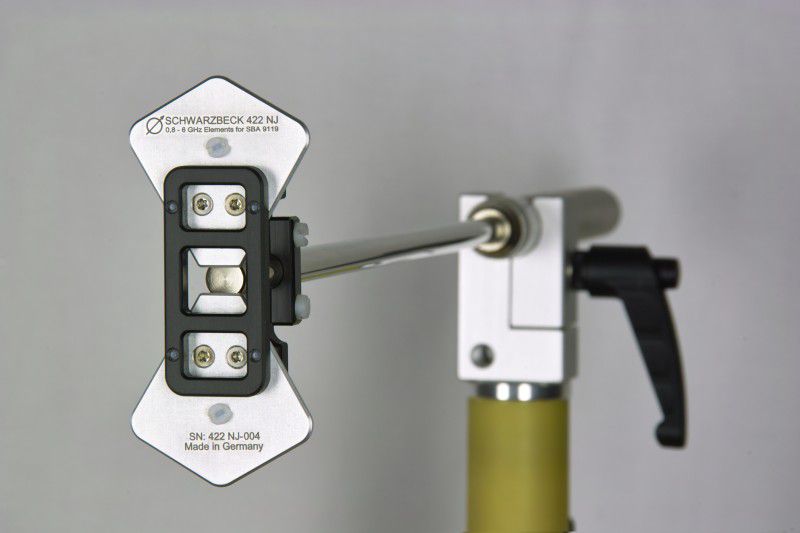

422 NJ
The combination of the flat elements 422 NJ with SBA 9119-Balun provides remarkable fieldstrength levels with moderate transmit power. With approx. 10 Watt transmit power one can reach fieldstrength levels of 300 V/m at a distance of 30 mm.
| Required Balun: | SBA 9119 |
| Connector: | N |
| Frequency Range: | 800 MHz … 6 GHz |
| Nominal Impedance: | 50 Ω |
| Continuous Power: | 20 W |
| VSWR: | < 8 (0.9 GHz < f < 2.4 GHz) |
| < 4 (2.4 GHz < f < 6 GHz) | |
| Material: | Aluminium |
| Flat Element Dimensions: | 108 x 49 x 2 mm |
| Weight: | 50 g |
| Recommended Spacing: | 30 mm |
| Recommended mesh width: | 30 – 50 mm |
| Options: | Spacer 30 mm |
Datasheet 422 NJ
Field Uniformity 422 NJ
Datasheet SBA 9119
Assembly 422 NJ

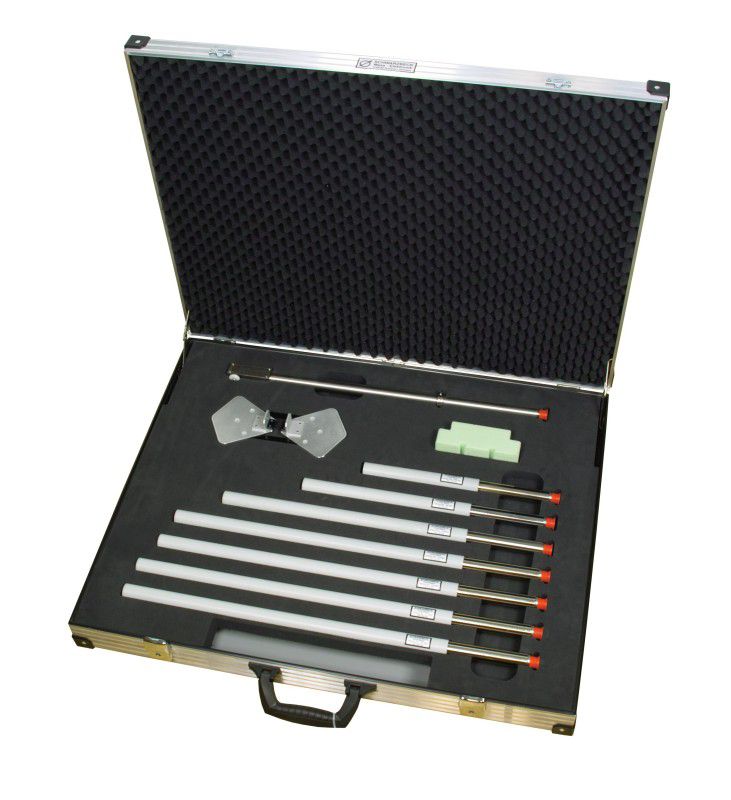

TSA Antennas
Tuned sleeve antennas are tuned half wave dipoles, with their axis aligned as a straight extension of the coaxial feed cable.
The main applications of the TSA-antennas are immunity testing against handheld transmitters in the automotive industry within the VHF/UHF range according to ISO 11542-9 respectively manufacturer specific standards (e.g. Toyota TSC 7006G).
| Frequency Range: | 385 MHz … 2 GHz |
| Polarisation: | linear |
| Pattern Type: | omnidirektional |
| Permissible Power: | 20 W |
| Connector: | N |
| Impedance: | 50 Ω nominal |
| Length: | 365 – 640 mm |
| Diameter: | 25 mm |
| Weight: | 300 g – 500 g |
| Mounting: | 22 mm diameter tube |

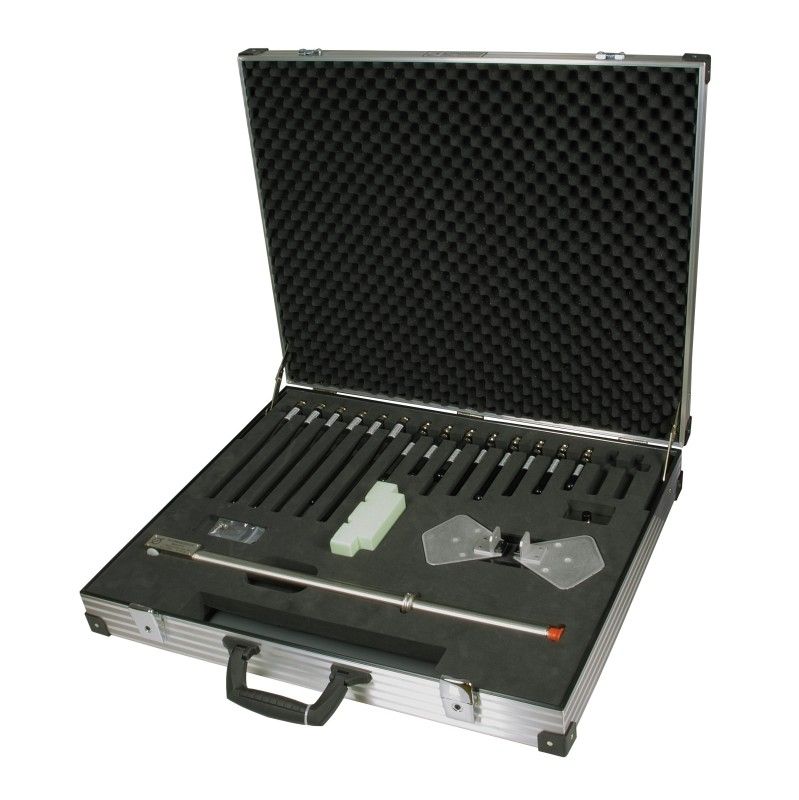

NMHA 6M
Nissan and Renault antenna set to test immunity against handy transmitters acc. to Nissan specification 28401NDS02 [6] and RENAULT 36-00-808/L (combined set) consisting of normal mode helical antennas, counterpoise, SBA 9113 with 420NJ elements and transport case (see extra list)

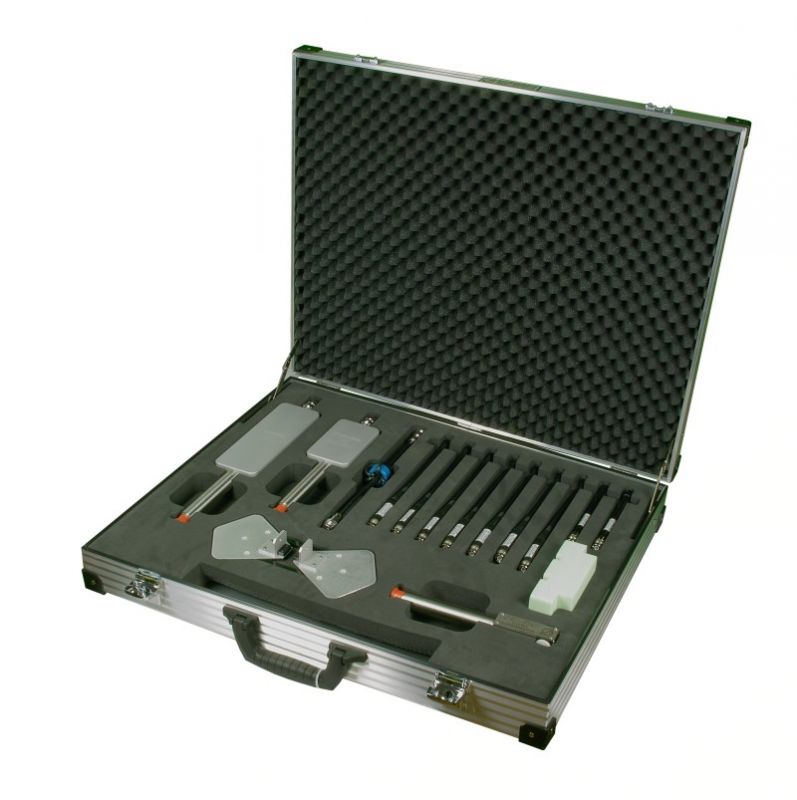

VW TL 82166 2009-05 7.3 Antenna Set
The antenna kit for testing immunity against hand-held radios acc. to Volkswagen standard TL 82166:2009-05
consists of the following parts:
For the frequency range 26-174 MHz matched normal mode helical antennas are used. For frequencies from 360 MHz and beyond the broadband SBA 9113 mini version with 420 NJ elements is used.
NMHB 4MM – 1:1 Balun
Low Loss Broadband Balun 1:1 with female N-Connector for receive and transmit applications in the VHF frequency range. The main application of the NMHB 4 MM is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 246 MHz with different folded dipole elements FDAI. The radiating elements can be exchanged without any tools by the means of knurled M4 screws.
| Usable Frequency Range: | 9 kHz – 420 MHz |
| Nominal Impedance: | 50 Ω |
| Standing Wave Ratio SWR typical: | < 2 |
| Max. Input Power: | 50 W |
| Connector: | N-female |
| Symmetrical Terminals: | M4 |
| Mount: | 22 mm Tube |
| Length: | 212 mm |
| Width: | 75 mm |
| Height: | 28 mm |
| Weight: | 270 g |
| Recommended Accessories: | FDAI 146 (142-150 MHz) |
| FDAI 155 (151-161 MHz) | |
| FDAI 165 (162-174 MHz) | |
| FDAI 174 (172-180 MHz) | |
| FDAI 222 (215-246 MHz) | |
| FDAI Spacer 50 | |
| CCA FDAI |

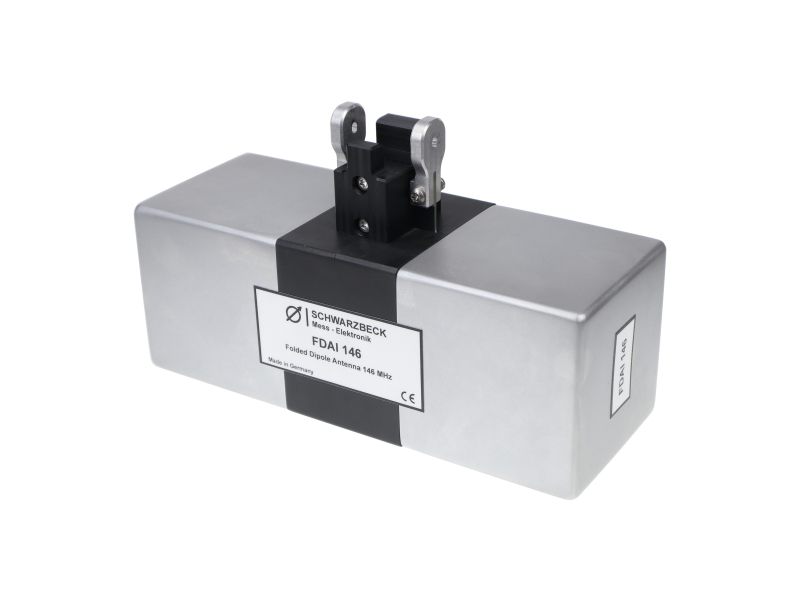

FDAI 146 – Folded Dipole Antenna 146 MHz
The FDAI 146 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 146 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 150 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).
| Usable Frequency Range: | 142 – 150 MHz |
| Nominal Impedance: | 50 Ω |
| Standing Wave Ratio SWR typical: | < 2 |
| Max. Input Power: | 50 W |
| Symmetrical Terminals: | M4 |
| Length: | 89 mm |
| Width: | 240 mm |
| Height: | 140 mm |
| Weight: | 0.9 kg |
| Recommended Accessories: | NMHB 4MM |
| FDAI Spacer 50 | |
| CCA FDAI |

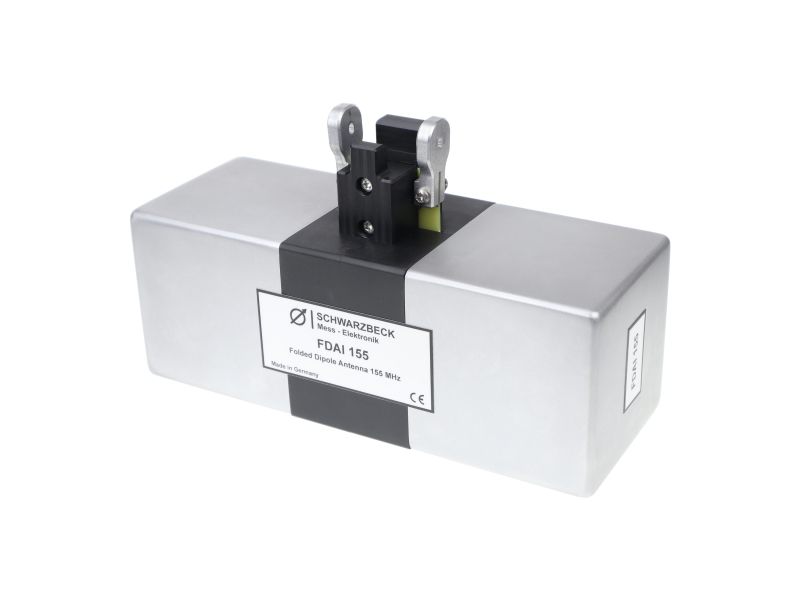

FDAI 155 – Folded Dipole Antenna 155 MHz
The FDAI 155 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 155 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 151 MHz and 160 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).z.
| Usable Frequency Range: | 151 – 160 MHz |
| Nominal Impedance: | 50 Ω |
| Standing Wave Ratio SWR typical: | < 2 |
| Max. Input Power: | 50 W |
| Symmetrical Terminals: | M4 |
| Length: | 89 mm |
| Width: | 240 mm |
| Height: | 140 mm |
| Weight: | 0.9 kg |
| Recommended Accessories: | NMHB 4MM |
| FDAI Spacer 50 | |
| CCA FDAI |

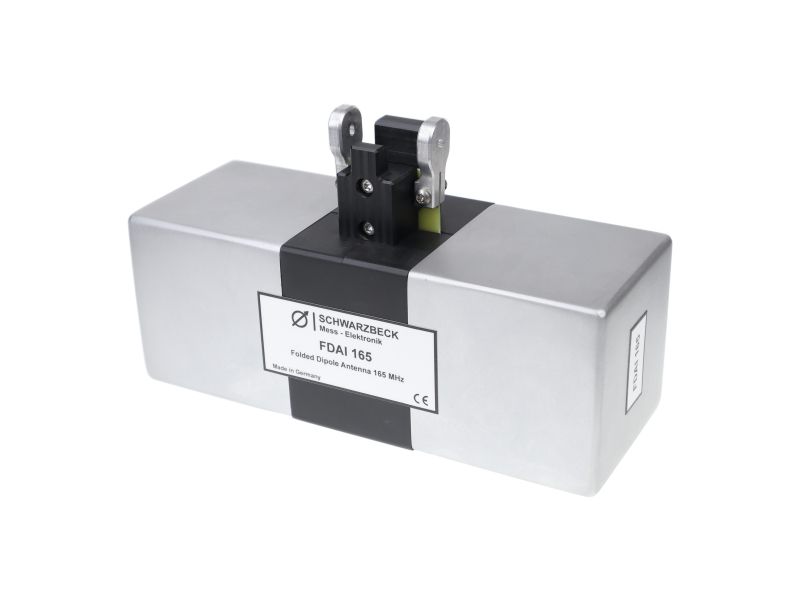

FDAI 165 – Folded Dipole Antenna 165 MHz
The FDAI 165 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 165 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 162 MHz and 174 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).
| Usable Frequency Range: | 162 – 174 MHz |
| Nominal Impedance: | 50 Ω |
| Standing Wave Ratio SWR typical: | < 2 |
| Max. Input Power: | 50 W |
| Symmetrical Terminals: | M4 |
| Length: | 89 mm |
| Width: | 240 mm |
| Height: | 140 mm |
| Weight: | 0.9 kg |
| Recommended Accessories: | NMHB 4MM |
| FDAI Spacer 50 | |
| CCA FDAI |

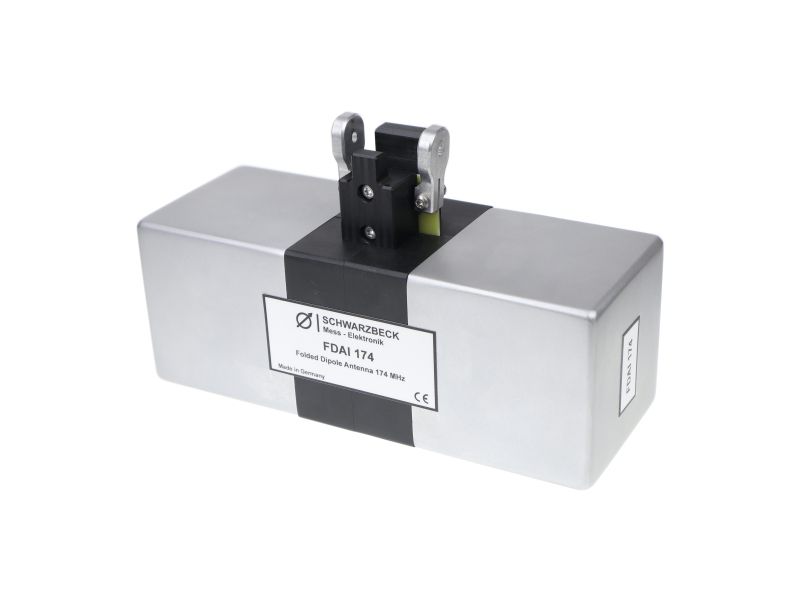

FDAI 174 – Folded Dipole Antenna 174 MHz
The FDAI 174 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 174 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 166 MHz and 180 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).
| Usable Frequency Range: | 166 – 180 MHz |
| Nominal Impedance: | 50 Ω |
| Standing Wave Ratio SWR typical: | < 2 |
| Max. Input Power: | 50 W |
| Symmetrical Terminals: | M4 |
| Length: | 89 mm |
| Width: | 240 mm |
| Height: | 140 mm |
| Weight: | 0.9 kg |
| Recommended Accessories: | NMHB 4MM |
| FDAI Spacer 50 | |
| CCA FDAI |

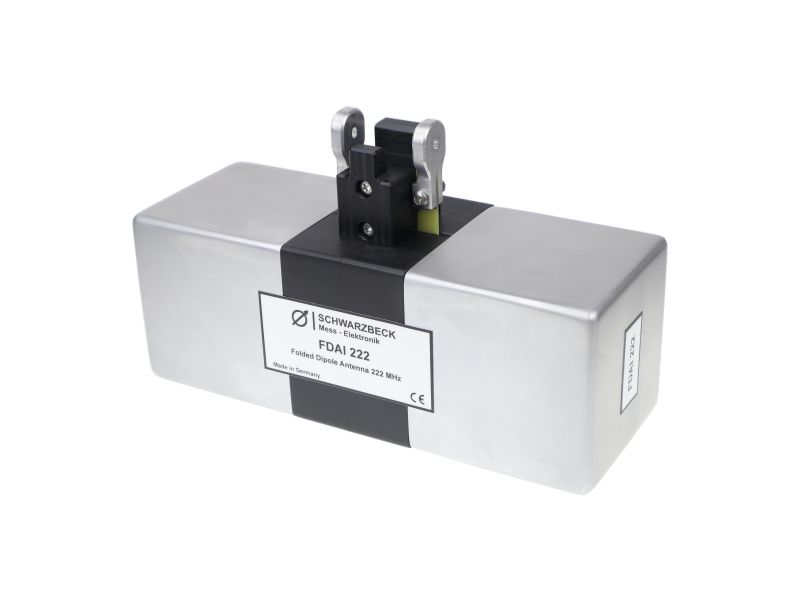

FDAI 222 – Folded Dipole Antenna 222 MHz
The FDAI 222 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 222 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 215 MHz and 246 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).
| Usable Frequency Range: | 215 – 246 MHz |
| Nominal Impedance: | 50 Ω |
| Standing Wave Ratio SWR typical: | < 2 |
| Max. Input Power: | 50 W |
| Symmetrical Terminals: | M4 |
| Length: | 89 mm |
| Width: | 240 mm |
| Height: | 140 mm |
| Weight: | 0.9 kg |
| Recommended Accessories: | NMHB 4MM |
| FDAI Spacer 50 | |
| CCA FDAI |

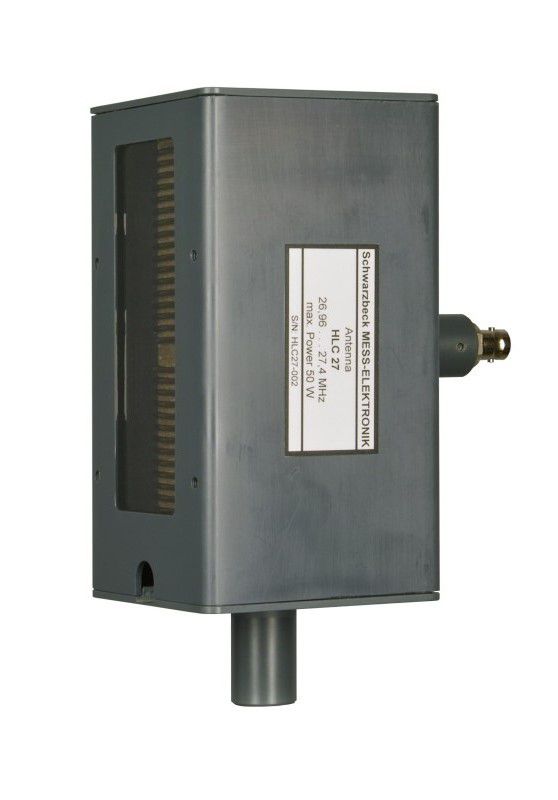

HLC 27
The HLC 27 is a compact dipole antenna for automotive immunity testing, embedded in a plastic housing.
| Frequency Range: | 26.96…27.4 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type BNC female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 145 mm |
| Weight: | 585 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |

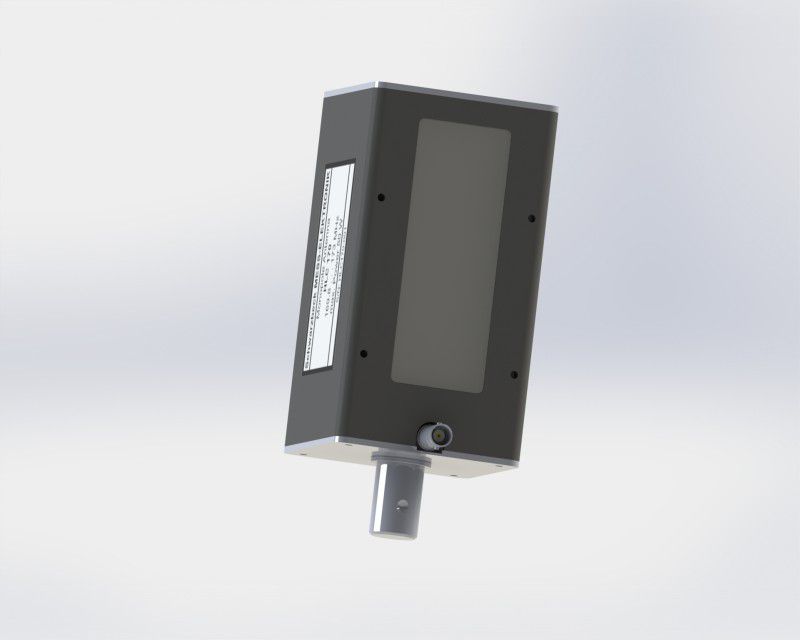

HLC 146
The antenna HLC 146 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.
The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.
| Frequency Range: | 144…148 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type BNC female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 145 mm |
| Weight: | 310 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |

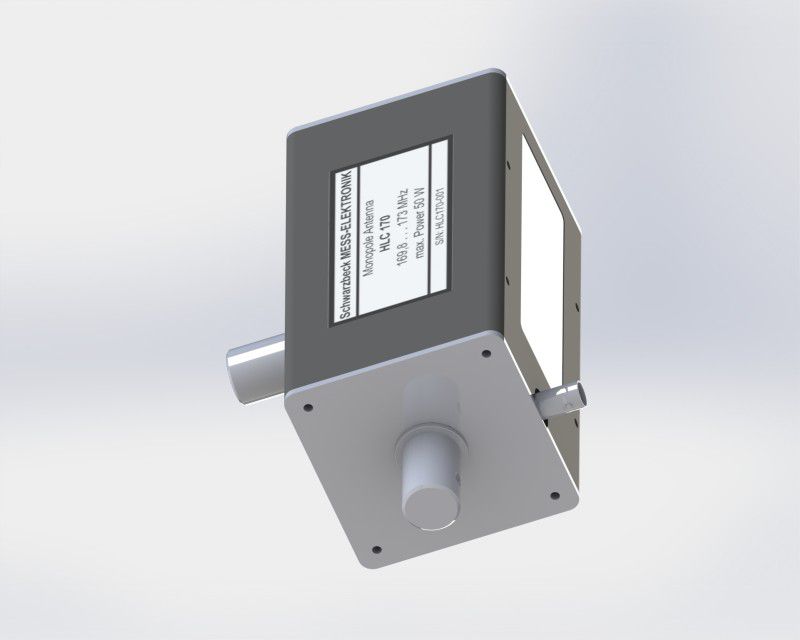

HLC 170
The antenna HLC 170 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.
The antenna construction stems from IETR Institute d’Electronique et de Telecommunica- tions de Rennes. It was modified for ISO 11452-9.
| Frequency Range: | 169.8…173 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type BNC female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 145 mm |
| Weight: | 310 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |
FAN 405
The antenna FAN 405 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.
The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.
| Frequency Range: | 380…430 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type BNC female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 145 mm |
| Weight: | 310 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |
FAN 450
The antenna FAN 450 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.
The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.
| Frequency Range: | 430…470 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type BNC female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 145 mm |
| Weight: | 310 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |

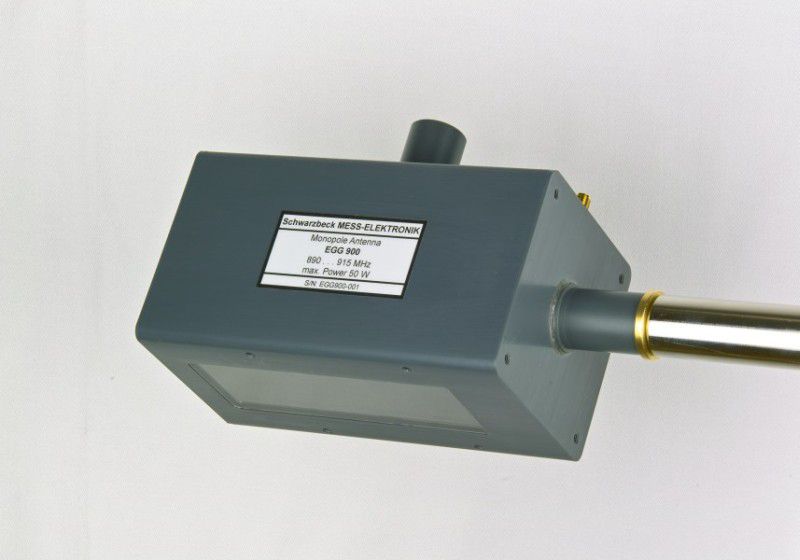

EGG 900
The antenna EGG 900 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.
The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.
| Frequency Range: | 890…915 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type SMA female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 150 mm |
| Weight: | 300 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |

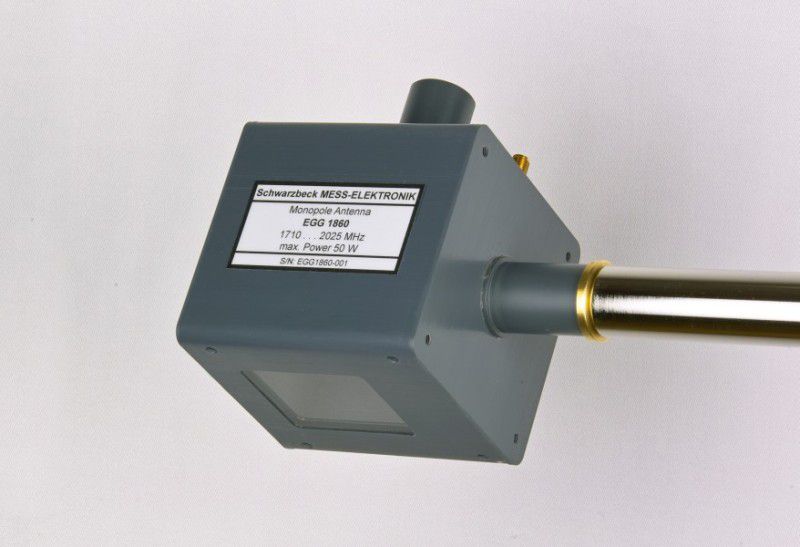

EGG 1860
The antenna EGG 1860 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.
The antenna construction stems from IETR Institute d’Electronique et de Telecommunications de Rennes.
| Frequency Range: | 1710…2025 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type SMA female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 85 mm |
| Weight: | 300 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |

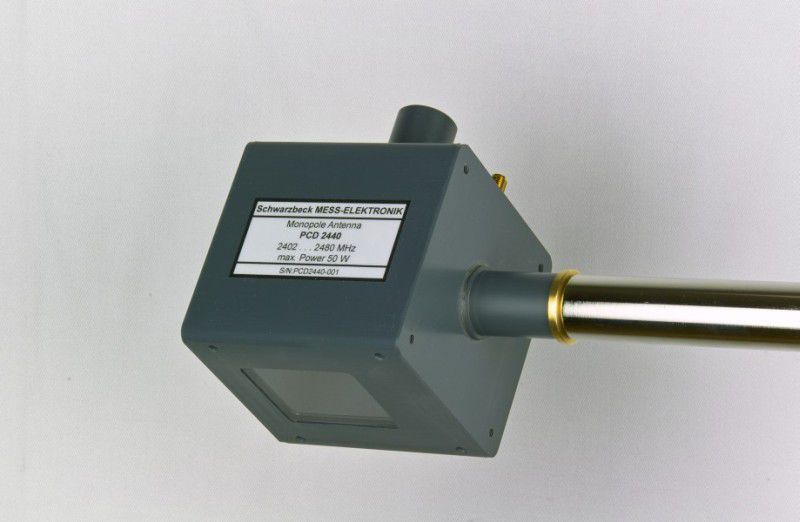

PCD 2440
The antenna PCD 2440 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level.
| Frequency Range: | 2402…2480 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 50 W |
| Connector: | Type SMA female |
| Impedance: | 50 Ohms nominal |
| Length: | 80 mm |
| Width: | 80 mm |
| Hight: | 85 mm |
| Weight: | 310 g |
| Mounting: | 22 mm diameter tube, L = 30 mm |
| 3/8″ |
WAND 0918
Wireless Immunity -Wand- Antenna acc. to Dell Specification -SYSTEM IMMUNITY TO WIRELESS GSM TEST REQUIREMENT.
Linear polarised handheld dipole with omnidirectional H-plane pattern for immunity tests agianst electromagnetic waves in the GSM frequency bands.
| Frequency Range: | 800 MHz – 2 GHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Max Power: | 20 W |
| Connector: | SMA |
| Impedance: | 50 Ohm nominell |
| Length: | 260 mm |
| Diameter: | 20 mm |
| Weight: | 145 g |

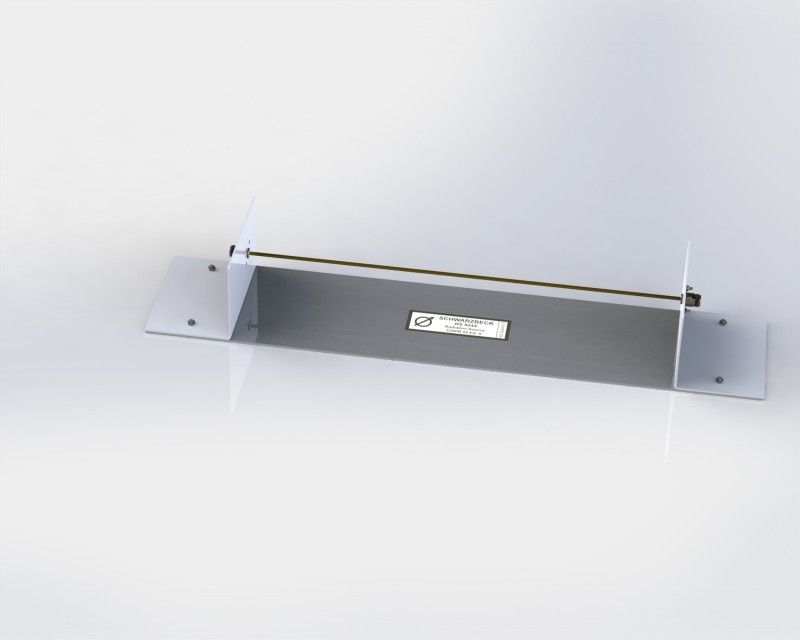

RS 9244
The radiation source RS 9244 complies to CISPR 25 Edition 4, which proposes the “Long Wire Antenna” and is used as reference source to evaluate the suitability of absorber lined shielded enclosures (ALSE) according to the ‘Long Wire Antenna method’.
VAMP 9243
The VAMP 9243 is a vertikal active rod antenna with reduced noise floor.
With mounting nut for AM 9144 and rechargeable battery
| Frequency Range: | 9 kHz – 30 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirektional |
| Connector: | BNC |
| Impedance: | 50 Ohm nominell |
| Dimensions Amplifier: | |
| Length: | 180 mm |
| Width: | 80 mm |
| Hight: | 40 mm |
| Length Rod: | 1 m |
| Weight: | 900 g |
| Mounting: | 1/4″, 3/8″ |
Option:
Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 m
Opt. ACS 410: Charger ACS 410
Opt. VT: 20 dB plug in divider to measure high field strength [Foto]
Opt. CA 9243: Calibration Adapter for VAMP9243 Opt. CA 9243
Opt. MIL461F bonding kit:
Bonding kit for VAMP 9243 acc. MIL-STD-461F consisting of a BNC cable double shielded ca. 70 cm, with braid current blocking ferrite in the center, elbow aluminium angle with BNC bulkhead adapter.
Opt. MIL 461F Bonding Kit
VPMP 9241
The vertical passive monopole consists of a flat alumium base plate and a milled aluminium housing, which has two N-connectors at the sides and an element clamping fixture on top. The element clamping fixture with a nominal diameter of 10 mm accepts the vertical rod of 0.5 m length, which is included in standard delivery. A typical application is the validation of ALSE (Absorber lined shielded enclosure) as proposed by CISPR 25 Ed. 4. An optional top loading disc (TLD 9241) is also available. Instead of the 0.5 m rod nearly all element types of the Schwarzbeck product range can be used, e.g. biconical elements BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, or collapsible elements FBAL 9177, FBAB 9178, or the telescopic elements of the VHA 9103.
Monopol acc. CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC)
| Frequency Range: | DC – 300 MHz |
| Polarisation: | linear |
| Pattern Type: | omnidirectional |
| Permissible Power: | 2 kW |
| Connector: | 2 x N |
| Impedance: | 50 Ohm nominell |
| Dimensions base plate: | 300 x 300 mm |
| Housing dimensions: | 80 x 80 x 35 mm |
| Length Rod: | 0.5 m |
| Weight: | 0.9 kg |
Option:
Opt. TLD 9241: Top loading disc for VPMP 9241 diameter < 12 cm.
Beehive-Electronics 100 Series EMC Probes
The EMC probe 100 series consists of three loop probes for magnetic fields and one stub probe for electric field.
Loop probes: 100A, 100B and 100C
Stub probes: 100D
