FMZB 1512 – Active Handheld Receive Loop Antenna

The FMZB 1512 is an active, shielded handheld loop antenna with nearly con- stant antenna factor over the entire frequency range. It can be used for testing according to CISPR, MIL, FCC, EN, ISO, ANSI, ETSI and many other standards.

It can be used for the frequency selective measurement of magnetic fields (or fictive electric field) in the frequency range from 9 kHz to 30 MHz.

The active loop antenna is especially suitable for mobile applications, for instance if used with a handheld spectrum analyzer. Combined with a CISPR 16 EMI-receiver the FMZB 1512 makes a convenient field strength measuring system with low noise and pulse measuring capabilities.

Datasheet

FMZB 1519 C – Active Receive Loop Antenna

Active, shielded Loop Antenna with nearly constant antenna factor over the entire frequency range (9 kHz – 30 MHz), battery driven to minimize disturbance influence from power line.

An overload indicator is activated if an incoming signal approaches or exceeds the 1 dB compression level.

Combined with a CISPR 16 EMI-receiver a convenient field strength measuring system with low noise and pulse measuring capabilities is composed. The robust, milled aluminum housing comes with camera threads to accept a handle or to be mounted on a tripod (e.g. AM 9144).

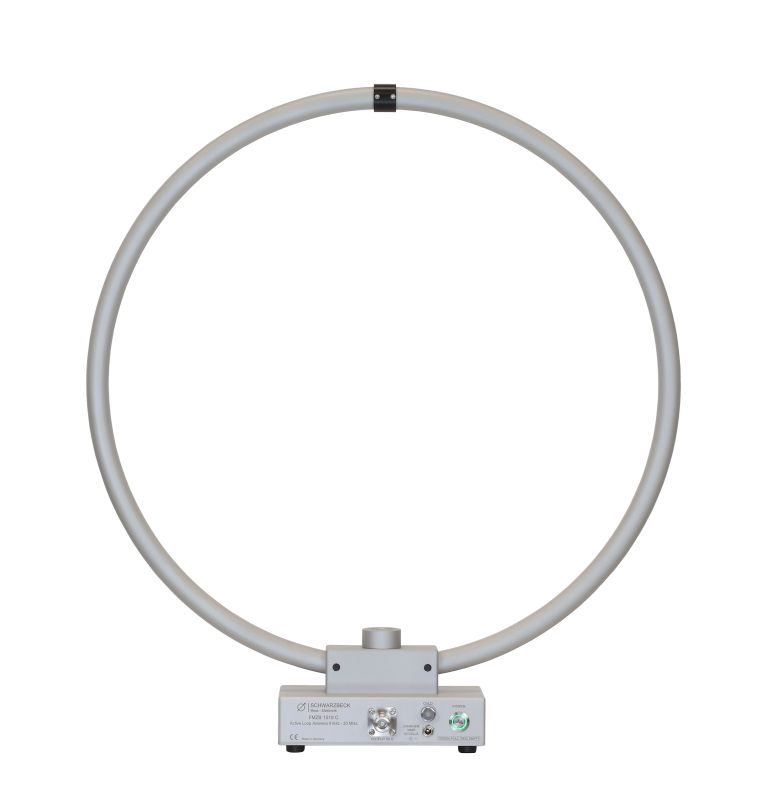

The FMZB 1519 C is equipped with 10 NiMH-Mignon cells. The Active Loop Antenna FMZB 1519 C can be used for the frequency selective measurement of magnetic fields (of fictious electric field) in the longwave, midwave and shortwave frequency ranges. It can be used for testing according to CISPR (e.g. 16-1-4), MIL, FCC, EN, ISO, ANSI, ETSI and many other standards.

Datasheet

FMZB 1519-60 C – Active Receive Loop Antenna

Active, shielded Loop Antenna with nearly constant antenna factor over the entire frequency range (9 kHz – 30 MHz), battery driven to minimize disturbance influence from power line.

An overload indicator is activated if an incoming signal approaches or exceeds the 1 dB compression level.

Combined with a CISPR 16 EMI-receiver a convenient field strength measuring system with low noise and pulse measuring capabilities is composed. The robust, milled aluminum housing comes with camera threads to accept a handle or to be mounted on a tripod (e.g. AM 9144).

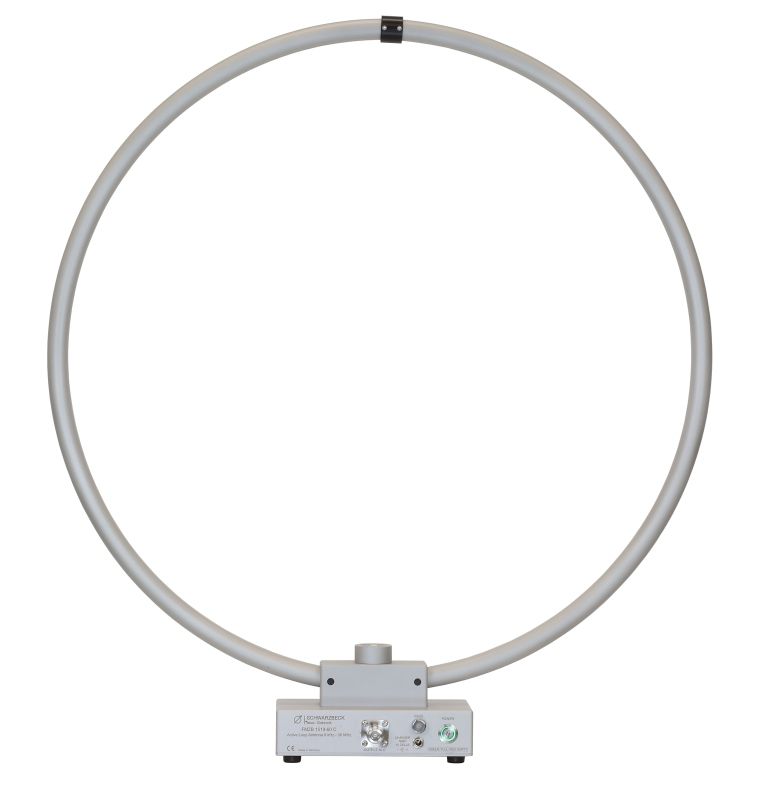

The FMZB 1519 C is equipped with 10 NiMH-Mignon cells. The Active Loop Antenna FMZB 1519 C can be used for the frequency selective measurement of magnetic fields (of fictious electric field) in the longwave, midwave and shortwave frequency ranges. It can be used for testing according to CISPR (e.g. 16-1-4), MIL, FCC, EN, ISO, ANSI, ETSI and many other standards.

Datasheet

FMZB 1525 – Active Handheld Receive Loop Antenna

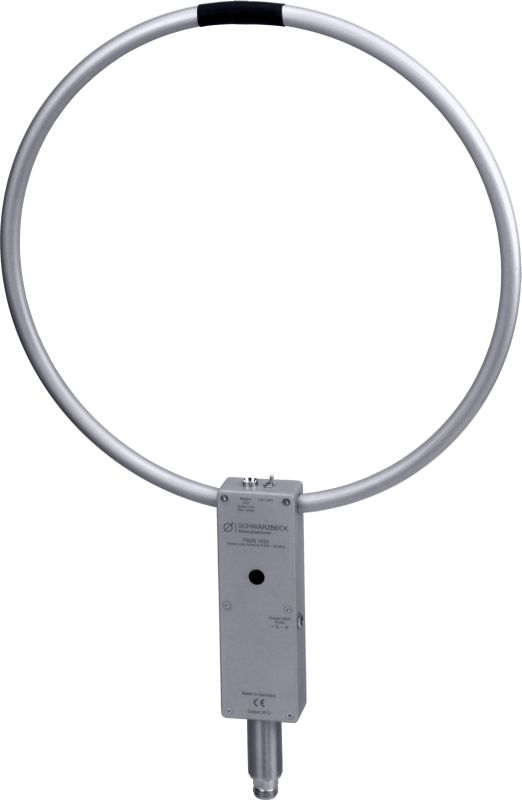

The FMZB 1525 is an active, shielded handheld loop antenna with nearly constant antenna factor over the entire frequency range. It can be used for testing according to CISPR, MIL, FCC, EN, ISO, ANSI, ETSI and many other standards.

It can be used for the frequency selective measurement of magnetic fields (or fictive electric field) in the frequency range from 9 kHz to 30 MHz.

The active loop antenna is especially suitable for mobile applications, for instance if used with a handheld spectrum analyzer. Combined with a CISPR 16 EMI-receiver the FMZB 1525 makes a convenient field strength measuring system with low noise and pulse measuring capabilities.

Datasheet

HFS 1546 – Active Magnetic Field Probe with shielded 50 mm Loop

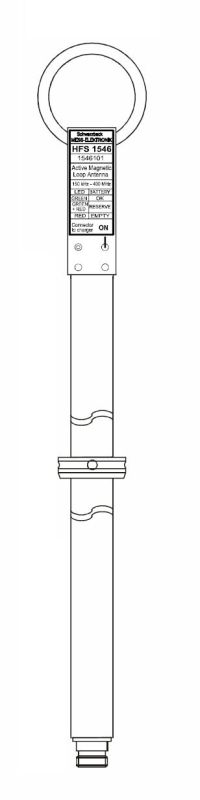

The HFS 1546 is an active H-field probe for the frequency range 150 kHz to 400 MHz. The small frame diameter of 50 mm enables frequency-selective measurements of low limits, such as for medical implants, up to a frequency of 400 MHz.
The built-in rechargeable battery allows mobile use for up to 10 h.

Datasheet

FSH3D – Isotropic 3-axial RX Loop Antenna

The FSH3D consists of three identical, shielded loop antennas, which are aligned perpendicularly to each other. A shielded unit follows, containing the switching and amplifier circuitry, which is directly connected to the N-male output and fed by the Binder-connector with power supply and logic signals to select the desired loop-axis. The pin assignment is ready for operation with the popular handheld spectrum analyzers FSH3/6 and FSH 4/8 from Rohde & Schwarz. A RF-transparent radome cover protects the FSH3D from dust and moisture. Because of its lightweight construction the FSH3D can be directly mounted to the spectrum analyzer. Alternatively the FSH3D can be held manually at its 50 mm shaft (sweeping method) or attached to a mast or tripod using the 22 mm tube (rotation method or raster method).

Datasheet
