Key Features:
Waveform Generation: Both models generate sine, square, and triangle/ramp waveforms with high precision.
Display: Equipped with a bright color LCD display featuring a waveform preview for easy setup and monitoring.
Sweep Modes: Support for linear and logarithmic sweep, ideal for frequency response analysis.
Modulation: Built-in AM/FM modulation capabilities for more advanced waveform generation tasks.
Duty Cycle Control: Adjustable duty cycle for custom waveform configurations.
Variable DC Offset: A continuously variable DC offset allows for precise signal biasing, with independent amplifiers that enable large offsets even with small signal amplitudes (e.g., 10 mV).
Triggering: Both models offer internal/external triggering, enhancing their functionality for gated and burst modes (4040B only).
Built-in Counter: Provides accurate frequency measurement directly from the instrument.
USB Interface: Includes a USB port with SCPI-compliant commands for remote control and data logging.
Protection: Short circuit and overvoltage protection ensure safe operation under various conditions.
Models:
| Product | Channels | Frequency Range | Special Features |
| 4014B | 1 | Up to 12 MHz | Linear/log sweep, AM/FM |

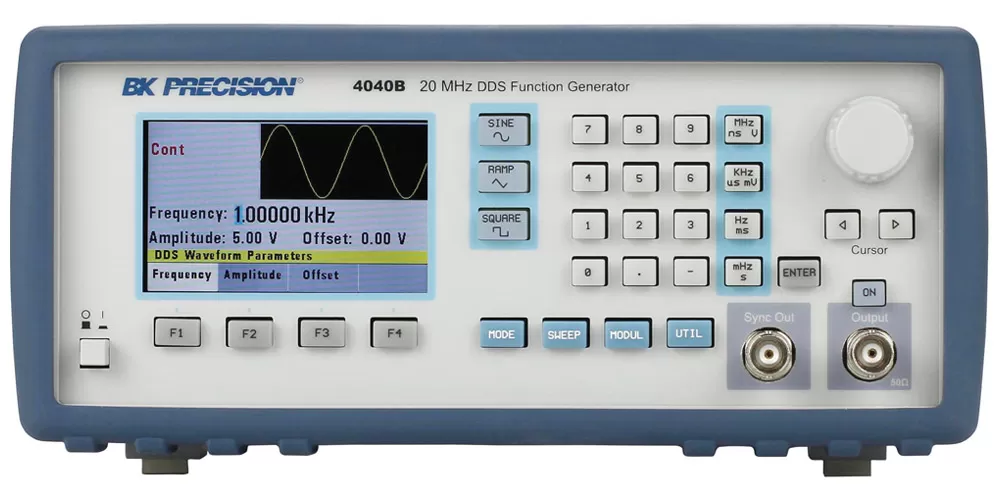

| 4040B | 1 | Up to 20 MHz | Gate/burst mode, AM/FM, built-in counter |
Applications:
Signal Generation: Ideal for generating test signals to simulate real-world electronic systems.
Frequency Response Testing: Linear and logarithmic sweeps allow for detailed frequency response characterization of electronic circuits and systems.
Modulation Studies: AM and FM modulation features make the instruments suitable for communication system design and testing.
Component Testing: Evaluate the performance of components such as filters, amplifiers, and sensors by injecting custom waveforms.
The 4014B and 4040B are highly flexible tools for engineers, technicians, and educators who require reliable and precise waveform generation. Their blend of DDS technology, modulation capabilities, and user-friendly design ensures that they meet the needs of a broad range of applications.
