Key Features:
Wide Voltage and Current Range: 0 to 500 V, 0 to 240 A for versatile testing.
Operating Modes: Supports CC (Constant Current), CV (Constant Voltage), CR (Constant Resistance), and CW (Constant Power) modes for diverse applications.
High-Speed Transient Mode: Operates at up to 25 kHz for dynamic response testing.
High-Resolution Measurements: 16-bit resolution for accurate voltage and current readings.
List Mode Function: Allows for complex test sequences with various operating conditions.
Adjustable Slew Rate: Available in CC mode for controlling the rate of current changes.
Battery Test Function: Includes stop conditions based on voltage, capacity, and timer.
CR-LED Mode: Simulates LED loading behavior for testing LED drivers.
Remote Voltage Sensing: Compensates for voltage drops in cables, ensuring accurate measurements.
Analog Current Control and Monitoring: Provides precise control and real-time feedback of the load current.
Communication Interfaces: Standard USB (USBTMC-compliant) and RS232 interfaces are included, with optional GPIB available on select models.
Protection Features: Includes OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), and local/remote reverse voltage protection.
Applications:
Power Supply Testing: Evaluate the performance and reliability of DC power supplies under various load conditions.
Battery Testing: Use built-in battery test functions for charge and discharge analysis of batteries.
DC-DC Converter Testing: Verify the efficiency and stability of DC-DC converters.
Photovoltaic Array Testing: Simulate and measure the performance of solar panels under different load conditions.
LED Driver Testing: Utilize CR-LED mode to test LED drivers and replicate real-world LED load characteristics.
Technical Specifications:
| Model | Max Voltage | Max Current | Max Power | Type | Interface |

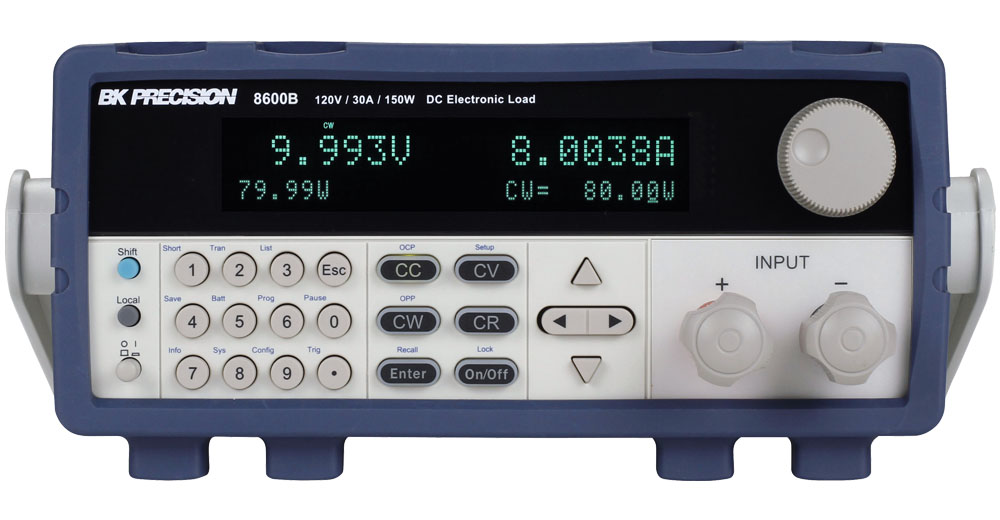

| 8600B | 120 V | 30 A | 150 W | 1 | USB, RS232 |
| 8600 | 120 V | 30 A | 150 W | 1 | USB, RS232, GPIB |
| 8601B | 120 V | 60 A | 250 W | 1 | USB, RS232 |
| 8602B | 500 V | 15 A | 200 W | 1 | USB, RS232 |
| 8601 | 120 V | 60 A | 250 W | 1 | USB, RS232, GPIB |
| 8602 | 500 V | 15 A | 200 W | 1 | USB, RS232, GPIB |
| 8610B | 120 V | 120 A | 750 W | 1 | USB, RS232 |
| 8610 | 120 V | 120 A | 750 W | 1 | USB, RS232, GPIB |
| 8612B | 500 V | 30 A | 750 W | 1 | USB, RS232 |
| 8612 | 500 V | 30 A | 750 W | 1 | USB, RS232, GPIB |
| 8614B | 120 V | 240 A | 1500 W | 1 | USB, RS232 |
| 8614 | 120 V | 240 A | 1500 W | 1 | USB, RS232, GPIB |
| 8616 | 500 V | 60 A | 1200 W | 1 | USB, RS232, GPIB |
| 8620 | 120 V | 480 A | 3000 W | 1 | USB, RS232, GPIB |
| 8622 | 500 V | 100 A | 2500 W | 1 | USB, RS232, GPIB |
| 8625 | 120 V | 720 A | 6000 W | 1 | USB, RS232, GPIB |
