Key Applications:
Power Systems Analysis: With dedicated power analysis software, the 8460 is perfect for analyzing single-phase and three-phase power networks, measuring voltage, current, and power parameters across channels.
Electrical Testing & Monitoring: Capable of measuring up to 1000 VAC, it’s suitable for high-voltage environments such as electrical substations, industrial equipment, and grid monitoring.
Field Testing & Portable Data Acquisition: The system is designed for on-site testing with its built-in printer and large touchscreen display, allowing users to log data directly on-site.
Industrial Process Monitoring: Ideal for monitoring critical processes in manufacturing, automation, and energy systems. Its 72-channel capability allows for comprehensive monitoring and data logging.
Sensor Signal Logging: The universal and strain gauge input modules allow for accurate logging of various sensor signals, including temperature, pressure, and strain measurements.
Features & Benefits:
High-Speed Sampling: The system supports up to 1 MSa/s per channel (1 microsecond sampling rate), ensuring accurate capture of fast transients and rapidly changing signals.
Up to 72 Channels: The 8460 can be configured with up to 72 analog channels using multiplexed boards, offering flexibility for complex, multi-sensor applications.
Multiple Measurement Boards: Choose from 4 board types to match your specific application needs:
Universal Input: For general voltage and sensor measurements.
Multiplexed Input: For high channel count applications.
Strain Gauge: For precise strain and pressure measurements.
High Voltage: Capable of measuring up to 1000 VAC, ideal for power systems and high-voltage environments.
Built-in Thermal Printer: The 270 mm thermal printer allows you to create a permanent record of your data with a date and time stamp, supporting four printing modes:
Direct Mode: Prints data directly to paper.
Mixed Mode: Prints while saving data to internal memory.
External Control Mode: Starts/stops printing using a logic signal.
Transcription Mode: Prints data previously stored in memory.
Large Data Storage: The system comes with a 500 GB solid-state drive (SSD) for long-term data recording, with an option to upgrade to 2 TB for even more storage.
Temperature Measurement: Supports thermocouples and Pt100, Pt200, Pt500, Pt1000 sensors, making it suitable for temperature monitoring in industrial processes.
Advanced Timing Options: Includes GPS and IRIG timing options, ensuring precise synchronization in time-critical applications.
High Resolution: Features 16-bit resolution for multiplexed and strain gauge boards, and 14-bit resolution for universal and high voltage boards, delivering high precision.
Logic Input Channels: Includes 16 logic input channels, useful for integrating with digital systems.
CAT III and CAT IV Rated: Safety rated CAT III 1000 V and CAT IV 600 V, making it suitable for challenging electrical environments.
User-Friendly Interface: The system features a 15.4-inch wide TFT touchscreen for easy setup, monitoring, and control. Measurements can be viewed graphically and numerically.
Connectivity Options: USB host, LAN, and free software are provided for data transfer, remote control, and analysis.
Free Software & Remote Control:
Software for Analysis: B&K Precision provides free software for controlling the 8460 remotely, transferring data, and analyzing results on a PC.
LAN Connectivity: The built-in LAN interface enables easy remote access and control for off-site monitoring or data retrieval.
Technical Specifications:
Sampling Rate: Up to 1 MSa/s per channel
Channel Capacity: Up to 72 analog channels (with multiplexed boards)
Memory: 500 GB SSD (optional upgrade to 2 TB)
Voltage Range: Measure up to 1000 VAC with the high voltage board
Resolution: 16-bit resolution for multiplexed and strain gauge boards, 14-bit for universal and high voltage boards
Measurement Types: Voltage, temperature (thermocouples and RTDs), strain, and more
Printer: 270 mm thermal printer with four operating modes
Input Channels: 16 logic input channels
Power Options: AC/DC input, internal battery option available
Models:

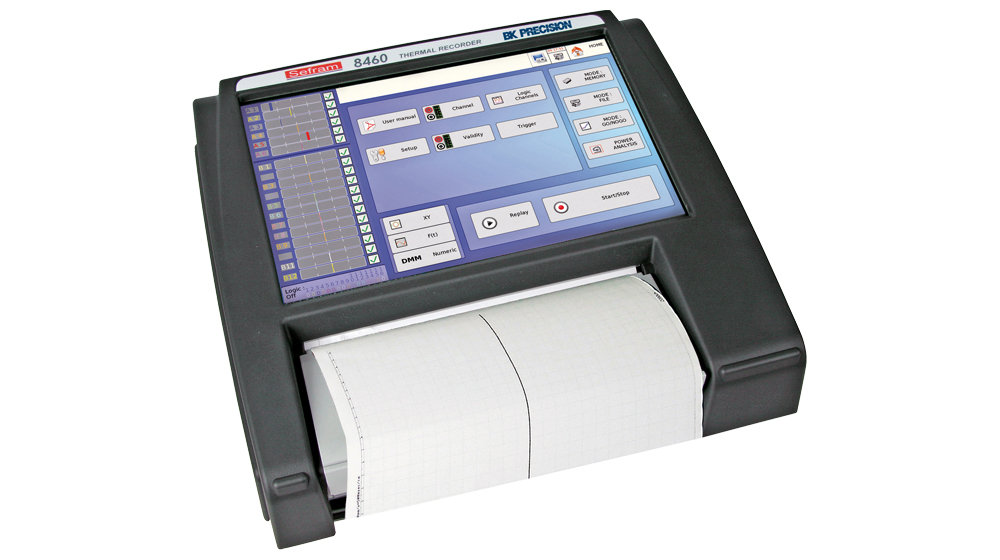

DAS8460: High-speed data acquisition system with built-in thermal printer.
This powerful system is ideal for engineers and technicians who require fast, reliable data acquisition with the added benefit of on-the-spot printing for immediate analysis and documentation.
