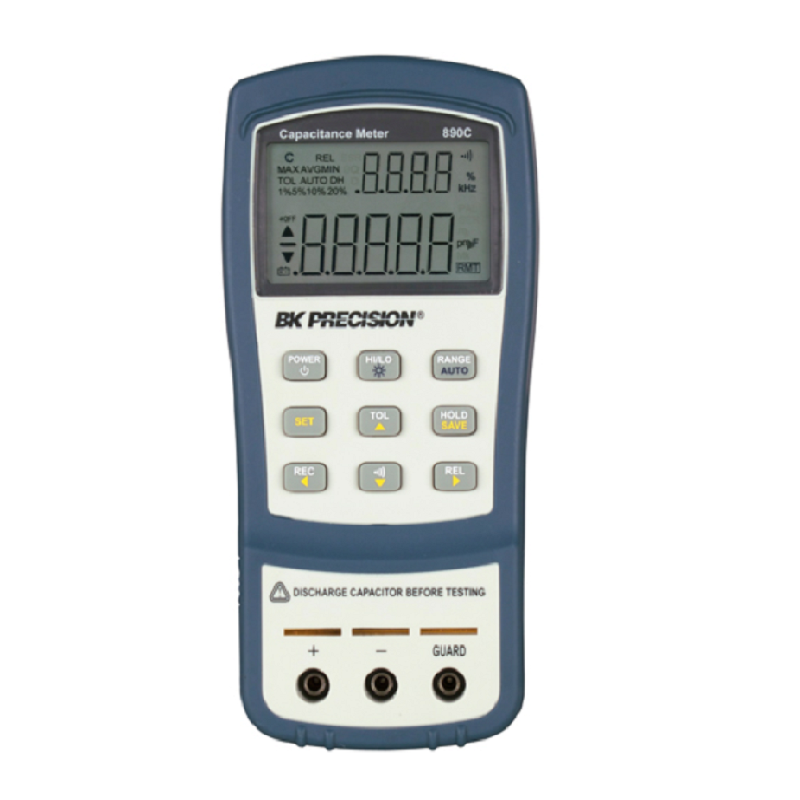

830C & 890C Dual Display Capacitance Meters

The 830C and 890C are handheld, 11,000-count capacitance meters designed to measure capacitance up to 200 mF (for the 830C) and 50 mF (for the 890C). With their straightforward operation and fast measurements, these meters simplify the capacitance sorting process, offering high accuracy and convenience for component testing and troubleshooting.

Unlike typical handheld LCR meters that use an AC signal for testing, the 830C and 890C utilize a constant current to charge and discharge capacitors, making the measurement process efficient. They include features like compare mode, which supports 25 sets of High/Low limits, allowing users to easily sort capacitors without needing to reset the meter for each test.

Key Features:

Basic Accuracy: 0.5%, ensuring precise measurements.
Capacitance Range:
830C: Measures up to 200 mF.
890C: Measures up to 50 mF.
Bright Backlit LCD Display: Ensures visibility in various environments.
Fast Auto Range Design: For rapid and simple component measurements.
USB (Virtual COM) Interface: Allows for remote communication.
SCPI Compliant Commands: For integration with automated test systems.
Software for Data Logging: Available for free download, allowing front panel emulation and data recording.
Compare Mode: With 25 sets of limits for easy sorting without resetting the meter each time.
Hold/Min/Max Average Recording, Tolerance, and Relative Mode: Provide additional tools for component troubleshooting.

Applications:

Capacitive Component Troubleshooting: Quickly diagnose faulty capacitors.
Electronic Assembly: Ideal for testing and sorting capacitors in manufacturing processes.
Component Sorting: Efficient sorting of capacitors by capacitance value.
Quality Control: Ensure components meet required specifications in production.

Ordering Information:

Model 830C: Includes a 120 V AC adapter as a standard accessory. Optionally, a 230 V AC adapter can be supplied with model 830C EXD.
Model 890C: AC adapters are available as optional accessories.
