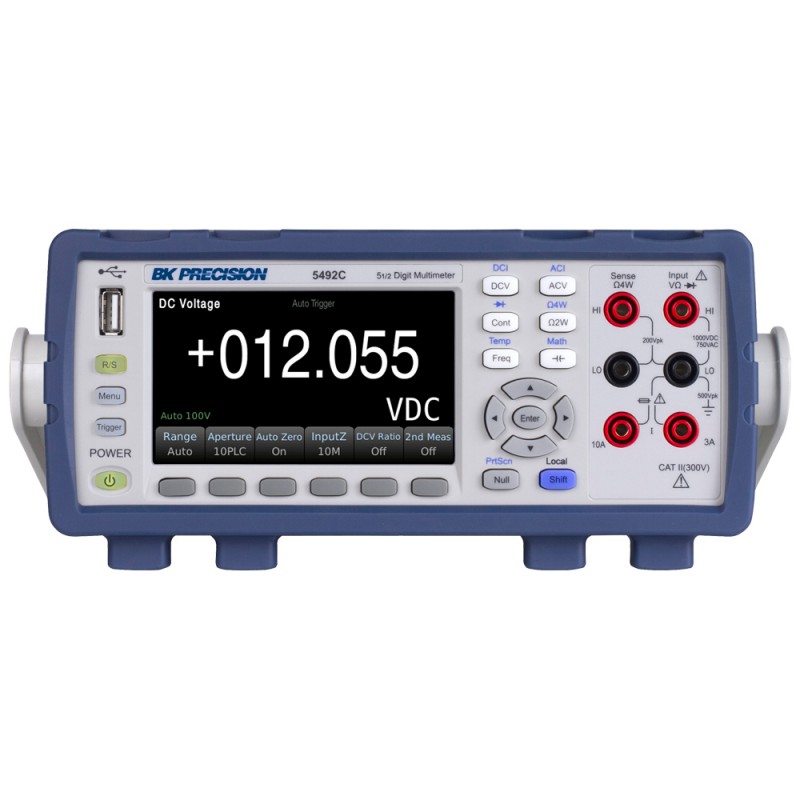

5490C Series 5½ and 6½-Digit Benchtop Multimeters

The 5490C Series of bench multimeters offers high accuracy, repeatability, and ease of use, making them suitable for demanding applications in engineering, production, and service environments. These multimeters deliver fast and accurate measurement results, with a wide measurement range and speeds up to 1000 readings per second. The series is designed with 5½ and 6½-digit resolution and provides a basic DCV accuracy up to 35 ppm (0.0035%) for stable and reliable measurements.

The 5490C Series meters come equipped with a 4.3-inch full-color LCD that offers various display modes, including numeric, bar meter, trend chart, and histogram. These intuitive display options, along with built-in math functions, statistics, and dual measurement capabilities, provide users with a comprehensive tool for capturing and analyzing data efficiently.

Key Features:

12 measurement functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire resistance, capacitance, frequency, diode, temperature, continuity test, DCV ratio.
High-contrast 4.3-inch color LCD with multiple display modes.
Measurement speed of up to 1000 readings per second.
Basic DCV accuracy up to 35 ppm (0.0035%).
Advanced display options: histogram, bar graph, trend chart, and numeric.
Built-in math functions: Null, dB, dBm, %, mx+b, run/stop, Min, Max, Peak-to-Peak, Average, Standard Deviation.
AC frequency measurements up to 1 MHz.
Internal storage buffer for up to 10,000 readings.
2-wire and 4-wire resistance measurements down to 10 Ω.
Dual measurement display and rear input terminals for rack use (6½-digit model only).
Standard USB (USBTMC-compliant), LAN, and RS232 interfaces, with GPIB option.
Front panel USB host port for exporting measurements, screen captures, and settings.
LabVIEW driver and operating software for remote control, data logging, and measurement monitoring.

Models:

5492C – 200,000 display count, Auto-ranging, True RMS, LAN, GPIB, RS232, USB.
5493C – 2,000,000 display count, Auto-ranging, True RMS, LAN, RS232, USB (GPIB optional).
