Key Features and Benefits:
Dual Channels:
Two independent channels with dedicated ON/OFF buttons for each.
Frequency Range:
Generate waveforms up to 30 MHz (4078C) or 50 MHz (4079C).
High Sampling Rate:
Up to 250 MSa/s sampling rate ensures high-fidelity waveforms.
Waveform Resolution:
16-bit amplitude resolution for highly accurate signal generation.
Waveform Length:
Generate arbitrary waveforms with up to 4 million points per channel.
Modulation Capabilities:
Support for AM, FM, PM, BPSK, and FSK modulation techniques.
Flexible Modes:
Operate in continuous, triggered, burst, and gated modes.
Advanced Sweep Functions:
Linear and logarithmic sweep for frequency variation.
DC Offset Control:
Adjustable DC offset of ± 5 V to bias the output signal at the desired level.
Low Jitter:
Less than 25 ps jitter ensures clean signal transitions.
User-Friendly Interface:
4.3-inch color LCD display with intuitive controls.
Internal Memory:
Store and recall instrument setups easily.
Connectivity:
Equipped with USB (USBTMC-compliant) and LAN interfaces as standard for remote control and data transfer.
Overload Protection:
Protects outputs from damage in case of excessive load.
Safety Certification:
cTUVus marks certify compliance with CSA and UL safety standards.
Applications:
Signal generation for electronic testing and simulation
Research and development
Telecommunications
Sensor simulation and testing
Modulation and waveform analysis
Educational and lab environments
Available Models:

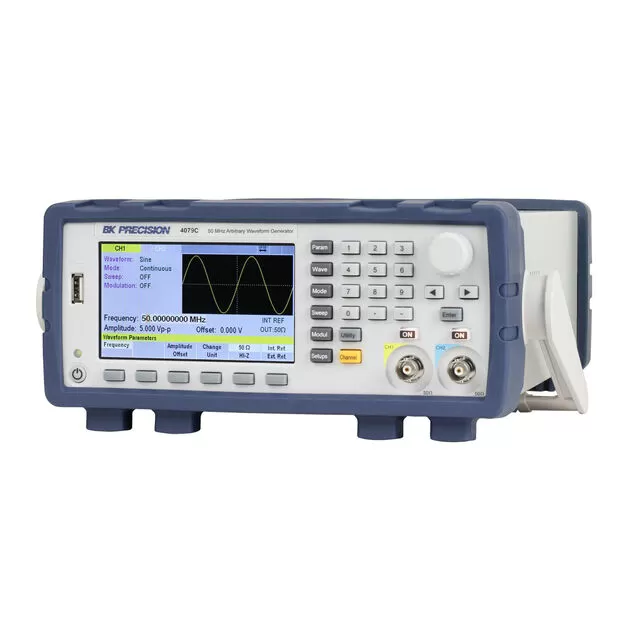

4078C: 30 MHz Dual Channel Function/Arbitrary Waveform Generator
4079C: 50 MHz Dual Channel Function/Arbitrary Waveform Generator
4079C-GPIB: 50 MHz Dual Channel Function/Arbitrary Waveform Generator with GPIB connectivity
