Key Features and Benefits:
Waveform Generation:
Capable of generating sine, square, triangle, pulse, and arbitrary waveforms.
14-bit, 150 MSa/s arbitrary waveform generator with up to 16k points per waveform.
Dual Channel Operation:
Two independent channels with individual output On/Off buttons.
Channel copy, track, and combine functions for enhanced flexibility.
Synchronize the phase of both channels with one button for coordinated signal generation.
Advanced Modulation and Triggering:
Supports AM, DSB-AM, ASK, FM, FSK, PM, PSK, and PWM modulation types.
Variable DC offset and adjustable duty cycle for precise signal control.
Internal/external triggering, gate, and burst modes for complex signal generation.
Additional Features:
Low-jitter square wave generation for clock signal simulation, triggers, or serial data validation.
Built-in harmonics generator for harmonic analysis and testing.
196 predefined arbitrary waveforms for quick setup.
Built-in frequency counter for additional measurement capability.
Short circuit output protection for safe operation.
Connectivity:
LAN, USB device port (USBTMC-compliant), and front panel USB host port.
Optional GPIB connectivity using the USB-to-GPIB adapter.
PC software for editing arbitrary waveforms and remote control.
Applications:
Signal simulation and testing in R&D, telecommunications, and educational environments
Clock signal generation and validation for digital circuits and serial buses
Modulation analysis and research
Testing and troubleshooting of electronics and systems with arbitrary and standard waveforms
Available Models:
4053B: 10 MHz Dual Channel Function/Arbitrary Waveform Generator
4054B: 30 MHz Dual Channel Function/Arbitrary Waveform Generator

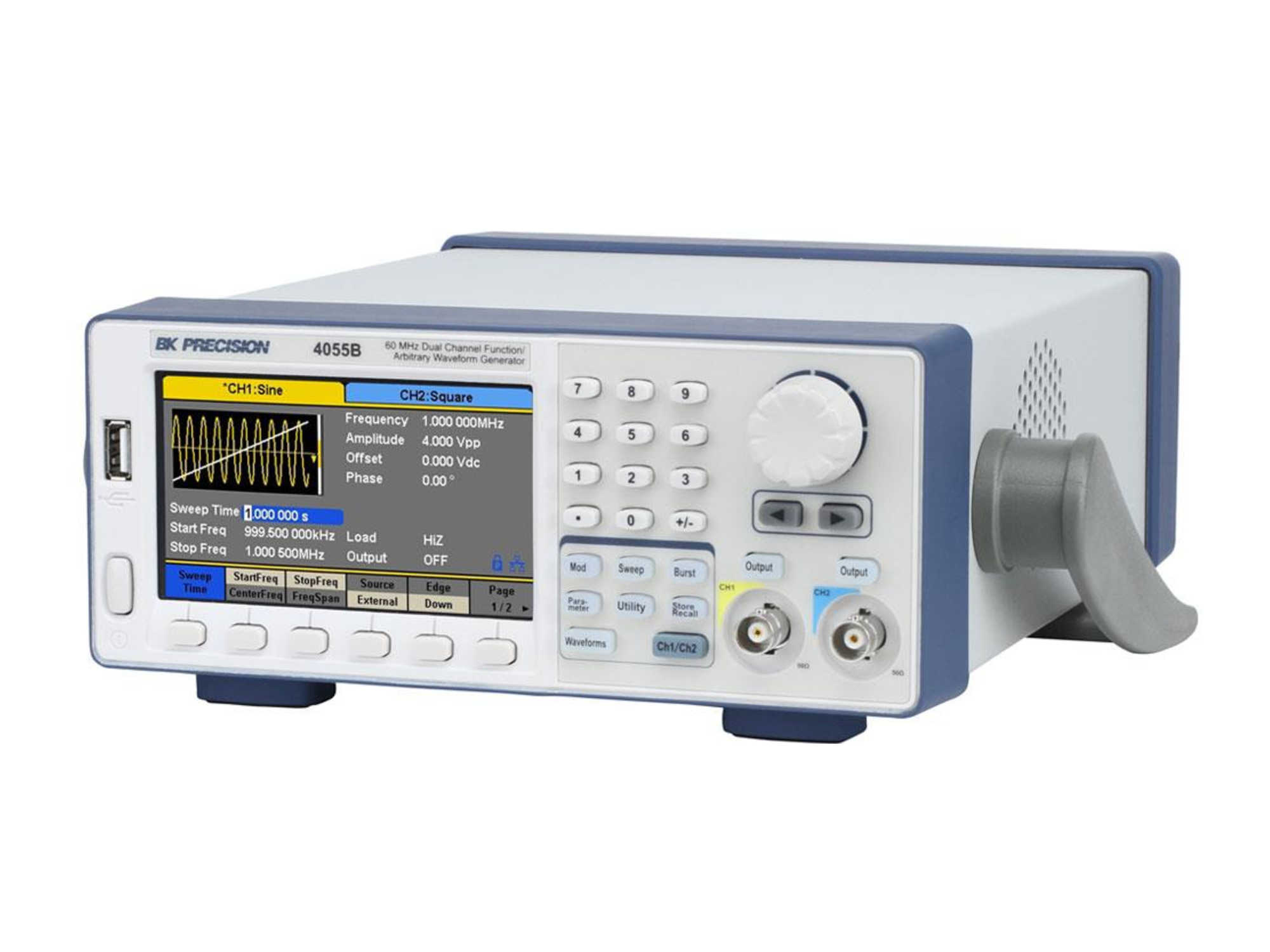

4055B: 60 MHz Dual Channel Function/Arbitrary Waveform Generator
The 4050B Series provides a powerful and flexible solution for waveform generation, offering a wide range of features to meet the needs of engineers, technicians, and educators in various applications.
