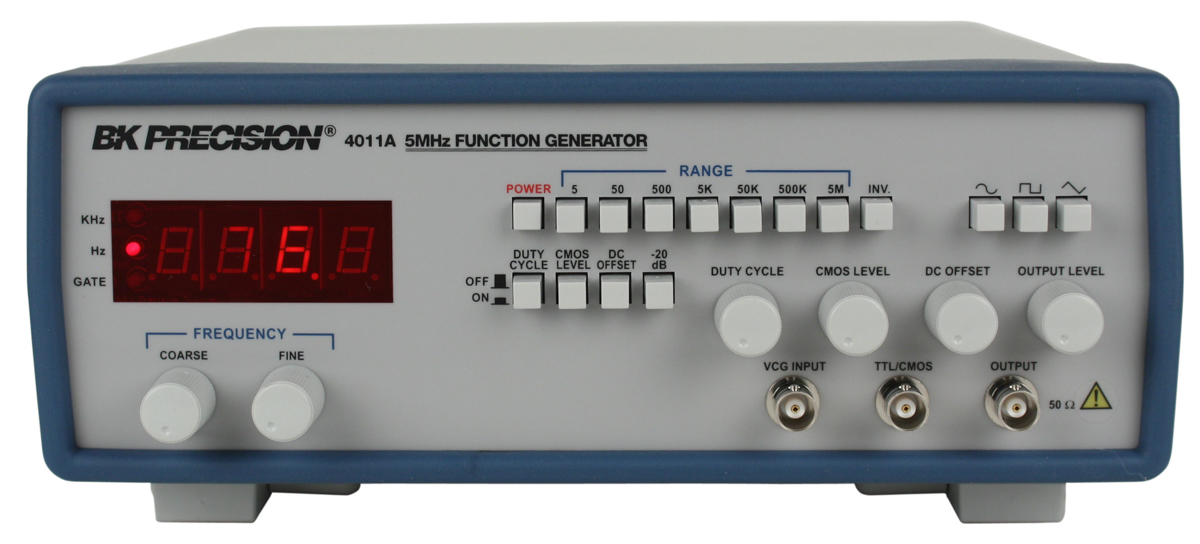

Model 4011A – 5 MHz Function Generator
The 4011A is a 5 MHz function generator that provides a broad frequency range from 0.5 Hz to 5 MHz, making it suitable for generating a wide range of signals. It supports multiple waveform outputs, including sine, square, triangle, pulse, and ramp signals. This function generator is ideal for basic signal generation tasks, offering fine control over the waveform properties.
Frequency Range: 0.5 Hz to 5 MHz
Waveforms: Sine, Square, Triangle, Pulse, Ramp
Amplitude: Variable amplitude output with a 20 dB attenuator
Output: 20 Vpp into open circuit (10 Vpp into 50 Ω)
Display: 4-digit LED display for precise frequency readings
Additional Features:
Coarse and fine tuning for frequency adjustment
Variable duty cycle for pulse width modulation
Variable DC offset to adjust signal bias

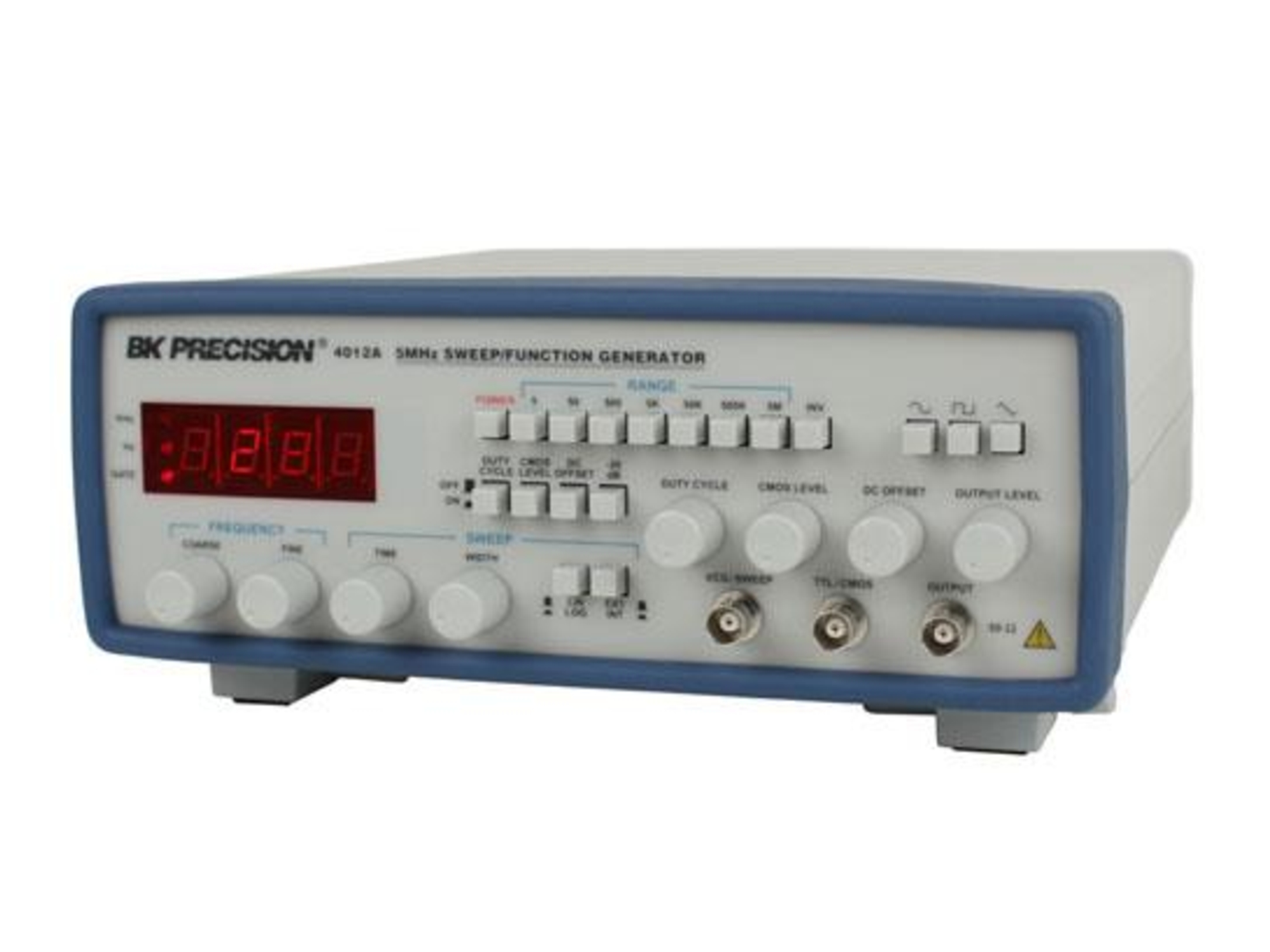

Model 4012A – 5 MHz Sweep Function Generator
The 4012A adds sweep functionality to the 4011A’s feature set, making it a more versatile tool for applications that require frequency sweeps. It supports both linear and logarithmic sweep modes, enabling users to analyze the frequency response of circuits or systems across a wide frequency range.
Frequency Range: 0.5 Hz to 5 MHz
Waveforms: Sine, Square, Triangle, Pulse, Ramp
Amplitude: Variable amplitude output with a 20 dB attenuator
Output: 20 Vpp into open circuit (10 Vpp into 50 Ω)
Display: 4-digit LED display
Sweep Function: Linear and logarithmic sweep modes
Additional Features:
Coarse and fine tuning for frequency adjustment
Variable duty cycle and DC offset

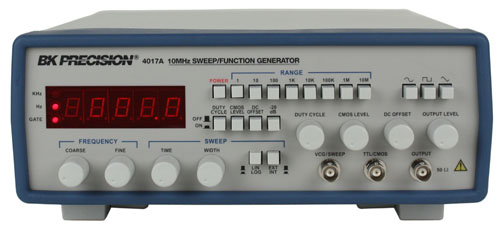

Model 4017A – 10 MHz Sweep Function Generator
The 4017A expands the frequency range to 10 MHz, offering more flexibility for applications that require higher frequency signals. Like the 4012A, it features linear and logarithmic sweep capabilities, making it suitable for a broader range of testing and analysis tasks.
Frequency Range: 0.1 Hz to 10 MHz
Waveforms: Sine, Square, Triangle, Pulse, Ramp
Amplitude: Variable amplitude output with a 20 dB attenuator
Output: 20 Vpp into open circuit (10 Vpp into 50 Ω)
Display: 5-digit LED display for increased precision
Sweep Function: Linear and logarithmic sweep modes
Additional Features:
Coarse and fine tuning for precise frequency control
Variable duty cycle and DC offset for advanced waveform control
Applications:
Signal generation for testing electronic components and circuits
Frequency response analysis using linear and logarithmic sweep modes
Pulse width modulation and DC biasing for waveform customization
General purpose signal simulation for research, development, and troubleshooting
The 4010A Series provides robust signal generation tools for a variety of professional and educational environments, ensuring accurate and reliable waveform outputs for a wide range of applications.
