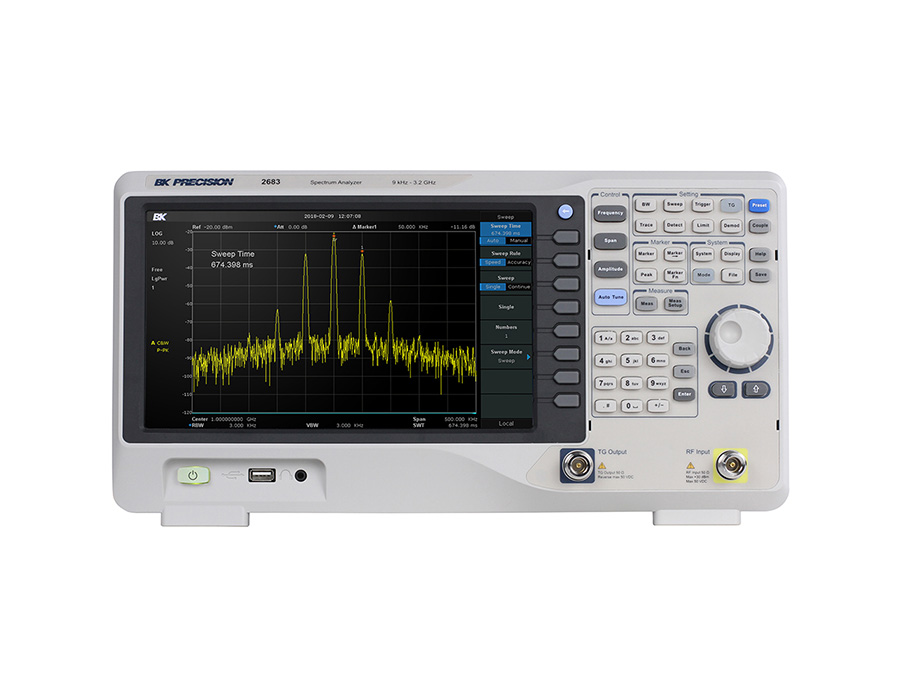

2680 Series Spectrum Analyzers

The 2680 series spectrum analyzers are designed to meet the needs of professionals in various fields, offering precise measurements, advanced features, and a user-friendly interface. The high sensitivity, low phase noise, and low level uncertainty ensure accurate and reliable results, making these analyzers an indispensable tool for any RF and EMI testing environment.

Models:

2682: 2.1 GHz Spectrum Analyzer
2683: 3.2 GHz Spectrum Analyzer

Key Features:

Frequency Range: 9 kHz to 2.1 GHz or 3.2 GHz
High Sensitivity: -161 dBm/Hz displayed average noise level (DANL)
Low Phase Noise: -98 dBc/Hz @ 10 kHz offset
Low Level Uncertainty: ±0.7 dB
Minimum RBW: 1 Hz
Standard Pre-Amplifier and Tracking Generator: Included with all models
Display: 10.1” widescreen 1024 x 600 color display
Connectivity: LAN and USBTMC
USB Host Port: Allows storage and recall of waveform data, setups, and screen captures

Advanced Features:

Reflection Measurement Option: Enables VSWR, reflection coefficient, and return loss measurements
EMI Pre-Compliance Option: Provides pre-defined bandwidth set points and quasi-peak detection

Applications:

2-Way Radio: Ideal for testing and characterizing radio communications
Site Surveying: Useful for analyzing signal strength and interference in various locations
EMI Pre-Compliance: Facilitates preliminary testing for electromagnetic interference standards
RF Devices: Suitable for characterizing the frequency response and other parameters of RF devices
