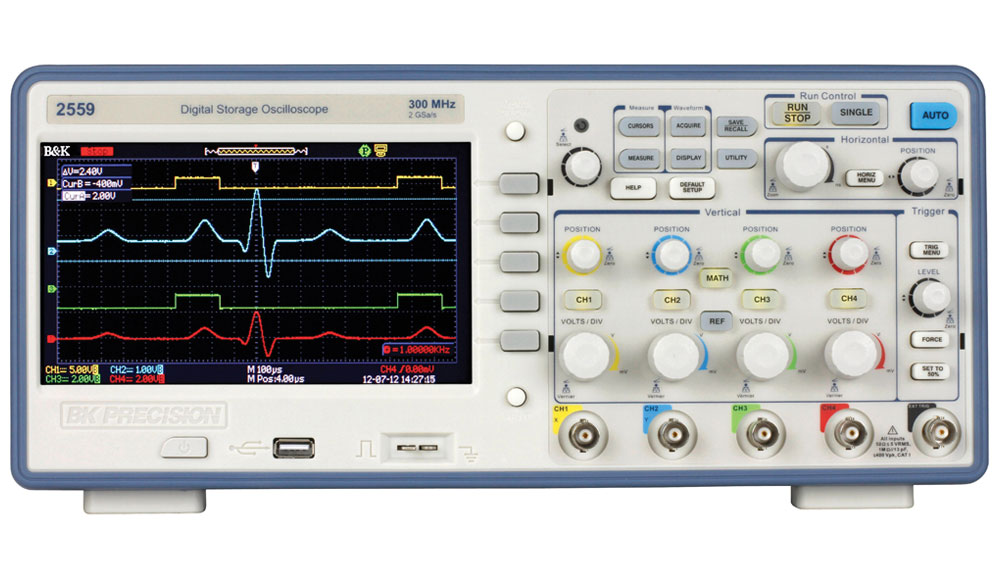

Key Features:
High Bandwidth: Up to 300 MHz for accurate signal capture.
Fast Sample Rate: 2 GSa/s sample rate for detailed waveform capture.
Multiple Channels: Choose between 2-channel or 4-channel models for simultaneous signal analysis.
Widescreen Display: A large 7″ TFT color display with 800 x 480 resolution provides more viewing space.
32 Automatic Measurements: Simplify data analysis with built-in measurements such as frequency, rise time, and more.
FFT and Additional Math Functions: Supports frequency-domain analysis and advanced waveform calculations.
50 Ω Input Coupling: Ensures compatibility with high-frequency signals.
Built-in Help System: Offers context-sensitive help for ease of use.
Remote Control via PC: Control and analyze waveforms using the included PC software.
USB Ports: Store data, setups, and screenshots easily via front and rear panel USB host ports.
LAN and USB Device Ports: Enables remote control via SCPI and USBTMC compliance.
Technical Specifications:
| Feature | Specification |
| Bandwidth | 70 MHz to 300 MHz |
| Sample Rate | 2 GSa/s |
| Memory Depth | 24 kpts per channel |
| Channels | 2 or 4 |
| Display | 7″ Widescreen TFT color display, 800 x 480 |
| Automatic Measurements | 32 automatic measurements |
| Math Functions | FFT and 4 additional math functions |
| Input Coupling | 50 Ω |
| USB Host Ports | Front and rear panel |
| Connectivity | LAN, USB device port (USBTMC compliant) |
| Triggering Capabilities | Pulse width, video, slope, alternating trigger |
Applications:
R&D and Circuit Design: Ideal for signal capture and analysis in research and product development.
Education: Provides essential features for teaching signal analysis and oscilloscope use in classrooms and labs.
Electronics Testing and Debugging: Offers multi-channel acquisition and automatic measurements for troubleshooting and evaluating circuit designs.
Manufacturing and Production Testing: Conduct quality control with advanced triggering and pass/fail analysis.
