Key Features:
100 MHz Bandwidth suitable for a wide range of signals.
4 Analog Channels allow simultaneous observation of multiple signals.
1 GSa/s Maximum Sample Rate ensures fast signal capture.
14 Mpts Memory Depth provides detailed waveform storage and playback.
7-inch TFT-LCD Display with 800 x 480 resolution, offering clear, detailed visuals.
Waveform Capture Rates up to 100,000 wfms/s (normal mode) and 400,000 wfms/s (sequence mode) for real-time analysis.
Versatile Triggering Capabilities: Includes pulse width, line-selectable video, and serial protocols for fine-tuned signal capture.
Segmented Acquisition: Stores up to 80,000 frames, ideal for analyzing repetitive signals over extended periods.
Serial Decoding: Supports I2C, SPI, UART, CAN, and LIN protocols for communication system analysis.
FFT Analysis: Performs frequency-domain analysis and supports 7 additional math operations for deeper insights into signal behavior.
Masking Tool with adjustable limits for pass/fail testing, simplifying production and quality control testing.
Additional Features:
USB Host Port: For storing waveforms, screenshots, and setups on USB drives.
LAN and USBTMC-Compliant Device Ports: For easy PC connectivity and remote control.
User-Friendly Interface: Simplifies operation with an intuitive layout and easy navigation.
Built-In Functions: Includes mask testing, math functions, and waveform analysis for comprehensive testing capabilities.
Applications:
Educational Labs: Perfect for teaching electronics and signal analysis with its easy-to-use interface and versatile functions.
Embedded Systems Development: Debug and analyze signals in embedded systems with serial decoding and triggering capabilities.
Circuit Design and Troubleshooting: Use the segmented acquisition and waveform capture features to troubleshoot and evaluate circuit performance.
Power Supply Testing: Analyze power signals and perform pass/fail testing with the masking tool and advanced math operations.
Automotive Electronics: Evaluate communication protocols like CAN and LIN for automotive applications, ensuring signal integrity and compliance.
Technical Specifications:
| Feature | Specification |
| Bandwidth | 100 MHz |
| Channels | 4 Analog Channels |
| Maximum Sample Rate | 1 GSa/s |
| Memory Depth | 14 Mpts |
| Display | 7” TFT-LCD, 800 x 480 resolution |
| Waveform Capture Rate | Up to 100,000 wfms/s (normal), 400,000 wfms/s (sequence) |
| Trigger Types | Pulse width, line-selectable video, serial |
| Serial Decoding | I2C, SPI, UART, CAN, LIN |
| FFT | Yes (plus 7 math functions) |
| Mask Testing | Yes |
| Segmented Acquisition | Up to 80,000 frames |
| Connectivity | LAN, USBTMC-compliant USB device port |
| USB Host Port | For waveform and setup storage |
Ideal for:
Educators and Students: Simplifies teaching of oscilloscope fundamentals and hands-on labs.
Engineers and Technicians: Analyze waveforms, evaluate performance, and troubleshoot complex systems.
R&D Professionals: Conduct advanced signal analysis in research and development environments.
Manufacturers: Perform pass/fail testing and quality control in production lines with ease.

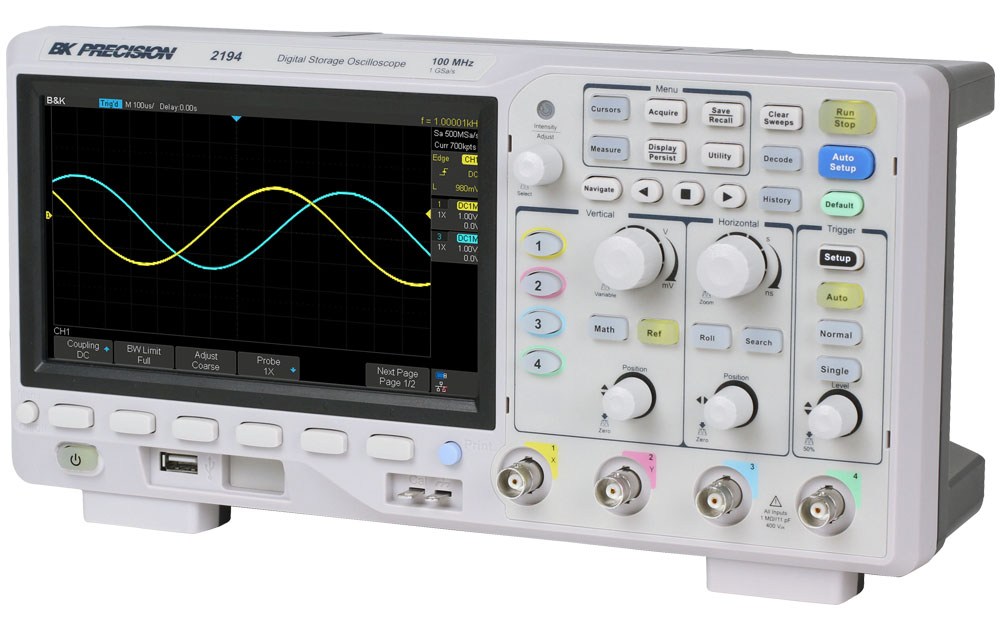

This combination of high-performance signal capture, powerful analysis tools, and affordability makes the 2194 oscilloscope a standout choice for a broad range of applications in education, research, and industry.
